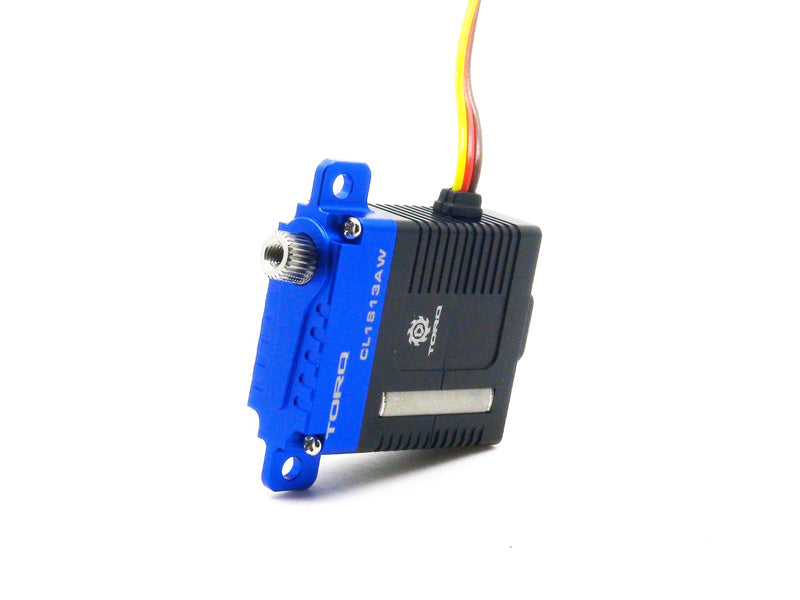

TORQ CL1813AW High Torque 12mm Digital Servo

Specifications: Rated Voltage: DC7.4VVoltage Range: DC6.0V-8.4VTorque: 16Kg.cm@6.0V / 18Kg.cm@7.4V / 20Kg.cm@8.4VSpeed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.12sec/60°@8.4VWorking Frequency:...
SKU: CL1813AW
Availability: In Stock
$79.00
$79.00
Holiday Sale | 10% OFF
Use code: DRCHLD10
TORQ CL1813AW High Torque 12mm Digital Servo - HeliDirect

TORQ CL1813AW High Torque 12mm Digital Servo

$79.00
TORQ CL1813AW High Torque 12mm Digital Servo - HeliDirect

TORQ CL1813AW High Torque 12mm Digital Servo

$79.00
Description

Specifications:

Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 16Kg.cm@6.0V / 18Kg.cm@7.4V / 20Kg.cm@8.4V
Speed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.12sec/60°@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±60° = 120° Total
Temperature Range: -10℃……+60℃
Soft Start: Yes
Programable: Yes
Case Material: Aluminum Alloy
Motor Type: 7 Phases Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Contactless(Magnetic Hall Sensor)
Ball Bearing: 2BB
Case Dimensions: 30mm*12mm*35.5mm
Weight: 32g

Package Included:

1 x TORQ CL1813AW Digital Servo
1 x TORQ Aluminum Arm
