Axial 1/30 SCX30 Ford Bronco 4X4 RTR Brushed Rock Crawler (Battery & Charger Included)

Instruction Manual

1/30 SCX30 Ford Bronco 4X4 RTR Brushed Rock Crawler (Battery & Charger Included), Blue Overview

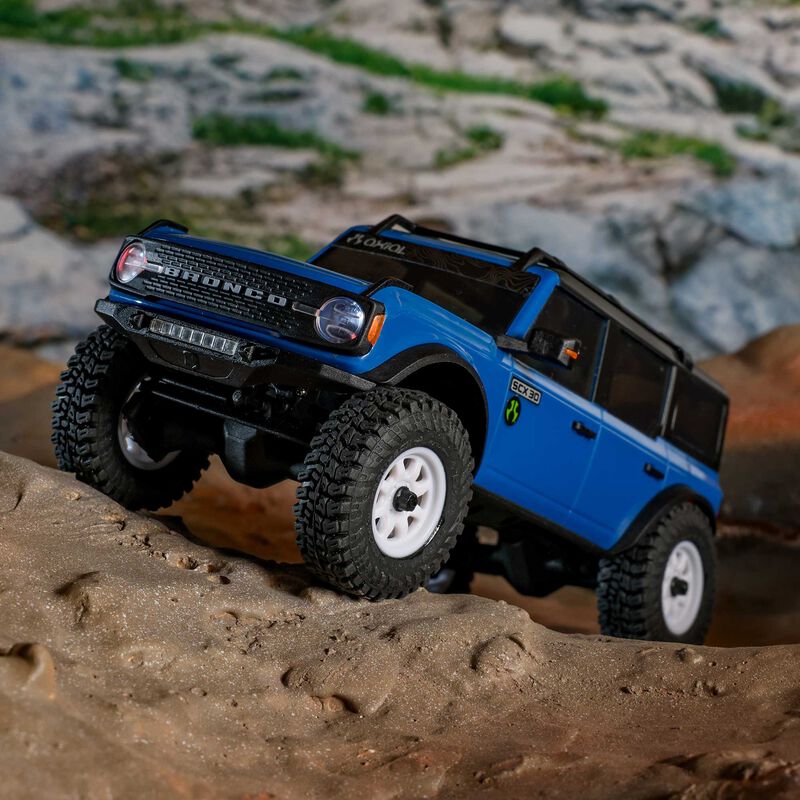

When developing the SCX30 RC crawler platform, the Axial team had two main goals in mind - to make it small and to make it high-performance. Consider both missions accomplished. At 1/30 scale, the Axial SCX30 Ford Bronco RTR is perfectly sized for crawling across your desktop or on outdoor dirt and rock trails. It also delivers oversized performance for a very affordable price, with features and capabilities you’d never expect from a sub-micro crawler.

For example, the SCX30 Ford Bronco includes an angled skid plate to let you slide easily over challenging obstacles. That’s a feature usually found only in competition crawlers. Ramped axle housings and high clearance links also help to avoid dragging and hangups. Performance on the rocks gets another boost from the climbing stability of the chassis’ forward weight bias. And there’s much more, from damped shocks, full ball bearings, and a powerful Axial 88T motor to dependable Spektrum electronics that are mounted low in the chassis for the best center of gravity.

Topping off that trail-ready engineering is a Ford Bronco ABS hard body that proves detailed scale realism can come in any size. An authentic recreation of the full-size truck, the body is complemented by front and rear LEDs and officially licensed Mickey Thompson Baja Boss tires on ICON Nuevo wheels. The soft compound tires with foam inserts provide all the traction needed for outdoor action on rocks and dirt or for crawling across a desktop, table, or cluttered floor. You can turn any space into your personal Rubicon trail!

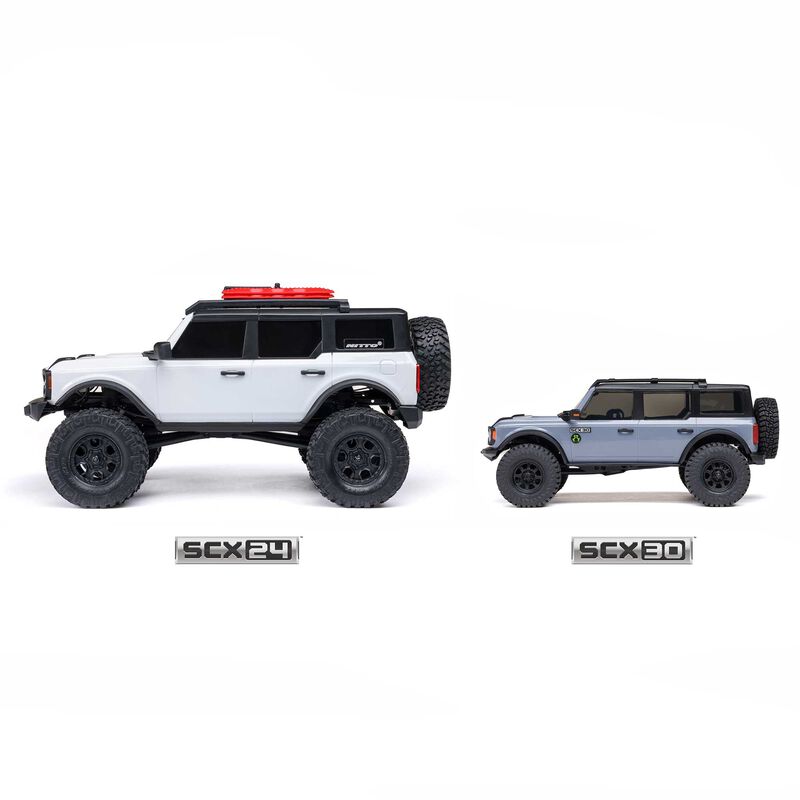

If you’re among the thousands of Axial SCX24 crawling fans, the SCX30 Ford Bronco RTR will no doubt be an essential addition to your collection. It offers all Axial enthusiasts an exciting and affordable new way to adventure. For newcomers to RC rock crawling, the simplicity and value of the complete, ready-to-run package makes the Bronco an ideal way to get started.

Break new trails, not the bank, with the small rock crawler that delivers big on performance - the Axial SCX30 Ford Bronco RTR.

• Axial SCX30 sub-micro crawling platform
• High-performance chassis with angled skid plate and forward weight bias

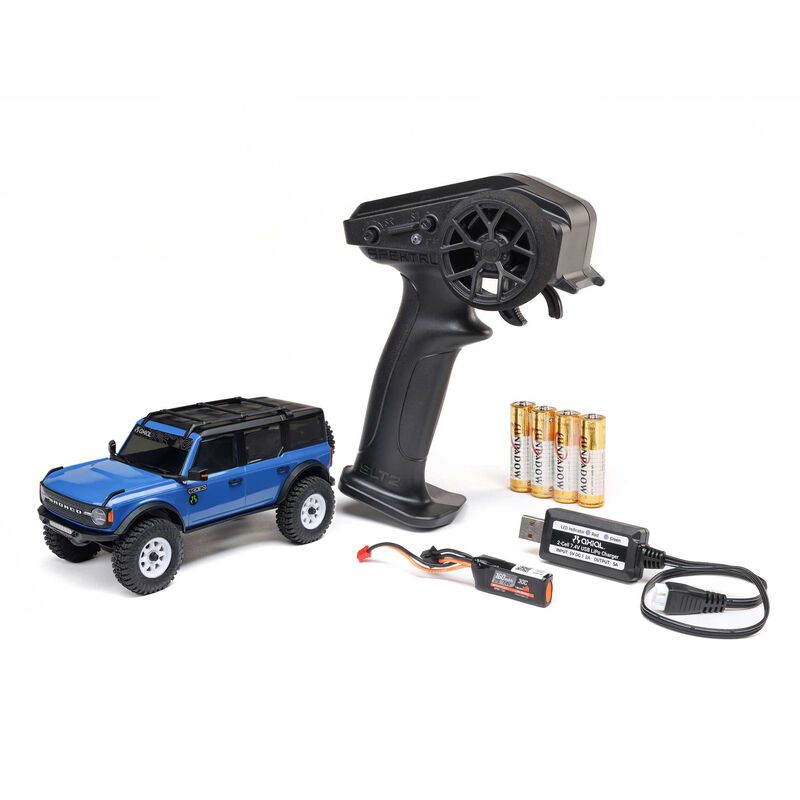

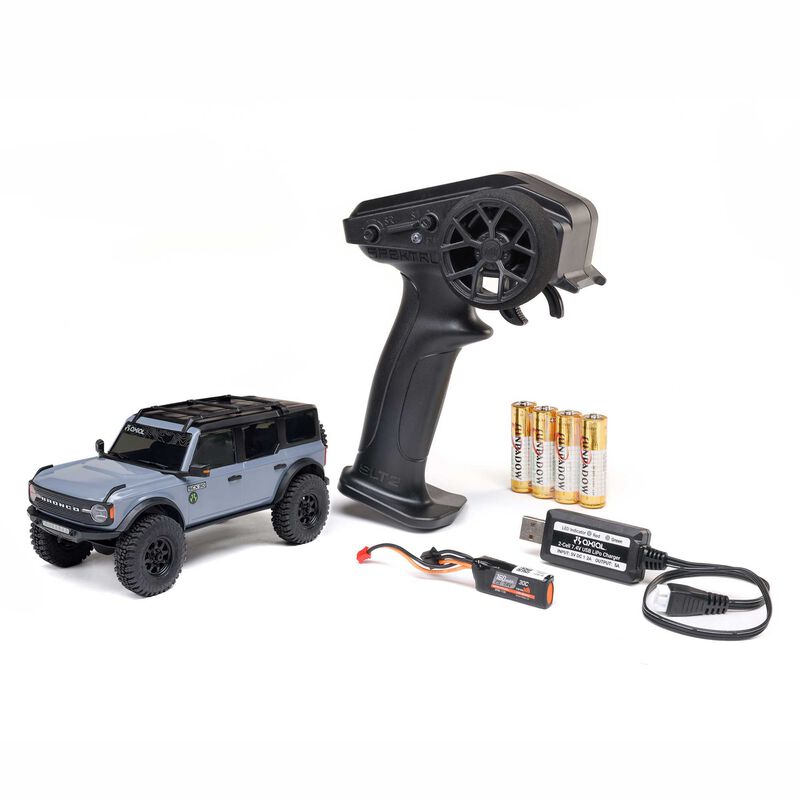

• Spektrum SLT2 2.4GHz radio, 2S LiPo battery, and USB-C charger
• Officially licensed Ford Bronco scale ABS hard body
• Ready to run - nothing else required

1/30 SCX30 Ford Bronco 4X4 RTR Brushed Rock Crawler (Battery & Charger Included), Features

• Axial SCX30 sub-micro crawling platform
• High-performance chassis with full-time 4-wheel drive
• Angled skid plate and ramped axle housings to slide over obstacles
• High-clearance rear links to avoid dragging and hangups
• Forward weight bias for climbing stability
• Easy-access transmission
• Compatible with SCX24 aftermarket gears for different ratios
• Officially licensed Ford Bronco scale ABS hard body
• Molded parts for body customizing
• Clipless body mounting for easy chassis access

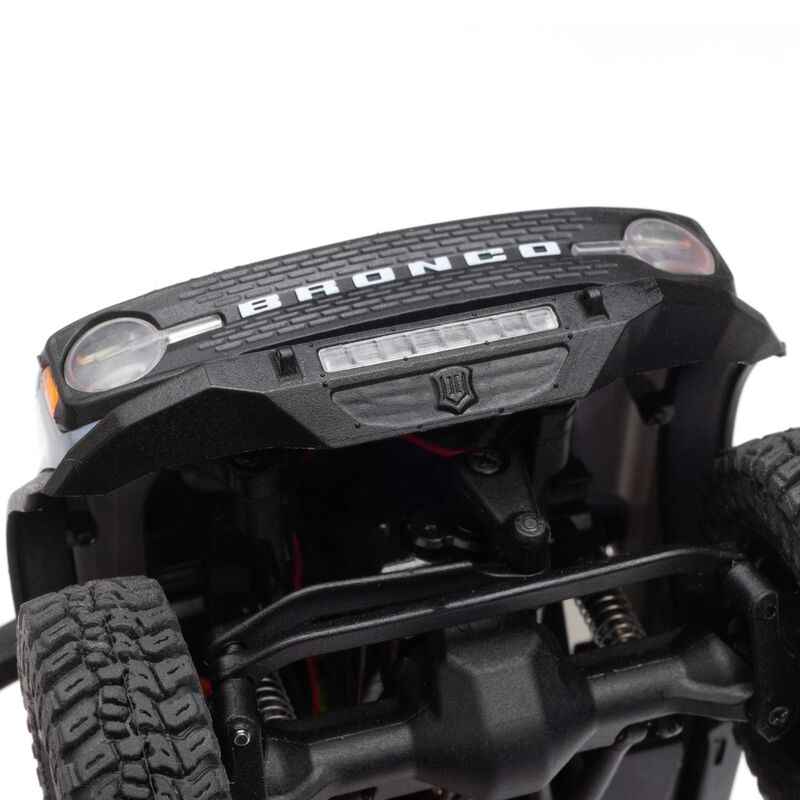

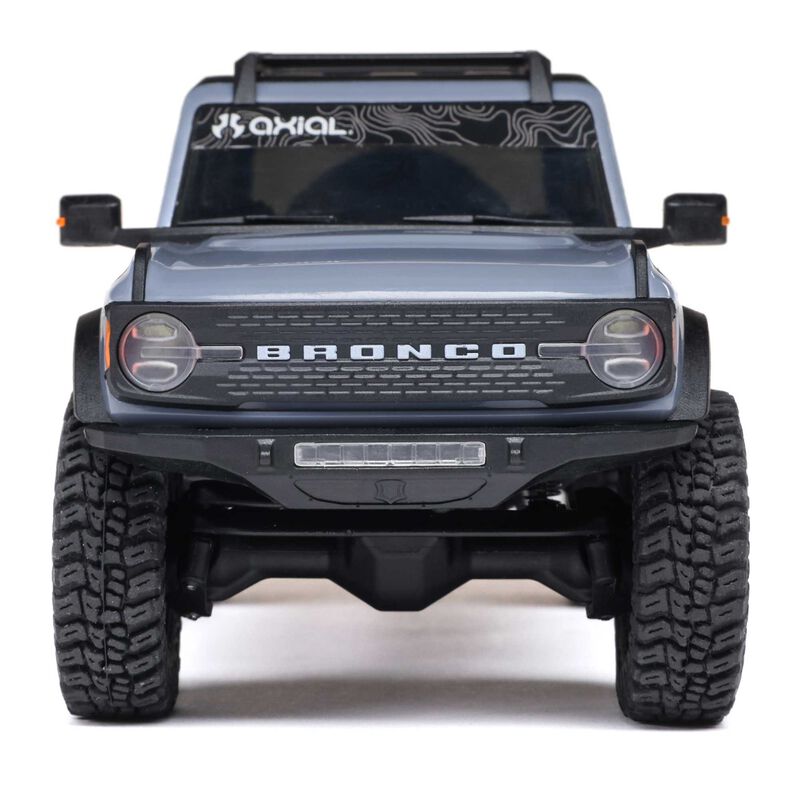

• ICON Trail Series front bumper
• ICON Pro Series rear bumper

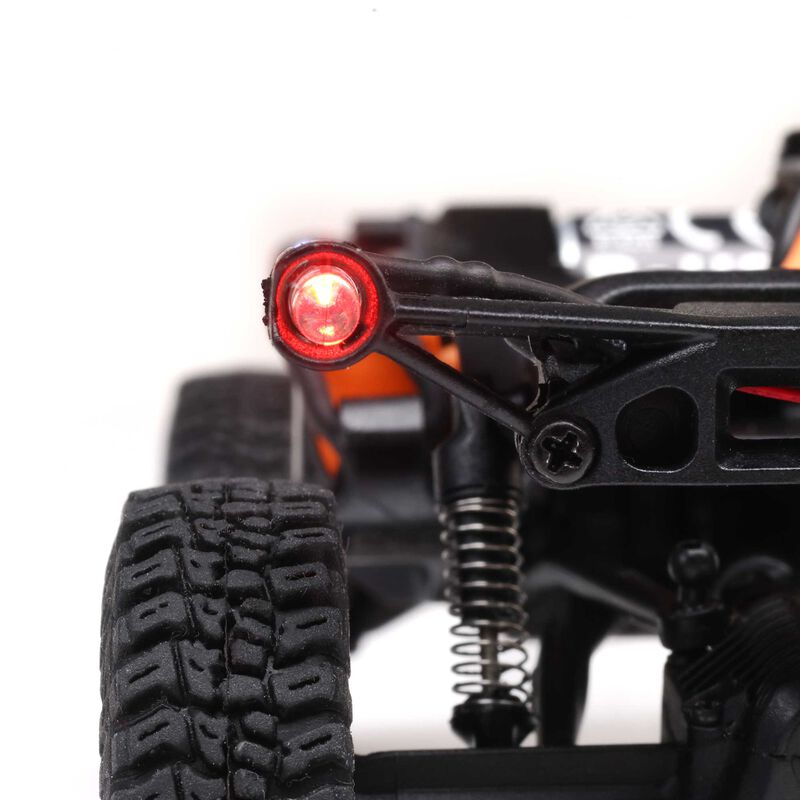

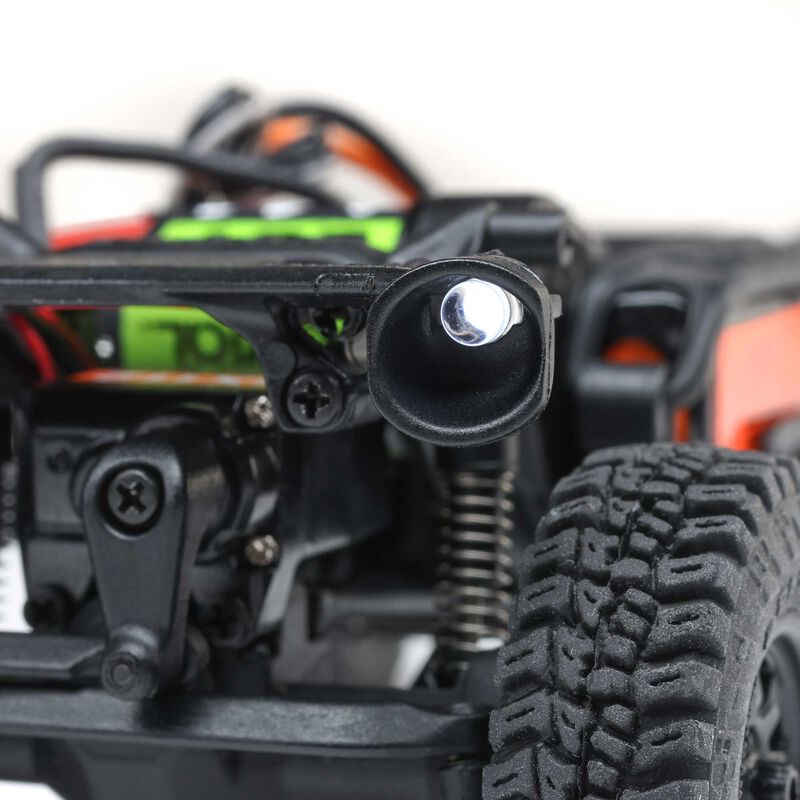

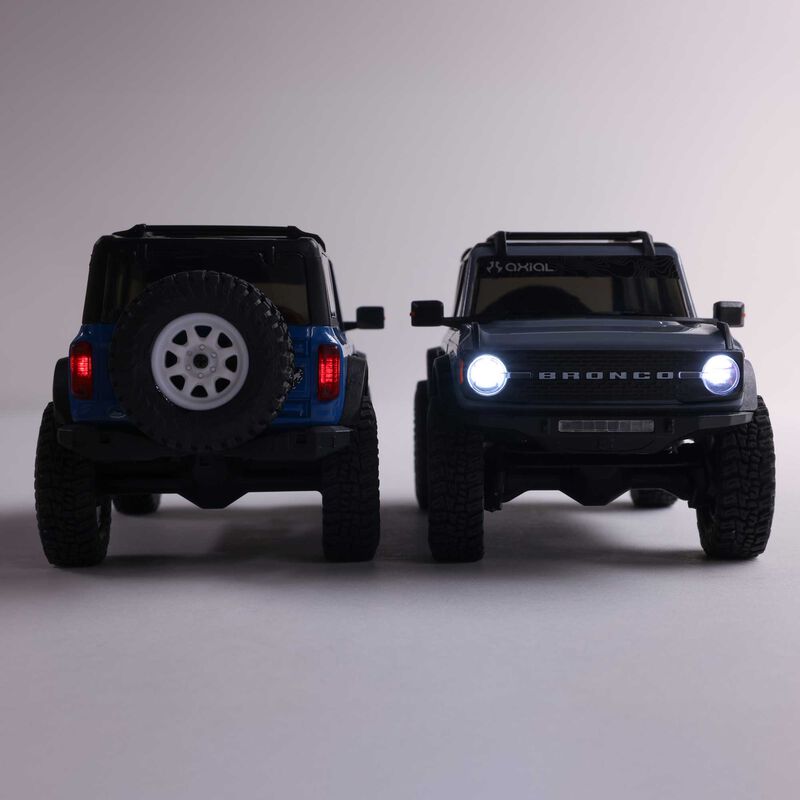

• Front and rear LEDs
• Axial 88T brushed motor
• Low mounted electronics for optimal CG
• Mickey Thompson Baja Boss soft compound tires with foam inserts
• ICON Nuevo wheels
• Damped shocks
• Full ball bearings
• Spektrum SLT2 2.4GHz radio system

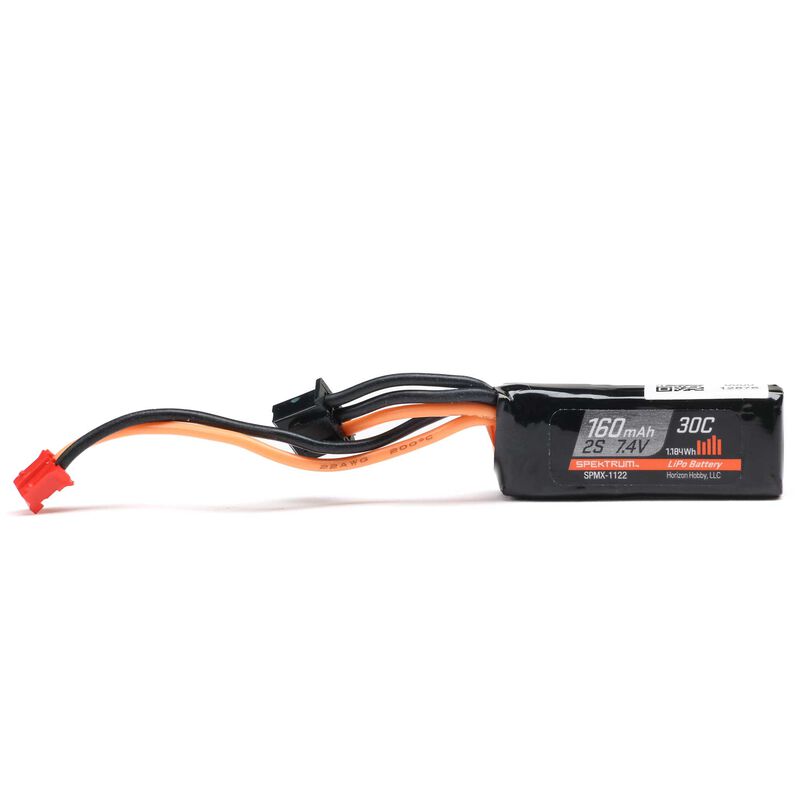

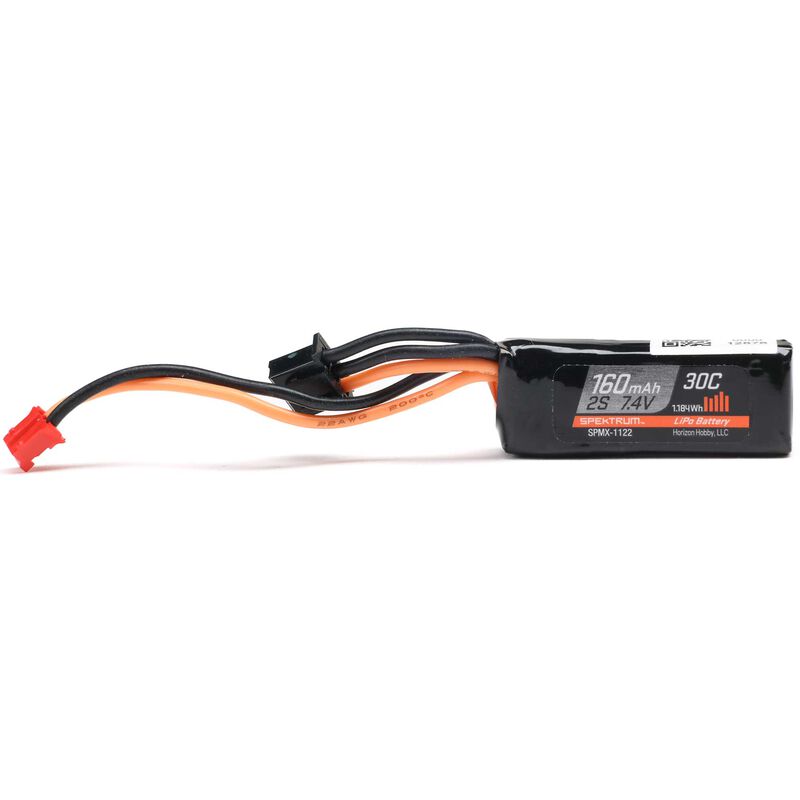

• Spektrum 7.4V 160mAh 2S 30C LiPo battery
• Spektrum 0.5A USB 2S charger
• Ready to run - nothing else required

HIGH-PERFORMANCE CHASSIS

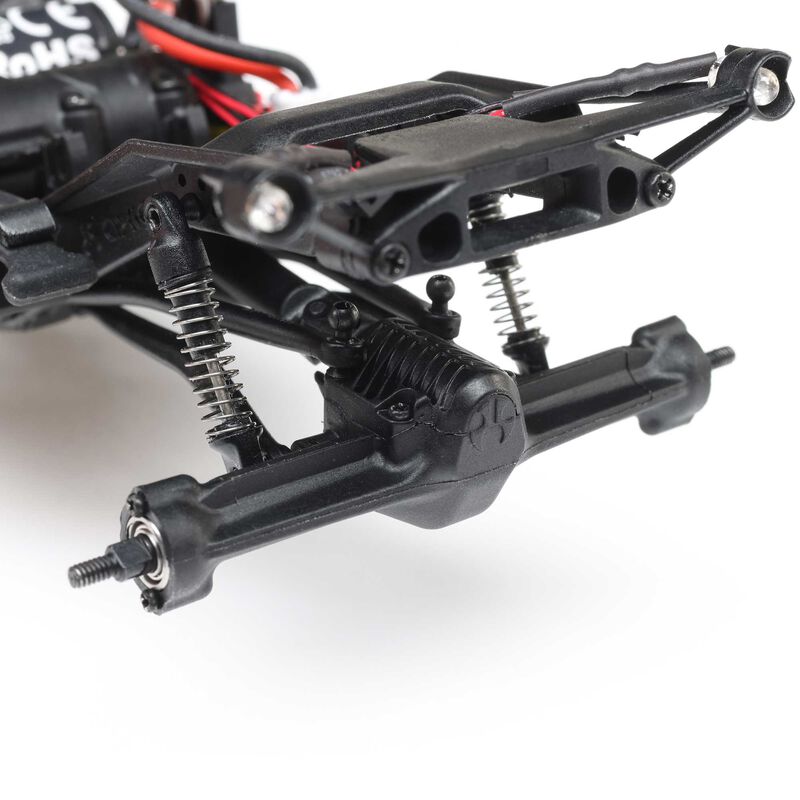

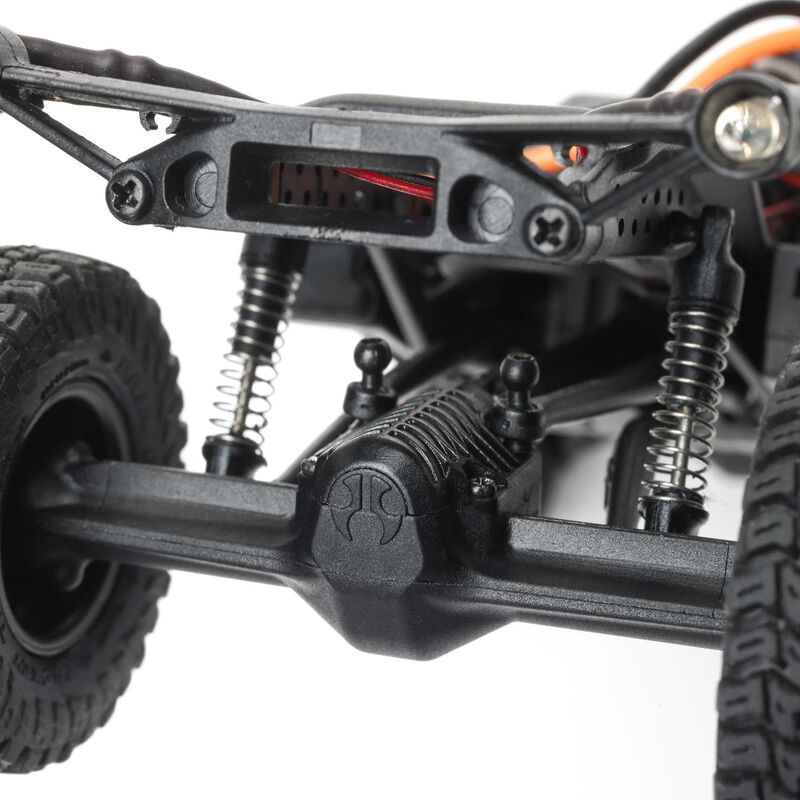

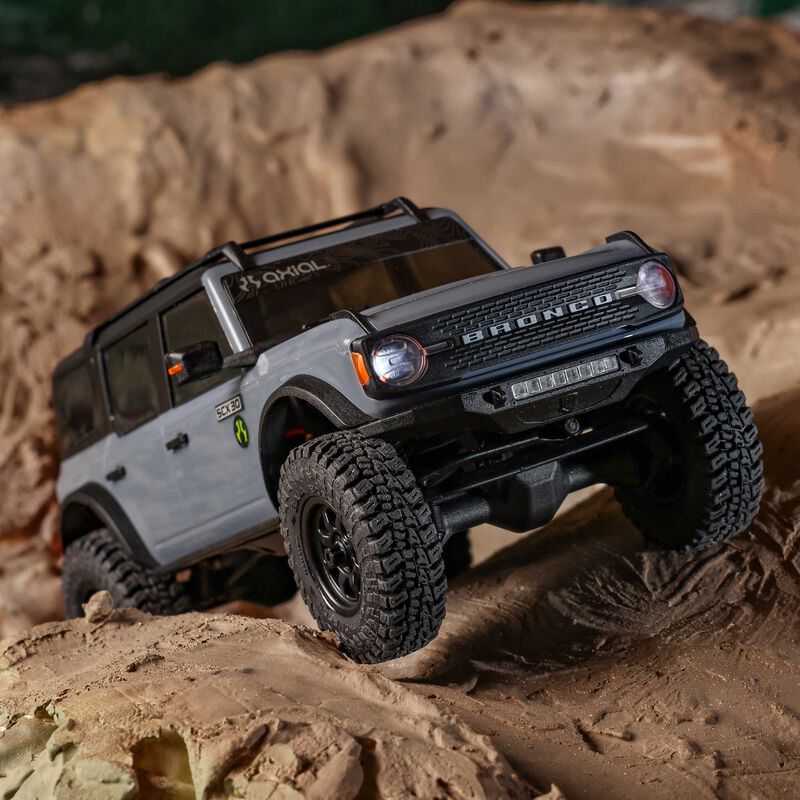

The Axial SCX30 Ford Bronco RTR has a high-performance chassis with an angled skid plate to help you slide over challenging obstacles - a feature usually found only in comp crawlers. Ramped axle housings and high clearance links also help to avoid dragging and hangups, while the forward weight bias improves climbing stability.

EASY-ACCESS TRANSMISSION

The transmission of the SCX30 platform is easily accessible for maintenance and tuning. Optional gears available for the SCX24 are compatible for using different ratios.

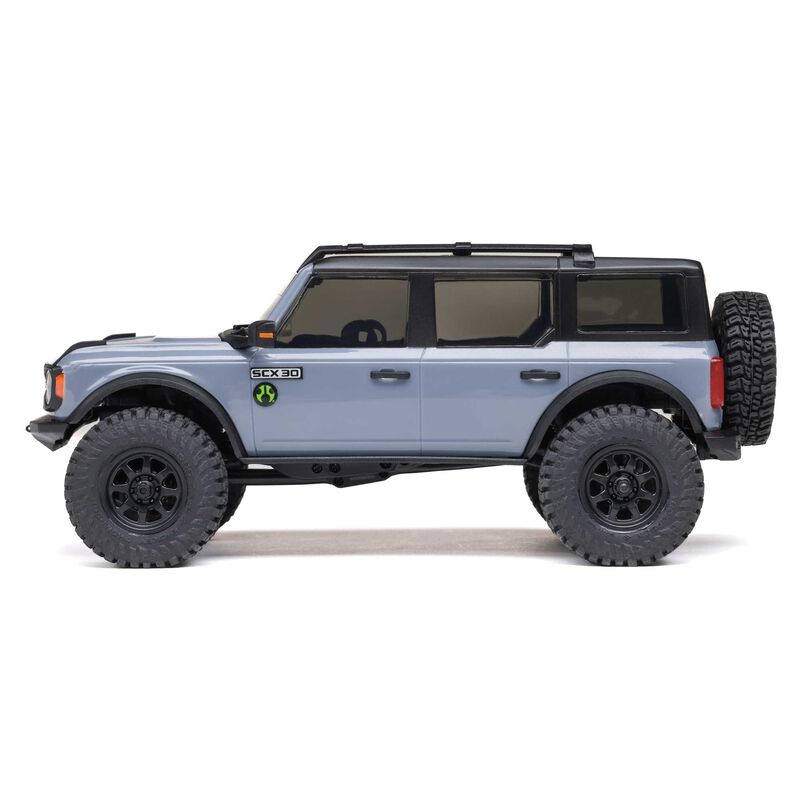

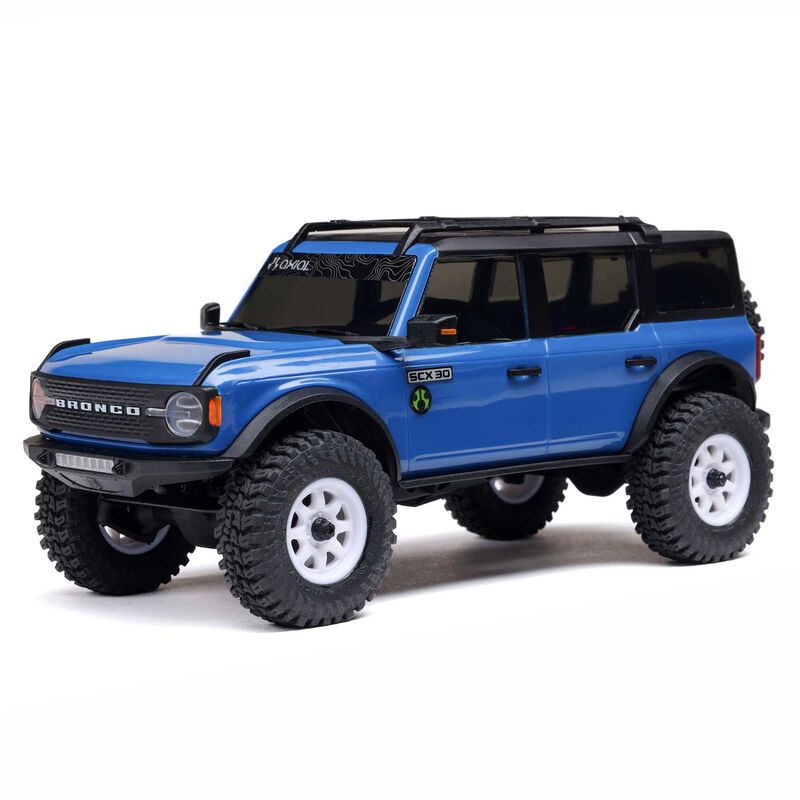

OFFICIALLY LICENSED FORD BRONCO ABS HARD BODY

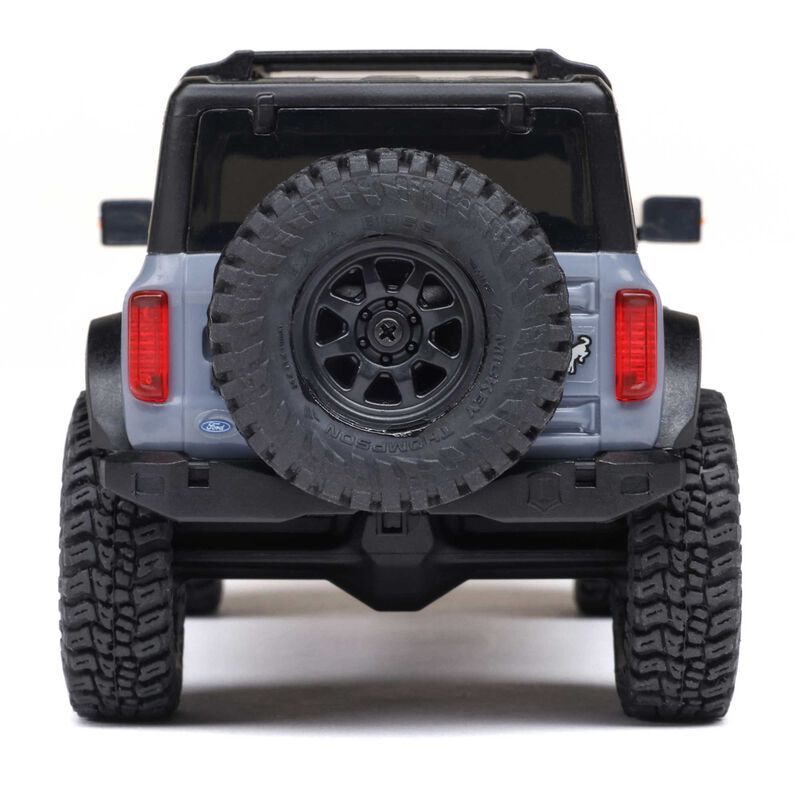

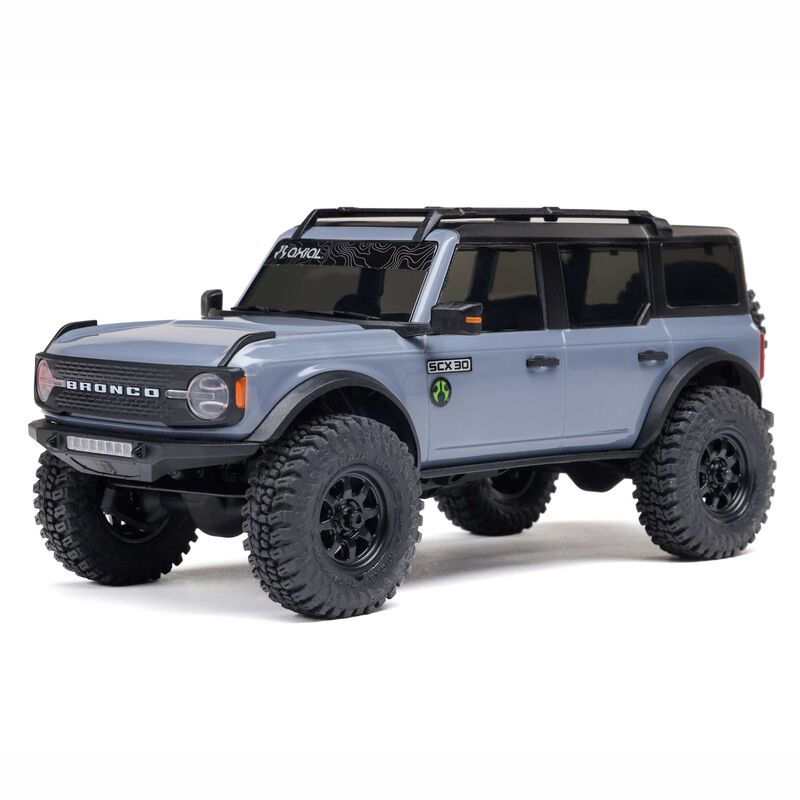

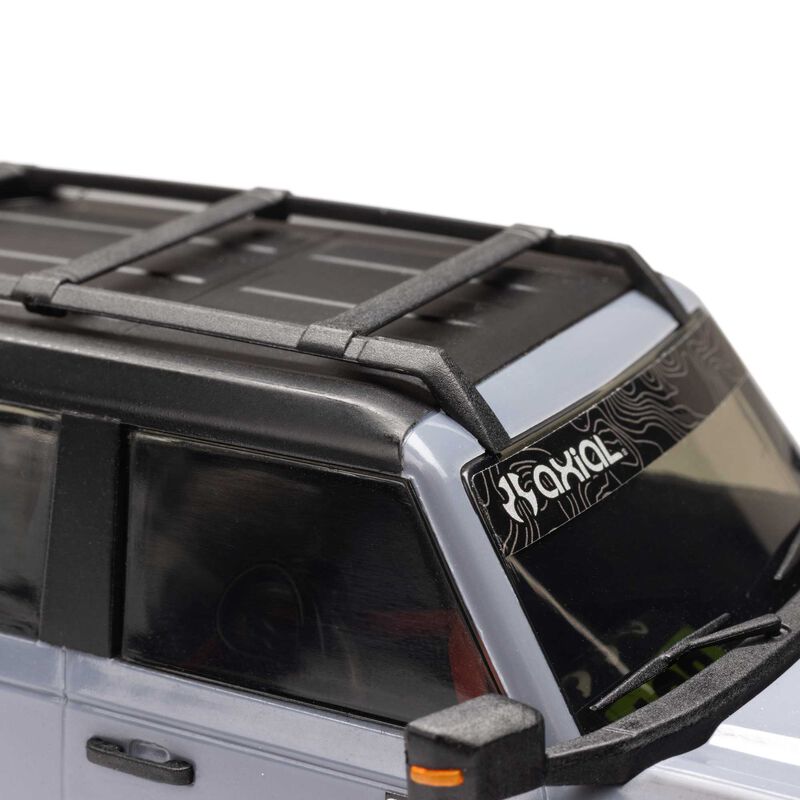

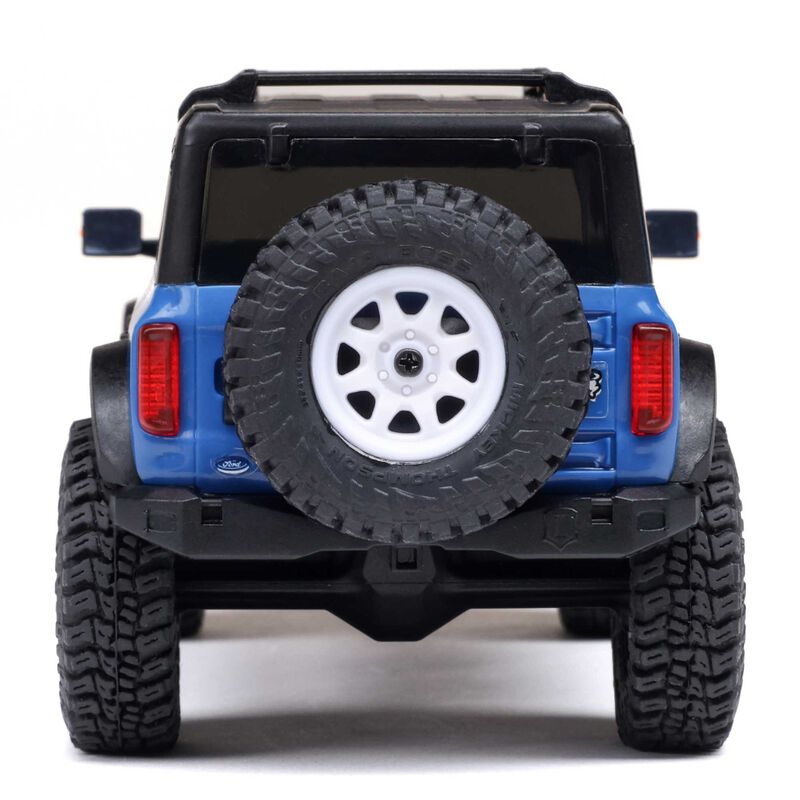

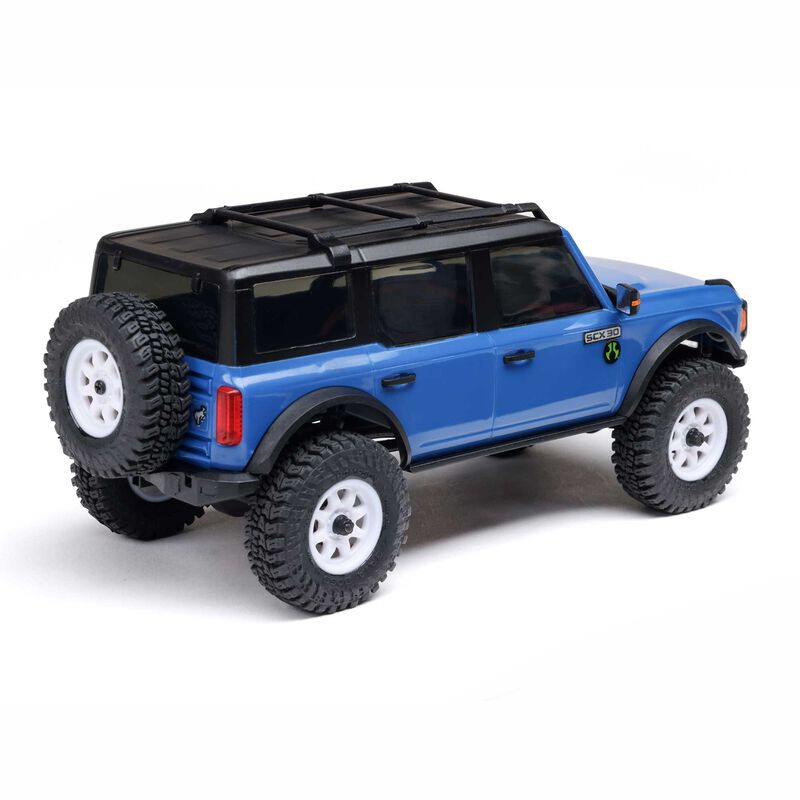

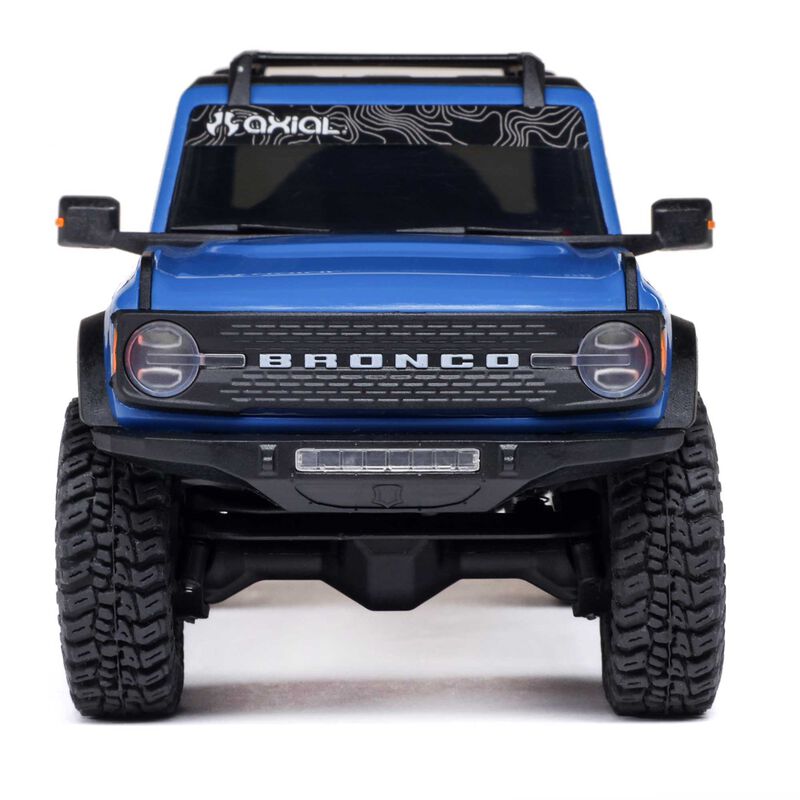

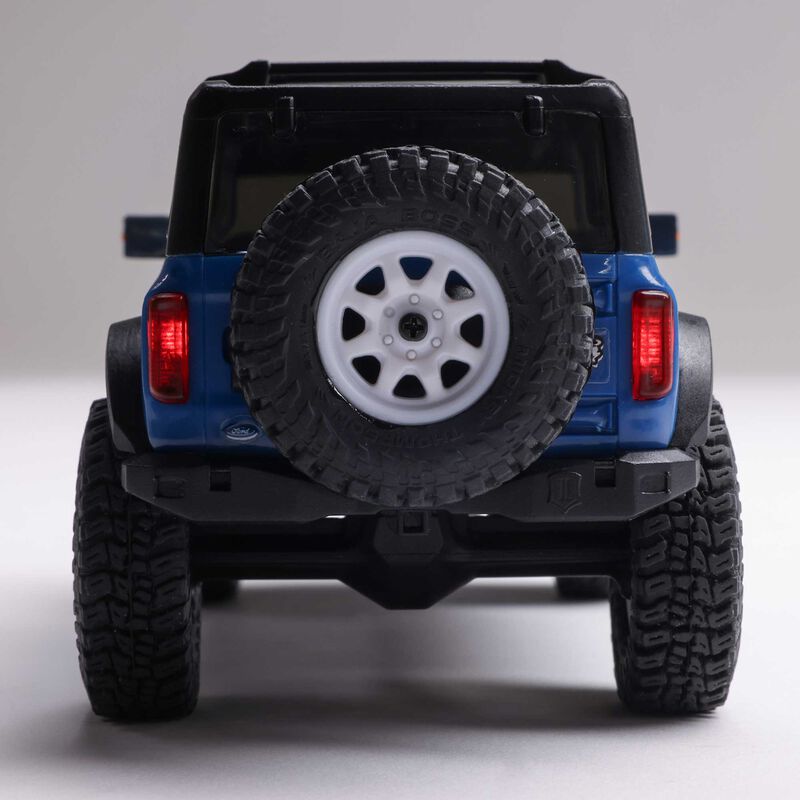

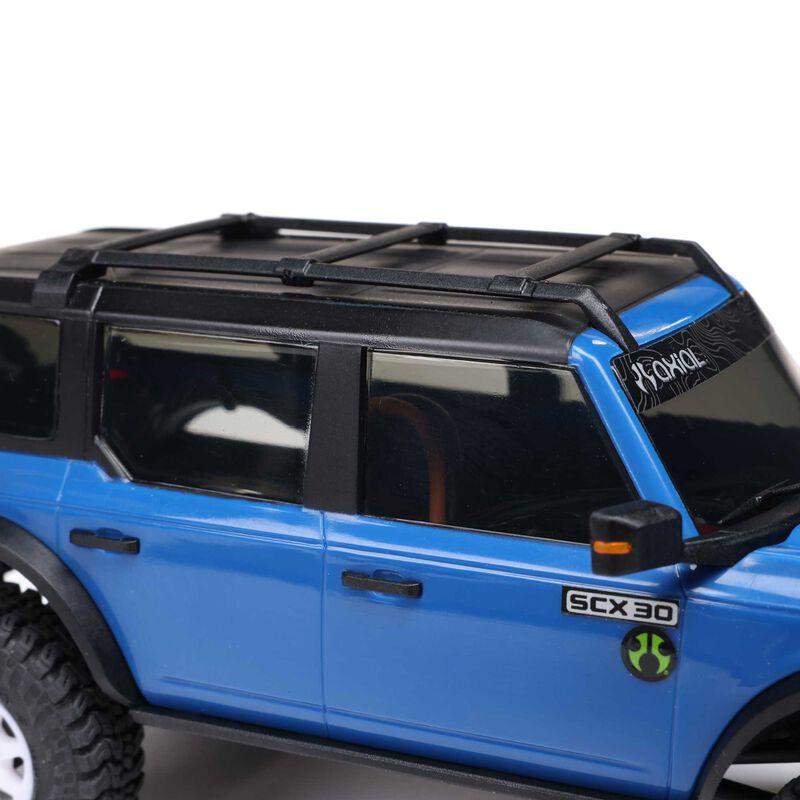

Though small, the SCX30 Ford Bronco RTR doesn't come up short on scale realism. The injection molded ABS hard body is loaded with details for authentic scale looks. Front and rear LEDs are included, as are molded parts for body customizing.

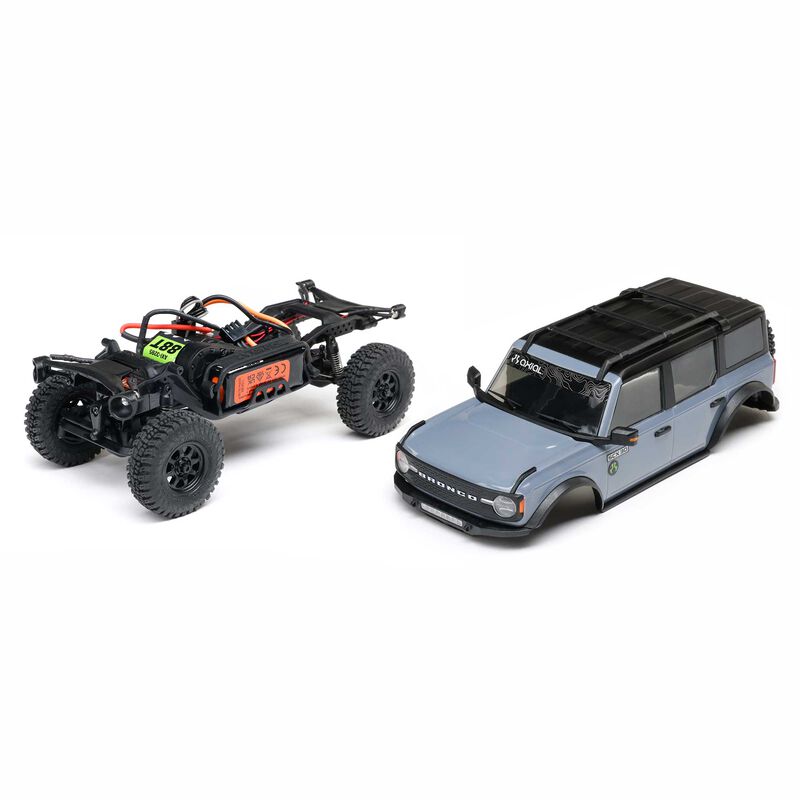

CLIPLESS BODY MOUNTING

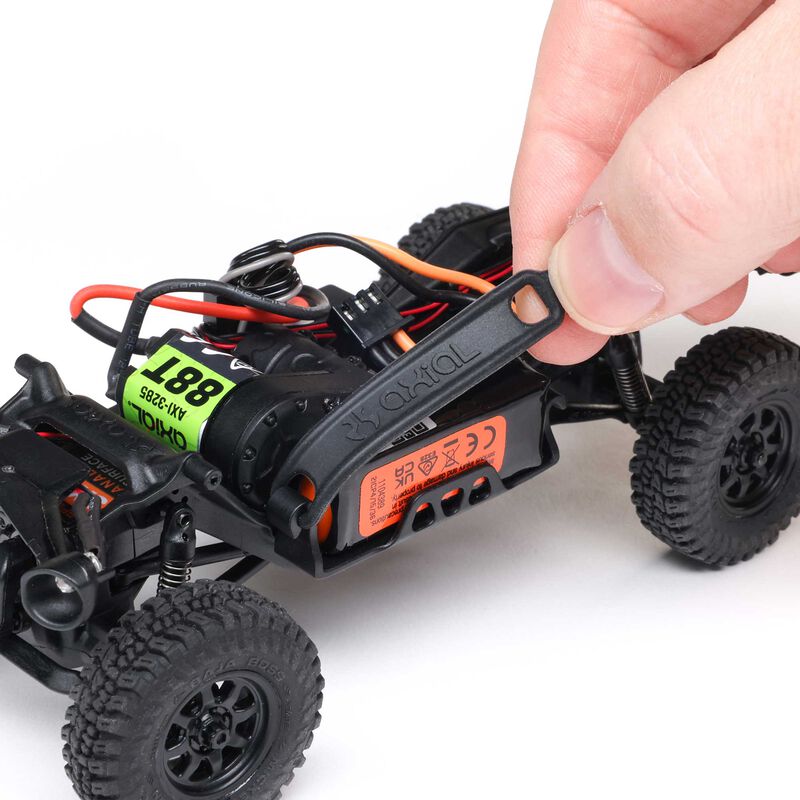

The clipless body mounting system allows fast, easy access to the chassis for battery replacement and general maintenance.

OFFICIALLY LICENSED WHEELS & TIRES

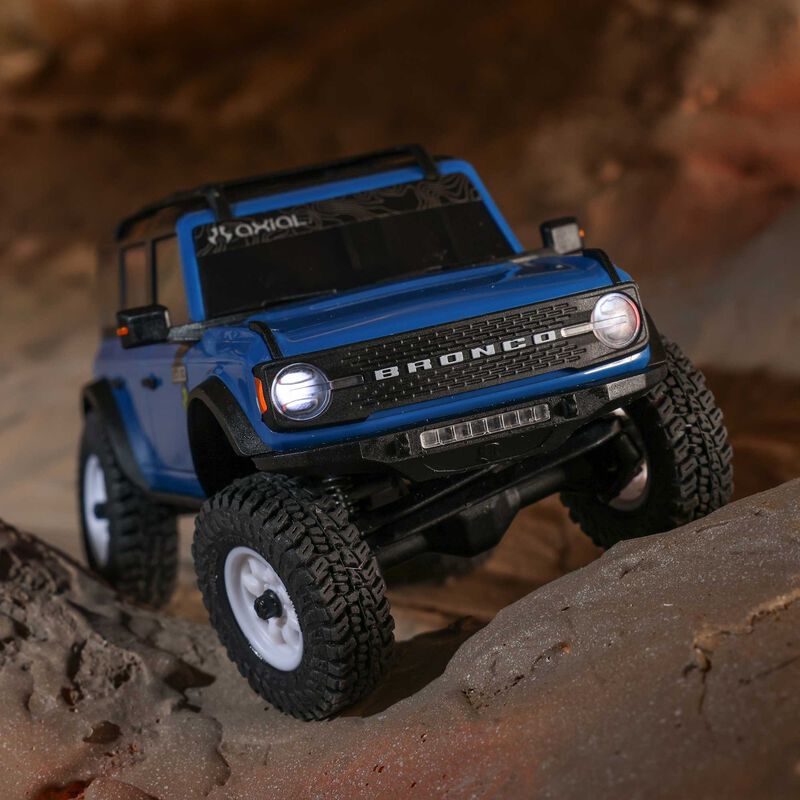

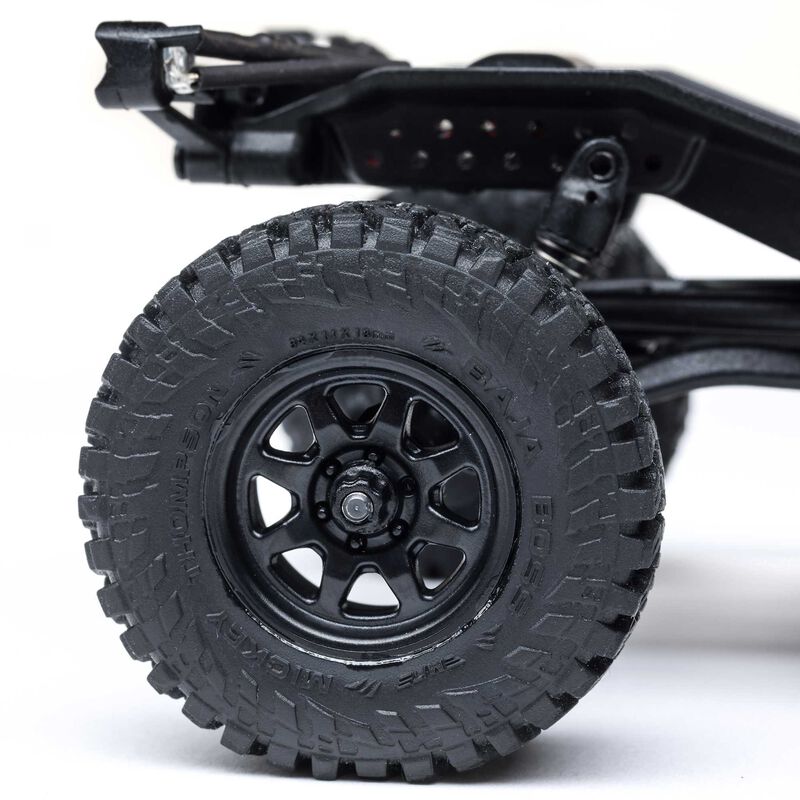

Officially licensed Axial Mickey Thompson Baja Boss tires and ICON Nuevo wheels ensure that the SCX30 Ford Bronco RTR has all the traction it needs, whether it's crawling across a desktop or outdoors over rock and dirt trails. The soft compound tires also include factory-installed foam inserts.

FULL BALL BEARINGS

The SCX30 Ford Bronco may be small, but its high-quality features deliver big-league performance and value. Rather than cutting costs with bushings, for example, the drivetrain spins freely on sealed ball bearings throughout the entire rig.

SPEKTRUM SLT2 2.4GHz TRANSMITTER

The included Spektrum SLT2 transmitter is designed to help all drivers succeed on the trails. Its throttle limiting feature can limit the rig's maximum available speed to 50% or 75% until you're ready for it all. Four AA batteries are included.

SPEKTRUM ELECTRONICS

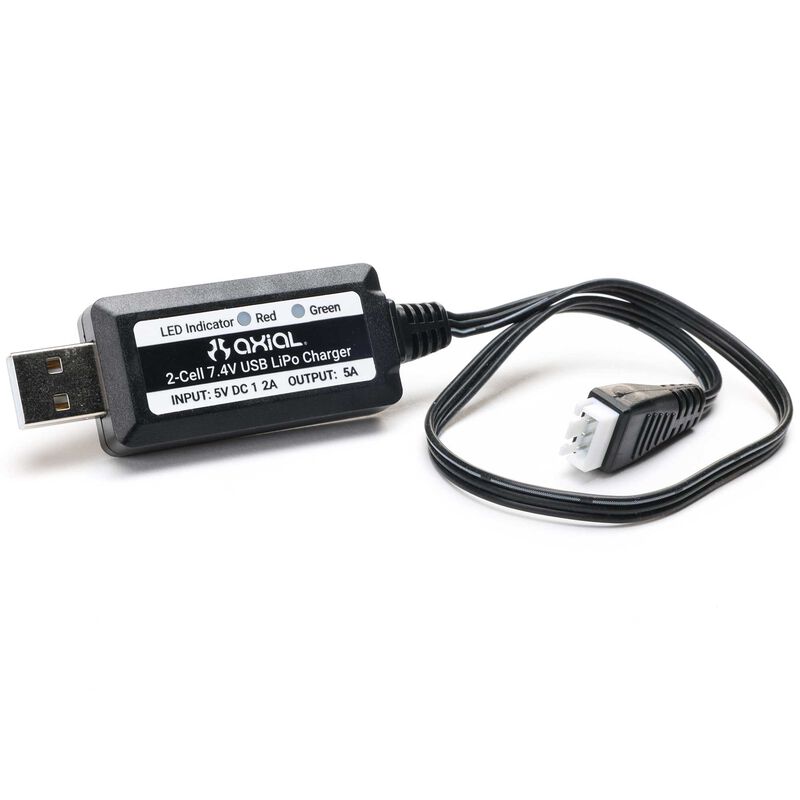

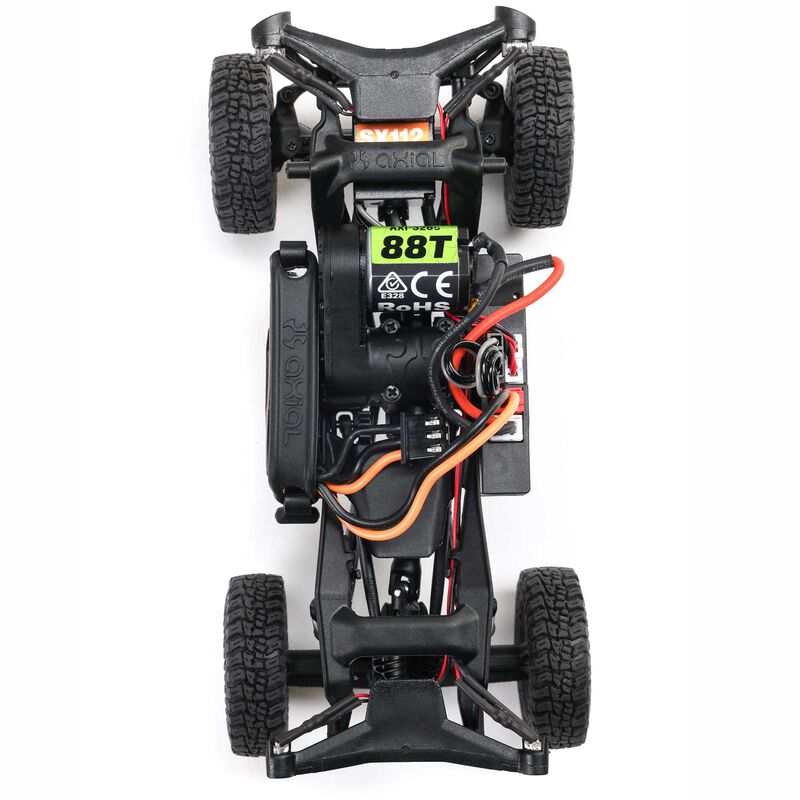

The factory-installed on-board electronics are mounted low in the chassis to improve the center of gravity. The ready-to-run package comes complete with a powerful Spektrum 2S LiPo battery and 0.5A USB-C charger for fast, easy, and safe battery recharging.

1/30 SCX30 Ford Bronco 4X4 RTR Brushed Rock Crawler (Battery & Charger Included), Product Specs

·       Approximate Assembly Time: No Assembly Required

• Ball Bearings: Full Ball Bearings
• Battery: Included
• Body: Axial® Ford Bronco Hard Body
• Charger: Included
• Chassis: Composite Chassis
• Completion Level: Ready-To-Run
• Connector Type: JST PH2.0 2P
• Differential: Spool
• Drive Type: Forward/Reverse
• Drivetrain: 4WD
• Final Drive Ratio: 131.58
• Internal Gear Ratio: 16.36
• LiPo Compatibility: 2S
• Make: Ford
• Motor Size: Axial 88T motor
• Motor Type: Brushed
• Pinion: 11T
• Power Type: Electric
• Product Height: 2.79" (71 mm)
• Product Length: 6.36" (162 mm)
• Product Width: 2.82" (72 mm)
• Radio: Included
• Scale: 1/30
• Shock Type: Damped 21.5mm Shocks
• Spur Gear: 30
• Suspension: Solid Axle, Front and Rear
• Tire Type: Mickey Thompson Baja Boss soft compound tires
• Vehicle Size: Micro
• Vehicle Type: Rock Crawler
• Wheelbase: 3.88" (99 mm)

Axial’s sub-micro SCX30 makes RC crawling easier and more affordable than ever! The scale Ford Bronco ABS hard body, high-performance chassis, and Spektrum electronics combine to deliver capabilities and realism never before available in this size.
