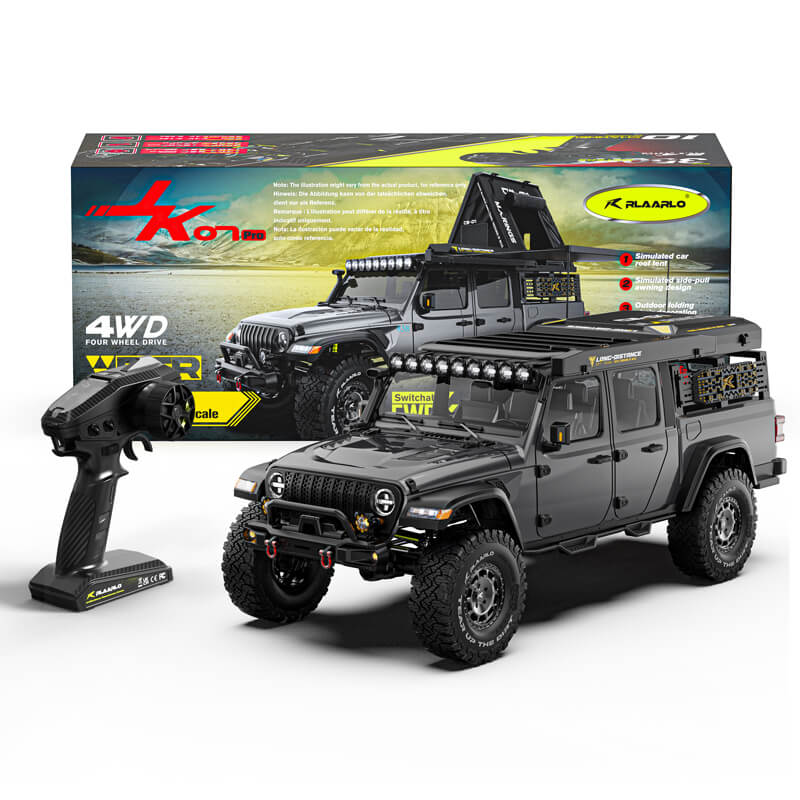

Rlaarlo 1/7 Scale 4WD Brushless RC Crawler JK07Pro - Gray

- SIMULATION OF CAR BODY DESIGN-

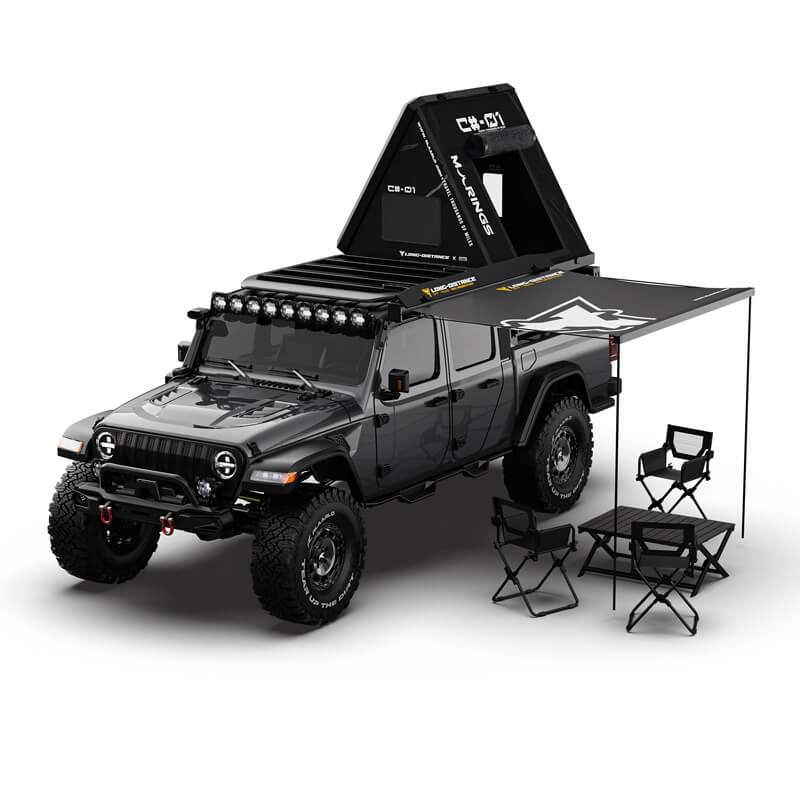

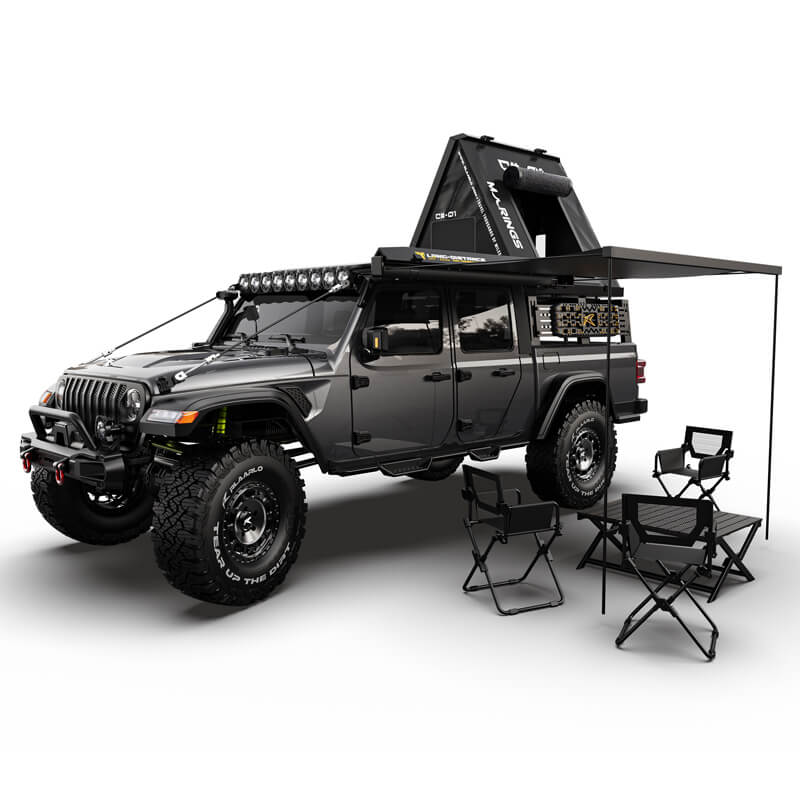

JK07 Pro restores the appearance of the real car, equipped with a full vehicle linkage lighting system, simulation of side tents, gantries, luggage racks and other designs the ultimate simulation of details, to take you to open the adventure of truth and speed.

- BATTERY AND CHARGER SOLD SEPARATELY -

JK07Pro does not come with a battery and charger, enthusiasts need to provide their own batteries (XT60 connector), up to 3S battery support

- KEY FEATURES -

• 4282-2200KV SENSORLESS BRUSHLESS MOTOR:Featuring a high-speed digital sensor that requires no calibration, the motor is plug-and-play. The sensor supports hot-swapping with strong anti-interference and high signal quality.
• 140A FOC VECTOR CONTROL ESC:supports 2-4S batteries with a continuous current of 140A, utilizing vector control technology. Compared to square wave ESCs, it saves 5%-20% energy, providing longer run times for climbing adventures..
• Professional Hobby Grade Transmitter with Receiver: 2.4 GHz 10-channel RC transmitter with a 350m range
• Gears: The gearbox adopts full CNC chromium steel gears throughout. The motor pinion and spur gear use 1.0CM whilst other transmission gears use 0.8CM, providing reliable durability for the entire gearbox
• Selectable 4WD to 2WD Transmission: Full-time four-wheel-drive transmission design can be alternated between front-wheel drive and rear-wheel drive. Upon encountering difficult obstacles, switching to front-wheel drive can provide more stable power output to overcome obstacles. When encountering downhill obstacles, switching to rear-wheel drive (locking rear wheels) can provide better power to stabilize the vehicle's descent
• Front and Rear Differential Design: The axle adopts 1.2CM gears to enhance durability. These can lock and unlock the front/rear differentials to meet different driving needs and terrain. Unlocking the differentials during driving will provide smoother steering and a tighter steering radius. When the terrain becomes more challenging, locking the rear differential or locking the front differential will allow the tires to obtain better power distribution and allow the vehicle clear the obstacle easier
• High and Low-Speed Can Be Switched On The Go: On flat roads switching to high gear will provide a faster high speed whilst driving on rough roads and extreme terrain using low gear increases torque. This will enable the user to tackle a multitude of terrain
• Twin Friction Plate Slipper Clutch: A slipper clutch design provides additional protection for the crawler under extreme conditions. This helps prevent any possible damage to the gears and the motor
• Forward Located Gearbox: Central gearbox design and location reduces the vehicle's center of gravity whilst improving climbing performance and stability by being located more towards the front. Reverse rotation design will help eliminate torque twist
• 3 Link Panhard Steering Link System: Drive train design reduces the lateral swing between the chassis plates (body) and the rear axle, making the car more stable on bumpy roads and more stable when driving straight
• 8mm Stainless Steel Suspension Rods: The entire vehicle suspension link rods uses thickened 8mm stainless steel to make the chassis more robust

• Oversized Front And Rear Axles: Large size front and rear axle design providing sturdiness and durability whilst allowing more space for the transmission to ensure the durability and fluid movement of the car
• 120mm Full Metal Hydraulic Shock Absorber: Extra-long 120mm all-metal hydraulic shock absorbers, with a maximum shock absorption stroke of 37mm provide smooth dampening of the vehicle even on rougher surfaces
• Powerful Lighting System: Front lights with daytime running, low and high beams, roof light (light bar) and turn signal lights, grille and top panel lights and rear hazard, brake, and reverse lights
• Powerful servos:45kg waterproof steering servo with 4 no’s of 25g servos used for high and low-speed switching, front and rear differential lock and rear-wheel drive

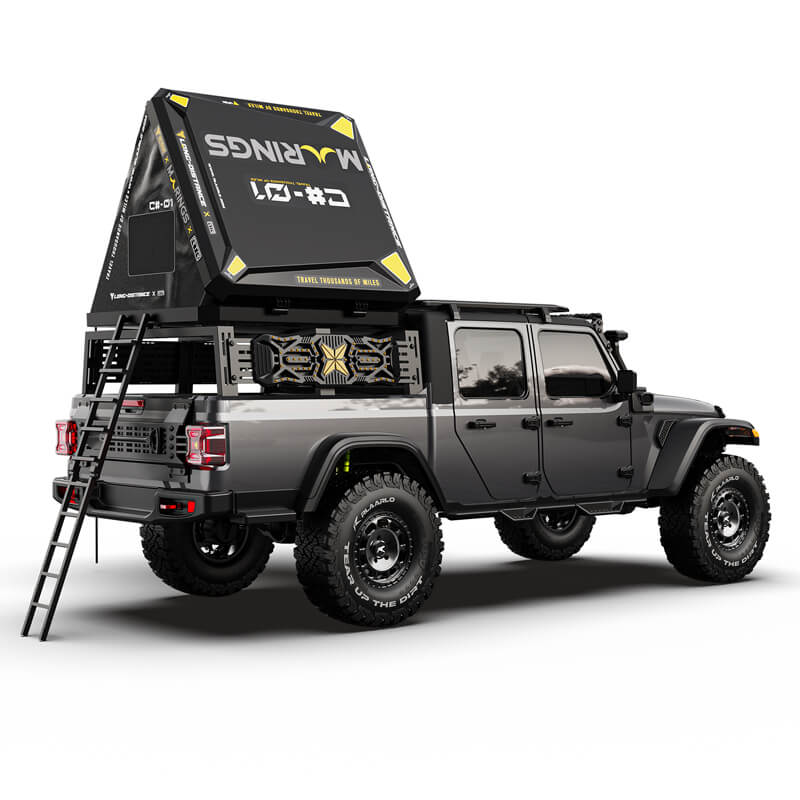

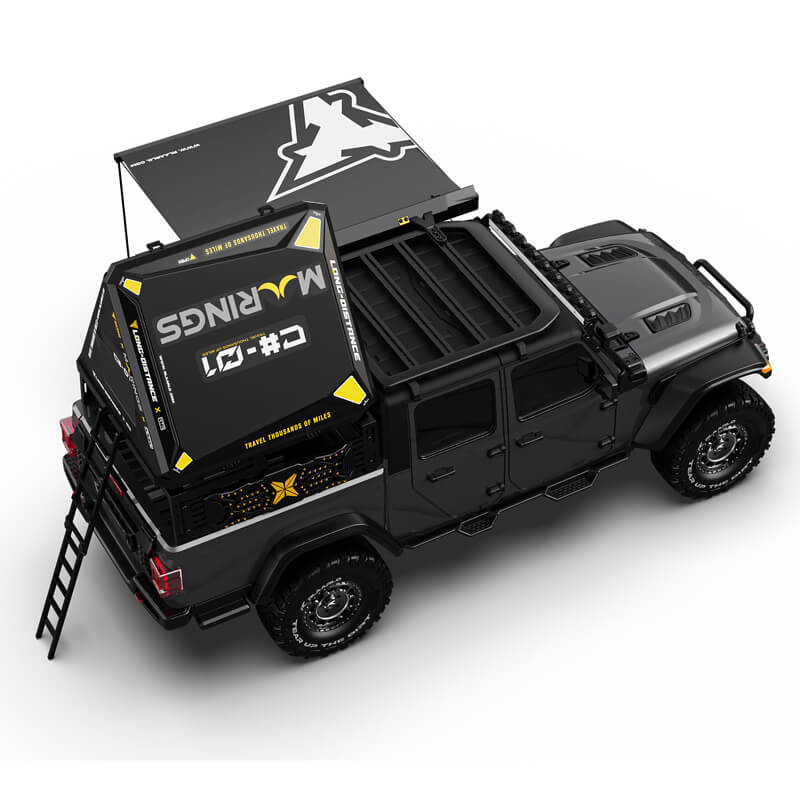

STUNNING SCALE DETAIL

JK07Pro 1/7 scale highly reproduces the appearance of the real car, equipped with a full-vehicle linkage lighting system, a wealth of simulation accessories, the use of 1.5mm PC material shell is not only durable, but also enhance the overall simulation.

LIFT-OFF SHELL DESIGN

JK07Pro is fixed with spring-loaded swivel clips for easy disassembly and installation, and the hidden alignment makes the appearance neater and enhances the overall simulation.

ADJUSTABLE STEERING WHEEL AND WINDSHIELD WIPERS

The steering wheel is linked with the steering and the windshield wipers support 3-speed adjustment, further enhancing the real driving experience.

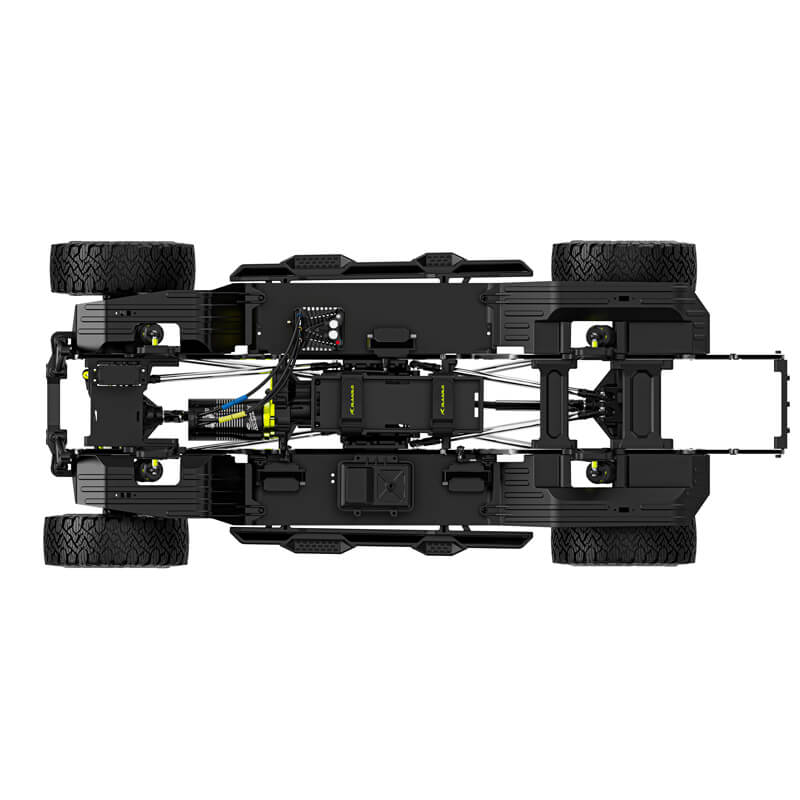

TOUGH CHASSIS

High-strength CNC aluminum alloy beam, 8mm stainless steel tie rods, door axle design, 120mm full-metal shock absorbers, flat bellhousing and thrust rod structure, sturdy and stable, simulation and performance at the same time.

8MM STAINLESS STEEL TIE RODS

Nine 8mm stainless steel tie rods, high-strength materials, excellent durability, improve maneuverability, adapt to complex terrain through the stronger.

FORWARD LOCATED GEARBOX

Central gearbox design and location reduces the vehicle's center of gravity whilst improving climbing performance and stability by being located more towards the front. Reverse rotation design will help eliminate torque twist.

MULTIPLE SERVOS TO MATCH

JK07pro full servo for precise control, high performance brushless steering servo for quick response, shift, break transmission, differential lock servo to adapt to a variety of terrain, wiper and steering wheel linkage servo to enhance the sense of realism.

MULTI-FUNCTION CONTROL

Rlaarlo 10-channel remote control, integrated lights, wipers and other functions, the control is simple and intuitive, through the remote control of a key switch, no need to manually adjust, convenient and quick.

MULTI-FUNCTION CONTROL

Rlaarlo 10-channel remote control, integrated lights, wipers and other functions, the control is simple and intuitive, through the remote control of a key switch, no need to manually adjust, convenient and quick.

CNC 6mm Aluminum Alloy Chassis Rails

Treated with a high-gloss coating not only enhance the ruggedness of the car but also add to the overall aesthetics of the vehicle.

3 Link Panhard Steering Link System

The steering Link System is made of thickened 8mm stainless steel with high strength and abrasion resistance, which ensures that the steering system remains stable and reliable when the vehicle is traveling in complex terrain.

Aluminum Scale Shocks

The shock absorber is 120mm long and equipped with a dust cover, which effectively prevents dust from entering and reduces snagging and oil leakage problems, ensuring that the vehicle remains smooth when driving on bumpy roads.

Molded Inner Fenders

Tough inner fenders mount directly to the frame and shock towers to provide substantial look andfeel to JK07Pro. The authentic realism adds to the funwhile also helping to keep rocks, mud, and twigs out of the chassis.

Metal Wheel Outer Ring

The outer ring of the wheel is made of metal, which is durable and impact-resistant, suitable for all kinds of complex terrain, with 6 M2.5 screws fixing design, to further enhance the simulation of the whole car.
