NSDRC RS650 HIGH TORQUE LOW PROFILE 8.4V BRUSHLESS SERVO

Designed with hardened 416 stainless steel gears, and a custom 4 pole brushless motor, the RS650 is the highest performing low profile 8.4v servo on the market. The RS650 is built with the highest quality parts, designed for the performance demands of competition level Rc. One of the most notable features of our RS650 servo is our industry leading 5 gear 4 pole gear train design. With the reduction of the 5 gears, durability and precision have been greatly increased over the standard 4 gear design. The compact, low profile design saves you weight and space without sacrificing performance. If you're looking for that extra performance edge in your build, the RS650 is what you need!


Description:

Operating Voltage: 5v - 8.4v

Torque                                                Speed

705 oz-in / 46 kg-cm @ 6v             0.13 sec @ 6v

812 oz-in / 66 kg-cm @ 7.4v          0.11 sec @ 7.4v

940 oz-in / 80 kg-cm @ 8.4v          0.09 sec @ 8.4v

4 Pole Custom Brushless Motor

All Aluminum CNC Casing

IP66 Rated Water Resistant

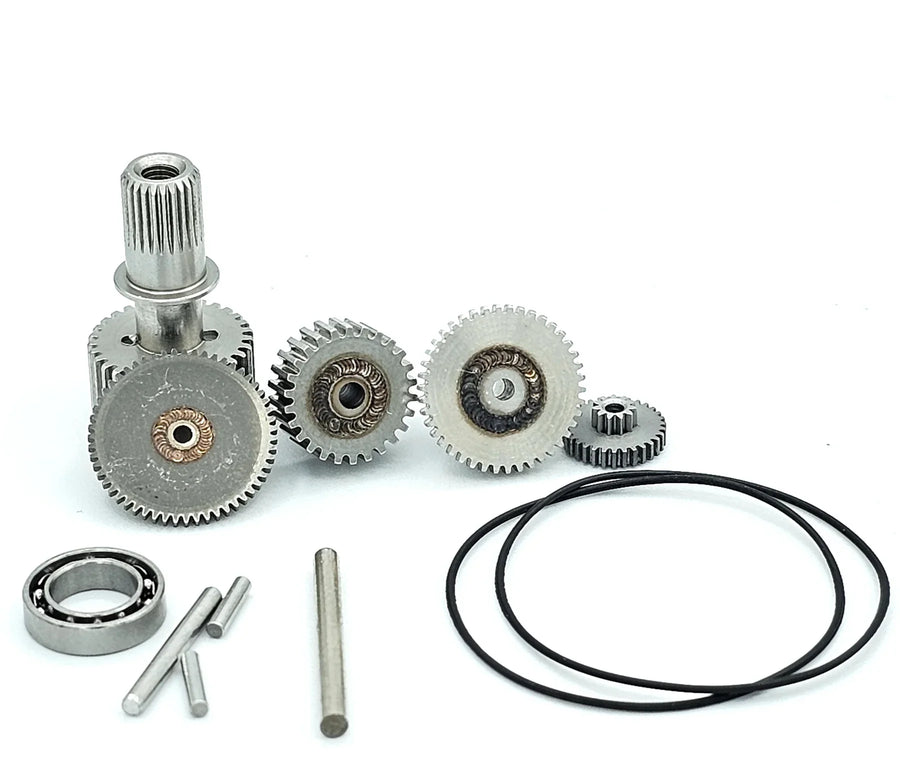

Hardened Stainless Steel Gears

Industry Leading 5 Gear Design

Magnetic Angle Sensor

2us Dead Band

330hz Working Frequency

180 Degree Operating Travel

Spline: 25T

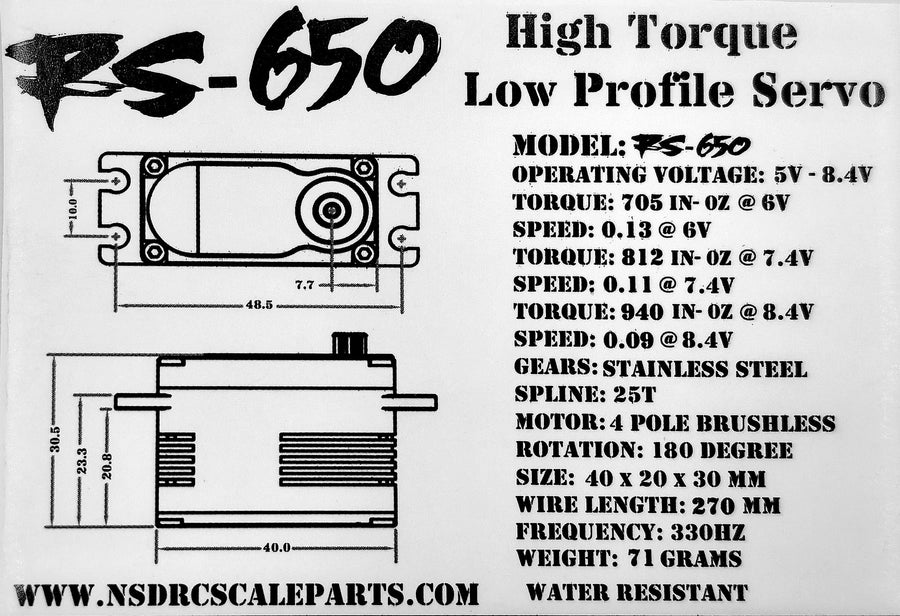

Dimension: 40 x 20 x 30mm

Weight: 70g

Stall Current

5400ma @ 5v

6500ma @ 6v

8300ma @ 7.4v

8800ma @ 8.4v


Not recommended for rock bouncers

☆ 10 Amp Bec recommended to provide sufficient power


Warranty: 1 year
