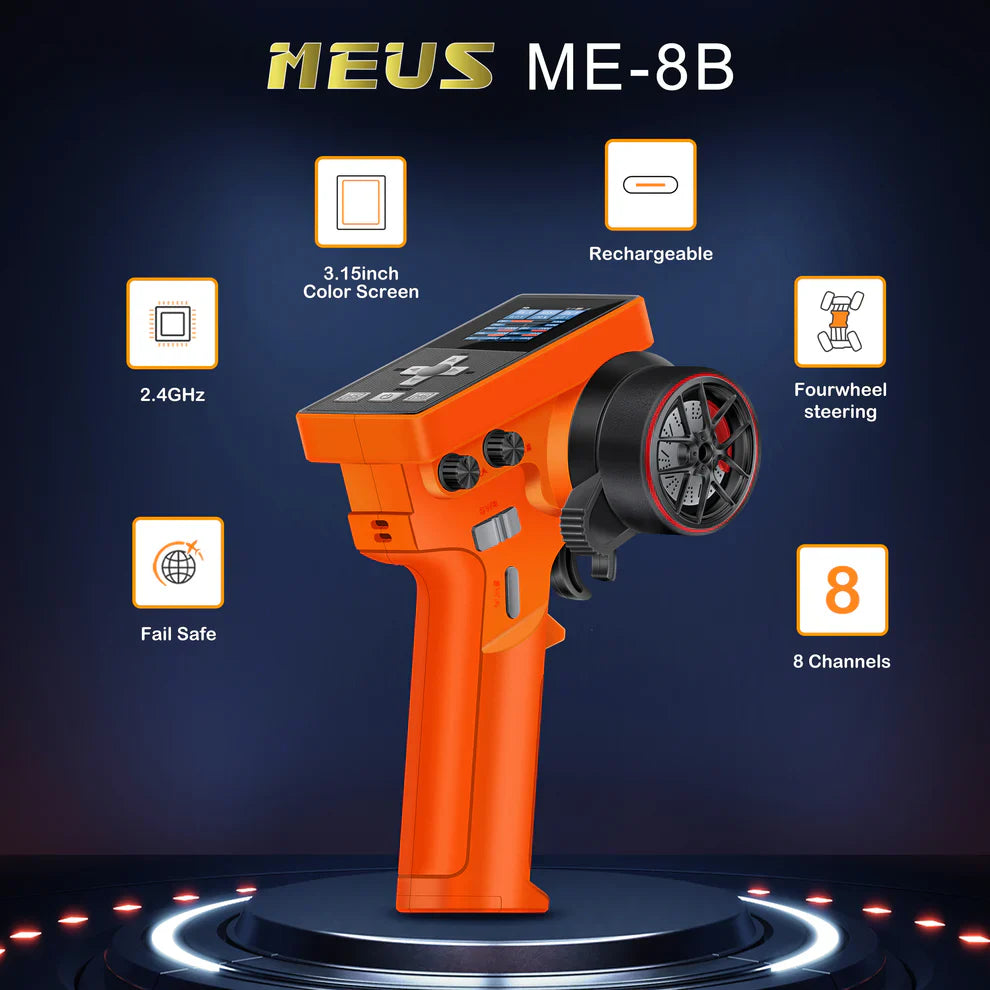

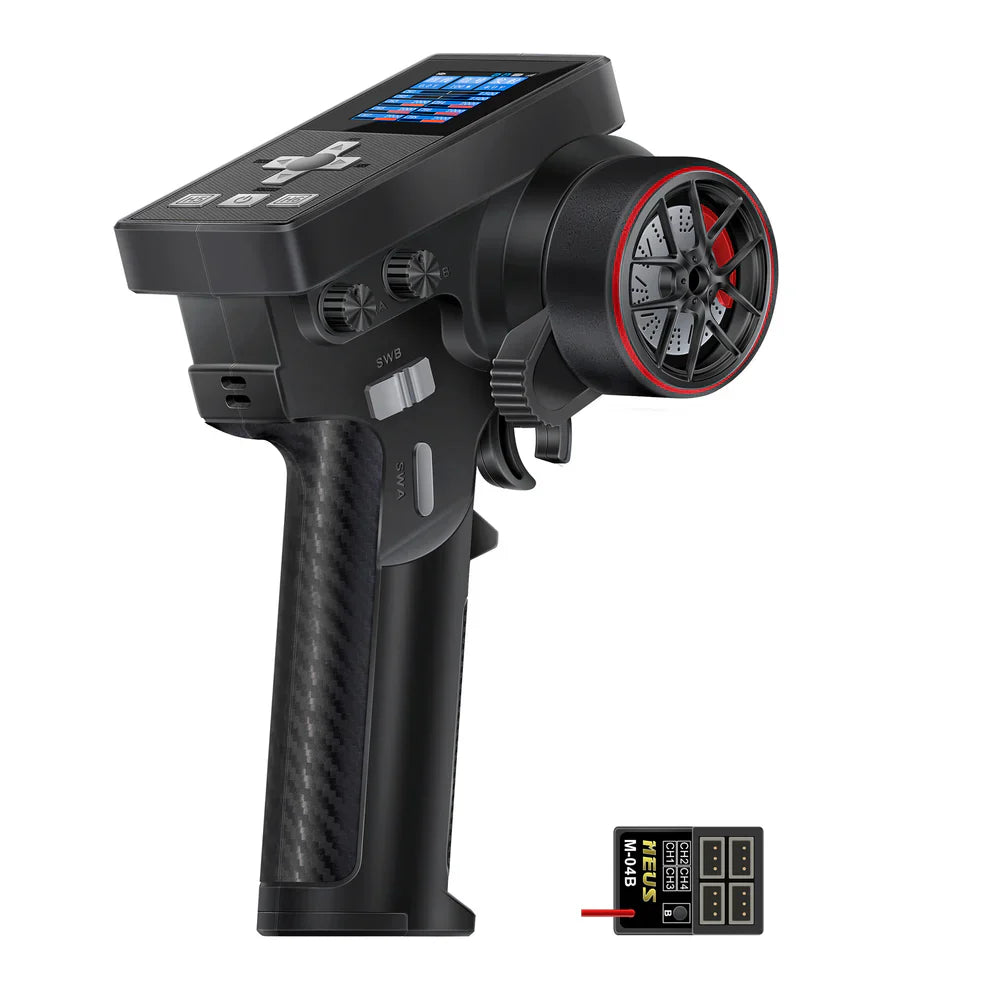

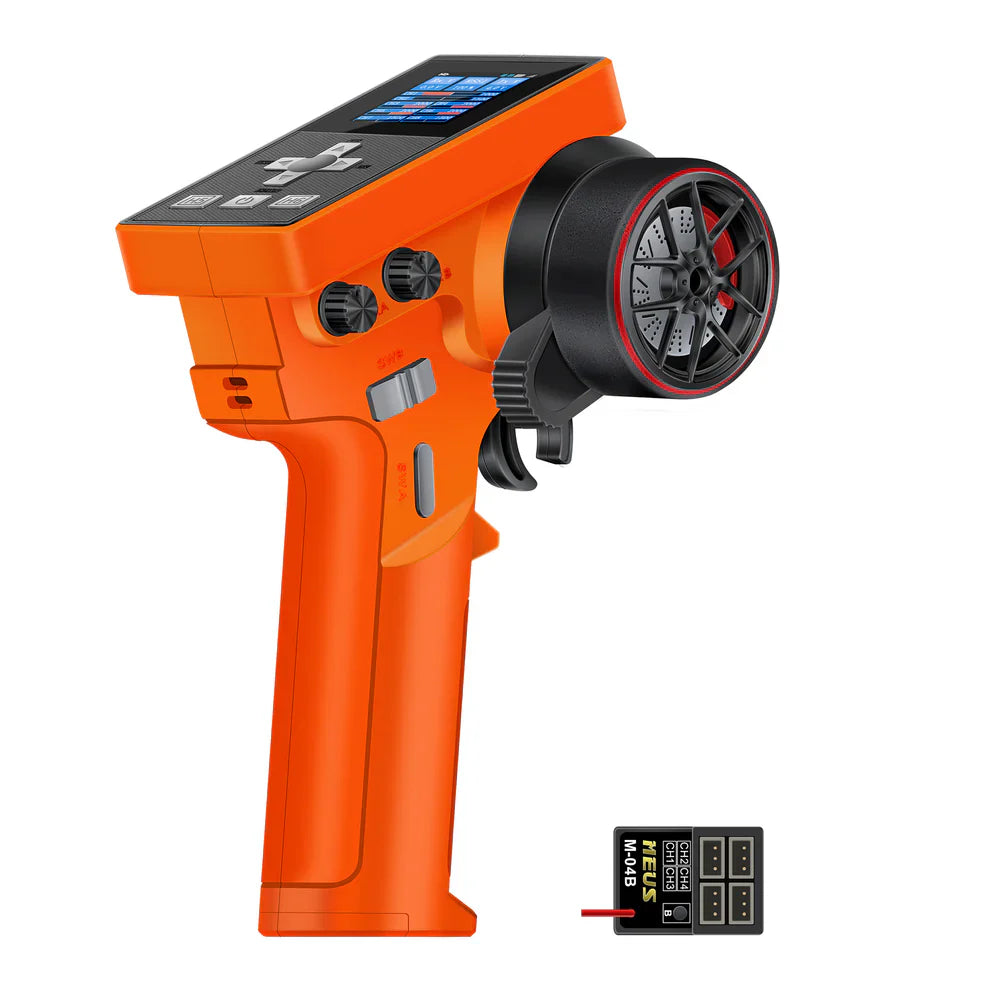

MEUS Racing ME-8B RC Transmitter 8 Channels 2.4GHz and M-08A Receiver for 1/8, 1/10, 1/18, 1/24 RC Crawler Car Boat TRX4 TRX4M SCX10 SCX24 Upgrades Parts.

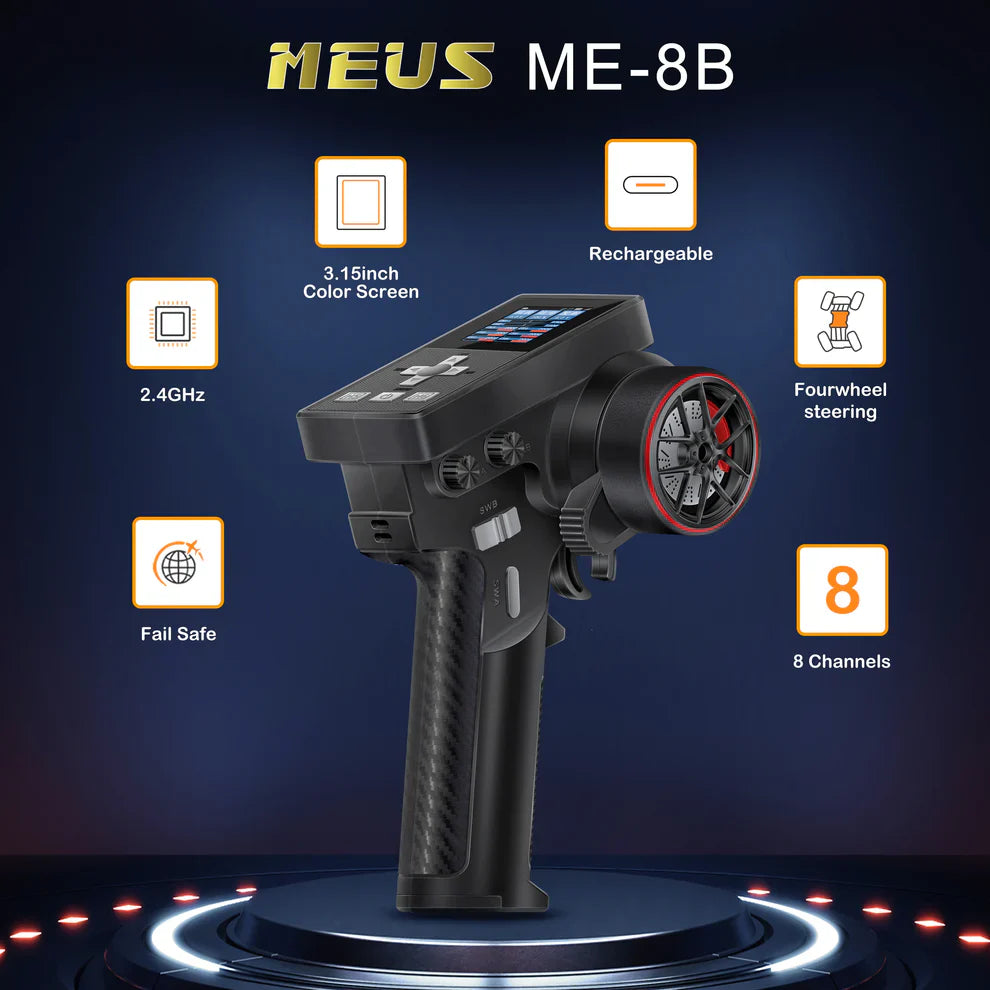

Key Features:
- 1. Self-developed 2.4GHz technology: Stable performance and greater anti-interference ability.
-
2. Within 3s response time: Comes with a power amplifier to extend the remote control distance to ground distance max.300 meters and air distance max.800 meters.
-
3. Up to 8 channels: Except for throttle and steering handwheel, this transmitter comes with one 3-gear channel, two knob-channels, and three button-channels, 8 channels in total for flexible operations.
-

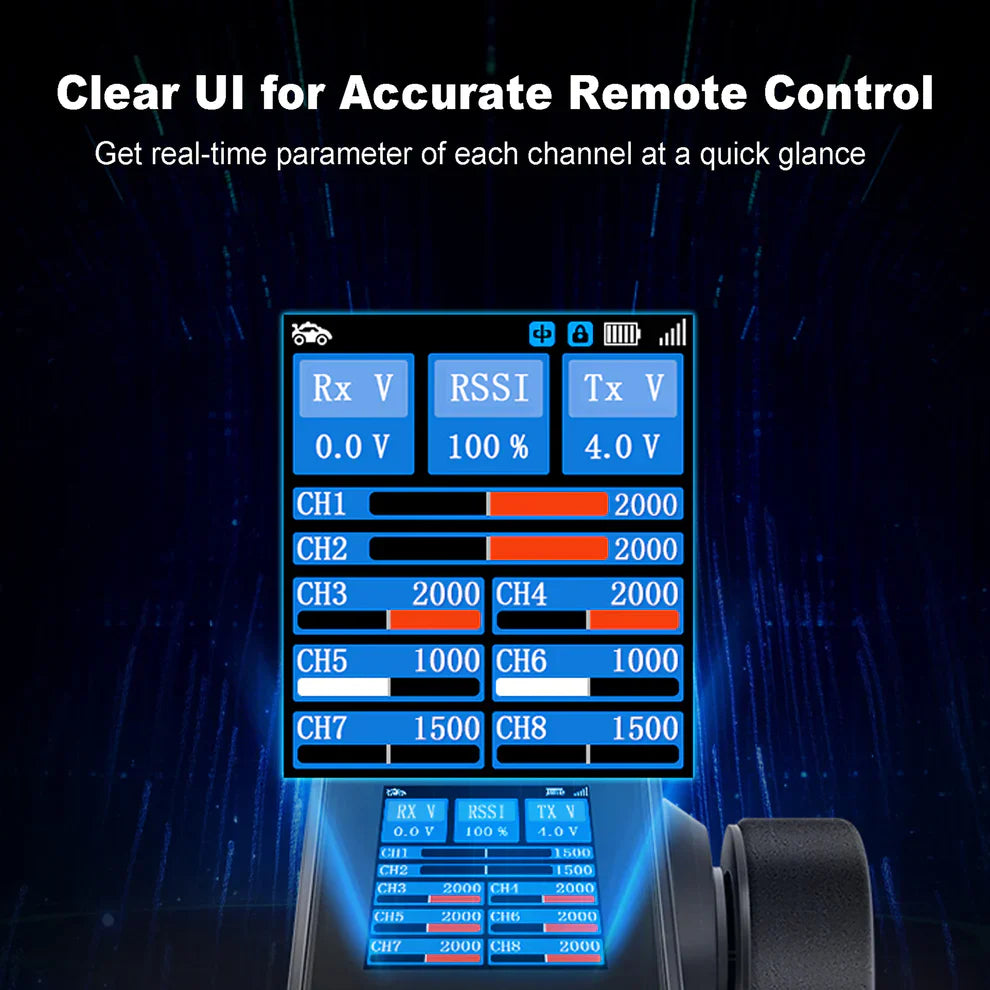

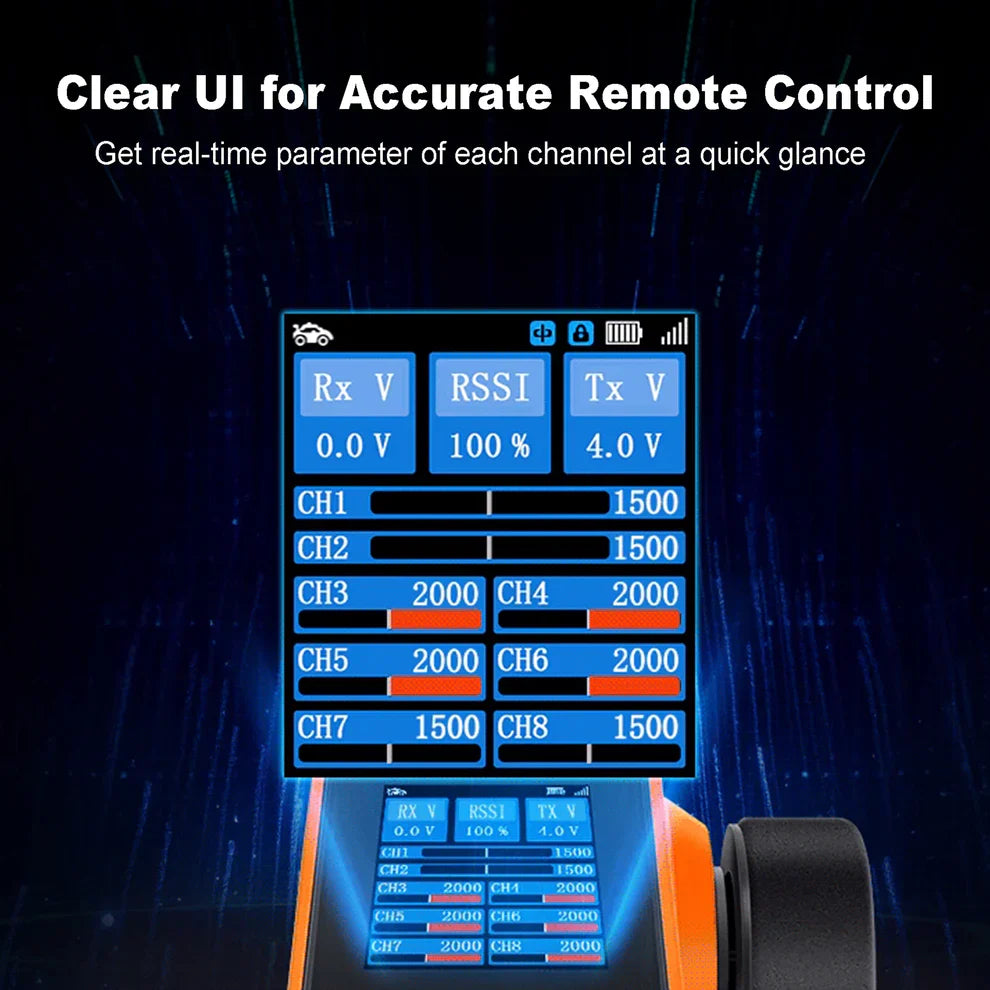

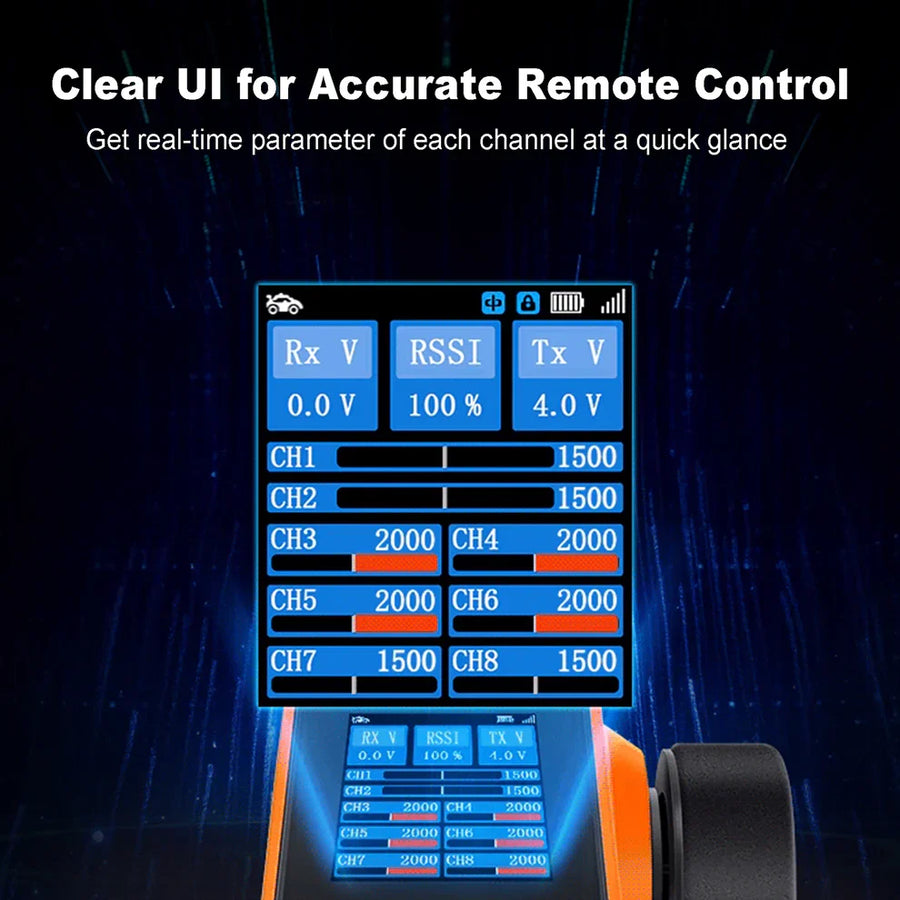

4. Clear UI and color screen: Allows you to get real-time parameters of each channel at a glance.
-

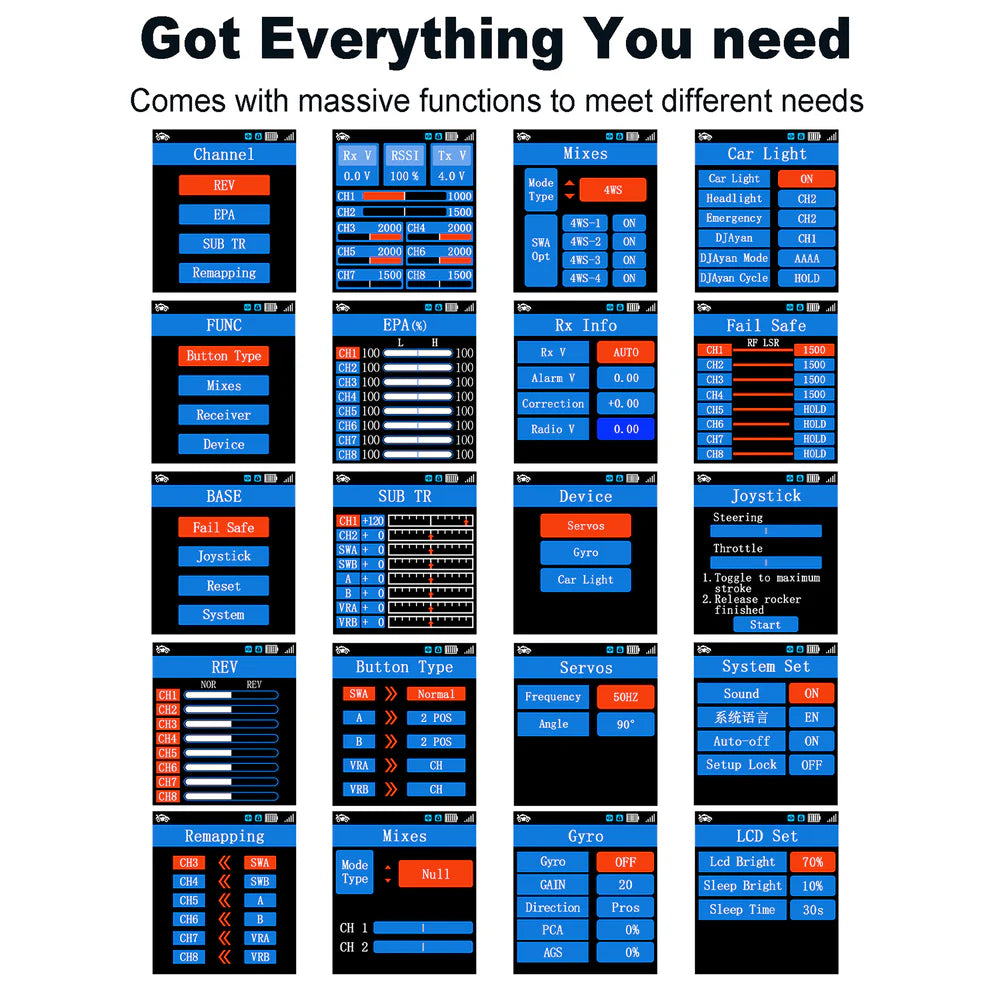

5. Great Functionality: This RC transmitter is equipped with fail-safe, low-voltage warning, and integrated with massive functions to meet different customization needs, not only great for beginners but also ideal for pros.
-

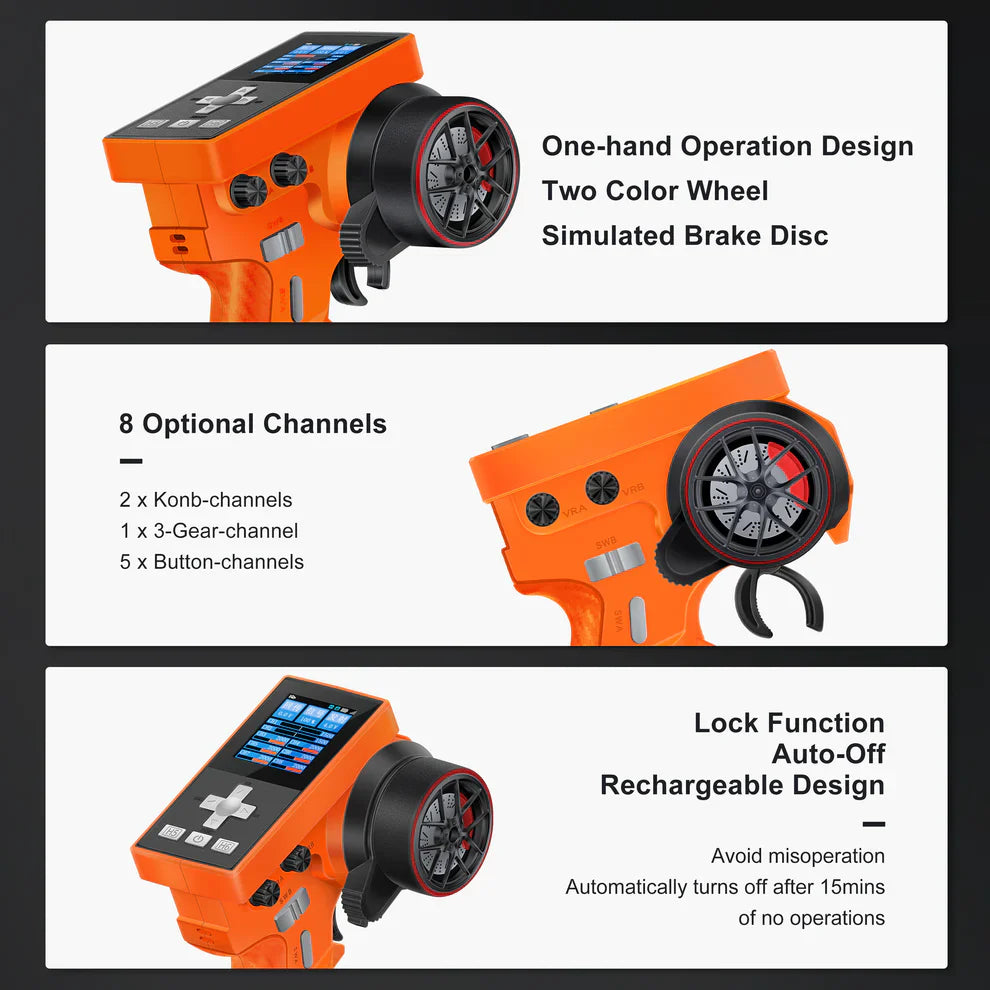

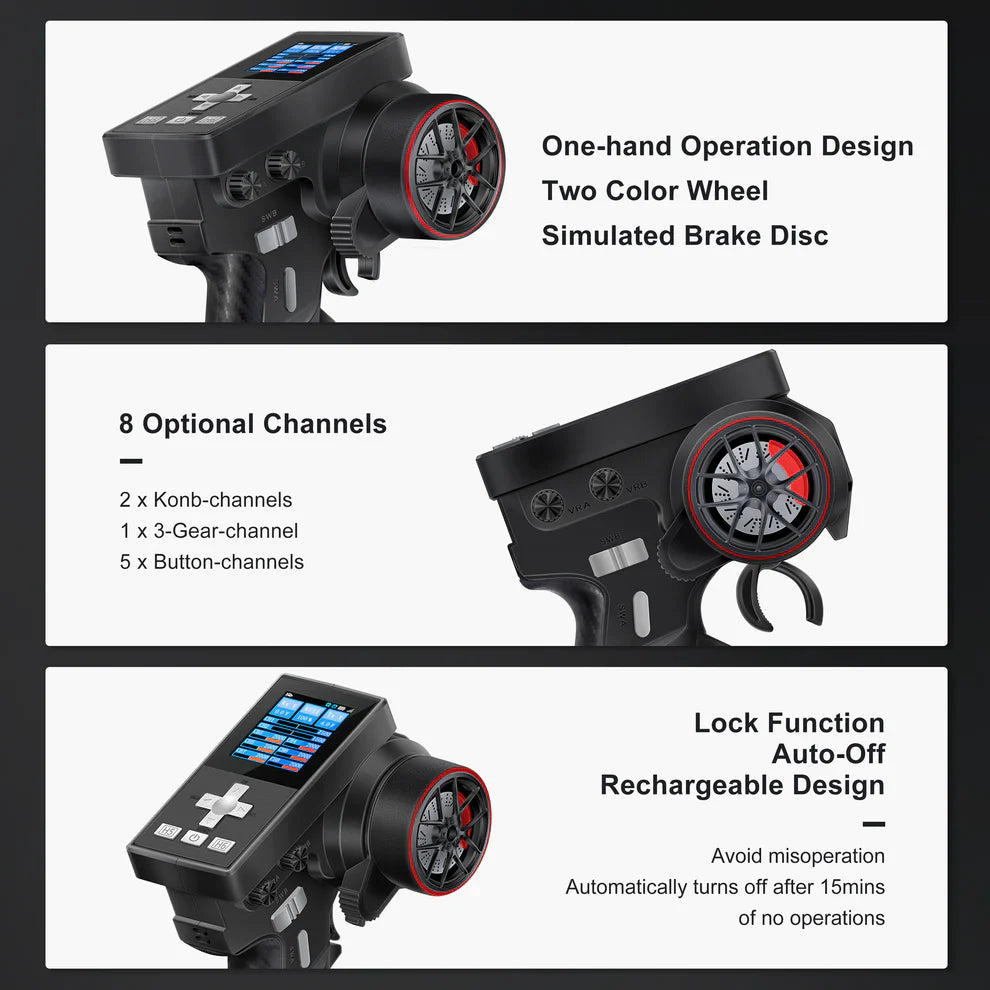

6. User-friendly and Ergonomic Design
- (1) Comes with a lock function to avoid misoperation, a 15s auto-off function, and it's rechargeable;
- (2) The 4-bearing structure wheel and the anti-slip trigger with adjustable force and position ensure smoother and accurate operation.
-
7. All Terrains Available: This RC transmitter and receiver kit can be used for off-road, on-road use, e.g,. RC crawler, RC short course car, RC boat, RC motorcycle, etc., and various scale models, e.g., 1/5, 1/8, 1/10, 1/18, 1/24 scales.
Note: The ME-8B transmitter can be used with one model car and store one model car.
Manual>>ME-8B RC Transmitter Manual
Update tool>>MEUS Transmitter Update Tool
Note: If you want to update the transmitter, please also download the update tool.
Specifications of Transmitter:
- Suitable for Model Type: RC cars, RC boats, RC tanks, etc.
- Channels: 8
- Frequency range: 2.4GHz ISM
- RF Power: About 120MA
- Response Time: PWM≤5MS
- Modulation: GFSK
- Spread Spectrum: FHSS
- Receiving sensitivity: -96dbm
- Channel Resolution: 4096
- Battery: 18650 (Rechargeable)
- Power supply: DC 3.7V-9V
- Gross Weight: 176g
- Control Distance: about 300m on the ground, 800 on the air.

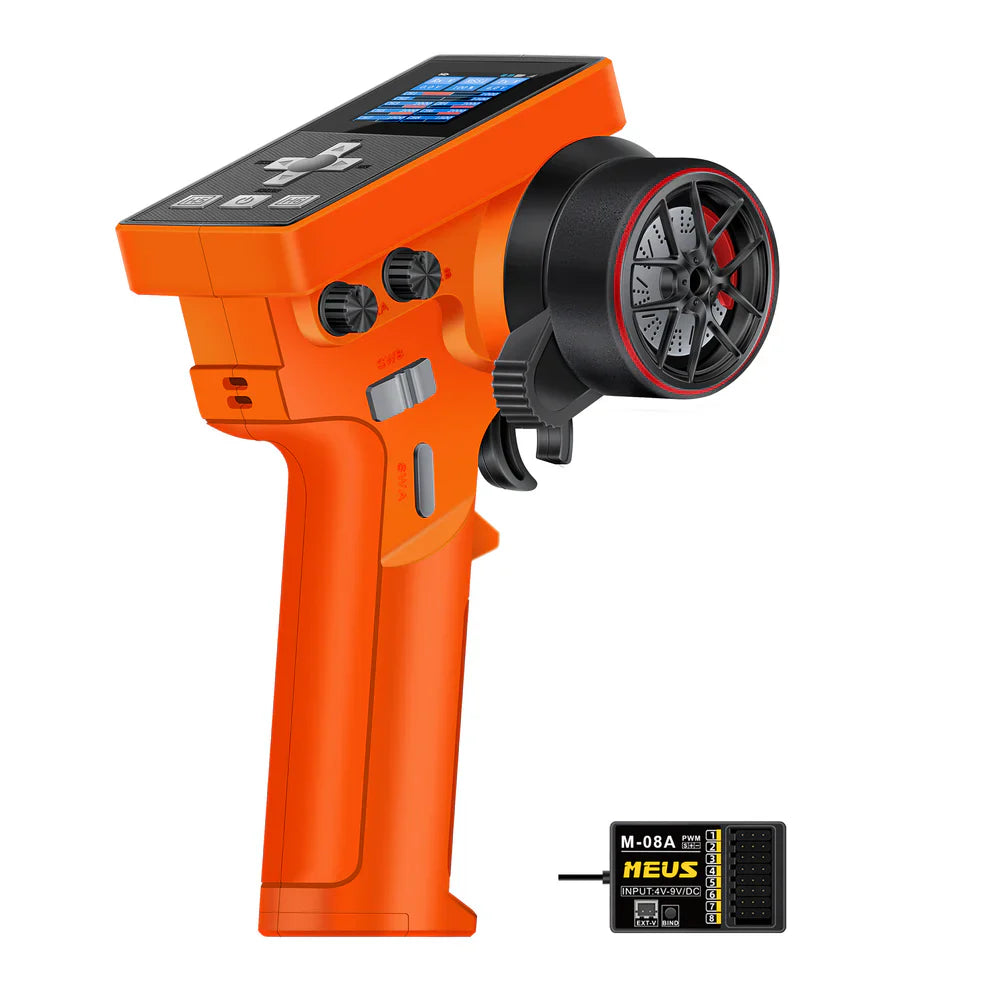

M-08A Receiver's Specifications(comes with transmitter):
- Model Number: M-08A
- Channels: 8
- Frequency range: 2.4GHz
- Working current: 35mA
- Receiving distance: 300-800m
- Input voltage: DC 4V-9V
- Voltage Feedback: 0-27V (300m)
- Dimensions: 38*24*13mm
- Gyro: No
- Weight: 7.8g
- Application: RC cars, RC boats, RC tanks, etc.
Package List:
- 1 × ME-08B RC Transmitter
- 1 × M-08A Receiver
- 1 × 18650 Rechargeable Battery
- 1 × User Manual
- 1 × Type-C data cable
