iCharger DX12

Special Features The DX12 uses advanced Synchronous buck-boost DC/DC converter technology, high power, a high current and...
SKU: IC-DX12
Availability: In Stock
$299.99
$299.99
Holiday Sale | 10% OFF
Use code: DRCHLD10
iCharger DX12 - HeliDirect

iCharger DX12

$299.99

iCharger DX12

$299.99

Special Features

  • The DX12 uses advanced Synchronous buck-boost DC/DC converter technology, high power, a high current and high-performance power conversion circuit. The maximum charge power capacity is up to 1700W, the maximum charge/discharge current of a channel is up to 30A, and two channels in Synchronous Mode are up to 50A.
  • Each channel supports 12s LiPo, Lilo, LiFe, LiHV, LTO and NiZn batteries, with maximum 2A balance current, and adopts a unique balance calculation of internal resistance correction. Supports 1-32s NiMH/NiCd batteries and 1-20s Pb batteries.
  • With digital-power mode for great protection (over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, and etc.)
  • With type-c PD charging port, convenient for the user to charge mobile phones and PCs.
  • Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.
  • Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced; and the charger will shut down when temperature exceeds the Shut-down temperature.
  • This charger can save 64 parameters sets and support the data import/export to SD card.

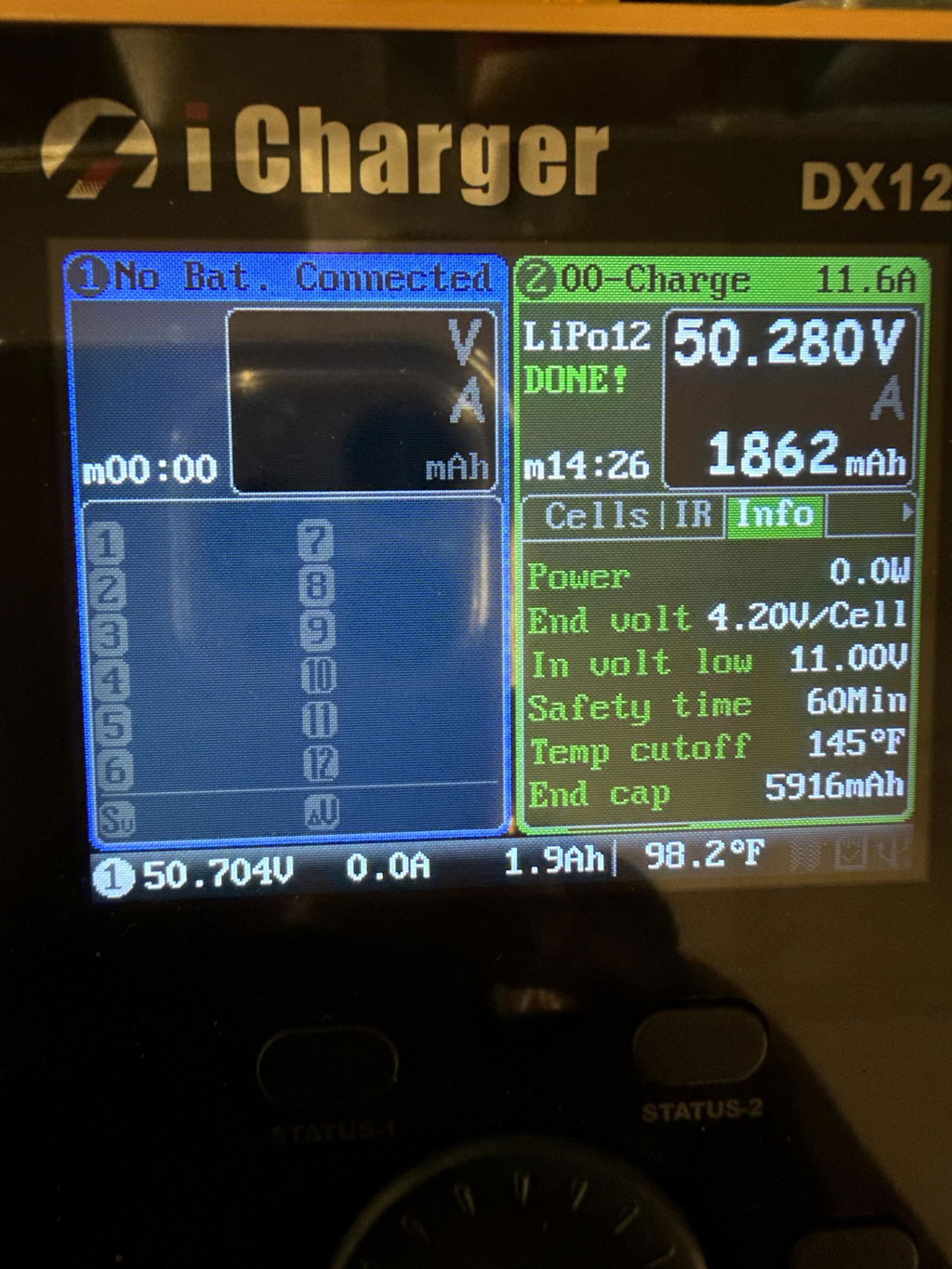

  • A 2.8" IPS LCD screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.
  • Multi-discharge features: self-discharge, regenerative to input or discharge to another channel, and lithium battery extra expanding discharge.
  • Supports measurement for internal resistance of battery offline and online. Measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.
  • DX12 has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time and maximum power etc.
  • Supports upgrading the hardware program by USB port or SD card. DX12 also supports the “Junsi Console” software and can display, plot and analyze the charge and discharge data by it.

Specifications

  • Input voltage range: 11—53VDC
  • Maximum input current limit: 65A(Channel 45A)
  • Maximum charge/discharge current: 50A(Channel 30Ax2)
  • Maximum charge power capacity: 1700W(Channel 1200Wx2)
  • Maximum discharge power capacity: 80W(Channel 50Wx2)
  • Maximum regenerative discharge power capacity: 1700W(Channel 1200Wx2)
  • Maximum extra discharge power capacity: 3000W (Channel 1500W @50V/30A)
  • Maximum current drain for balancing: 4A(Channel 2Ax2)
  • Type-C PD port: 5V/3A, 9V/2A, 12V/1.5A
  • Support Battery type: LiPo, Lilo, LiFe, LiVH, LTO, NiZn, NiMH, NiCd, Pb
  • Net weight: 500g
  • Dimension: 111.5×128.5×40mm

Manual: Download





Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dave K.

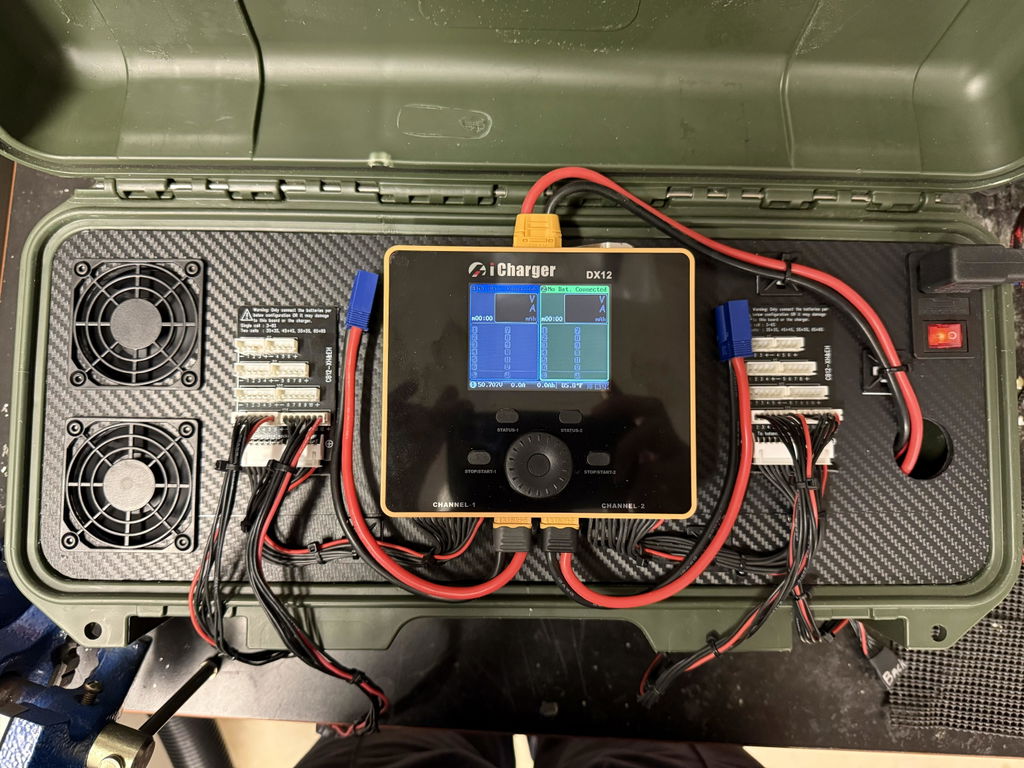

Good value charger for true 12S packs

Overall works great. It does take a bit longer to balance 12s packs over charging at 2x 6s but its very convenient and balances nicely.

C
Cleveland C.
ICharger Evolution

Wow this charger is amazing finally something better than the old outdated Hyperion 1420, a 12S charger with the ultimate power, I’m running it on 50V and it stays so cool when charging a 12S stick pack. For 12S stick packs don’t look any further iCharger has done it again, awesome job iCharger.

M
MARIO R.

iCharger DX12
