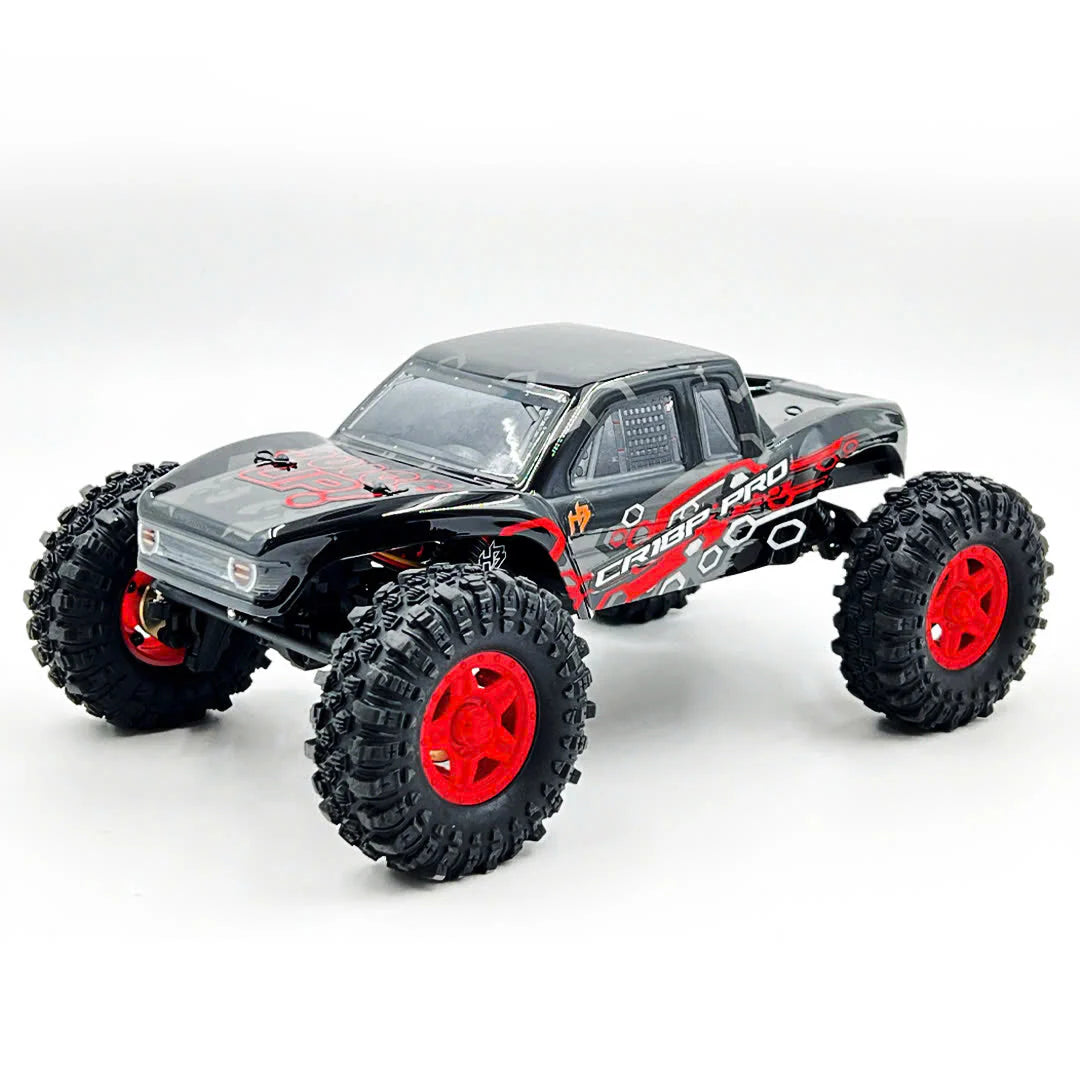

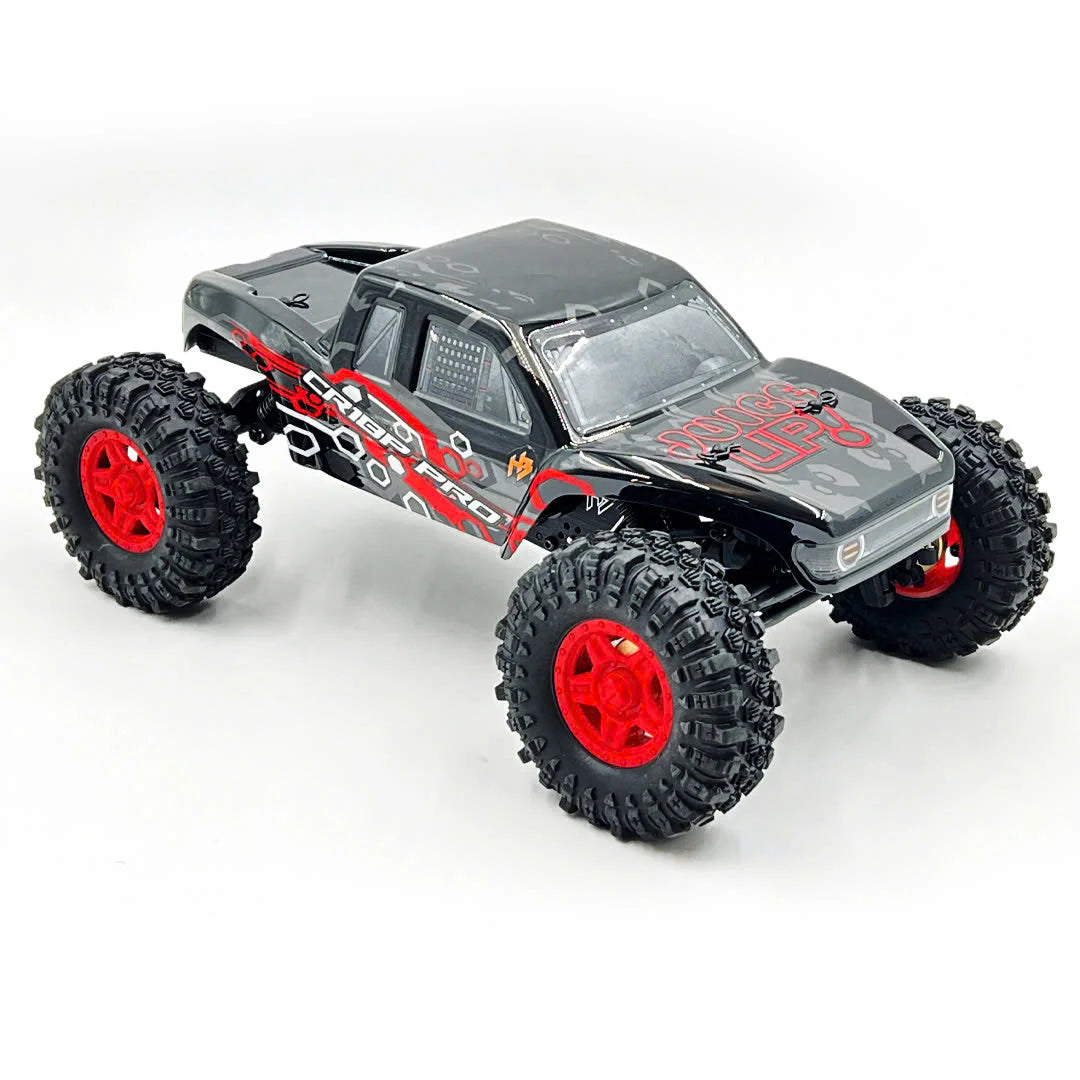

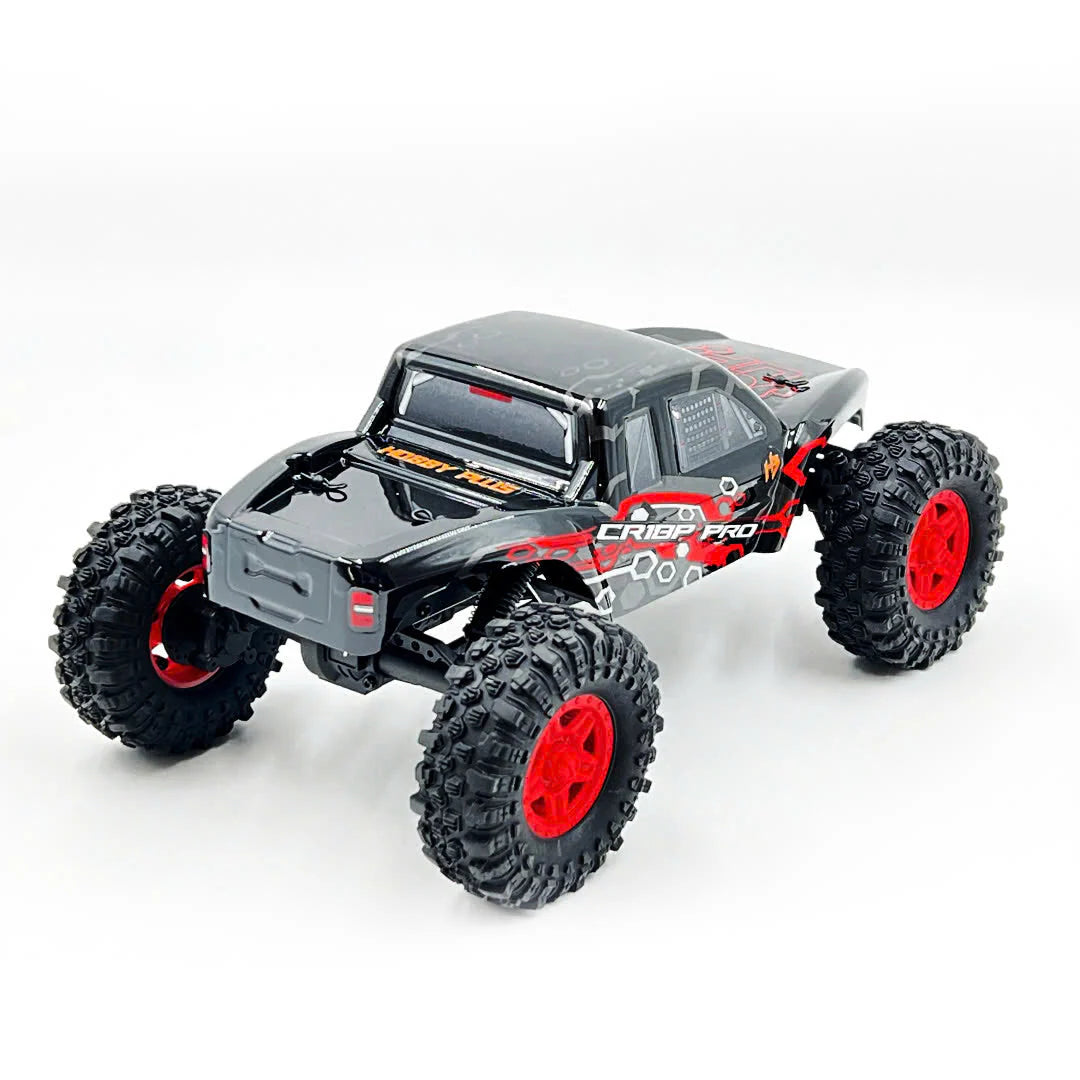

HobbyPlus CR-18P PRO Brushless Juice Up Edition (Red) With TORQ MLS-1024 Premium DIRECT-MOUNT Servo

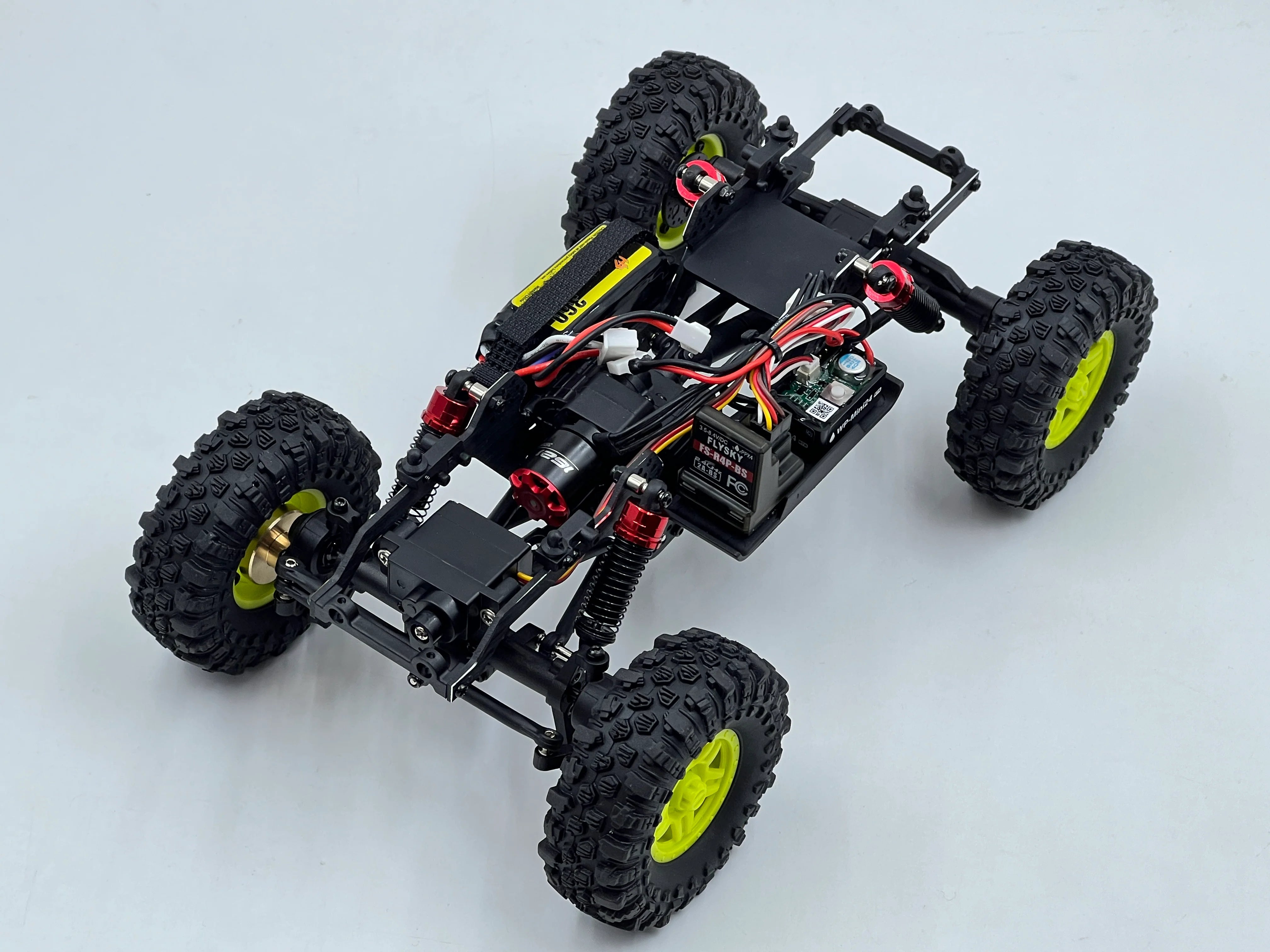

Introducing CR-18P PRO Juice Up Edition! Based on the successor EVO PRO, we received a lot of
requests from our fans for a simpler and higher performance version out of the box. We listened
and answered with 12 new improved features:
1. Single-speed transmission gear box
2. Optional brass wheel hex included (Front axle Only)
3. Optional brass wheel weight included (Front and Rear)
4. Optional rear 27% under drive pinion & ring gear included
5. New HD portal axle outdrive (use 1.5mm pin)
6. HD plastic drive shaft (same as ARKTOS revised driveshafts)
7. New design plastic bead lock wheel

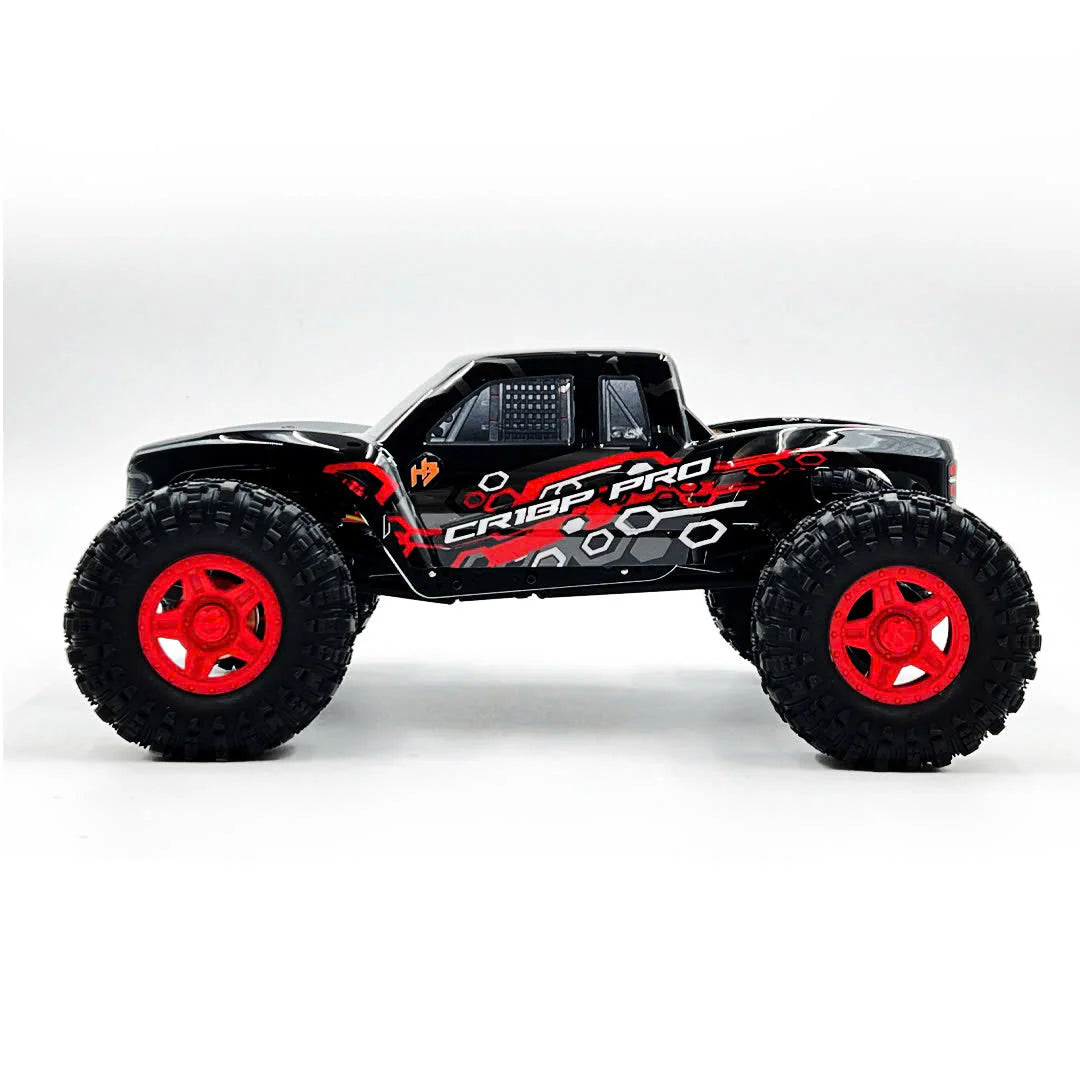

8. New design super cool body screen print
9. Hobbywing 1621SL outrunner motor
10. Hobbywing mini24 brushless esc (2s and 3s capable)

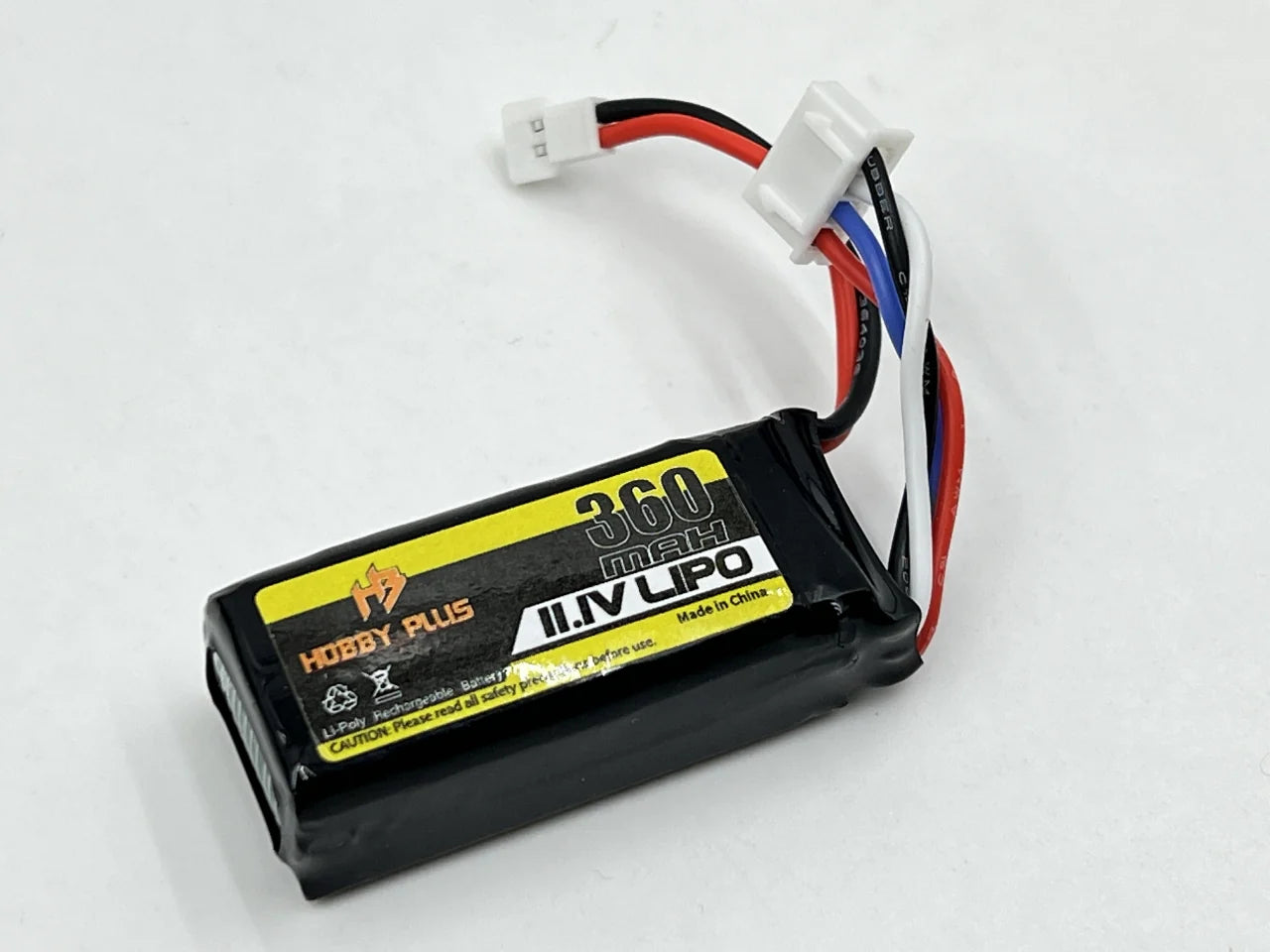

11. 3s 11.1v lipo battery (360mah)
12. Front 56% rear 44% weight bias

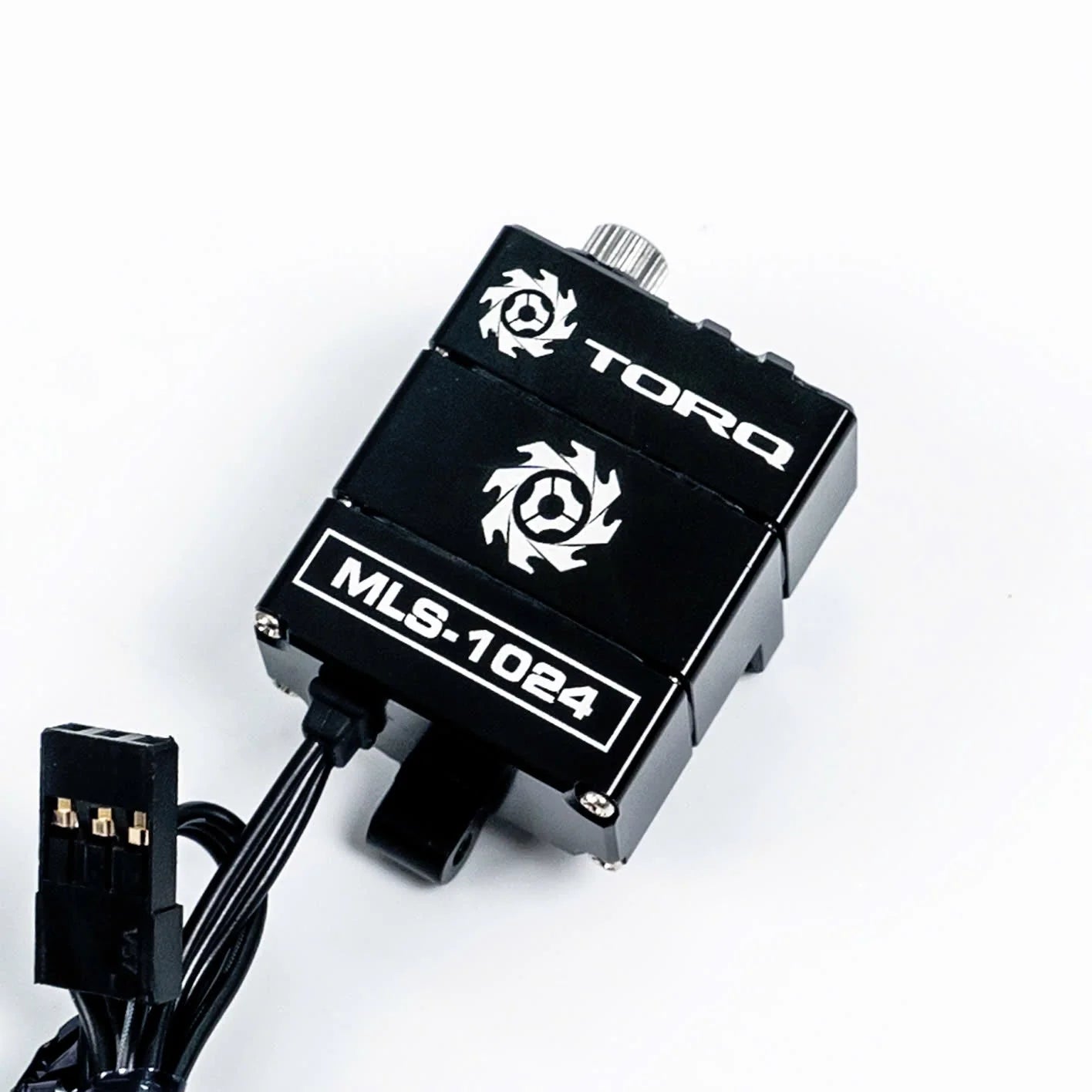

TORQ MLS-1024 Premium DIRECT-MOUNT Servo for FURITEK FX118, CR-18P 2024, HobbyPlus ARKTOS, CR-18P Pro Juice Up, CR-18P V3 Brushless and HPI Venture 18

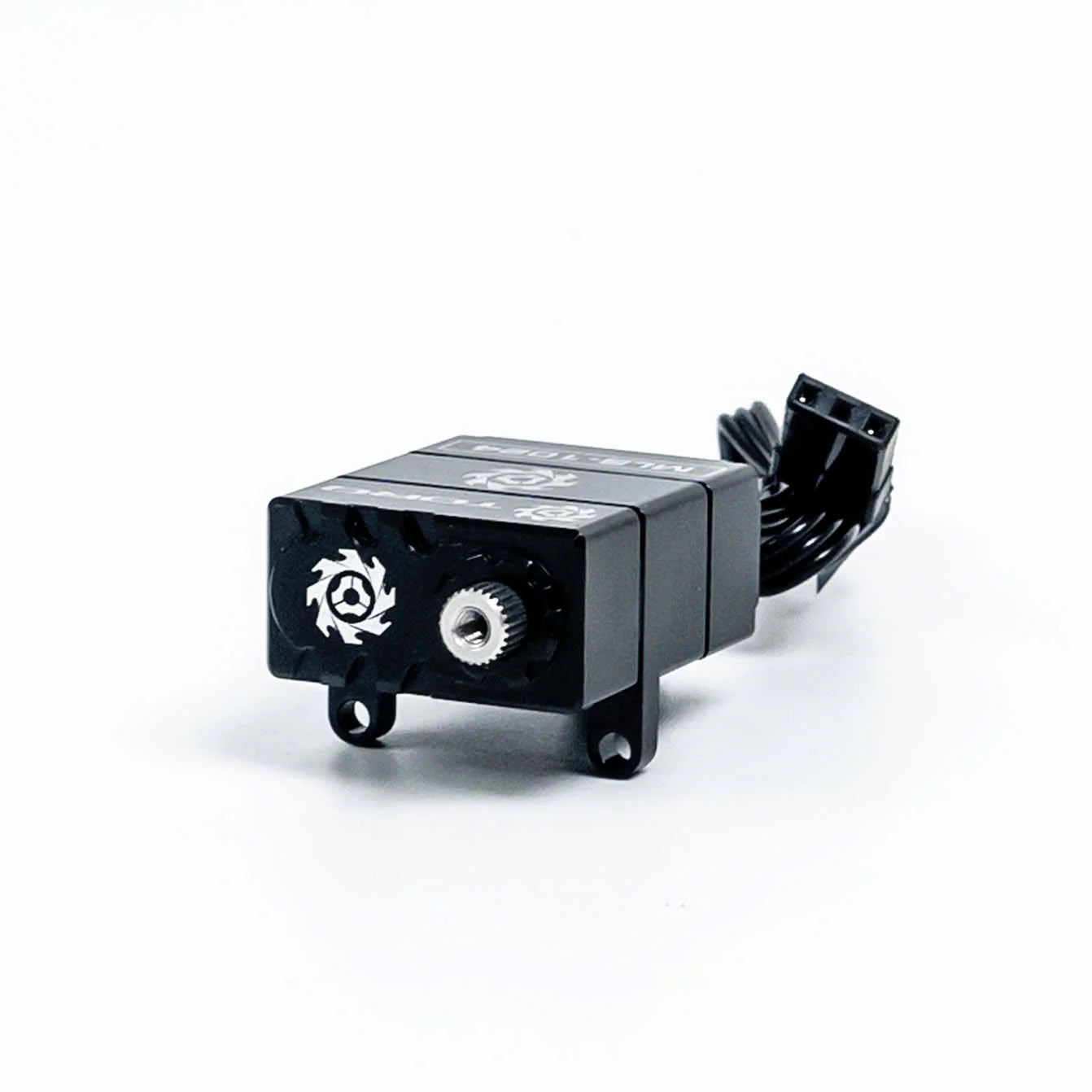

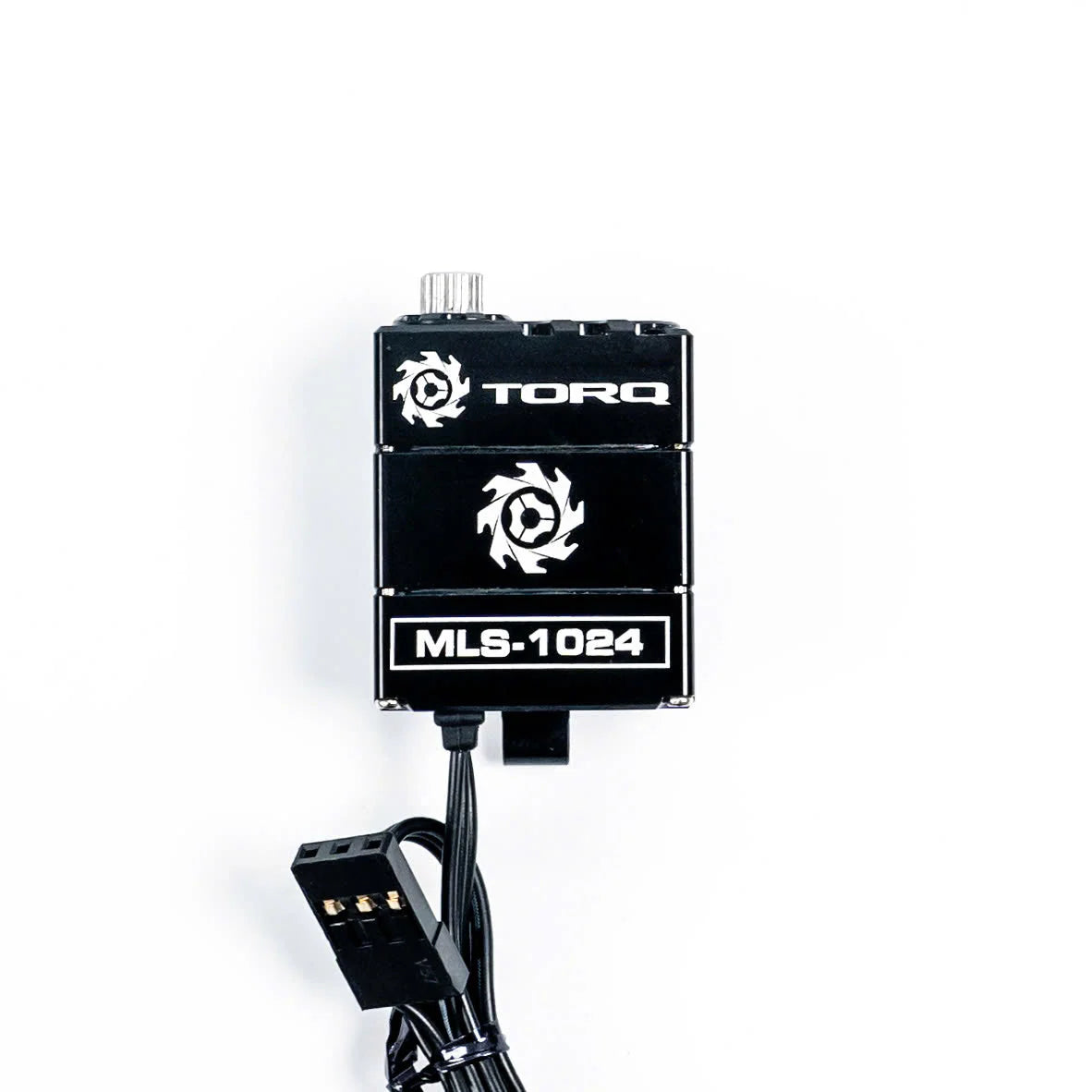

The TORQ MLS-1024 Premium DIRECT-MOUNT Servo is expertly engineered to cater to the needs of small-scale crawlers. This innovative servo design eliminates traditional servo ears, providing ample clearance between the servo and the frame rails, ensuring smooth and unobstructed suspension movement. The MLS-1024’s unique configuration also eliminates the necessity for a separate servo mount, simplifying the installation process.

Key features include rear exit wires, further ensuring that suspension travel remains unhindered. This servo is designed for ultimate clearance all around, making it a standout choice for crawler enthusiasts. The design is patent-pending, showcasing its unique and innovative nature.

FULL Precision CNC Aluminum Case with black anodizing colors.

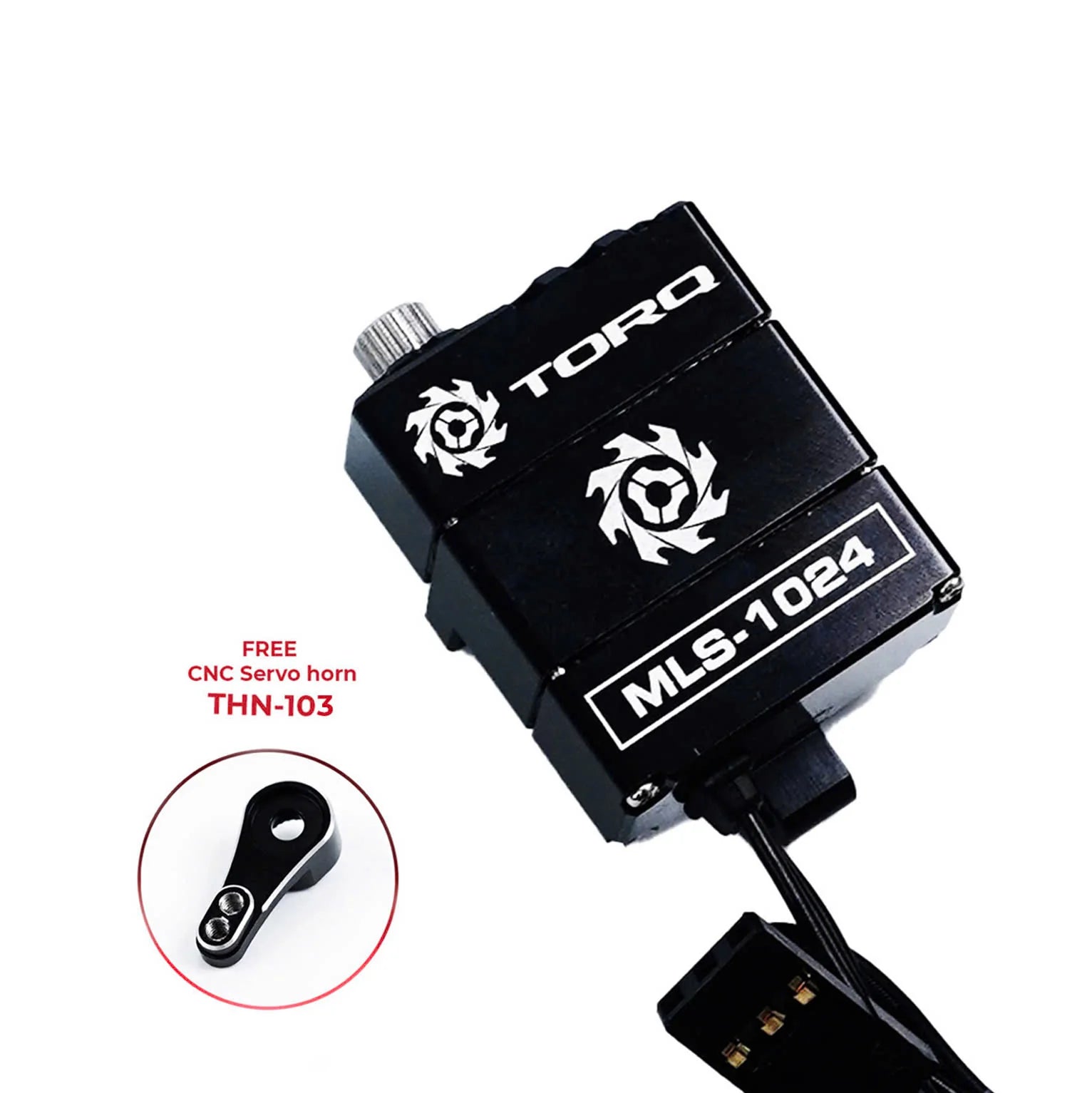

FREE CNC Servo Horn THN-103 – $14.99 Value

Features

• High Torque Output: Delivers powerful performance for small-scale crawlers.
• Mountless Design: Eliminates the need for a separate servo mount, reducing the overall cost.
• No Servo Ears: Provides ample clearance between the servo and frame rails, ensuring smooth suspension movement.
• Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.
• Simplified Installation: Easy to mount due to its unique design.
• Enhanced Clearance: Designed for ultimate clearance around the servo.
• CNC Servo Horn Included: Limited time offer includes a free CNC servo horn.
• Full precision CNC Metal Gears
• Full precision CNC Aluminum Case with black anodizing color.
• Waterproof
• Patent Pending: The innovative design is currently under patent protection.

Specifications

-          Dead Bandwidth: 3μs

-          Working Frequency: 1520μs / 330Hz

-          Operating Voltage: 5.0V - 8.4V

-          Motor Type: Coreless Motor

-          Operating Speed:

        ·       At 5.0V: 0.10 sec/60°

        ·       At 6.0V: 0.09 sec/60°

        ·       At 7.4V: 0.07 sec/60°

        ·       At 8.4V: 0.055 sec/60°

-          Stall Torque:

        ·       At 5.0V: 9 kg-cm (125 oz-in)

        ·       At 6.0V: 11.5 kg-cm (160 oz-in)

        ·       At 7.4V: 12.8 kg-cm (177 oz-in)

        ·       At 8.4V: 14.5 kg-cm (200 oz-in)

-          Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)

-          Weight: 22.0 g (0.78 oz)

-          Connector Wire Length: JR 170 mm (6.7 inches)

-          Output Gear Spline: 25T

Benefits

-          Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.

-          Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms.

-          Performance Enhancement: Unhindered suspension movement leads to better crawler performance.

-          Ease of Installation: Simplifies the mounting process, saving time and effort.

-          The TORQ MLS-1024 Premium Torque Micro Servo is an excellent choice for crawler enthusiasts looking for a high-performance, easy-to-install, and cost-effective servo solution.
