FURITEK STARTER 2S BRUSHLESS POWER SYSTEM FOR SCX24

FURITEK STATER 2S BRUSHLESS POWER SYSTEM FOR SCX24 SUPPORT 2S LIPO only Introducing the Furitek STATER brushless...
SKU: FUR-2426
Availability: Pre-Order
ETA: 10/20/2024
$89.99
$119.99
$89.99
FURITEK STARTER 2S BRUSHLESS POWER SYSTEM FOR SCX24 - HeliDirect

FURITEK STARTER 2S BRUSHLESS POWER SYSTEM FOR SCX24

$119.99 $89.99

FURITEK STARTER 2S BRUSHLESS POWER SYSTEM FOR SCX24

$119.99 $89.99

FURITEK STATER 2S BRUSHLESS POWER SYSTEM FOR SCX24

SUPPORT 2S LIPO only

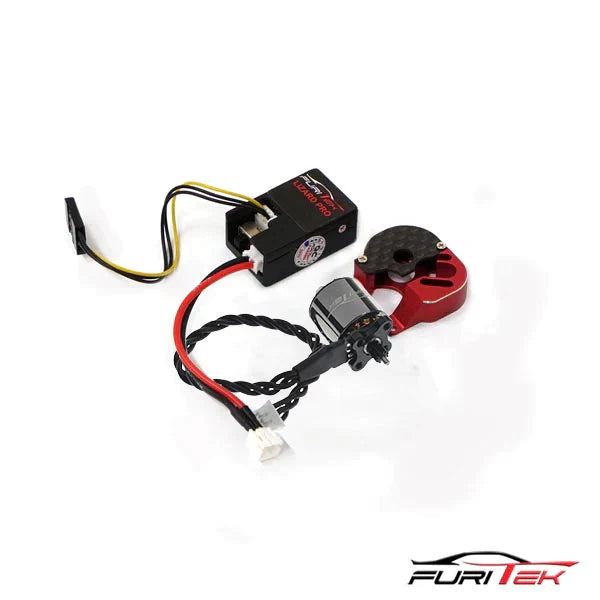

Introducing the Furitek STATER brushless power system for SCX24, the system includes the VENOM 1212 3450kv with lighter and smaller size yet very powerful at low speed but also more powerful and fast at high speed.  The motor is designed with high torque at low speed crawling and with a special firmware from the Lizard Pro ESC, this motor is super smooth without any cogging at both low and high speed operation.

With Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.

Features:

  • A smaller and lighter brushless motor Micro Komodo for low C.G. setup same like stock
  • High performance and powerful 30A/50A brushless ESC with FOC technology
  • Bluetooth module for wireless connection
  • Precision CNC aluminum motor mount for better holding motor in place.
  • Precision CNC brass pinion for long-lasting operation
  • Powerful at low speed but also more powerful and fast at high speed
  • High torque at low speed crawling
  • Super smooth without any cogging at both low and high speed operation­
  • Lifetime FREE firmware upgrade!

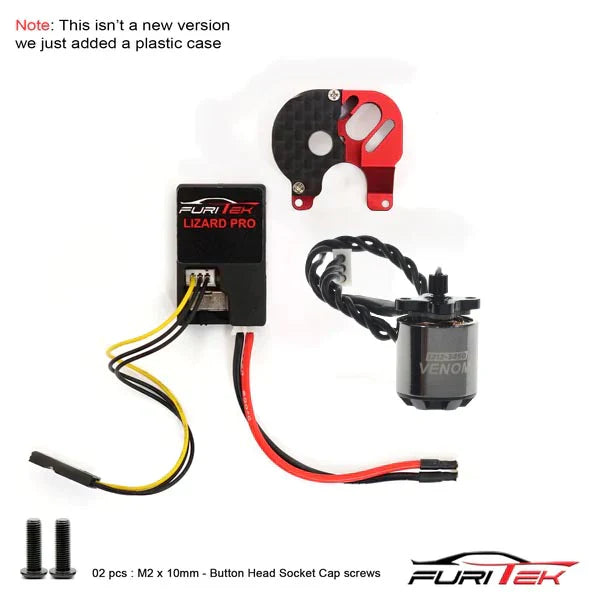

Package includes:

  • 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR AXIAL SCX24 WITH FOC TECHNOLOGY
  • 1 x Bluetooth module
  • 1 x VENOM 1212 3450KV brushless motor
  • 1 x 11T 0.3M CNC Brass Pinion
  • 1 x CNC aluminum motor mount

Motor Specifications:

  • KV (RPM/Motor) – 3450
  • No-load current @10V – 0.7A
  • Watt – 120W
  • Battery – 2S
  • Resistance – 0.16 Ohms
  • Max Current – 10A
  • Slot/Pole – 12
  • Motor size (mm) – 15.5x20.6
  • Shaft (mm) – 1.5x6
  • Weight (g) – 17.5

ESC Features and Specs

Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for AXIAL SCX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX

Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (Don’t need external BEC if use big Servo)
- Constant current: 30A
- Burst current: 50A
- Built-in Switch power
- Dimension (mm): 28(L)x 15.5(W)
