KNT RC Battery Accessories KNT XT30U Connector - Male-Female (5sets)
KNT XT30U Connector - Male-Female (5sets) - HeliDirect

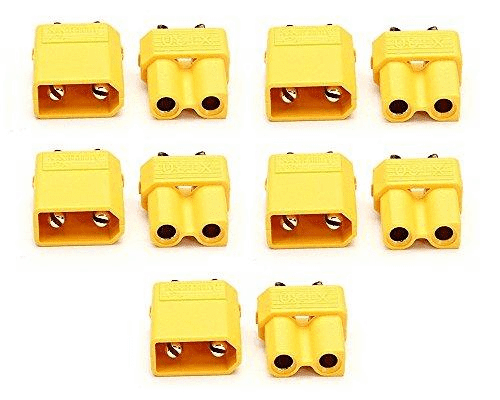

XT30U Connector - Female + Male (5 Sets)

Specification: Body Material: copper (gold plated)Insulator Material: NylonModel: XT30UType: Male connectorApplicable wire specifications: 16-20AWGFor Vehicle Type: Helicopter,...
Availability: In Stock
KNT RC Battery Accessories KNT XT30U Connector - Male-Female (5sets)

XT30U Connector - Female + Male (5 Sets)


XT30U Connector - Female + Male (5 Sets)



Body Material: copper (gold plated)
Insulator Material: Nylon
Model: XT30U
Type: Male connector
Applicable wire specifications: 16-20AWG
For Vehicle Type: Helicopter, Quadcopter, Airplane, Helicopter
Weight: 3g


1. Make of copper (gold plated) and nylon materials, safe and dependable.
2. Sheathing tail concave design so that heat-shrinkable tube can be inserted deeper, to protect joints from moisture damage.
3. Closely mold processing, connection tightness, good sealing performance.
4. Semicircular opening, can be easily welded.
5. Clearly marked positive and negative symbols.
6. Slip-swappable design, plug are more easier.
7. Polarized connector connection up to 40A.
8. For cables up to 2.0 mm².
9. High temperature flame retardant nylon material, the fire will not melt at high temperatures and strong currents, encountered fire difficult to burn, turn off automatically after leaving the fire source.
10. Resistance to current 20A (continuous), 30A (peak), suitable for the needs plugs and relatively small size and light weight of the occasion. For example, 250 helicopters, small current car, boat molds.

Note: The female side of battery; male end is ESCs, chargers use.

Package Included:

5 x male connectors

5 x female connectors

Customer Reviews

Based on 5 reviews
Brad A.
Perfect for Micro Helis

Easy to solder, much better than the JST connector for my receiver packs and my 230S helicopter.

Jake b.
Great for small quads

Picked some of these up for my new 3in quad. They are some good connectors that you dont need to worry about shorting out your expensive equipment as they only go together one way. Also they fit very snug so no worries on them coming apart either.

Your gonna need one eventually.

I like having a variety of spare parts around the work bench when I'm building quads. I picked up this pack of five sets so I can always have the right terminal when I need it. This set is a must have for anybody who often builds 4" or smaller quads.

Deon J.
XT30 connectors

Good overall quality and good value

Al H.
Well thought out

These yellow battery connectors were well thought out when designed. They can only be plugged in one way and the terminals are protected so they are almost impossible to short in any way.
