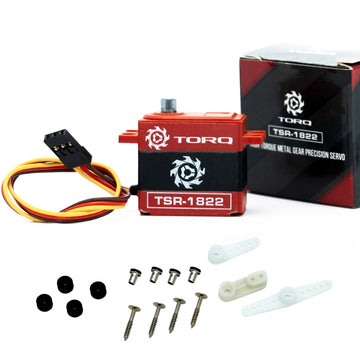

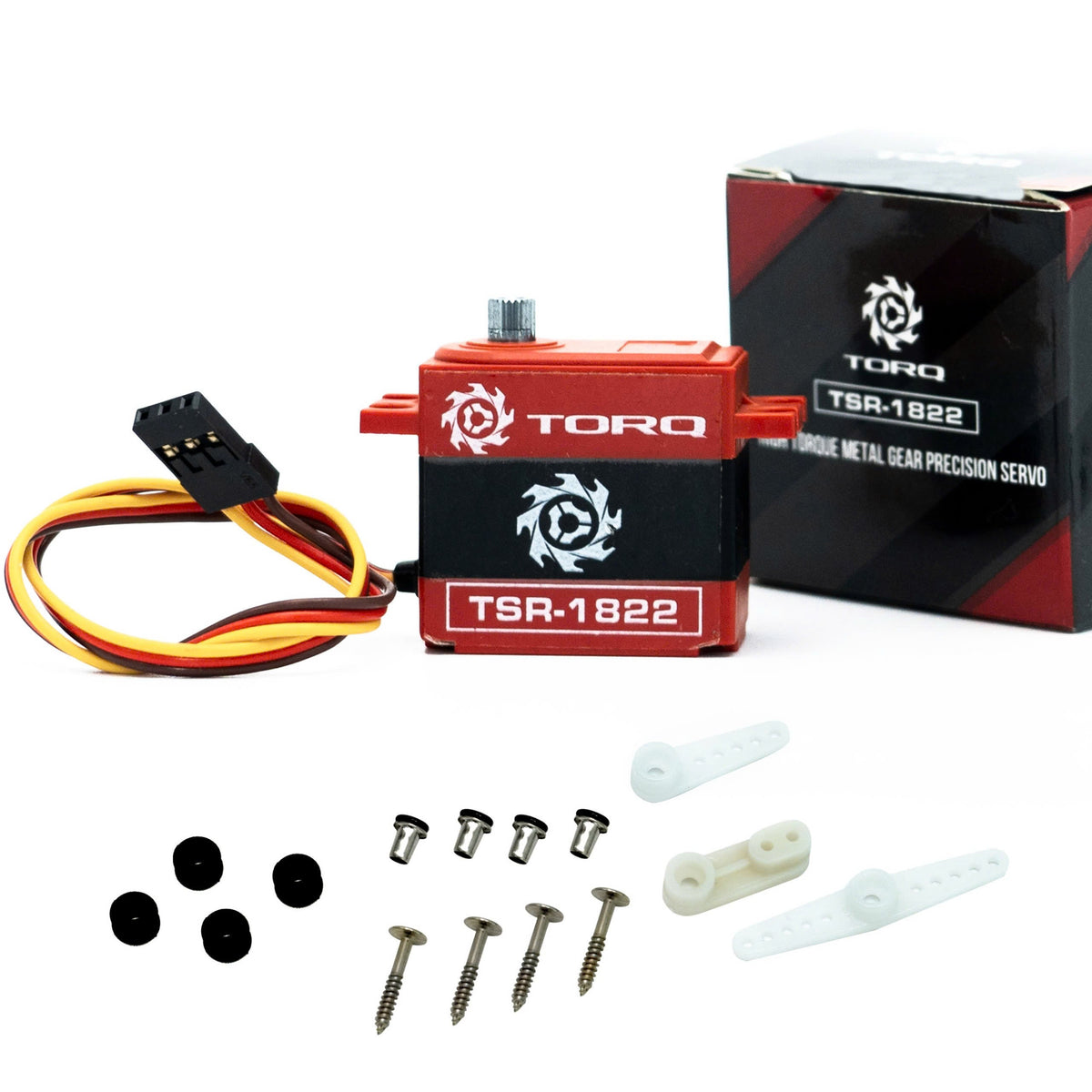

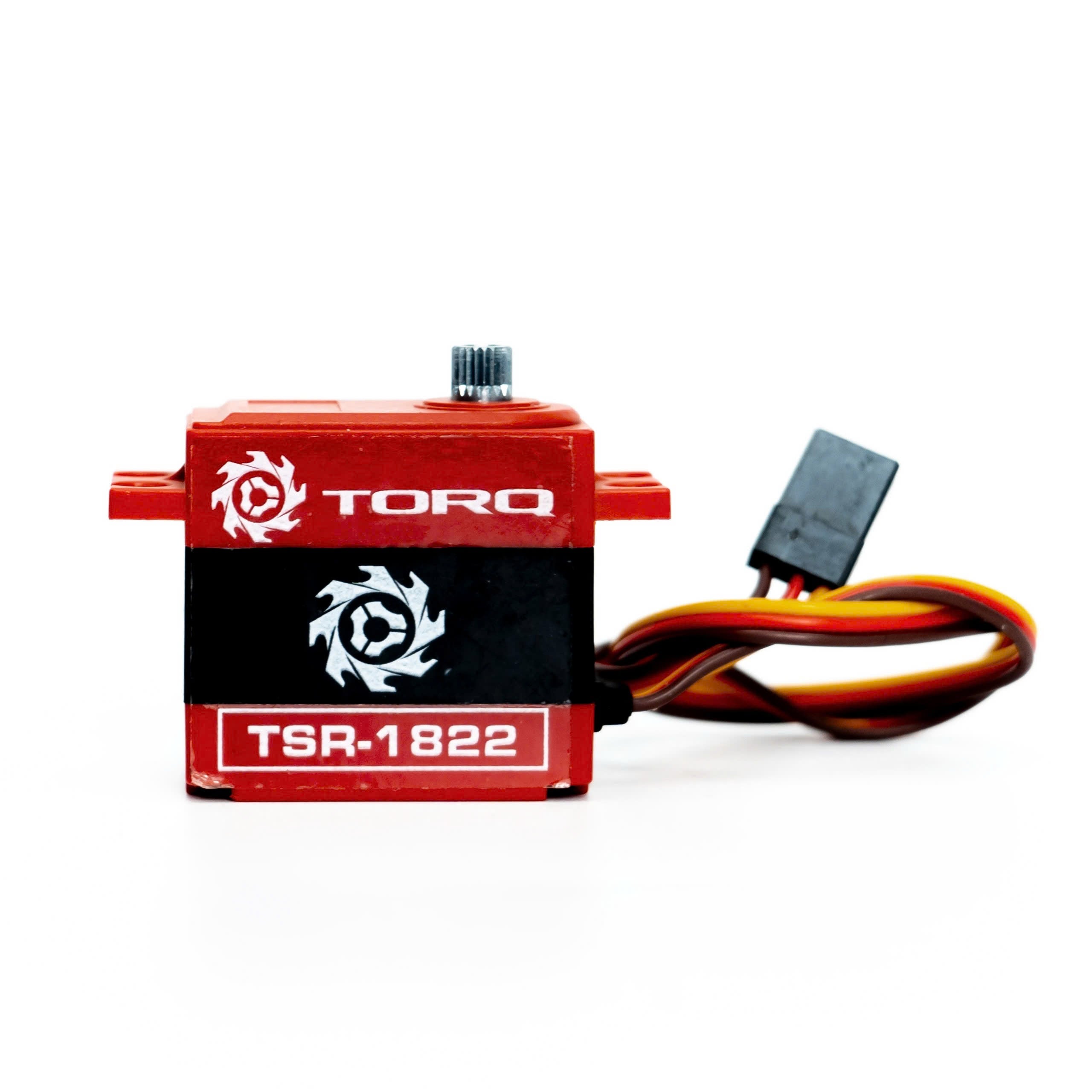

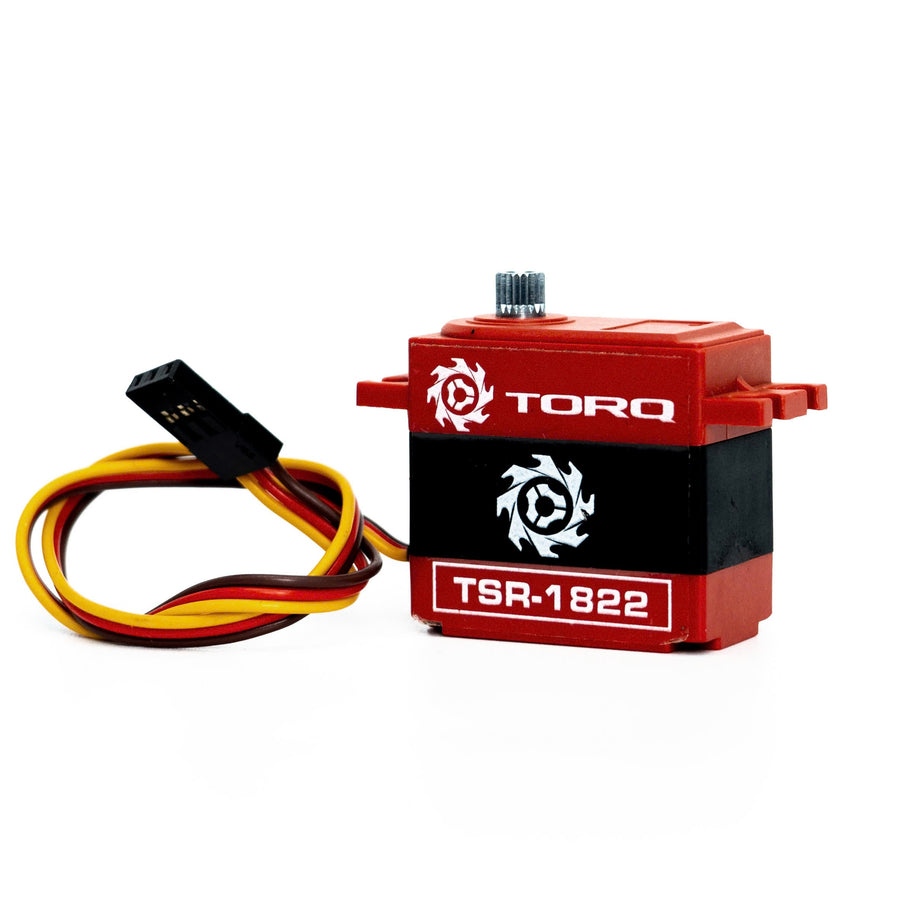

TORQ TSR-1822 22g Digital Metal Gear Servo for 1/12 & 1/14 Cars

The TSR-1822 Metal Gear Digital Servo is engineered for high-performance control, delivering precise movement and exceptional durability for a wide range of RC models. Whether used in RC cars, trucks, or fixed-wing aircraft, this servo ensures responsive handling and long-lasting reliability.

Key features

- Wide Compatibility – Designed for 1/12 and 1/14 scale vehicles or servos that fit the servo mount.

- Compatible with these models

• Rlaarlo RC Cars: Rog1, XTS Rally Car (XTS12), Omni Terminator, X12s buggy
• MJX14210/14209
• Hypergo 14211
• Feiyue FY01 FY02 FY03 FY04 FY05 FY06 FY07 SUBOTECH 1/12 RC Car
• BG1506/1507/1508
• For JJRC Q391/1214
• Suitable for fixed-wing aircraft, with detailed control accessories included in the kit, such as: canopy opening/closing, landing gear hatch operation

- High-Quality Build – Constructed with premium materials, ensuring durability and long-term use.

Specifications:

• Type: 22g 4.6KG Metal Gear Digital Servo
• Dead Band: 4μs
• Working Frequency: 1520μs / 330 Hz
• Motor: High-quality Core Motor

• Operating Speed:
• 4.8V: 0.12 sec/60°
• 6V: 0.10 sec/60°
• Stall Torque:
• 4.8V: 3.3 kg.cm
• 6V: 4.6 kg.cm

• Size: 31 x 16.5 x 29.6mm
• Weight: 22g
• Connector Wire Length: JR 220mm
• Gear Teeth: 21T
• Bearings: 2BB
