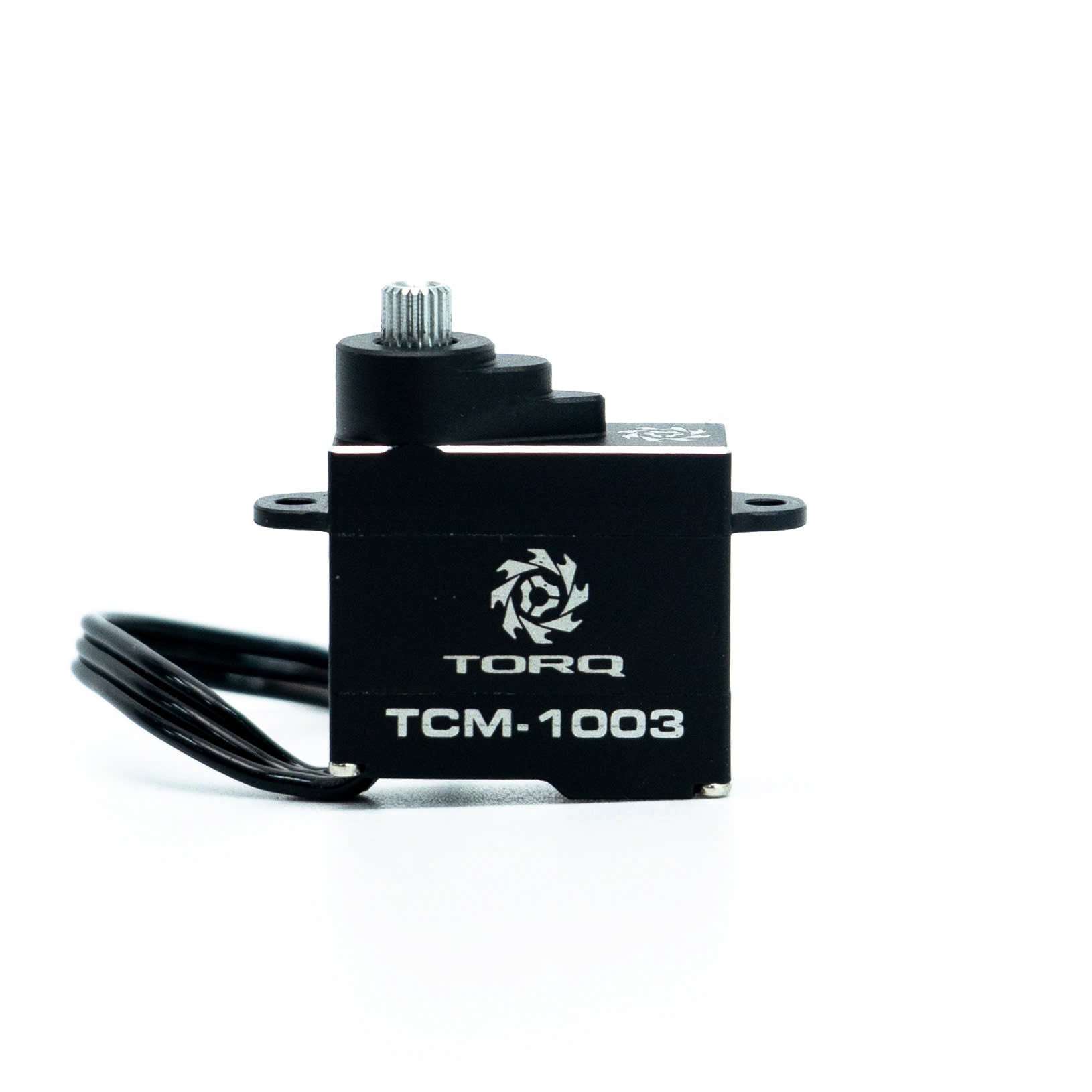

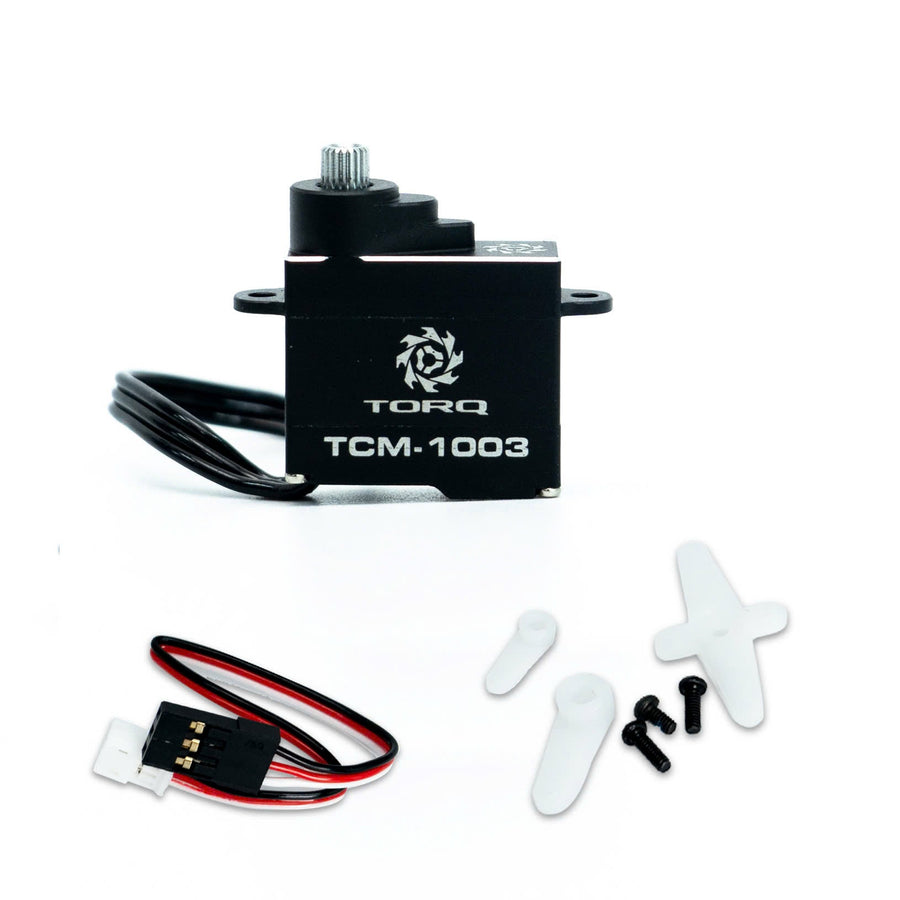

TORQ TCM-1003 Coreless Titanium Gear 7g Micro Digital Precision Servo for Mini-Z

7g super light weight with full CNC machining case, 8mm compact size allow to suit for more models with space and weight requirements. 2S wide voltage which produce 3KG high torque and 0.052Sec super spec at 8.4V. Bring different driving feel for the mini car with this tiny size servo. Durable titanium gear and 20T spline provide higher precision in operation

Key features

• High Quality Coreless Motor
• High Accuracy Titanium Gear
• Ultra Lightweight Mini Z Servo
• Fast Cooling CNC Aluminum Case
• 2S 8.4V High Voltage Compatibility
• Design for Mini Z cars

Specifications

Operating Voltage: 4.8-8.4V
Operating speed:

• 0.075sec/60°@4.8V
• 0.066sec/60°@6.0V
• 0.058sec /60° @7.4V
• 0.052sec /60° @ 8.4V

Stall Torque:

• 1.8 kg-cm (25 oz-in) @4.8V
• 2.2 kg-cm (30 oz-in) @6.0V
• 2.6 kg-cm (36 oz-in) @ 7.4V
• 3.0 kg-cm (41 oz-in) @ 8.4V

Gear: Titanium
Motor: Coreless
Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)
Weight: 7g
Connector Wire: JST 1.5mm
