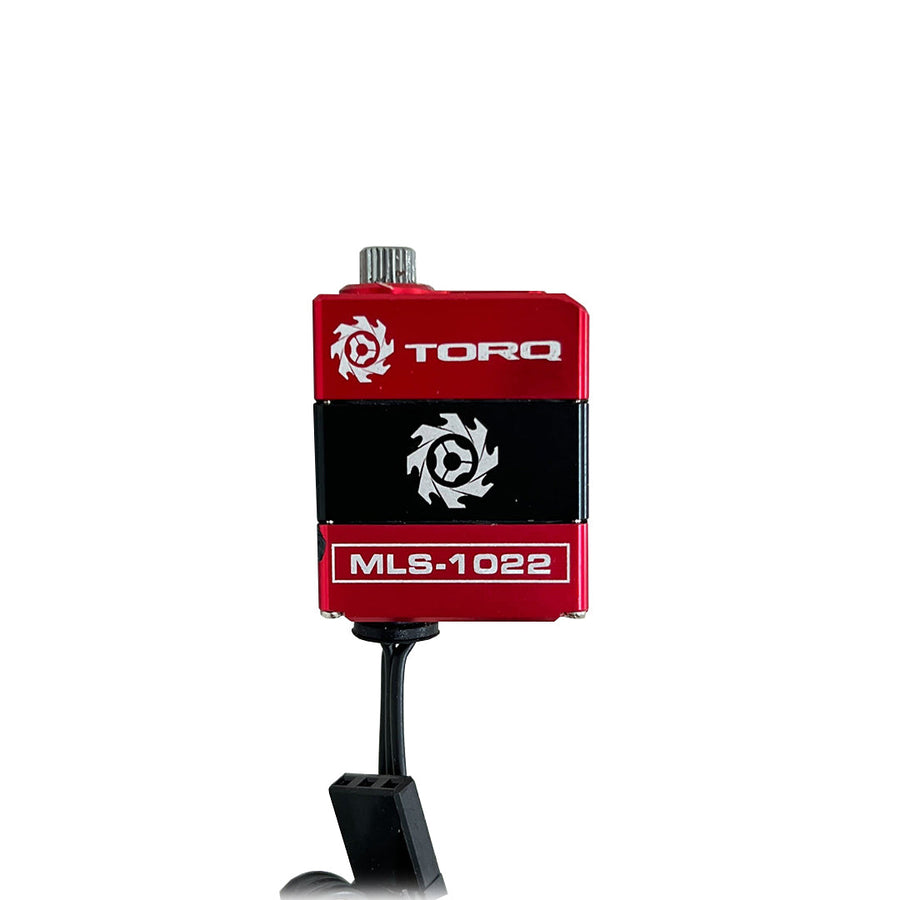

TORQ MLS-1022 Premium DIRECT-MOUNT Servo for Axial SCX24 - Red

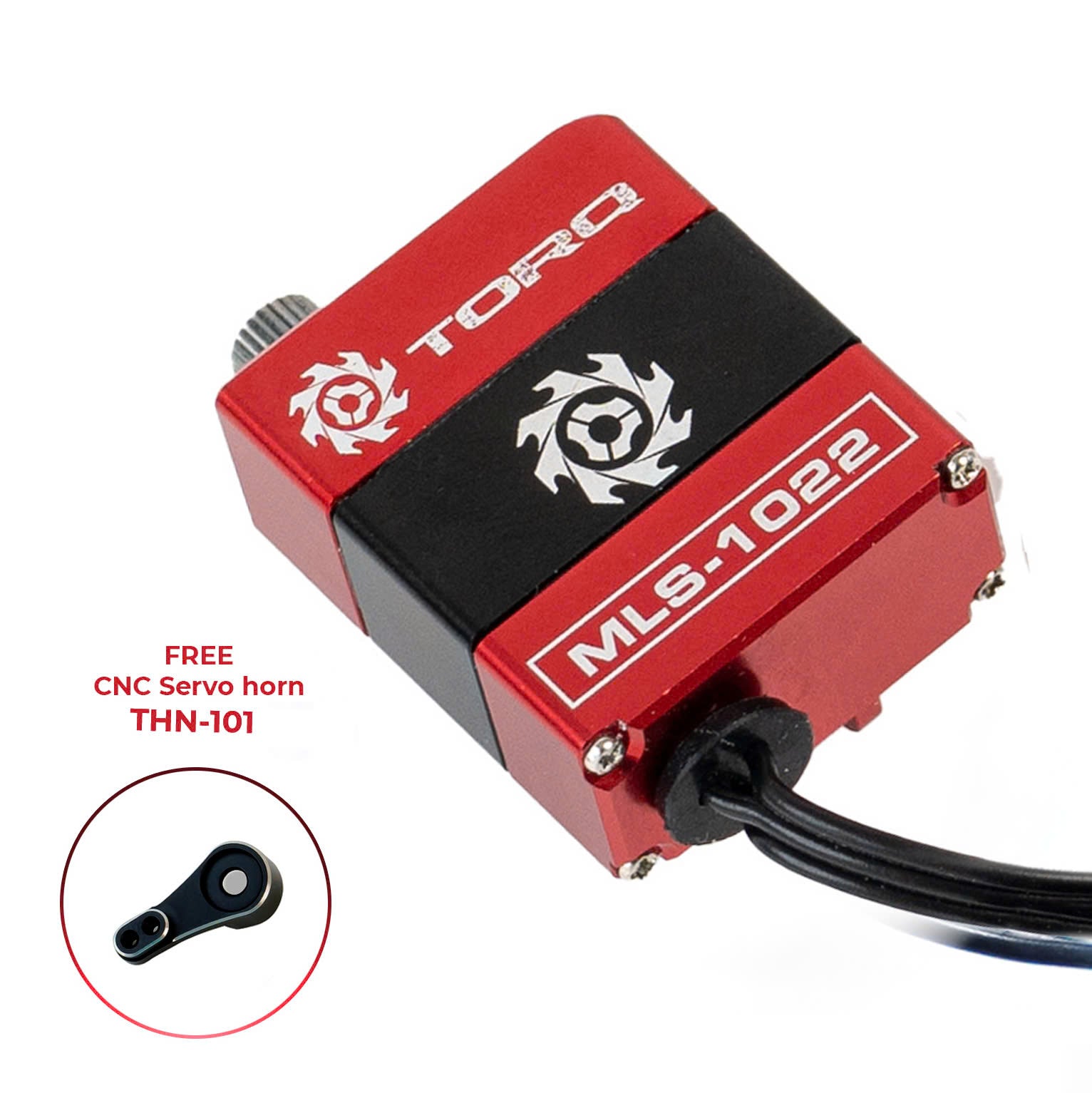

TORQ MLS-1022 Premium DIRECT-MOUNT Servo - RED

The TORQ MLS-1022 Premium DIRECT-MOUNT Servo is expertly engineered to cater to the needs of small-scale crawlers. This innovative servo design eliminates traditional servo ears, providing ample clearance between the servo and the frame rails, ensuring smooth and unobstructed suspension movement. The MLS-1022’s unique configuration also eliminates the necessity for a separate servo mount, simplifying the installation process.

Key features include rear exit wires, further ensuring that suspension travel remains unhindered. This servo is designed for ultimate clearance all around, making it a standout choice for crawler enthusiasts. The design is patent-pending, showcasing its unique and innovative nature.

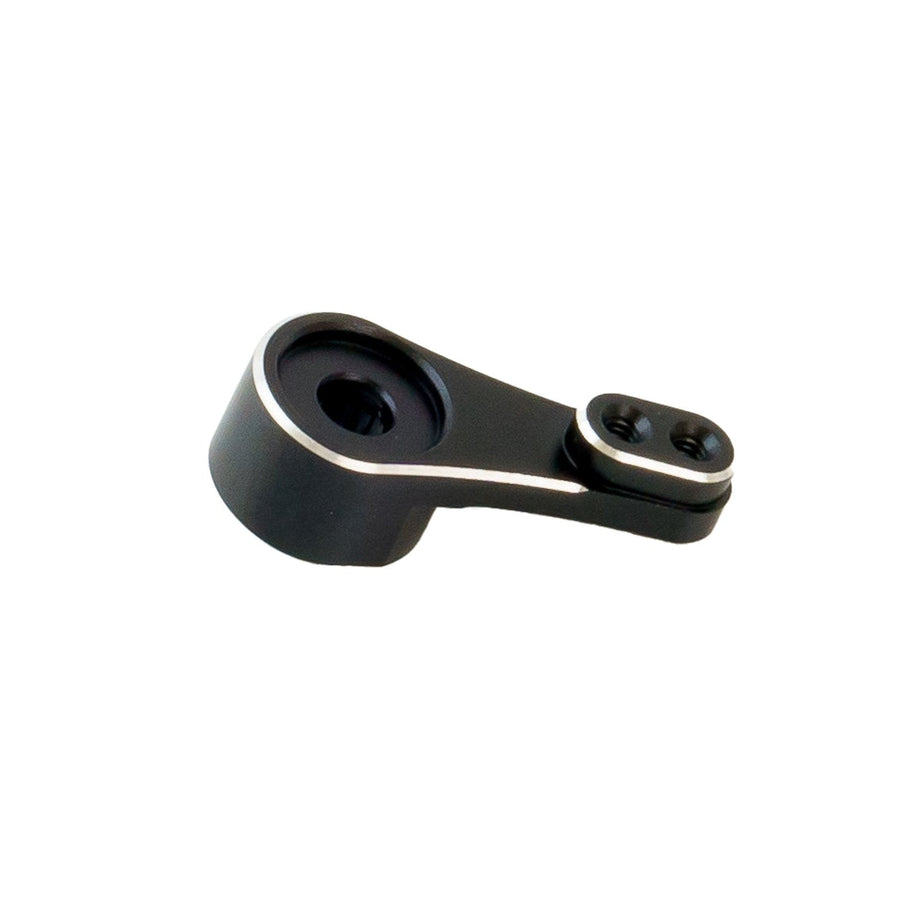

Included at no extra charge: CNC Metal Arms, a $15 value!

Features

-          High Torque Output: Delivers powerful performance for small-scale crawlers.

-          Mountless Design: Eliminates the need for a separate servo mount, reducing the overall cost.

-          No Servo Ears: Provides ample clearance between the servo and frame rails, ensuring smooth suspension movement.

-          Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.

-          Simplified Installation: Easy to mount due to its unique design.

-          Enhanced Clearance: Designed for ultimate clearance around the servo.

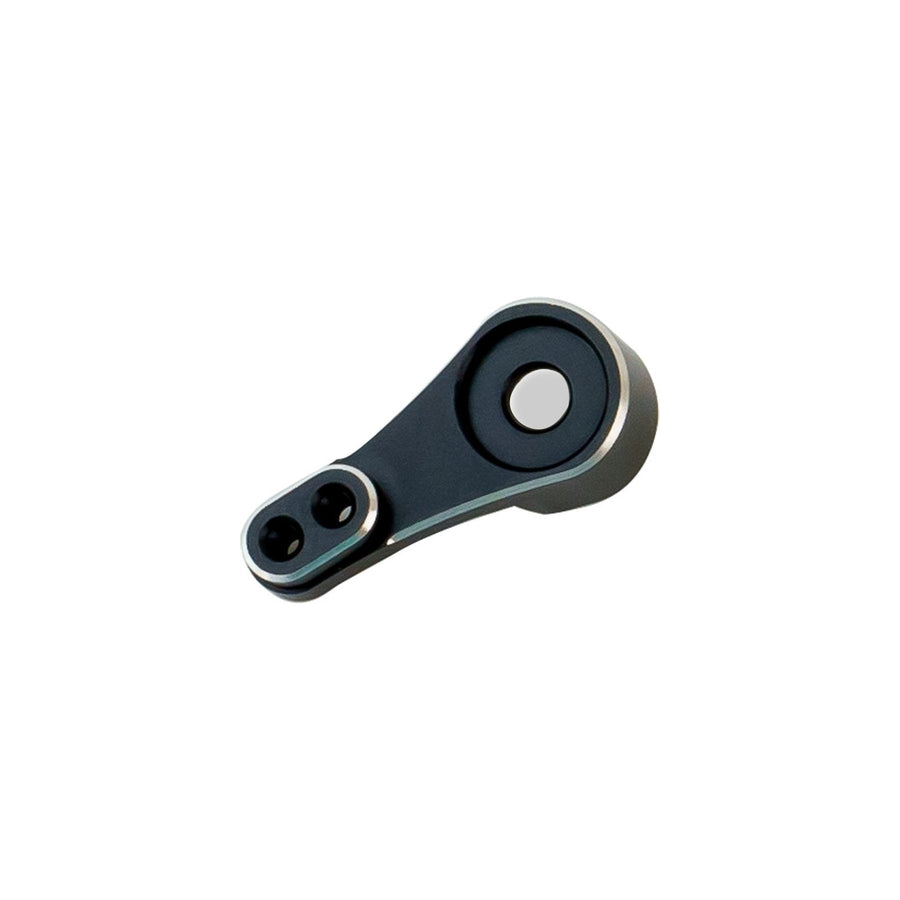

-          CNC Servo Horn Included: Limited time offer includes a free CNC servo horn.

-          Patent Pending: The innovative design is currently under patent protection.

-      Waterproof

Specifications

-          Dead Bandwidth: 3μs

-          Working Frequency: 1520μs / 330Hz

-          Operating Voltage: 5.0V - 8.4V

-          Motor Type: Coreless Motor

-          Operating Speed:

        ·       At 5.0V: 0.10 sec/60°

        ·       At 6.0V: 0.09 sec/60°

        ·       At 7.4V: 0.07 sec/60°

        ·       At 8.4V: 0.055 sec/60°

-          Stall Torque:

        ·       At 5.0V: 9 kg-cm (125 oz-in)

        ·       At 6.0V: 11.5 kg-cm (160 oz-in)

        ·       At 7.4V: 12.8 kg-cm (177 oz-in)

        ·       At 8.4V: 14.5 kg-cm (200 oz-in)

-          Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)

-          Weight: 22.0 g (0.78 oz)

-          Connector Wire Length: JR 170 mm (6.7 inches)

-          Output Gear Spline: 25T

Benefits

-          Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.

-          Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms.

-          Performance Enhancement: Unhindered suspension movement leads to better crawler performance.

-          Ease of Installation: Simplifies the mounting process, saving time and effort.

-          The TORQ MLS-1022 High Torque Micro Servo - RED is an excellent choice for crawler enthusiasts looking for a high-performance, easy-to-install, and cost-effective servo solution.
