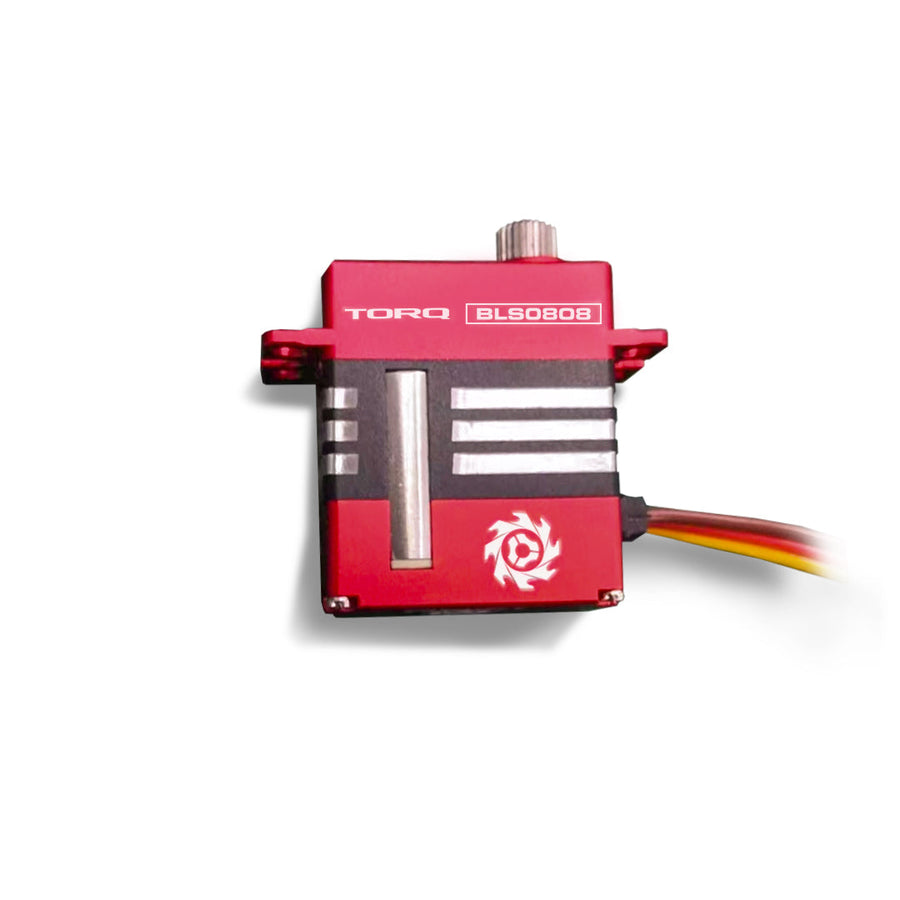

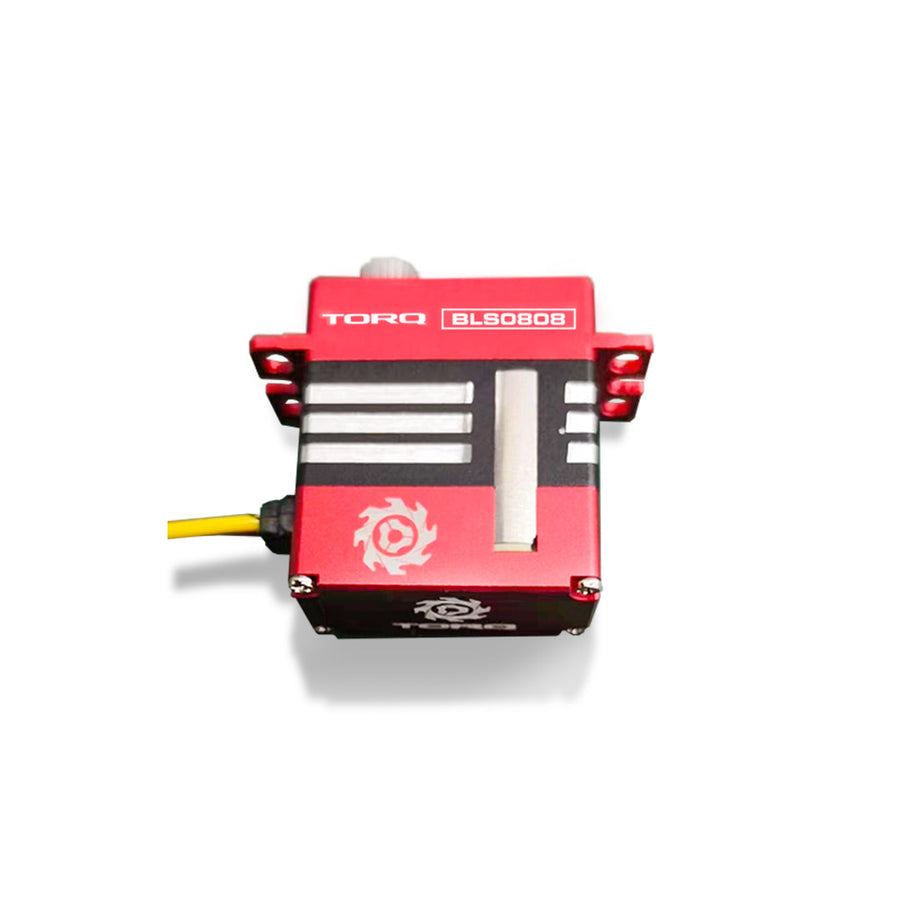

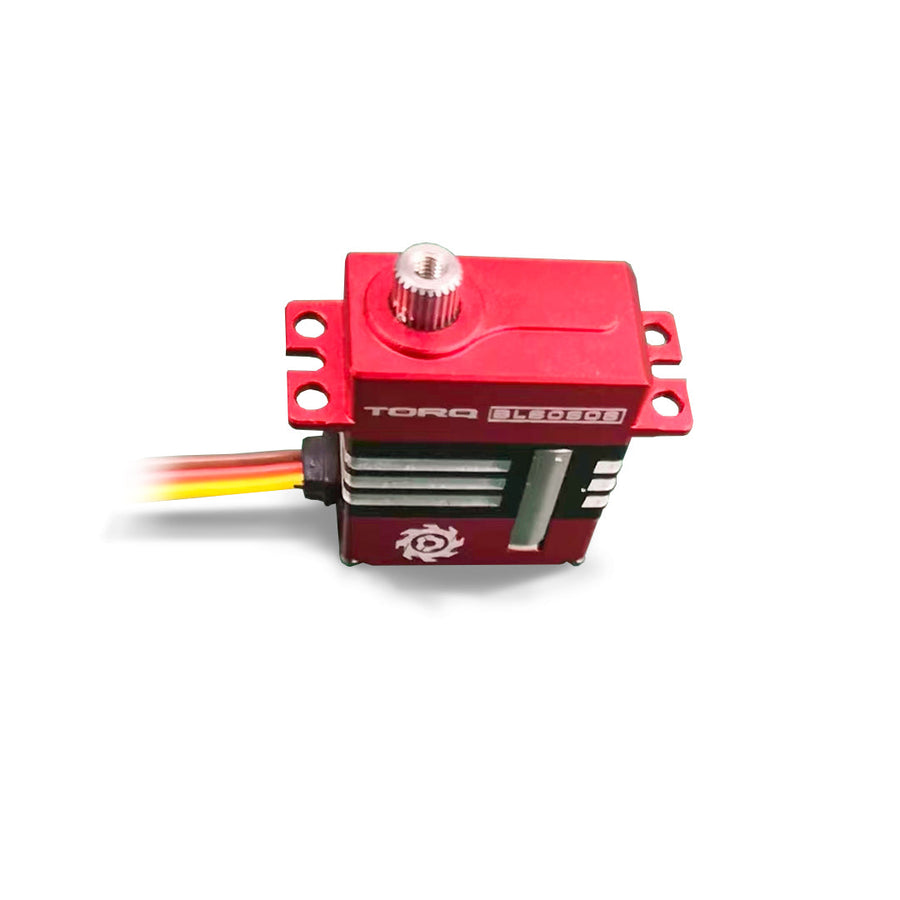

Torq BLS0808 Brushless Micro HV Cyclic Servo

Torq BLS0808 Brushless Micro HV Cyclic Servo - Power, Performance & Pure Domination. Optimized for second to...
SKU: BLS0808
Availability: In Stock
$59.99
$59.99
Please hurry! Only 20 left in stock
Torq BLS0808 Brushless Micro HV Cyclic Servo - HeliDirect

Torq BLS0808 Brushless Micro HV Cyclic Servo

$59.99

Torq BLS0808 Brushless Micro HV Cyclic Servo

$59.99

Torq BLS0808 Brushless Micro HV Cyclic Servo - Power, Performance & Pure Domination.

Optimized for second to none power & performance, TORQ brings forth a BRUSHLESS micro servo that is ready & able to push the boundaries of the micro servo world.

Designed specifically for high torque / high speed demands of helicopter, airplane & jet based aircraft, the Torq BLS0808 Brushless Micro HV Cyclic Servo utilizes Brushless motor technology to obtain peak torque output, equating the Torq BLS0808 Brushless Micro HV Cyclic Servo as one of the most powerful micro servos on the market today.

With a crushing torque rating paired with rapid transit speeds, the Torq BLS0808 Brushless Micro HV Cyclic Servo is ready to exceed the boundaries of your next flight, with next level precision and resolution that can be felt at the sticks. Ready & waiting for high voltage applications, the BLS0808 operates within a wide voltage range, providing peak torque & speed with 8.4V of power.

Constructed with fully replaceable high strength steel gears, the Torq BLS0808 Brushless Micro HV Cyclic Servo utilizes a thermal dissipating 6061 aluminum case that is further aided in cooling via an exposed motor design. Optimized for extreme aircraft applications that demand incessant torque and power, the BLS0808 provides ultra crisp control, with in flight tactile feel that can be seen and felt.

Step up to the Torq BLS0808 Brushless Micro HV Cyclic Servo - pure performance & control for epic levels of servo domination.

Specifications:

Rated Voltage:                 DC 7.4V

Voltage Range:                DC 6.0V-8.4V

Torque:                            6.3Kg.cm@6.0V
.                                        8.6Kg.cm@7.4V
.                                        9.3Kg.cm@8.4V

Speed:                             0.09sec/60° 6.0V
.                                        0.08sec/60° 7.4V
.                                        0.07sec/60° 8.4V

Working Frequency:       1520us/333KHz   or  760us / 560Hz (need the TBOX Program Card)

Default Travel Angle:     ±50° (100° Total)

Temperature Range:      -20℃ to +65℃

Programmable:              Yes, compatible with TORQ TBox

Case Material:                 Aluminum Alloy

Motor Type:                    Brushless DC Motor

Gear Set Material:          Hardened Steel

Dimensions:                    23*12*27.5mm

Weight:                           20g
