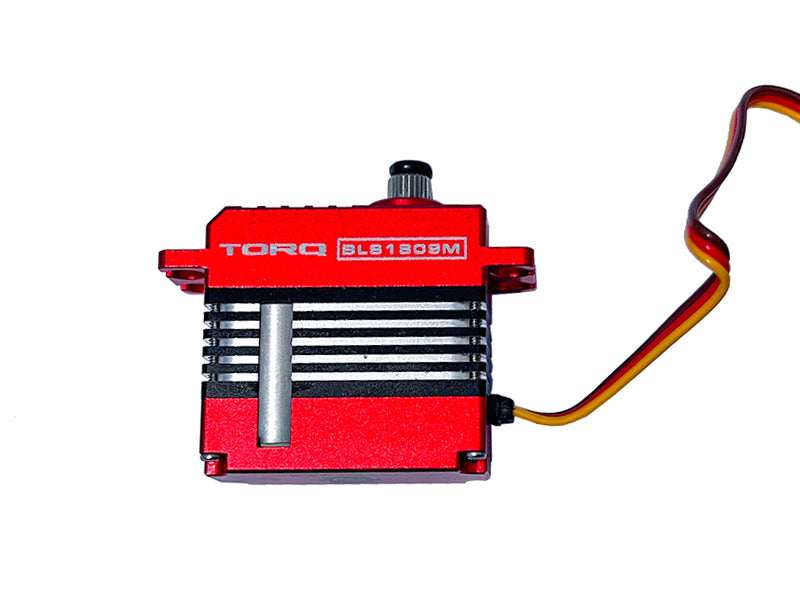

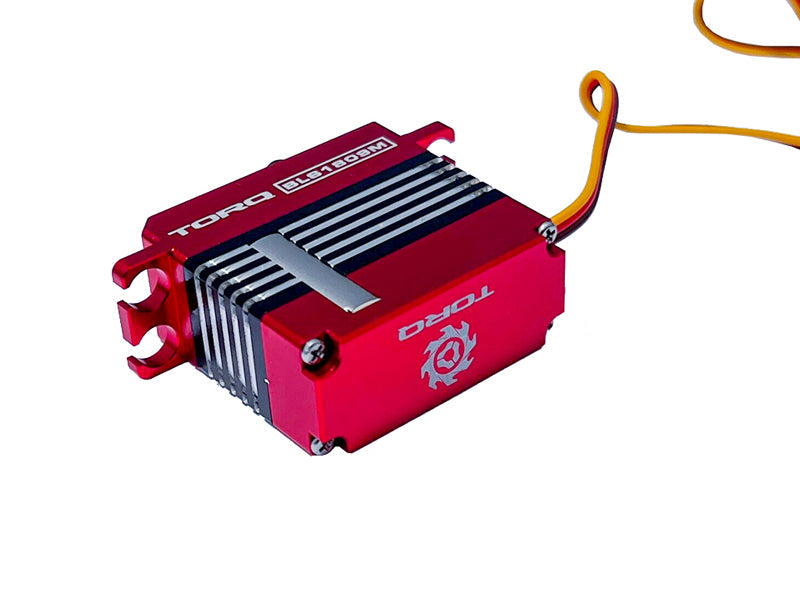

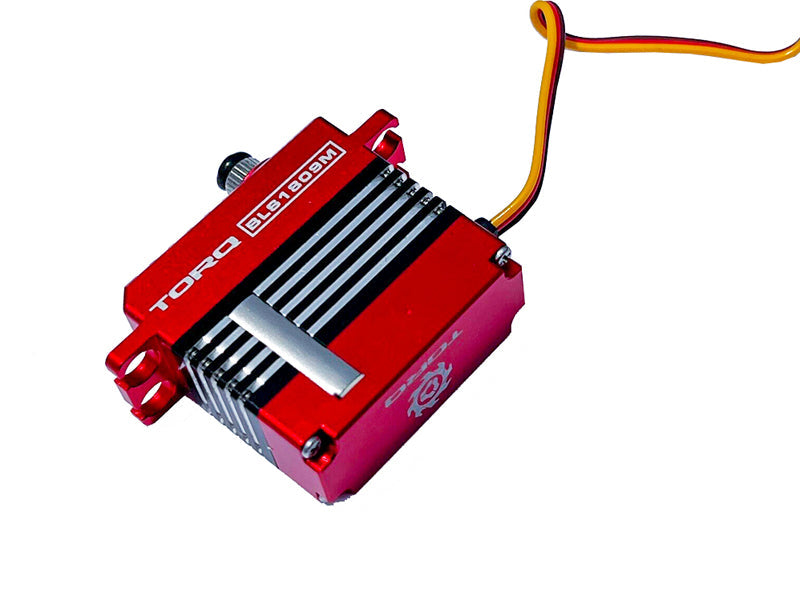

TORQ BLS1809M Mini HV Brushless Servo

Features:- Brushless Motor Technology for the Ultimate Power & Control- Incredible Levels of Speed & Performance- Ultra...
SKU: BLS1809M
Availability: Back-Order
$95.00
$95.00
TORQ BLS1809M Mini HV Brushless Servo - HeliDirect

TORQ BLS1809M Mini HV Brushless Servo

$95.00

TORQ BLS1809M Mini HV Brushless Servo

$95.00

Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane & Jet Aircraft
- Dual Ball Bearing Construction


Speed:
0.07 sec / 60° @ 8.4V
0.08 sec / 60° @ 7.4V
0.09 sec / 60° @ 6.0V


Torque:
24Kg.cm / 333.29 oz in. @ 8.4V
22Kg.cm / 305.52 oz in. @ 7.4V
18Kg.cm / 249.97 oz. in. @ 6.0V


Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
Weight: 45g
Dimensions: 35.5mm x 15mm x 35.5mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:

Servo Grommet is suggested use if you use our servo on Nitro Heli.

Customer Reviews

Based on 13 reviews
100%
(13)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Reviewer avatar
Motown A.
Tight and right

I have a set of these in my Raw580, I crashed it a year ago and even after that, these are still fast, tight gears and center perfectly, so when I needed a set of servos for a second Raw580, I chose what I knew works works. Overall, I am very impressed with all the Torq servos I have.

G
George
Servo

Torq are my favorites

j
j5dude@yahoo.com j.
TORQ BLS1809M Mini HV Brushless Servo

great servo

D
Dave K.
Great servos for 550 class helis

Seem to be very smooth and plenty of torque so far.

K
Karl C.
Torq servos

Excellent servos for a 550 size heli.

j
j5dude@yahoo.com j.
TORQ BLS1809M Mini HV Brushless Servo

excellent mini cyclic servo

D
David J.
Great

Very good quiet servos

J
Jeff R.
Great Servos!

Bought these servos for a Raw 500 build and they have been working great so far!!

R
Rick S.
Solid servos

Used them on a Raw 580. Maiden was rock steady and servos were very precise. I like the feature where the servo frequency and centering can be set with the program box.

M
Michael P.
Good Servos!

I got these for my Kraken 580. I have to say they are good servos, strong, and fast. Seem to be holding up well.
