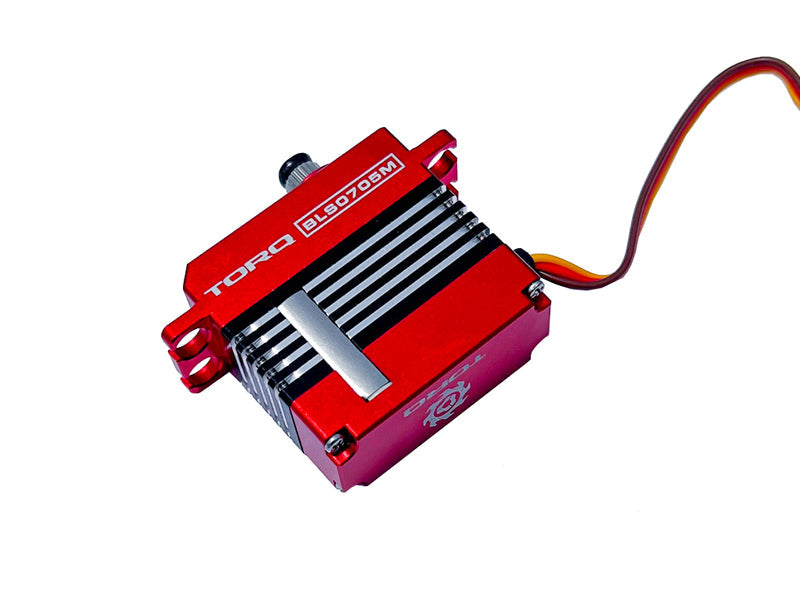

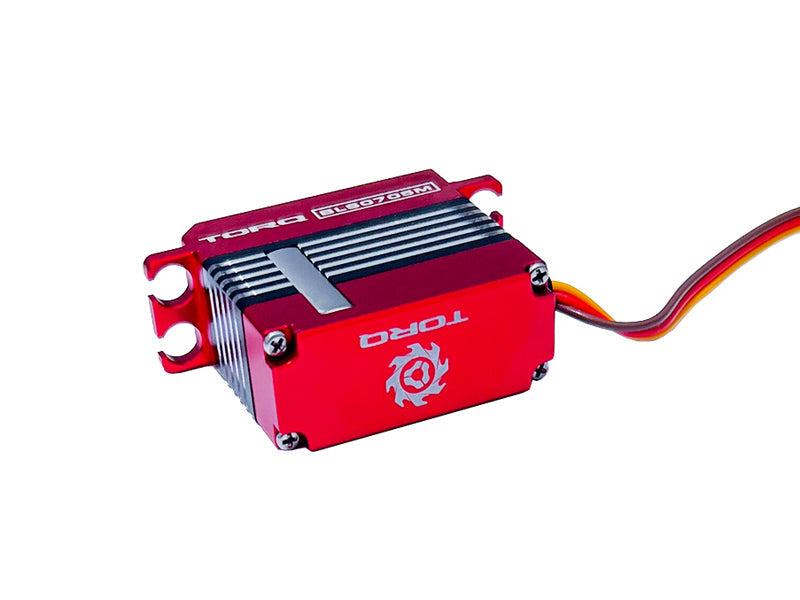

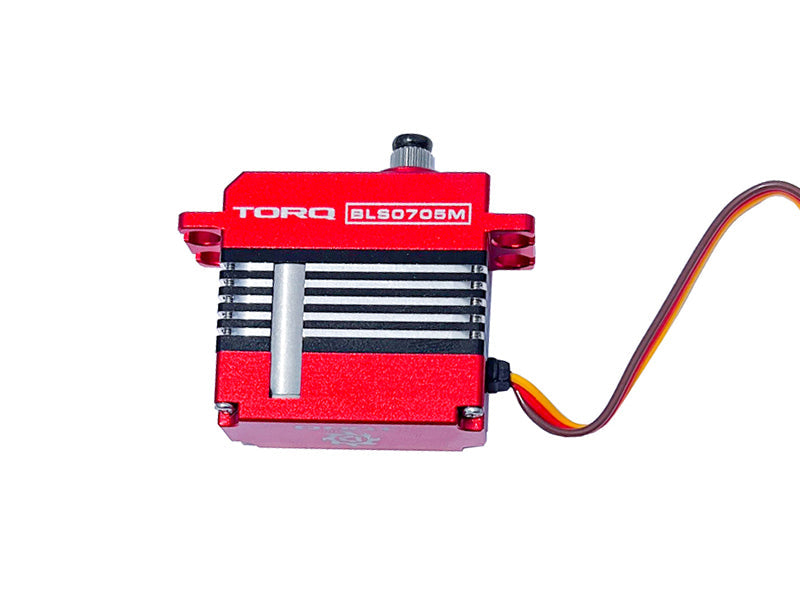

TORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo

This servo is basically a Mini Rudder Servo that can handle up to 700-800 Heli size, but...
SKU: BLS0705M
Availability: In Stock
$95.00
$95.00
TORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo - HeliDirect

TORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo

$95.00

TORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo

$95.00

This servo is basically a Mini Rudder Servo that can handle up to 700-800 Heli size, but if you have FBL that can use with 760us cyclic servo, you can also use this servo as cyclic servo for 550-600 size.

Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for Heli
- Dual Ball Bearing Construction


Speed:
0.05 sec / 60° @ 8.4V
0.06 sec / 60° @ 7.4V
0.07 sec / 60° @ 6.0V


Torque:
15Kg.cm / 208.31 oz in. @ 8.4V
13Kg.cm / 180.53 oz in. @ 7.4V
10Kg.cm / 138.87 oz. in. @ 6.0V


Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency: 760us / 560Hz
Weight: 45g
Dimensions: 35.5mm x 15mm x 35.5mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:

Servo Grommet is suggested use if you use our servo on Nitro Heli.





Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
V
Varley
Torq servos

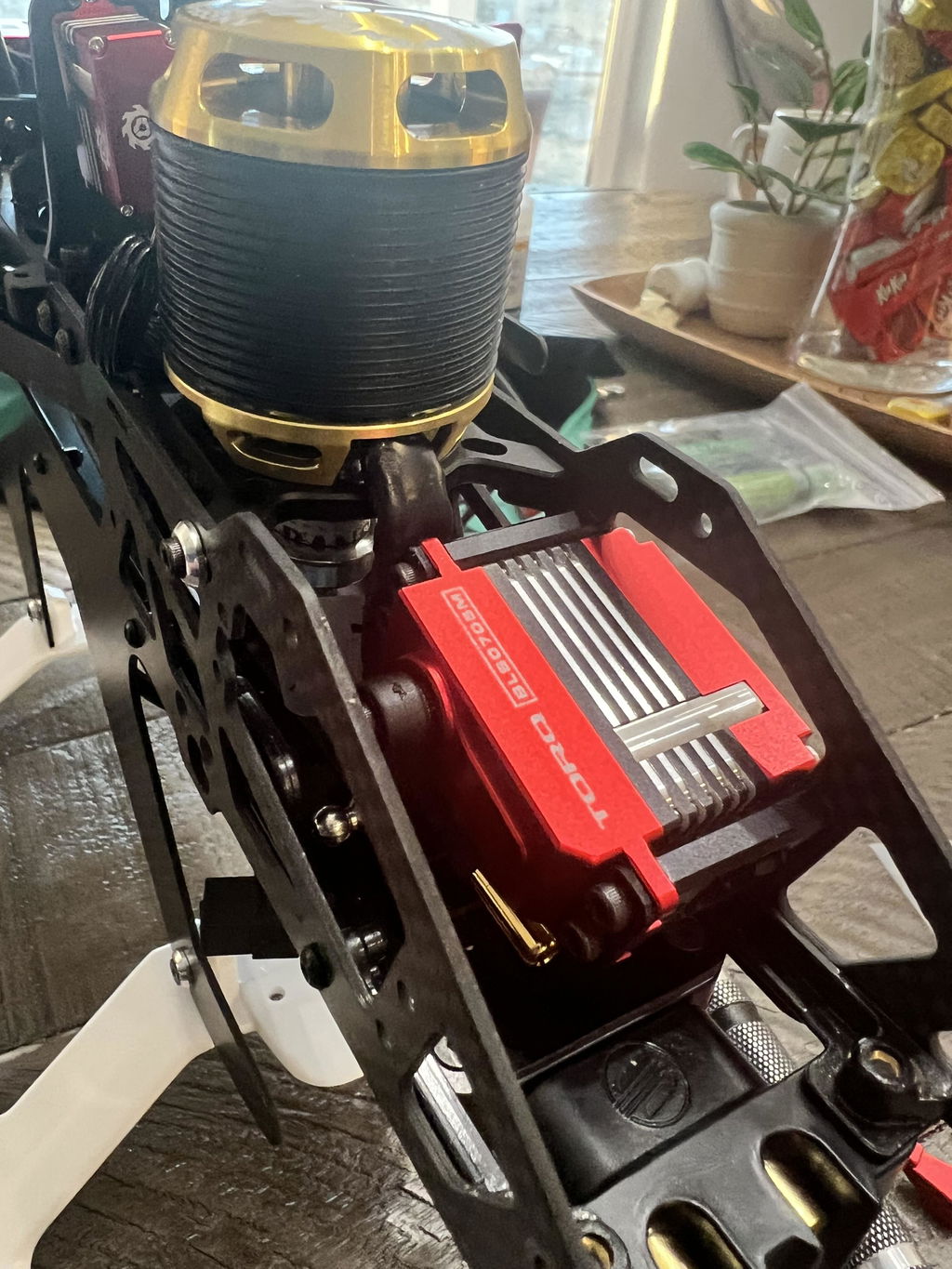

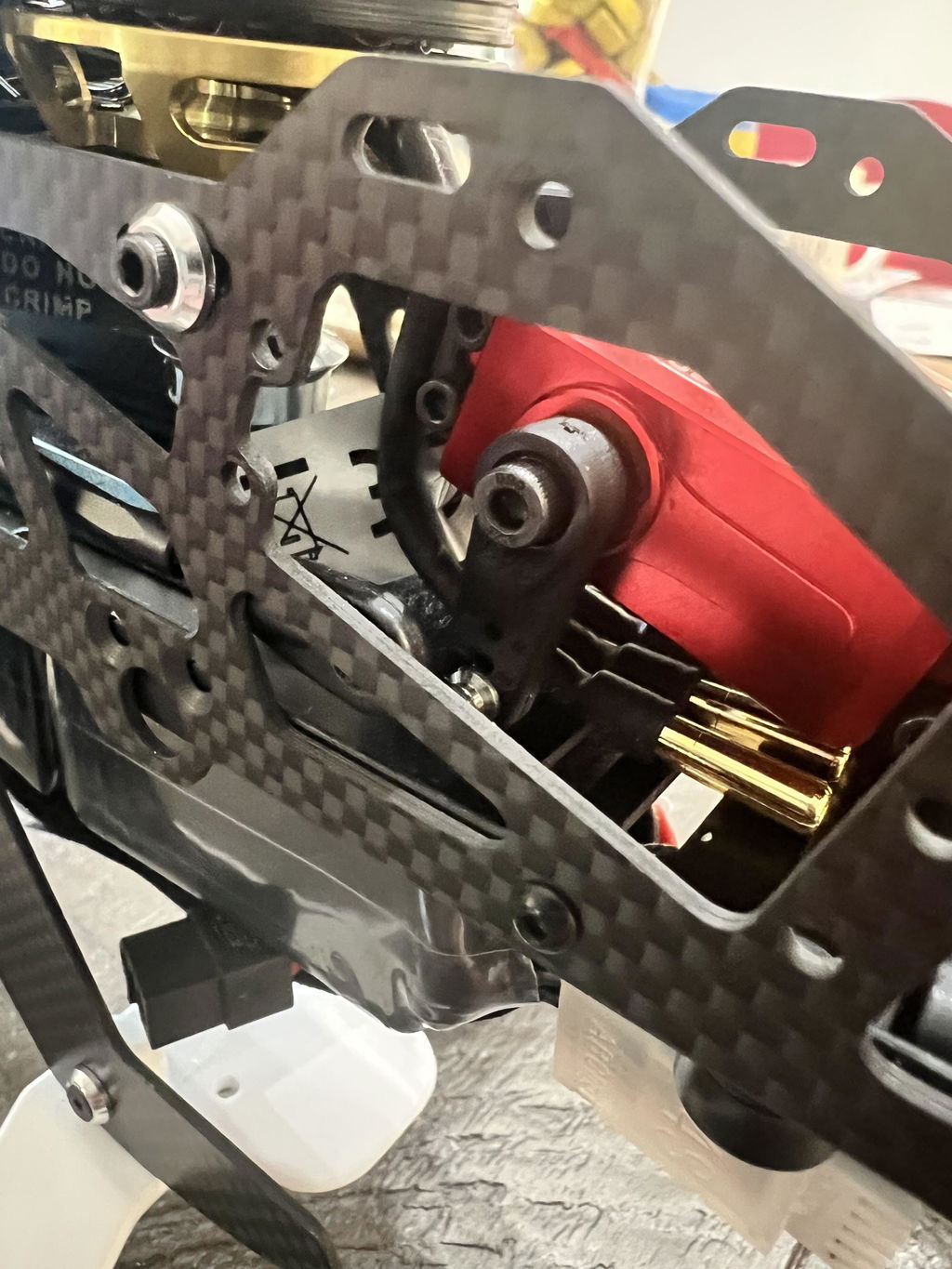

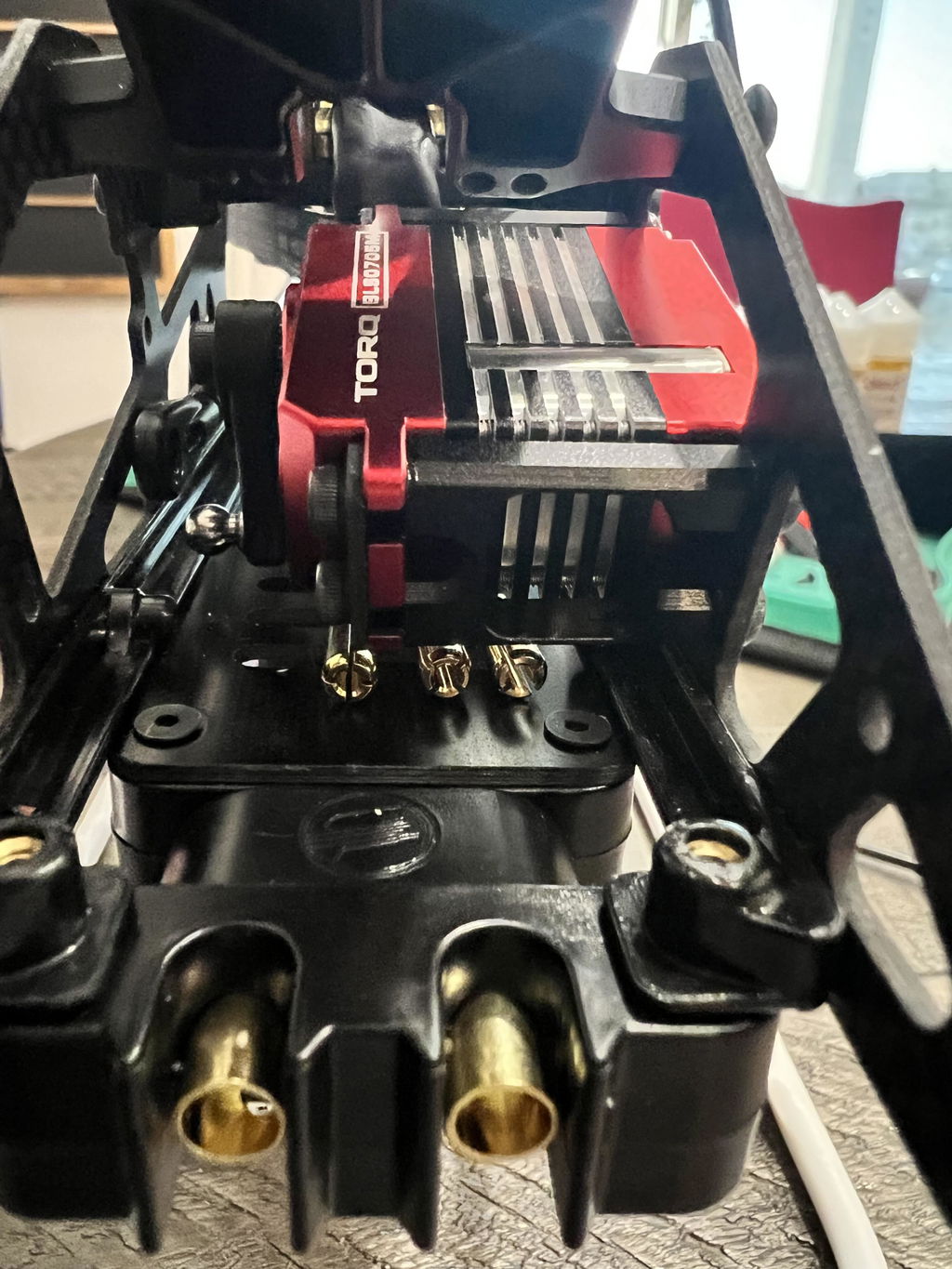

Bought the BLS0705M along with cyclic servos for a (new to me) SAB Raw 420DD. Already have one so I know they are wonderful servos!

A
AceViperX

Extremely precise holding
