Introduction

The DX6C is the perfect savvy solution for bashers, boaters and scalers who want a staggering list of advanced features that includes the virtually unlimited possibilities 6-channel control offers.

Overview

The DX6C is the perfect savvy solution for bashers, boaters and scalers who want a staggering list of advanced features that includes the virtually unlimited possibilities 6-channel control offers. Built around frequency agile, DSMR® 2.4GHz technology, you can use the DX6C in any type of surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb.

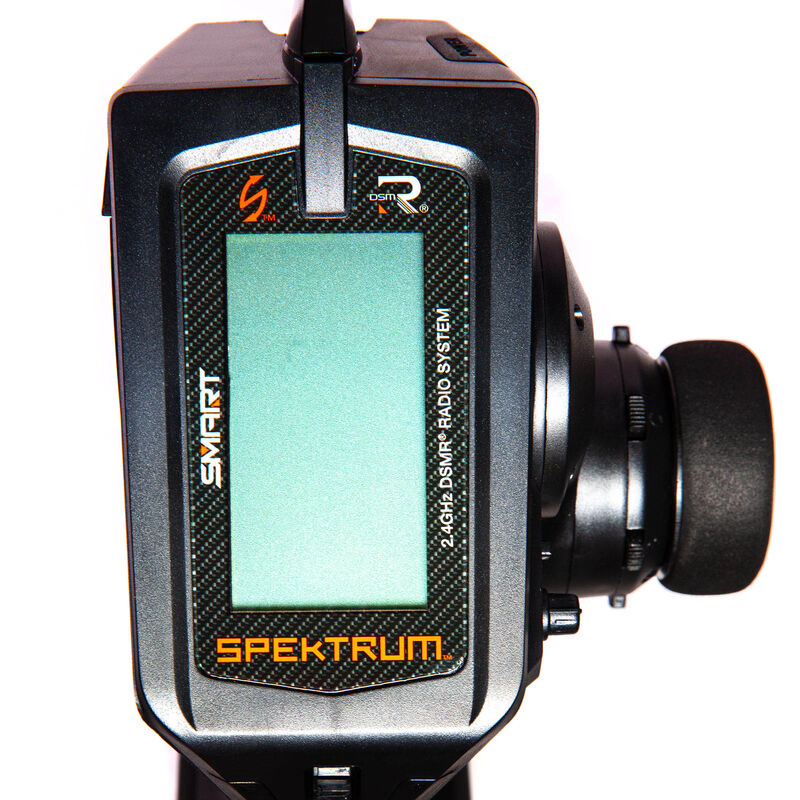

The DX6C includes new upgrades and features that makes the DX6C the ideal upgrade transmitter for RTR vehicles. Upgrades include a backlit LCD display, 6 proportional channels and USB for easy firmware updates and compatibility with the VRC Racing Simulator.

• Smart Technology compatible out of the box
• Five fully proportional channels
• Multiple mixing setups including Motor on Axle (MOA)
• Upgraded RF Module for stronger signal and improved output power
• 5.5-Millisecond frame rate with compatible receivers
• Dual Protocol (SLT/DSMR) compatible with firmware update

Features

• Smart Technology compatible out of the box
• Five fully proportional channels
• Generous ergonomic options for tailoring the transmitter to your feel
• Multiple mixing setups including Motor on Axle (MOA)
• Upgraded RF Module for stronger signal and improved output power
• DSMR^® 2.4GHz technology (backwards compatible with DSM2^®)
• 5.5-Millisecond frame rate with compatible receivers
• Advanced programming features, made easy to use with SimpleScroll^™ interface
• Built-in telemetry
• Programmable vibe alerts
• 250-Model memory
• LiPo battery compatible (battery not included)
• Spektrum^™ SR2100 5.5ms DSMR^® receiver, updated with Smart compatibility

OUT-OF-THE-BOX SMART CONNECTIVITY

The Spektrum^™ DX5 Pro is ready right out-of-the-box to support the innovative connectivity of Spektrum^™ Smart Technology. With a Spektrum^™ Firma^™ Smart ESC and Smart battery in your model, you'll have real-time telemetry data available at your fingertips to keep you aware of every component's status and to boost your confidence in its capabilities. Smart Technology ensures that all of your model's electronics work together seamlessly for the greatest efficiency and performance. It makes your entire system more responsive and simpler to use.

IMPROVED SIGNAL QUALITY

The DX5 Pro features Spektrum's latest RF module, engineered around DSMR^® 2.4GHz technology. This generates a stronger and more robust signal, increases the telemetry range, and creates an extremely reliable connection between the transmitter and receiver. When paired with a receiver capable of 5.5ms frame rates, such as the SR2100, the DX5 Pro delivers lightning-fast response that gives new meaning to the word "connected".

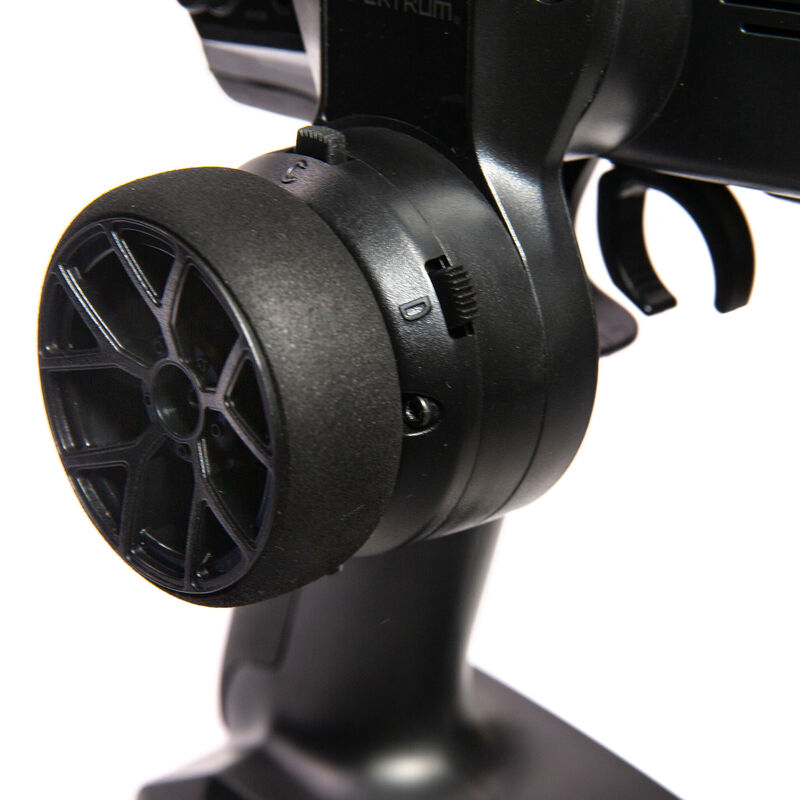

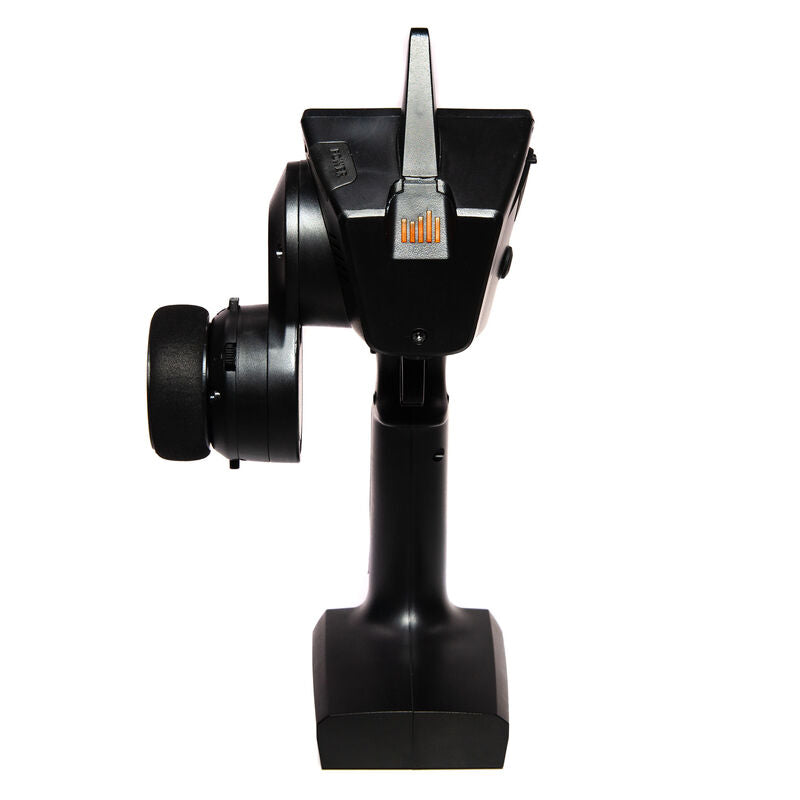

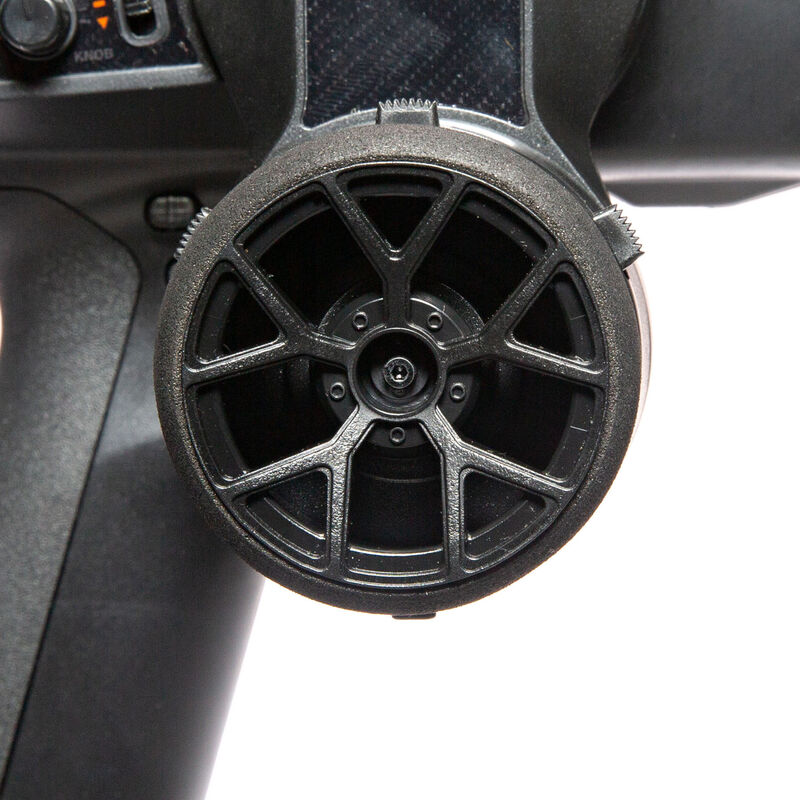

PRECISE STEERING WHEEL MECHANISM

The ergonomically designed DX5 transmitter has a feel that any driver can appreciate. Its overall low weight minimizes fatigue, while the non-slip rubber grip and trigger-throttle action deliver precise control that feels perfectly natural. To these, the updated DX5 Pro transmitter adds a new steering wheel mechanism that increases the accuracy and precision of steering motion.

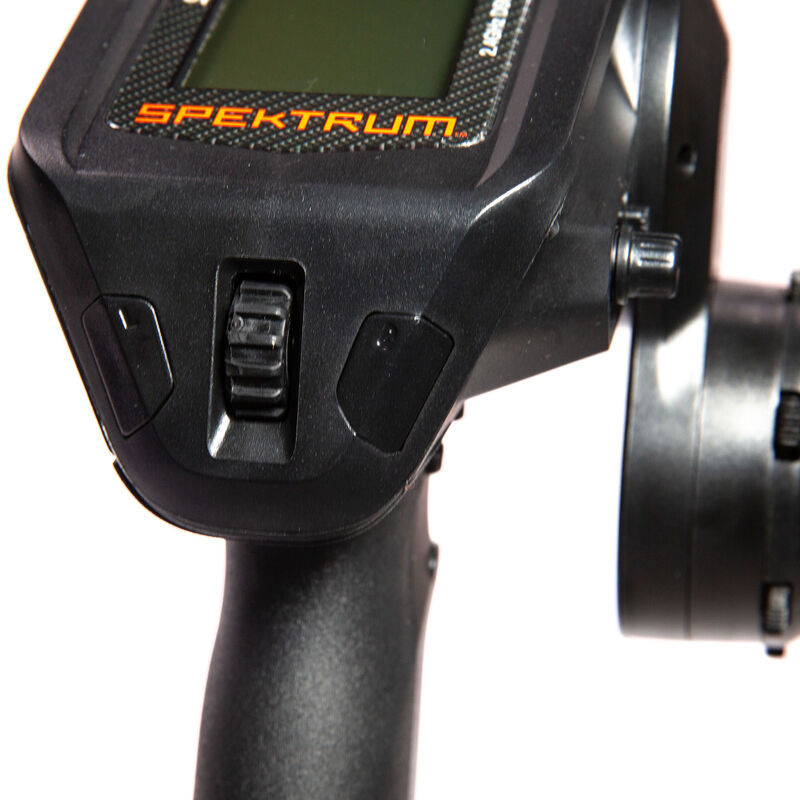

UPDATED TRIM TABS

Among the many ergonomic options available for tailoring the DX5 Pro transmitter to your personal touch are updated trim tabs, designed to make their operation easier while you drive your vehicle.

ADVANCED PROGRAMMABILITY

The DX5 Pro offers an impressive number of programming features — and they're easy for anyone to use, thanks to the SimpleScroll^™ programming interface that makes navigating menus and changing settings as simple as "scroll and click". You can program up to five drive modes per model to help dial in the perfect drag racing and lap times. Drive modes can also be used to program compatible AVC^® (Active Vehicle Control^™) receivers to match your skill level, driving style, and terrain to provide predictable handling at every speed. There are multiple mixing setups, including Motor-On-Axle (MOA), plus ABS, Traction Control and 4-wheel steering, dual rates, expo and more.

PROGRAMMING VIBE ALERTS

You can select from a variety of vibe alerts for timer alarms, low battery voltage and other telemetry functions. Most of these can be set to go off when the voltage level or telemetry data exceeds specific values that you can easily define in the telemetry menus.

SPEKTRUM SR2100 DSMR RECEIVER

Built around frequency-agile DSMR^® technology, the SR2100 — updated for Smart telemetry compatibility — consistently delivers superb range and a lightning-fast 5.5ms frame rate, even where many 2.4GHz systems are in use at once. It has an incredibly small footprint with an internal antenna that eliminates the need for external antenna tube support, so it mounts easily on most chassis.

Launch Control Mode for Drag Racing

Available with Raceware firmware V2.02 or higher, the Launch Control menu is specifically geared towards perfecting your Drag Race times and speed runs. This option allows the driver to control the duration of time it takes to reach full throttle as well as adjusting points in the throttles curve to effectively ramp the throttle to the user’s preference. Essentially controlling the throttle output so that the driver can focus on steering their model straight to the podium.

DUAL PROTOCOL (SLT/DSMR) COMPATIBLE WITH UPDATE

Like your computer and other Smart devices, firmware updates are made available to improve operation, and performance of your transmitter and may include new features and benefits accordingly. With a firmware update, this Spektrum DSMR transmitter is compatible and able to bind with SLT protocol equipped vehicles, such as the Losi NASCAR RC Racecars, ARRMA GROM small-scale bashers and Axial SCX24 micro crawlers. After this update, you’ll be able to drive SLT and DSMR protocol receivers with one transmitter. Dual Protocol – One Perfect Control.

Product Specs

Application: Surface

Audio: Alarms and Tones

Band: 2.4GHz

Channels: 5

Color Screen: No

Completion Level: Transmitter with Receiver

Frame Rate: 5.5ms, 11ms, 16.5ms, 22ms

Gimbal Type: Not Applicable

Input Voltage: 4 - 8.4V

Left / Right Hand Operation: No

Model Memory: 250

Modulation: DSMR

Operating System: Raceware

Part Type: Electronics

Product Height: 5.3" (135 mm)

Product Length: 8.3" (211 mm)

Product Weight: 1.4lbs (0.63Kg)

Product Width: 5.6" (142 mm)

Programmable: Yes

Range: Full

Rate Positions: 3 POS

Receiver: Included

Resolution: 2048

SD Card/Airware Capable: Yes

Serial Port: No

Telemetry: Yes

Touchscreen: No

Transmitter (Tx) Battery Type: 4 x AA or LiPo transmitter pack (not included)

WiFi: No

Product Details

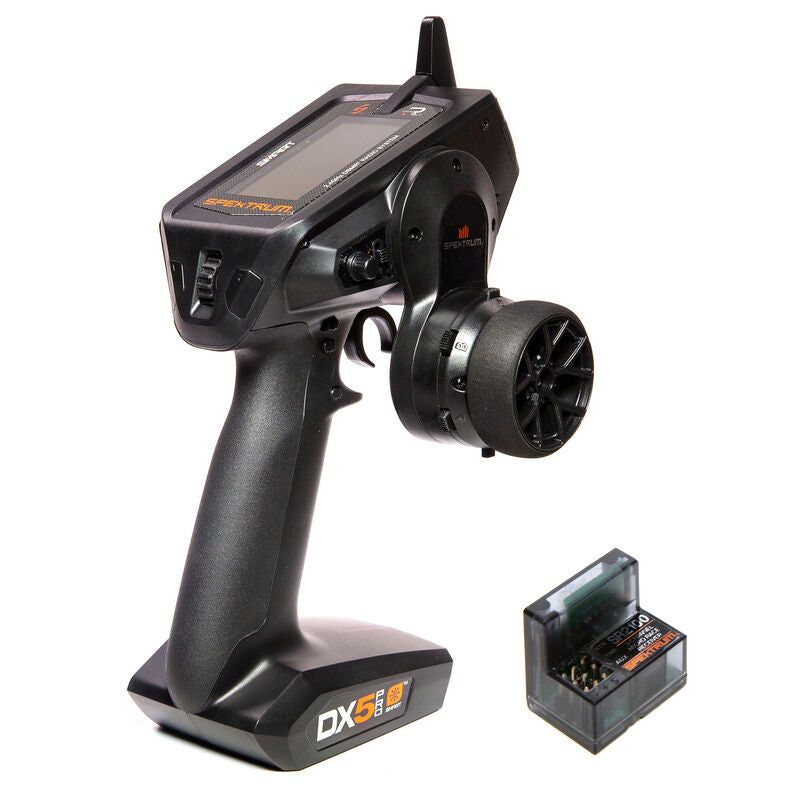

In The Box

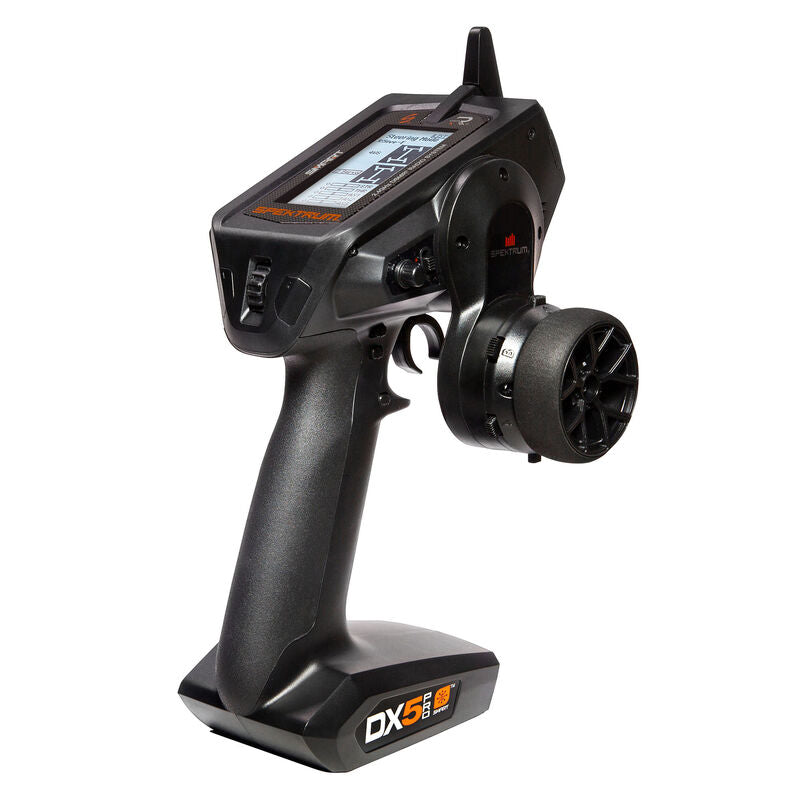

• (1) Spektrum™ DX5 Pro 5-channel DSMR® Transmitter
• (1) Spektrum SR2100 DSMR® Full-Range 3-Channel Receiver

Needed to Complete

• (4) AA Transmitter Batteries
