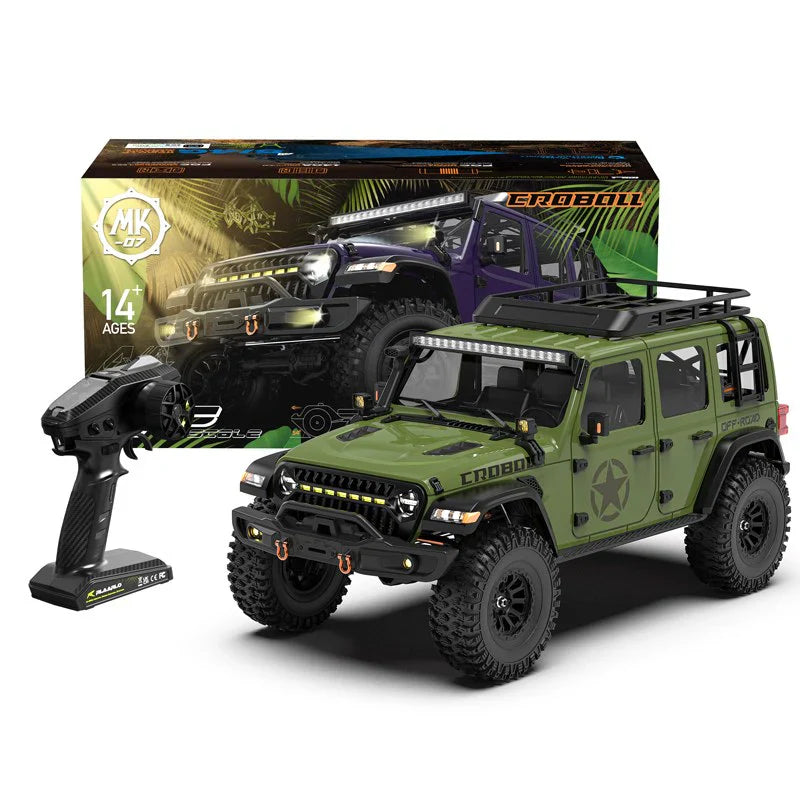

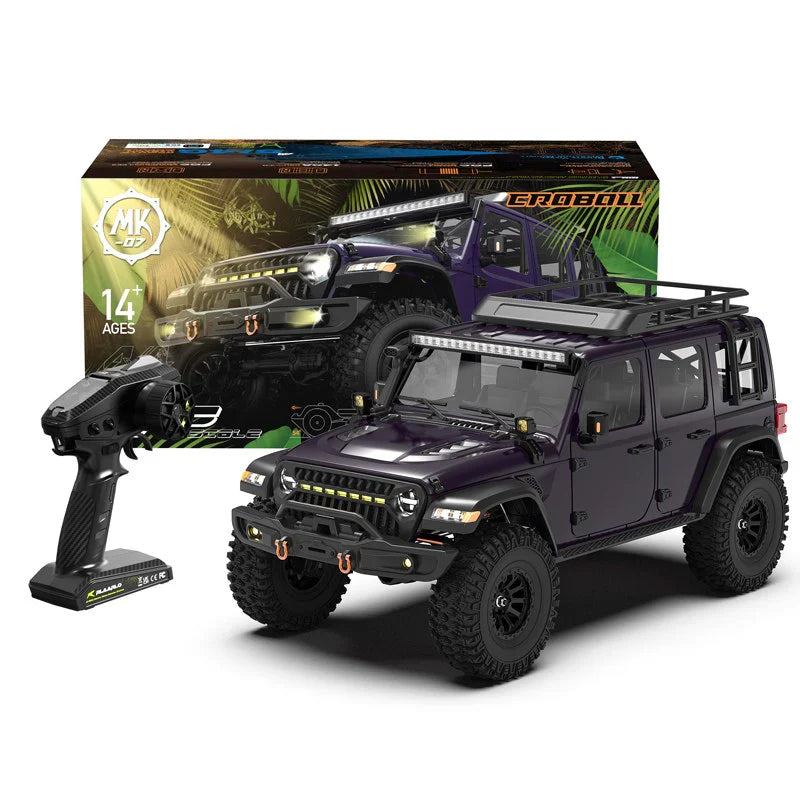

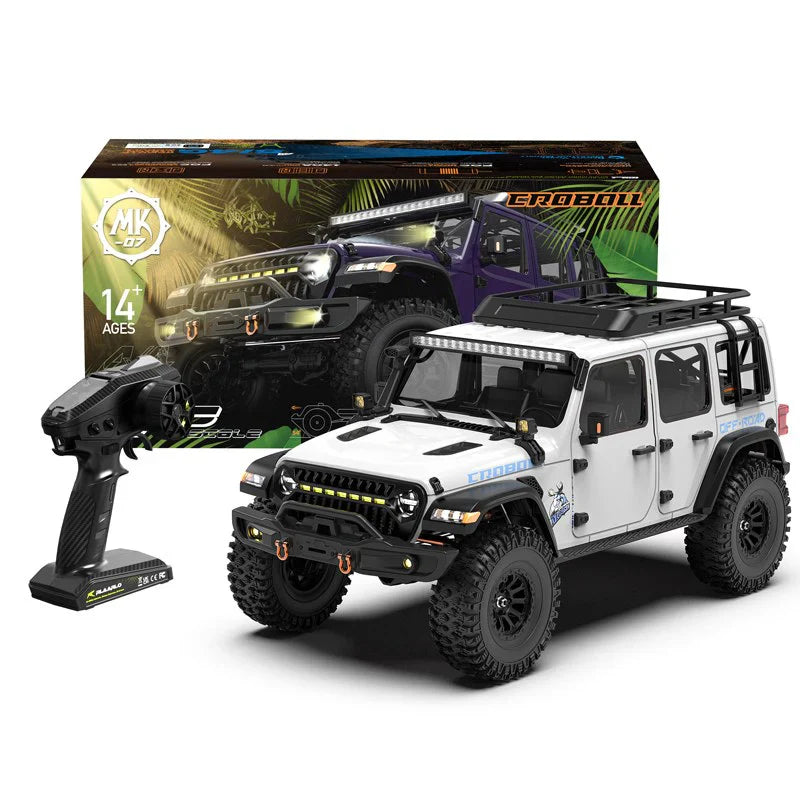

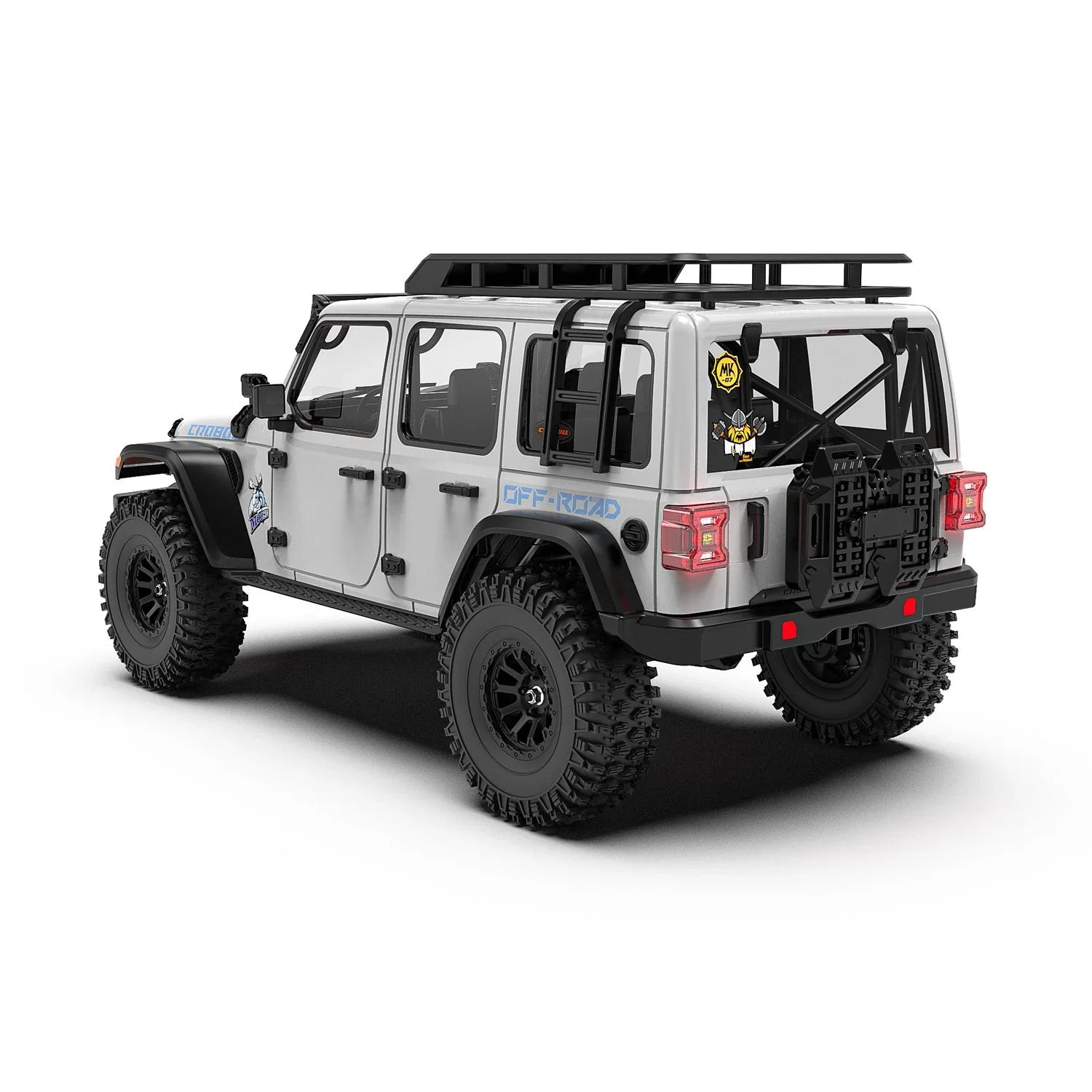

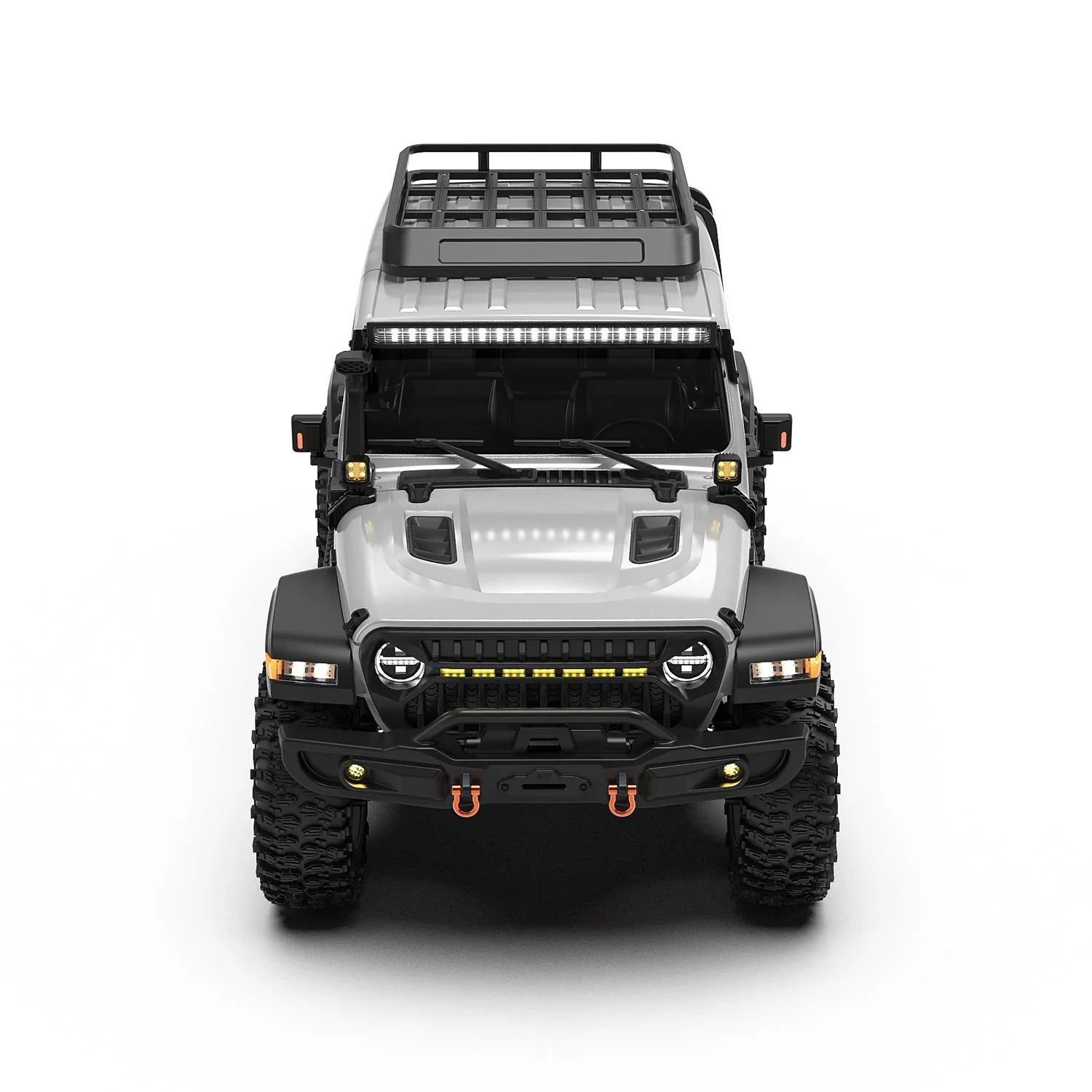

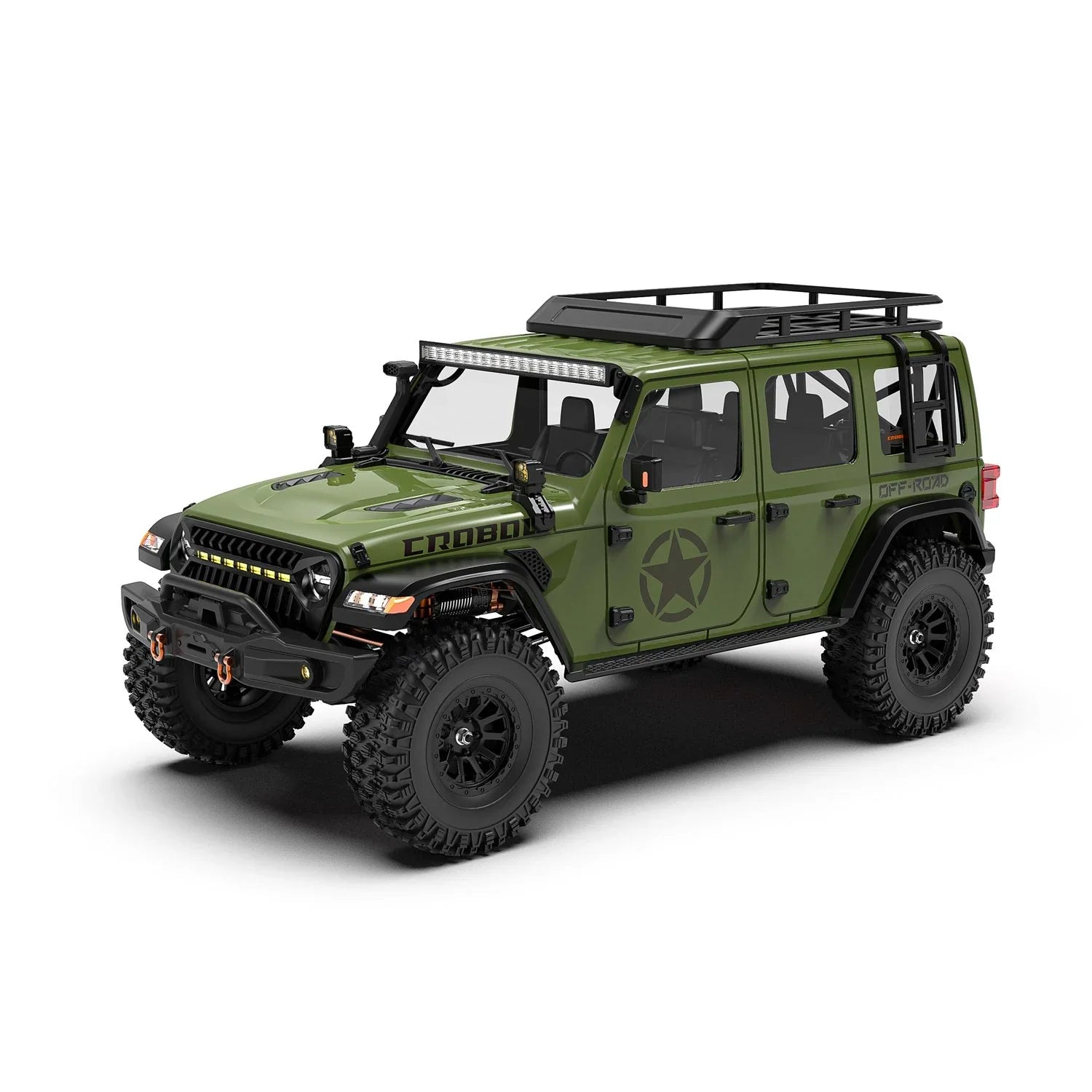

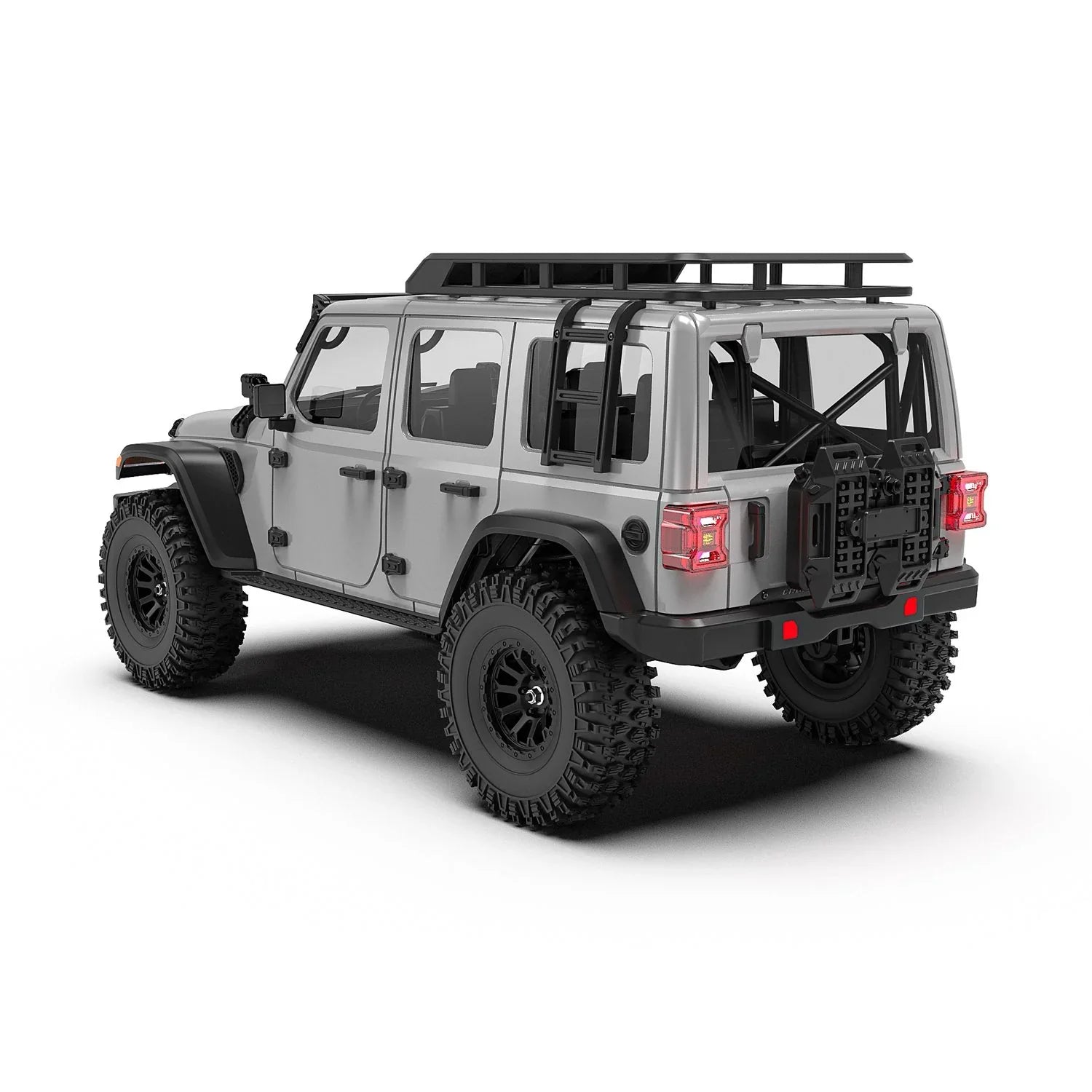

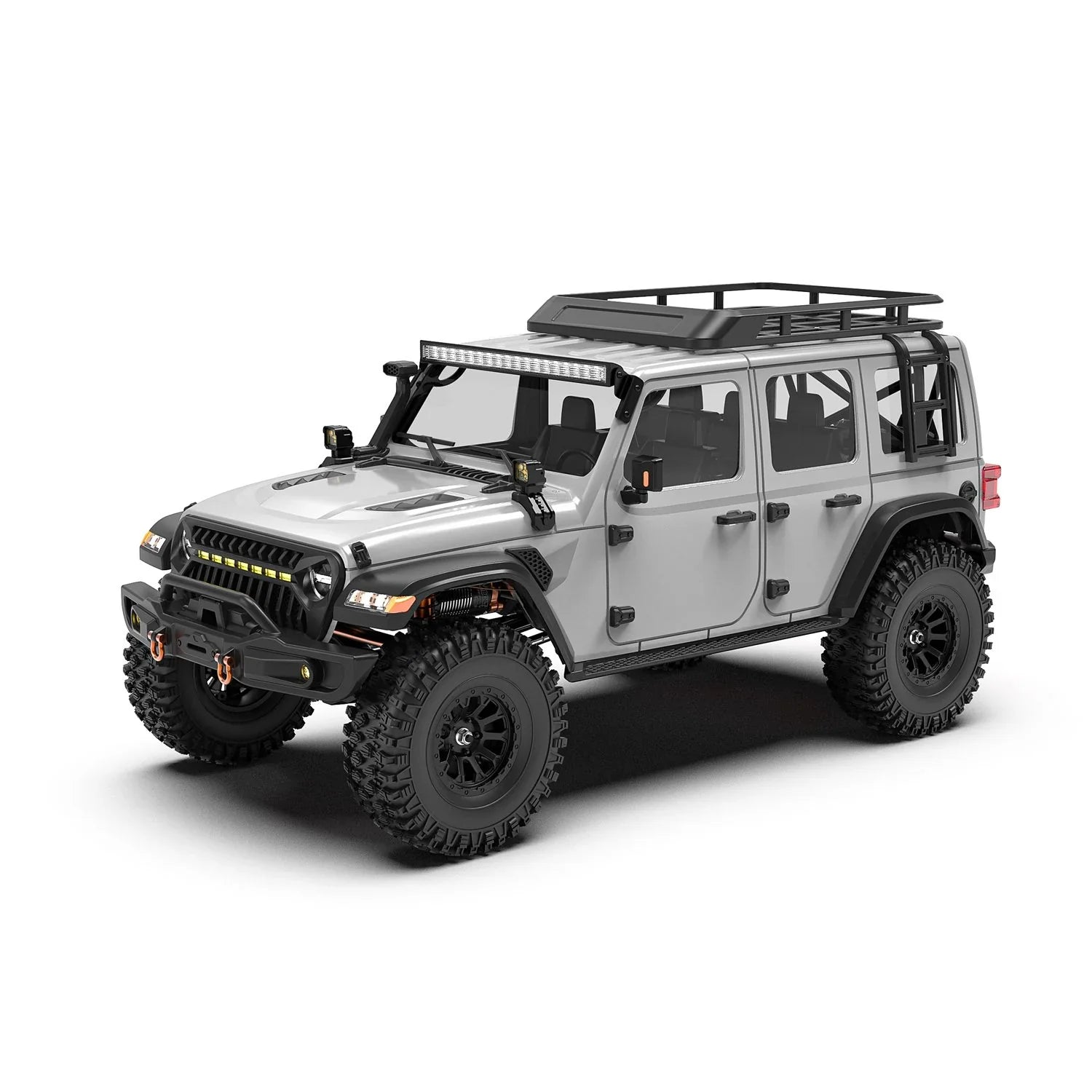

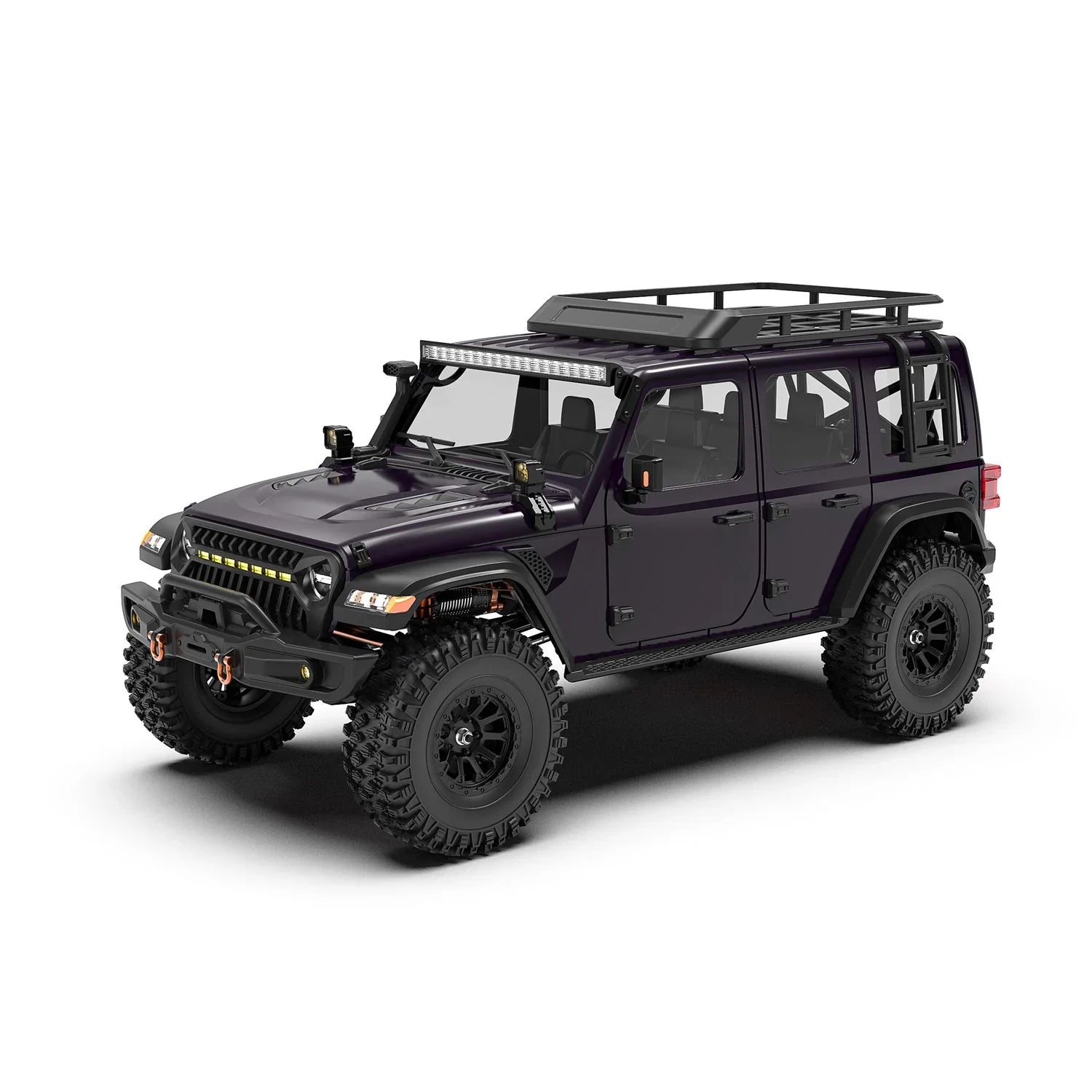

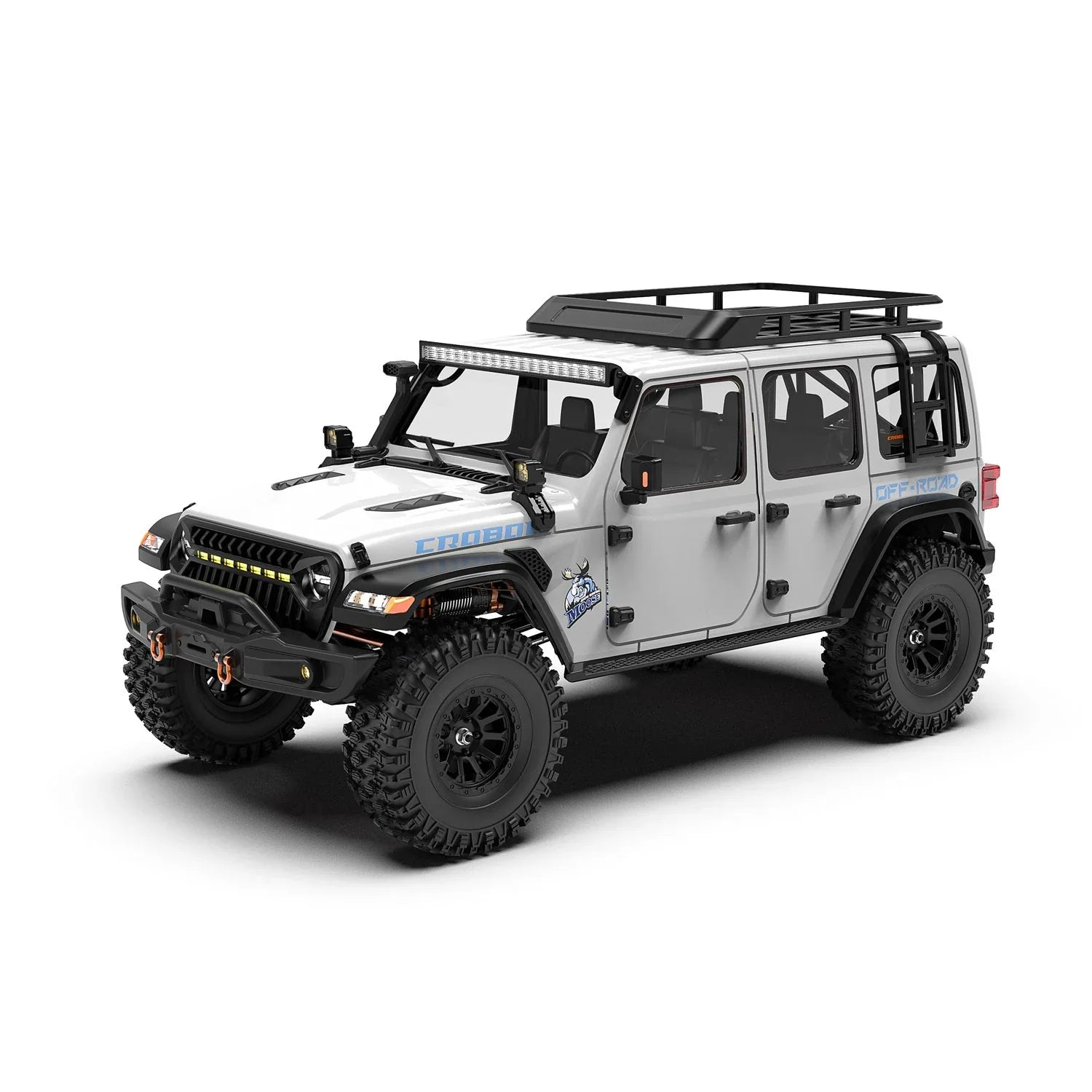

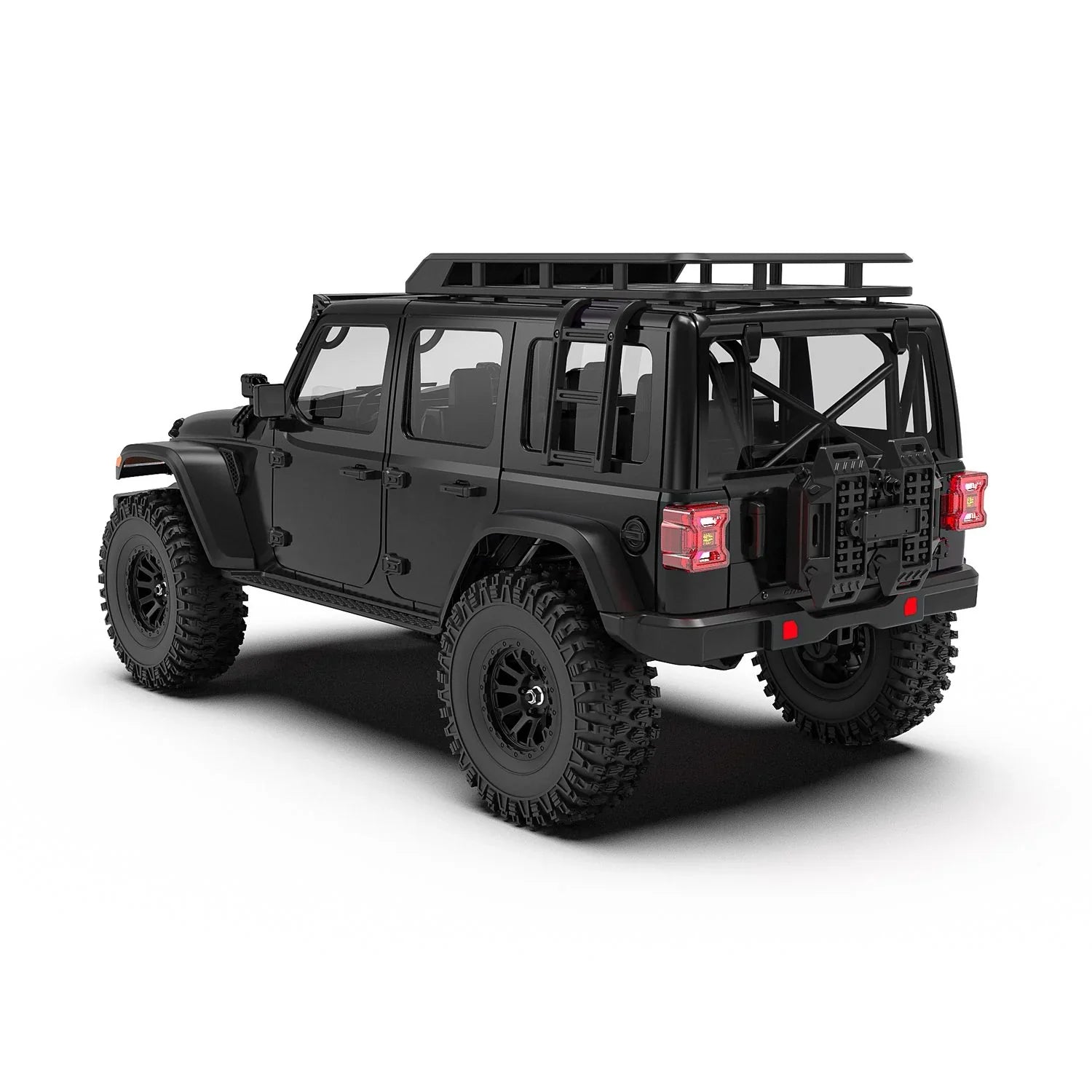

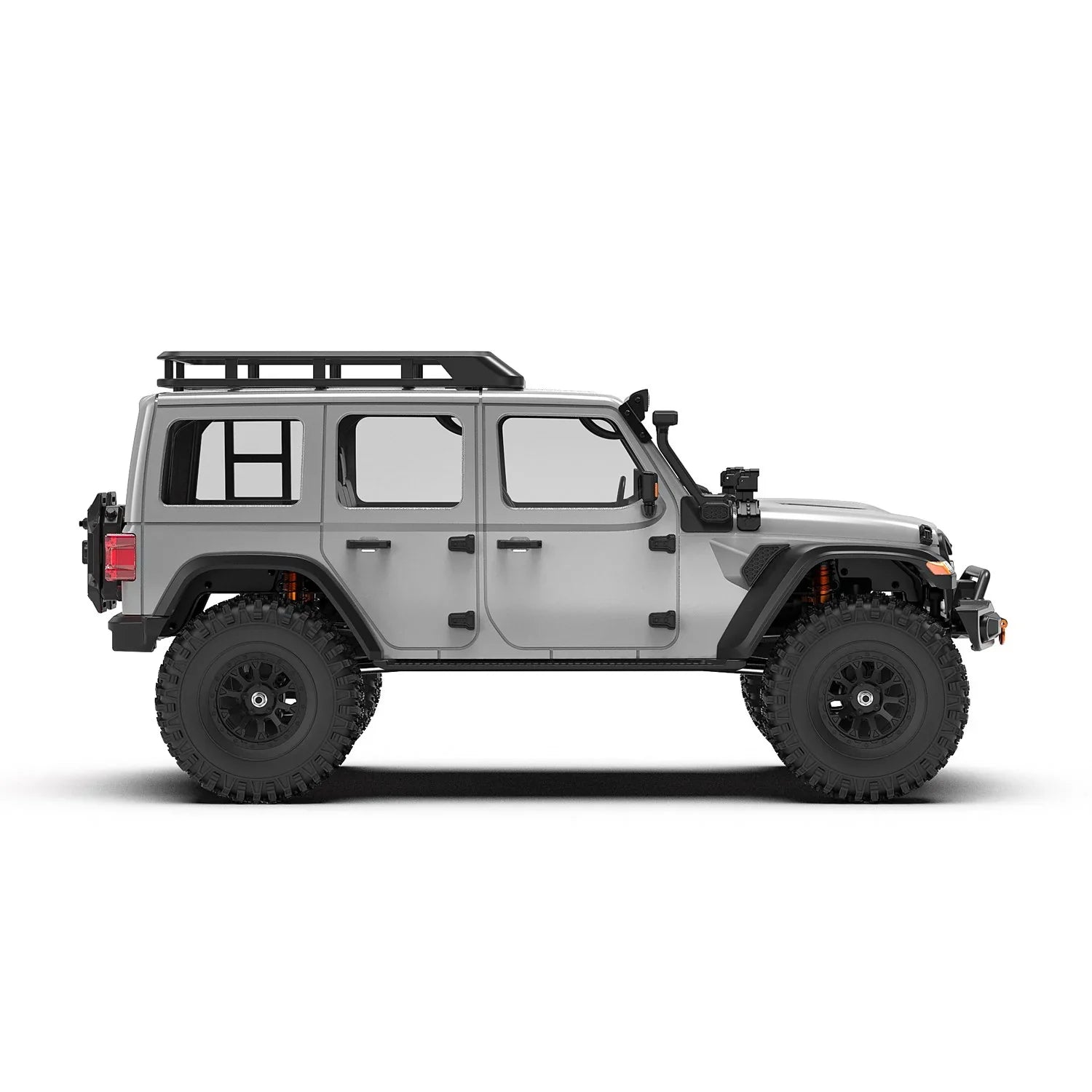

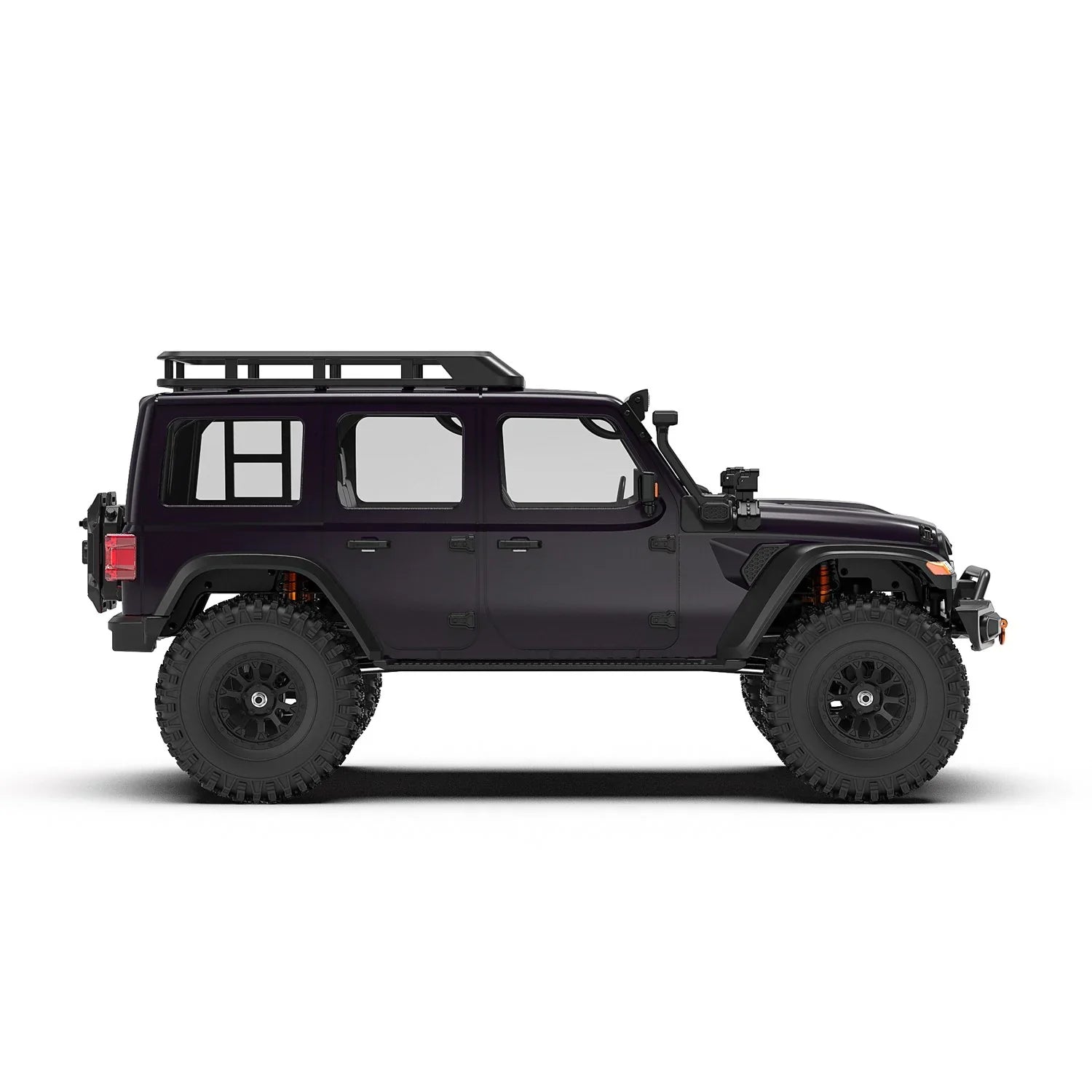

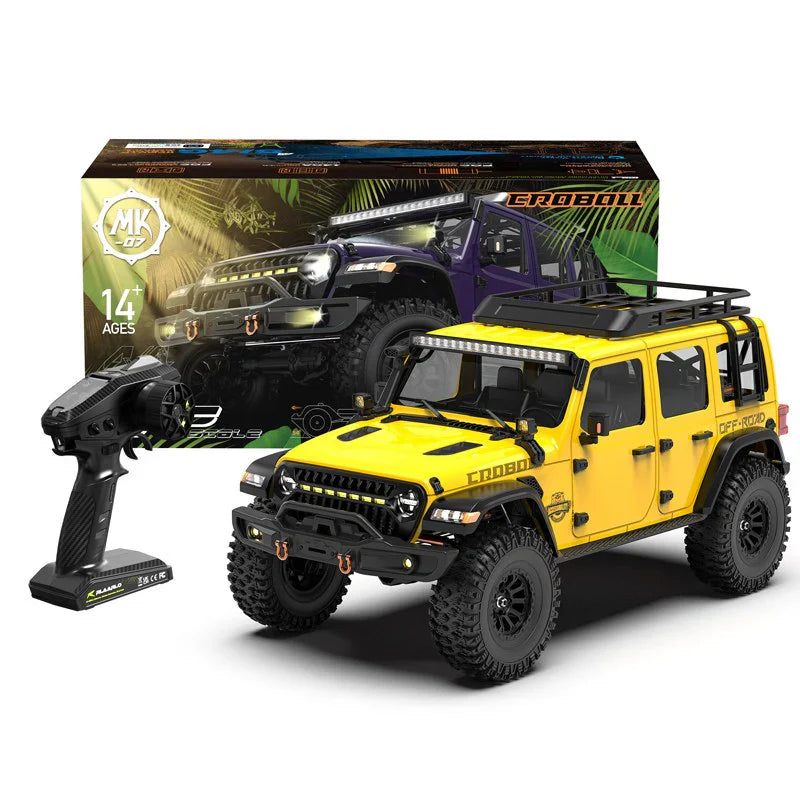

Rlaarlo 1/7 Scale 4WD Brushless RTR RC Crawler MK-07 V2

• MK-07 is a top-of-the-line model for off-road enthusiasts, offering an authentic and exciting off-road experience that brings unrivaled fun to off-road enthusiasts

• Equipped with a 4282 high-torque 2600KV magnetic encoding FOC sensored motor, featuring a high-speed digital sensor that requires no calibration, the motor is plug-and-play. The sensor supports hot-swapping with strong anti-interference and high signal quality.

• The FOC ESC supports 2-4S batteries with a continuous current of 140A, utilizing vector control technology. Compared to square wave ESCs, it saves 5%-20% energy, providing longer run times for climbing adventures. The acceleration and deceleration performance of the FOC ESC is over twice as fast as square wave models.

• The high-torque motor meets the needs of most large-scale crawlers on the market. Its low-speed linear torque compensation allows the vehicle to easily overcome obstacles while maintaining perfect balance. The vehicle excels not only in climbing scenarios but also in sand running and drift, offering users an ultimate control experience.

• Note:

• Battery and Charger Sold Separately

• The battery plug of MK-07 is XT60 connector, customers need to buy batteries by themselves

FRONT AND REAR DIFFERENTIAL DESIGN

PORTAL AXLE DESIGN

The portal axle design provides higher ground clearance. This portal axle design reduces the gear ratio of the wheels, almost eliminating the direct torque force brought from the chassis.

STUNNING SCALE DETAIL

Body-mounted door handles, mirrors, and fenders plus simulated windshield wipers create an incredibly realistic look.

FORWARD LOCATED GEARBOX

Central gearbox design and location reduces the vehicle's center of gravity whilst improving climbing performance and stability by being located more towards the front. Reverse rotation design will help eliminate torque twist.

MULTIPLE SERVOS TO MATCH

40kg waterproof steering servo with 4 no’s of 25kg servos used for high and low-speed switching, front and rear differential lock and rear-wheel drive.

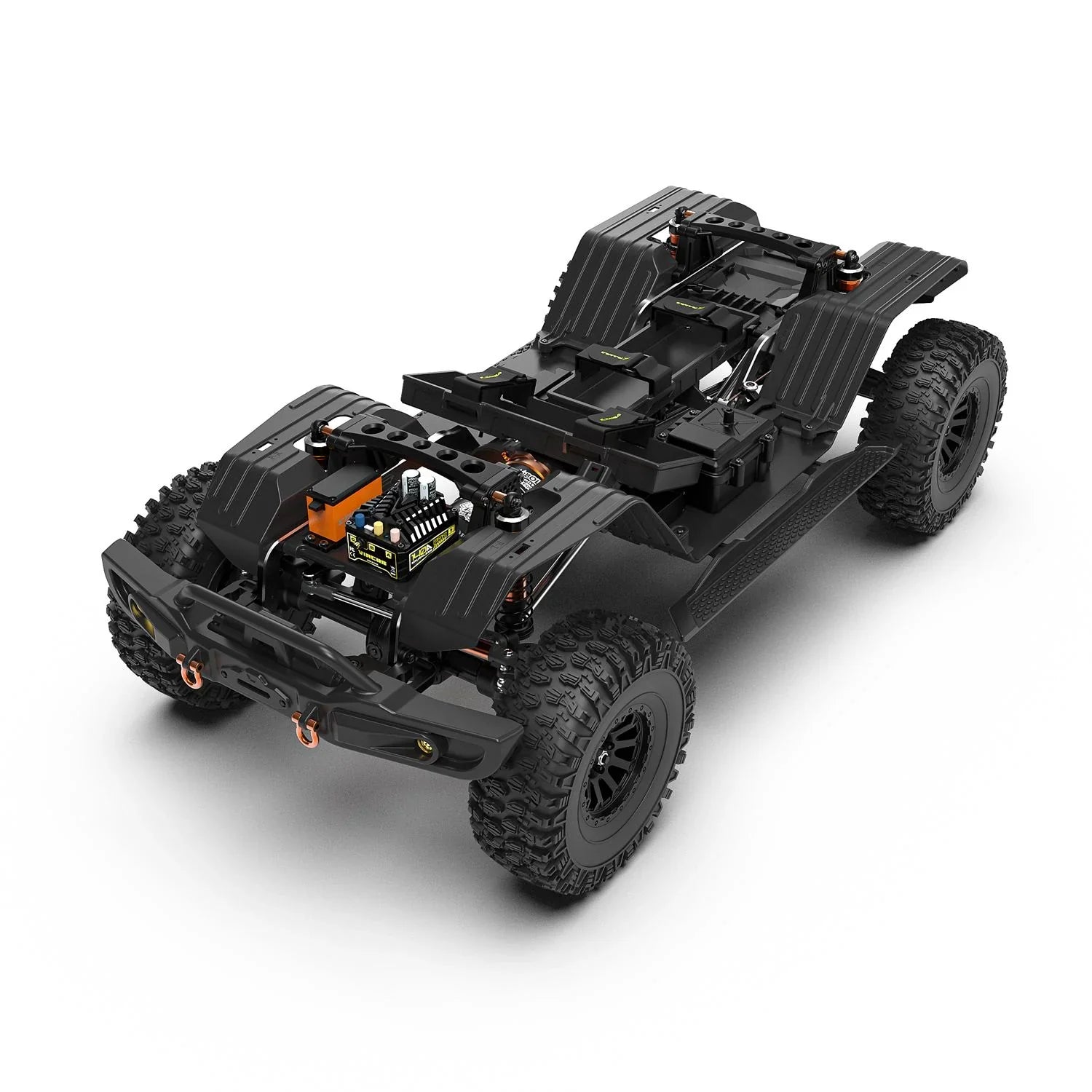

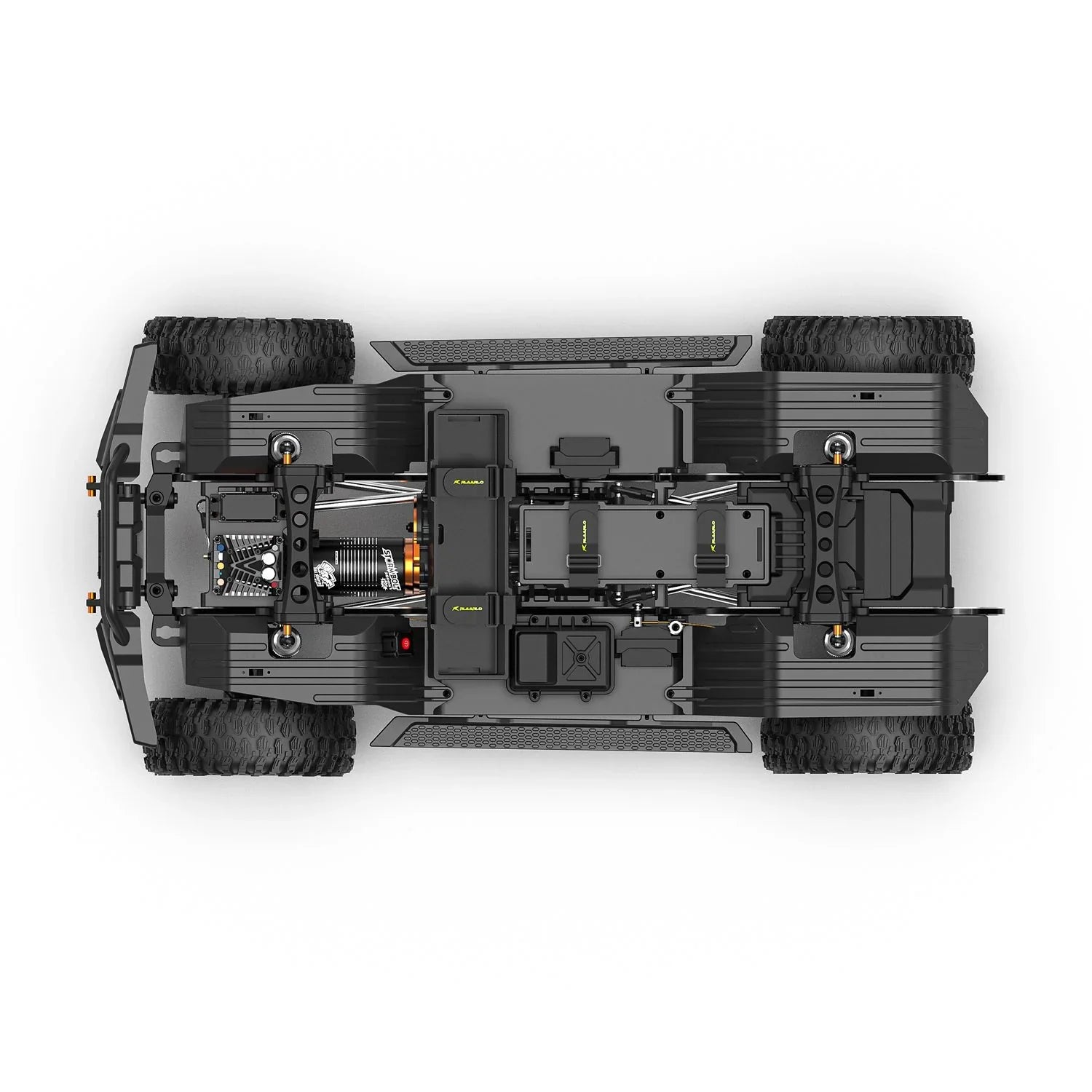

CNC 6mm Aluminum Alloy Chassis Rails

Treated with a high-gloss coating not only enhance the ruggedness of the car but also add to the overall aesthetics of the vehicle.

3 Link Panhard Steering Link System

Drive train design reduces the lateral swing between the chassis plates (body) and the rear axle, making the car more stable on bumpy roads and more stable when driving straight.

Aluminum Scale Shocks

Extra-long 120mm all-metal hydraulic shock absorbers, with a maximum shock absorption stroke of 37mm provide smooth dampening of the vehicle even on rougher surfaces.

Molded Inner Fenders

High-strength integrated nylon mudguard and inner fenders include locations to install rock lights by the user easily.

Battery Tray

MK-07's main battery tray holds a full-length 5000mAh 3-cell LiPo for extended runtime. Bundled battery straps to accommodate batteries of different heights.

High Steering and Drag Links

The steering linkage and traction linkage are mounted high on the door axle, elevating them to prevent possible damage. This allows the MK-07 to attack obstacles head-on, thus reducing the risk of the steering linkage hitting rocks.

8MM Stainless Steel Suspension Rods

The entire vehicle suspension link rods uses thickened 8mm stainless steel to make the chassis more robust.

Twin Friction Plate Slipper Clutch

A slipper clutch design provides additional protection for the crawler under extreme conditions. This helps prevent any possible damage to the gears and the motor.

Sealed Ball Bearings

The whole vehicle uses rubber-sealed dustproof high-speed bearings which reduce penetration from mud and sand and allow for a more fluid operation.

Approach and Exit Angle Of The Vehicle

The MK-07 features a 58° out-of-the-box approach angle for climbing walls and hills. 54° rear approach angle provides extreme performance even in the deepest ruts.

High Ground Clearance

The MK-07 has a center ground clearance of up to 90mm, which brings a more realistic off-road experience without fear of any complicated environment.

45° Steering Angle

Driveshafts and Suspension Links

The MK-07 portal axle design raises the driveshaft to improve axle geometry and reduce driveshaft angles.Higher driveshafts and suspension links go over obstacles, reducing wear and smoothing the ride over bumpy roads.

Front Motor Design

The motor front mount design moves the weight bias forward, allowing you to climb obstacles with better traction.

Simulation Design

Its body-mounted door handles, mirrors, fenders, and simulated windshield wipers work together to create an extremely realistic appearance.

Extensive Lighting Systems

Front lights with daytime running, low and high beams, roof light (light bar) and turn signal lights, grille and top panel lights.

Simulated Bumper

The simulated design bumper fitted to the front vehicle is robust and functional, complete with tow hooks, metal grain and other details to give it a more realistic appearance.

Simulation Design Big Tire

MK-07 tire diameter of 145mm, tire width of 58mm to bring model players more realistic off-road experience, with the ability to challenge the complex road conditions.

Integrated Mirrors and Wiper Blades

The unique windshield and integrated mirrors and wiper blades have been rebuilt as injection-molded parts to provide a more realistic visual experience when mounted on the car.

Reinforced Metal Tail-Plate

Extra durability for body flipping. Prevents shell cracking.

Rich Lighting Effects

The whole car is equipped with a number of lighting effects, enthusiasts can set the lighting display effects according to the use of the scene, simulating the real driving environment.

40KG Waterproof Steering-Servo

40KG high-torque waterproof steering servo provides strong power output and reliable waterproof performance, ensuring stability and durability in a variety of extreme conditions.

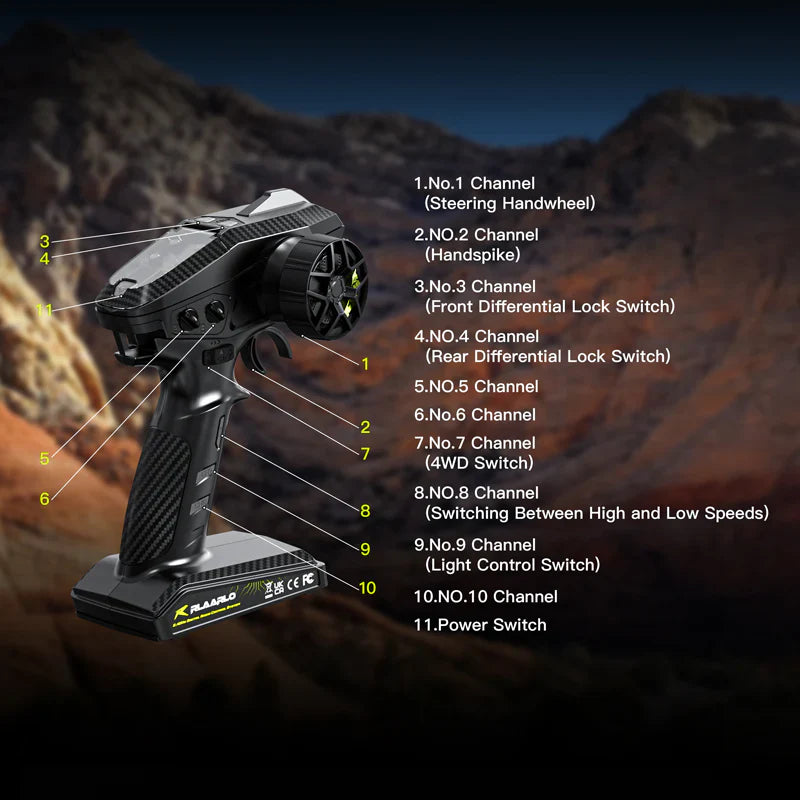

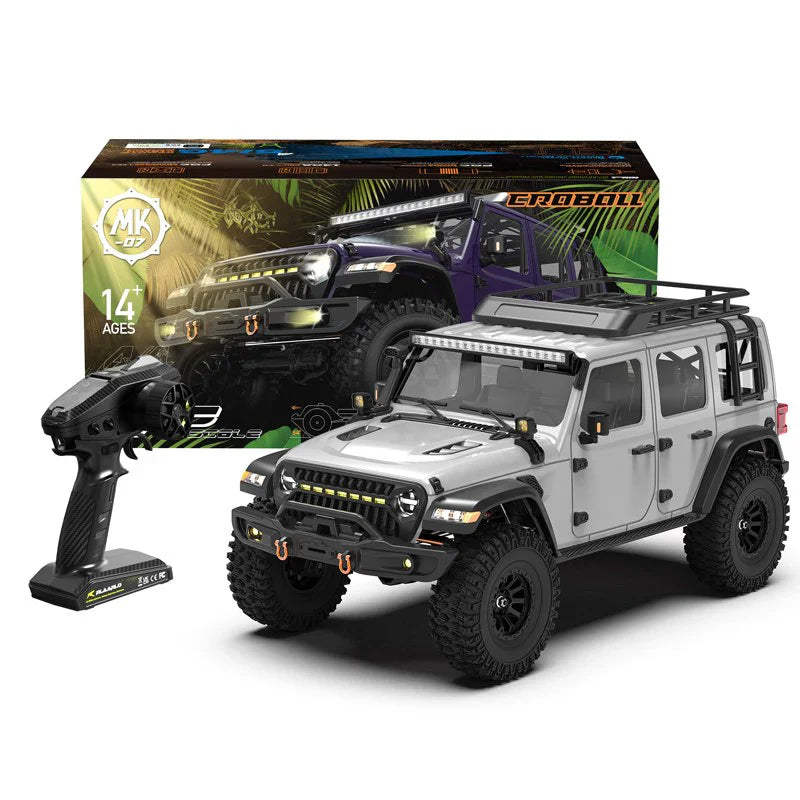

10-Channel Radio System

Rlaarlo 10-channel remote control, integrated high and low speed, light control and other functions, simple and intuitive control, through the remote control of a key switch, no need to manually adjust, convenient and fast.

Product Specifications

• Scale:1/7 Scale
• Length:700 mm
• Width:325mm
• Height:340mm
• Wheelbase:439 mm
• Weight:7 kg
• Top Speed:6-12km/h
• Car body:1.5mmPC
• Range:350 m
• Transmitter :
  Brushless —2.4GHz 10-Channel Transmitter
  Brushed —2.4GHz 10-Channel Transmitter
• Battery Size:164*49mm
• Light System:Full car linkage lighting
• Drivetrain:4WD
• Spur Gear:Metal
• Drive System:Four-Wheel Drive with Differential Lock
• Differential Type: Steel
• ESC:
  Brushless —140A Independent Brushless ESC（Support app parameter tuning）
  Brushed —140A Brushed ESC
• Input Voltage: 2-4S Li-ion
• Motor Type:
  Brushless —4282-2600KV Brushless Motor
  Brushed —Brush Motor5280 12500 revolutions per minute
• Motor Gear Type: Steel
• Steering Servo Machine: 40kg Servo （Waterproof）
• Servo Pinion Type: Metal
• Shock Type:Adjustable Metal Oil-Filled Shock Absorber
• Chassis:6mm Thick High-Strength CNC Beam

Note: Some parameters may differ between versions.
