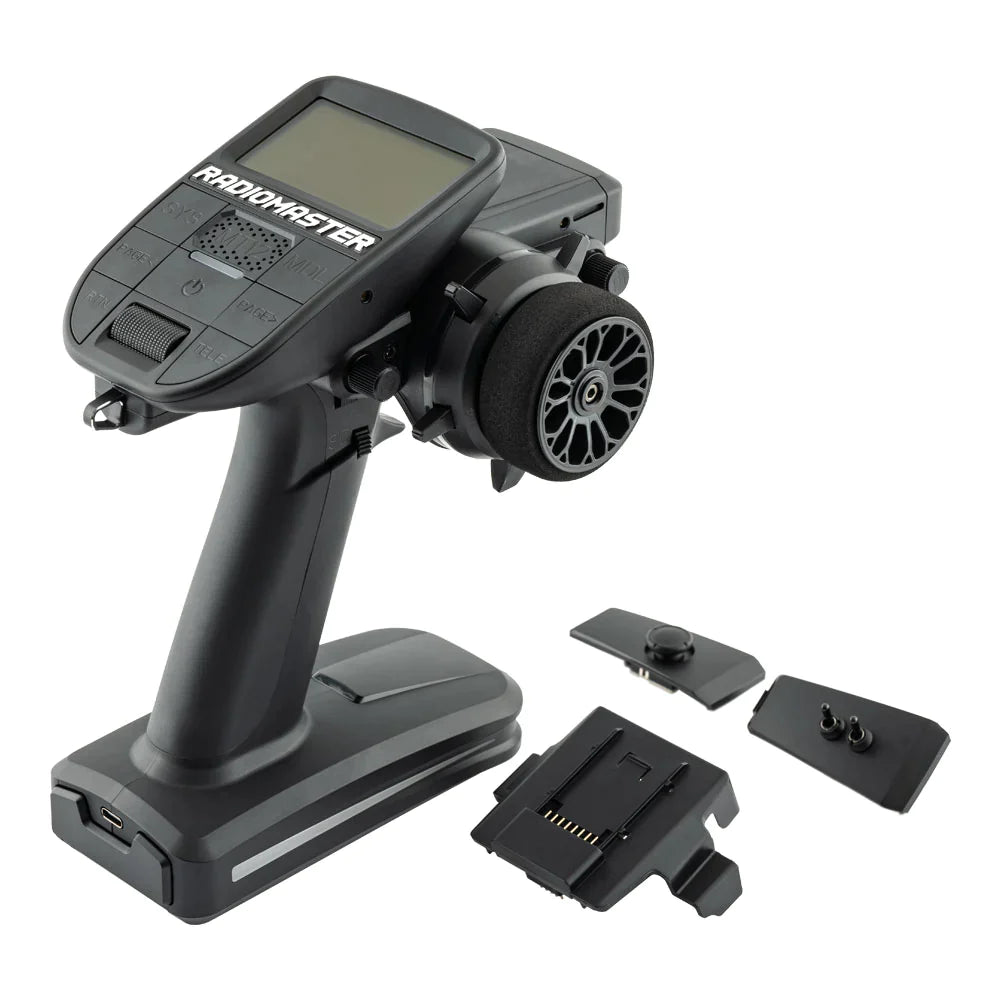

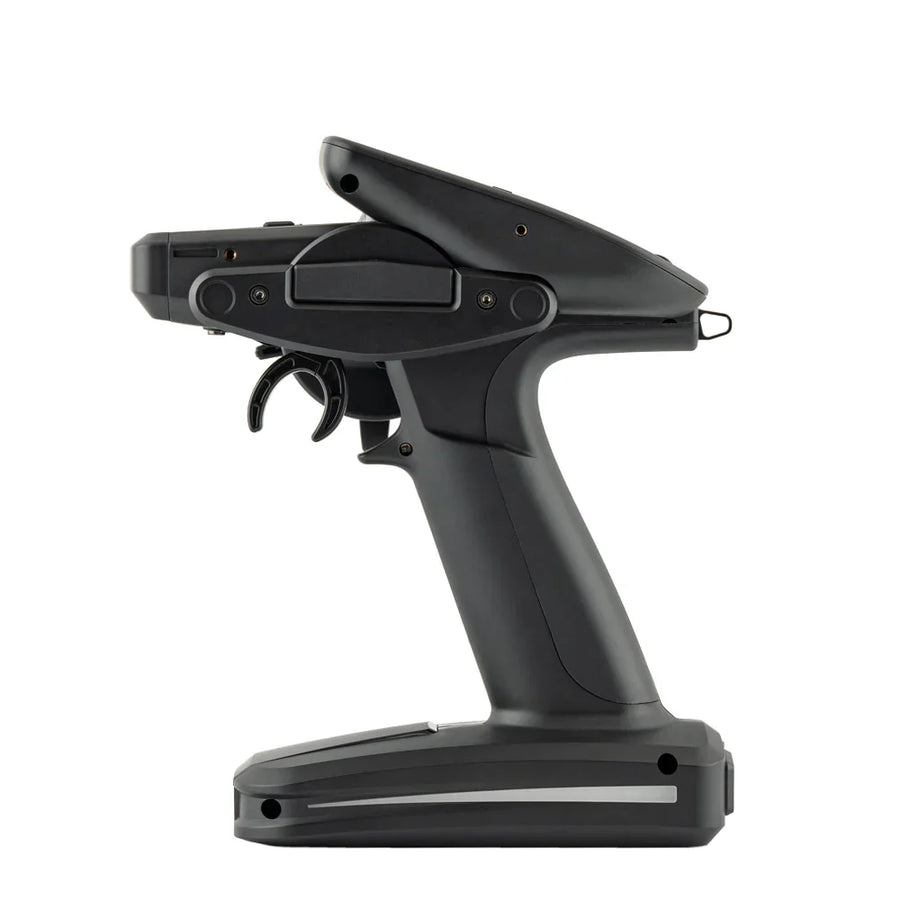

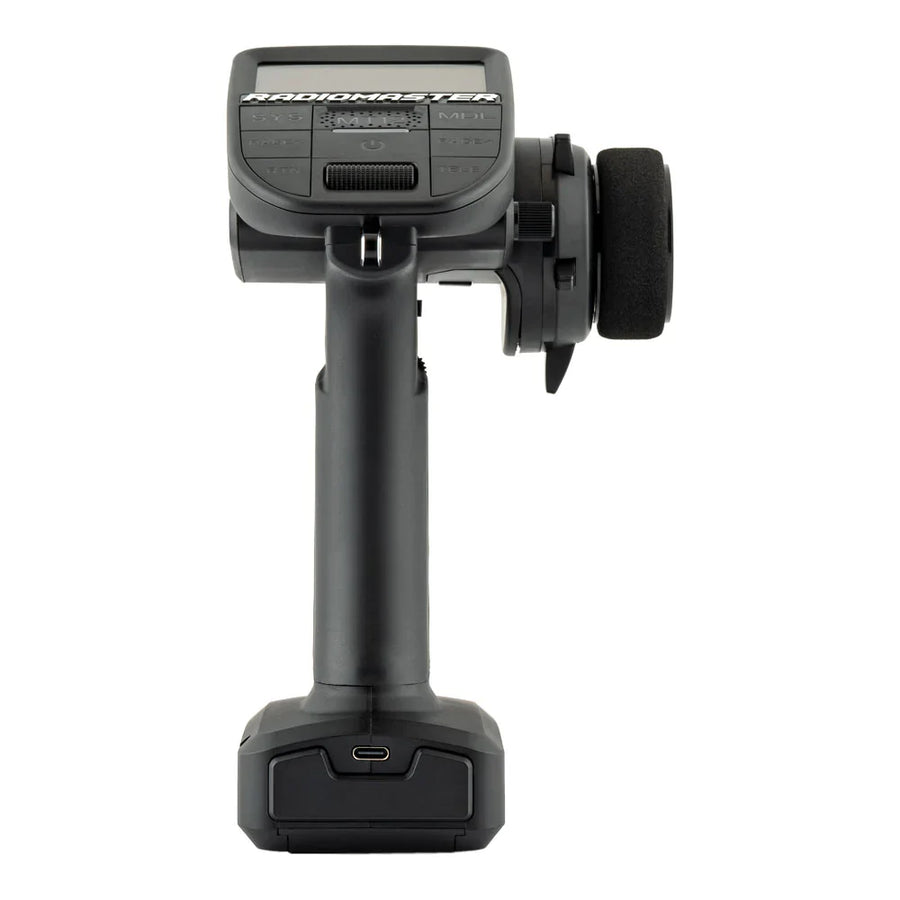

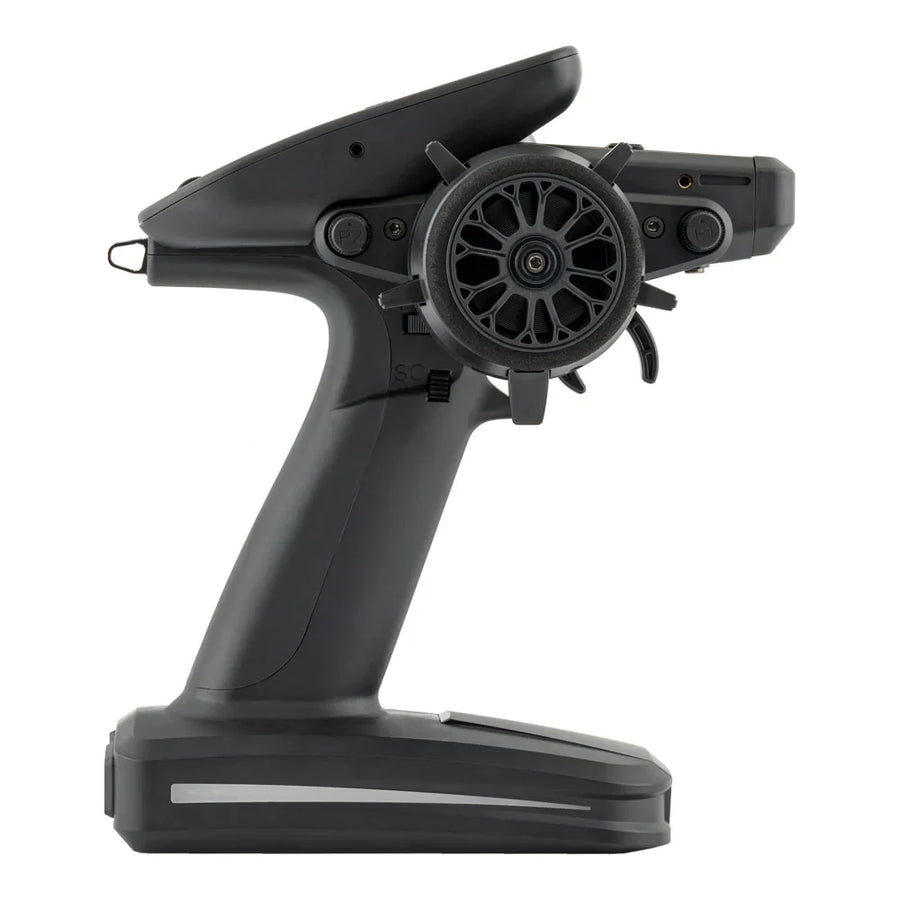

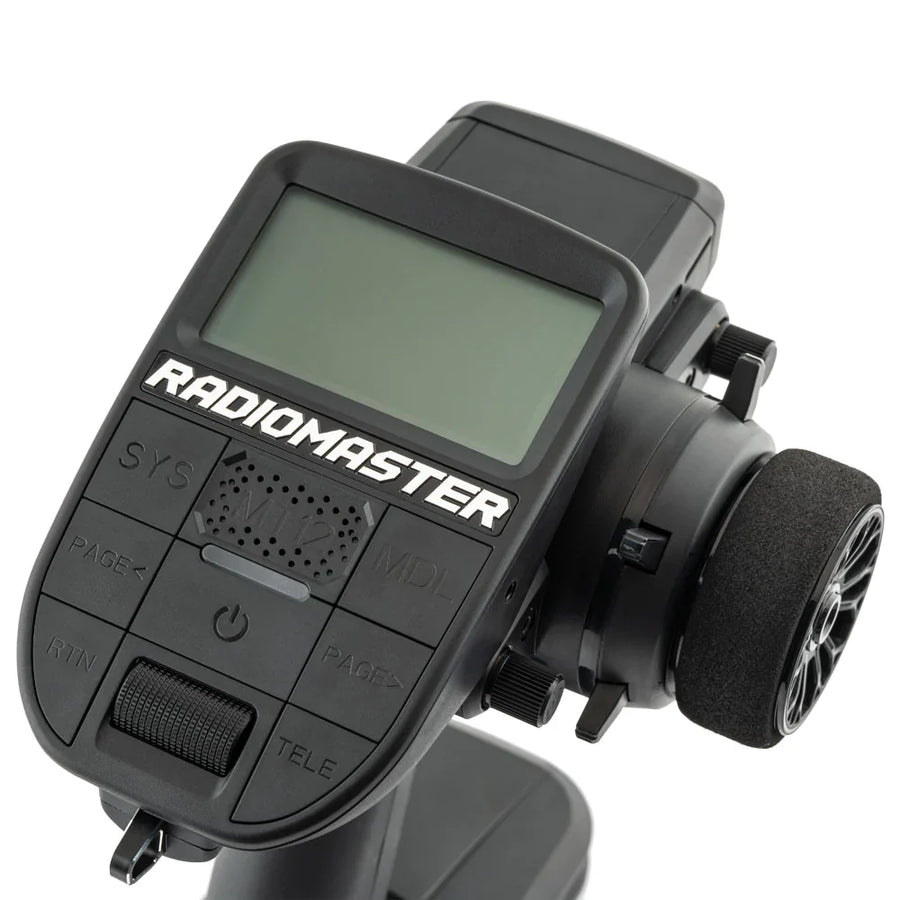

RadioMaster MT12 Surface Radio Controller 4in1 + R85C Receiver

SKU: HP0157.0068
Availability: In Stock
$129.99
$129.99
RadioMaster MT12 Surface Radio Controller 4in1 + R85C Receiver - HeliDirect

RadioMaster MT12 Surface Radio Controller 4in1 + R85C Receiver

$129.99

RadioMaster MT12 Surface Radio Controller 4in1 + R85C Receiver

$129.99


The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. Boasting 10 physical inputs and the capability to handle either 16 or 32 channels*, the MT12 is primed for a wide array of surface models, from cars and trucks to boats and beyond. Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario.

Please note this is the pre-order. Orders start shipping on November 20th.

Features

  • Available with built-in ExpressLRS or 4in1 MPM RF modules
  • Featuring a powerful STM32F407VGT6 with 1MB Flash
  • Preinstalled EdgeTX firmware
  • QC3.0 fast charging supporting 2.0A MAX
  • Compact design with excellent ergonomics
  • Oversized battery compartment - 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
  • Standard Nano module compartment
  • RadioMaster standardized button layout
  • Rotatable antenna
  • Customizable base switches or 4 way joystick included
Specification MT12

  • Item: MT12 Surface Radio
  • Physical dimensions: 177.8*118.4*207.8mm
  • Weight: 480 grams
  • Operating frequency: 2.400GHz-2.480GHz
  • Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz
  • Supported protocols: Module dependent
  • Operational current: 160mA for 4in1 / 320mA for ELRS
  • Operational voltage: DC 6.6-8.4V
  • Operating system: EdgeTX
  • Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only)
  • Display: 128*64 Monochrome LCD
  • Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
  • Charging: Built in USB-C Charging
  • Firmware Upgrade method: Via USB or SD card
  • Wheel and Trigger sensor: Hall-effect
  • Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)

*32 channels requires a 4in1 radio and additional 4in1 RF module along with compatible receivers

    Specification R85C (Included with 4in1 version)

    • Item: R85C Receiver
    • Power supply: DC 4.5 - 8.4V
    • Frequency range: 2400-2483.5Mhz
    • Support protocol: D8/D16/SFHSS
    • Output channel: 5CH PWM
    • Antenna type: high-sensitivity 2.4G antenna
    • Telemetry power: 100mw / 20dbm
    • Weight: 5.7 grams
    • Dimensions: 31.0*18.5*13.0 mm
