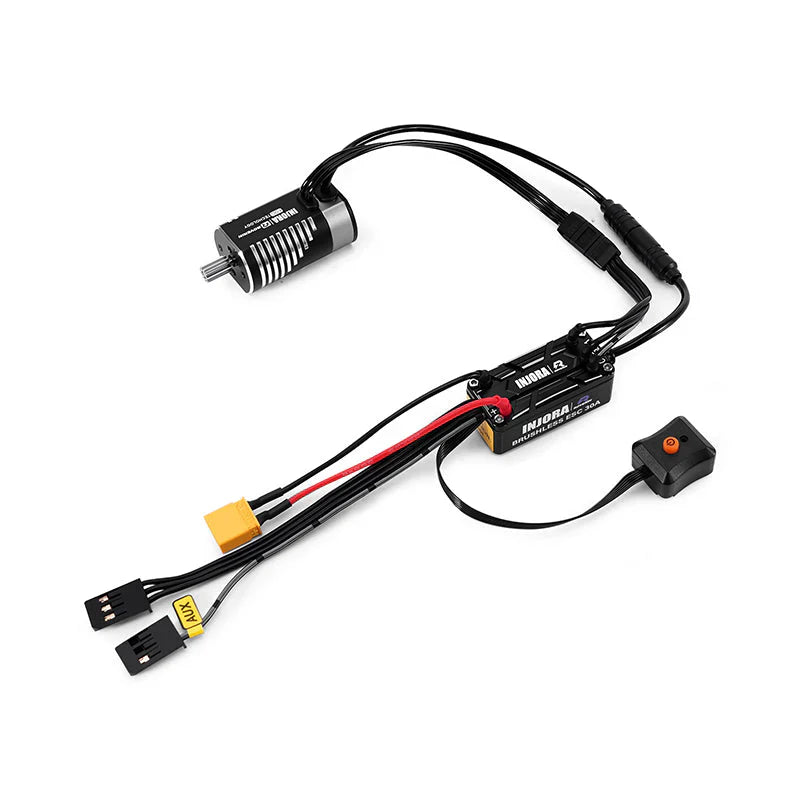

INJORA Roverin M30 G2 FOC Sensored Brushless ESC & Motor for 1/18 TRX4M Ascent1

INJORA Roverin M30 G2 FOC Sensored Brushless ESC & Motor Combo for 1/18 TRX4M Ascent-18 Brushed(4800KV)

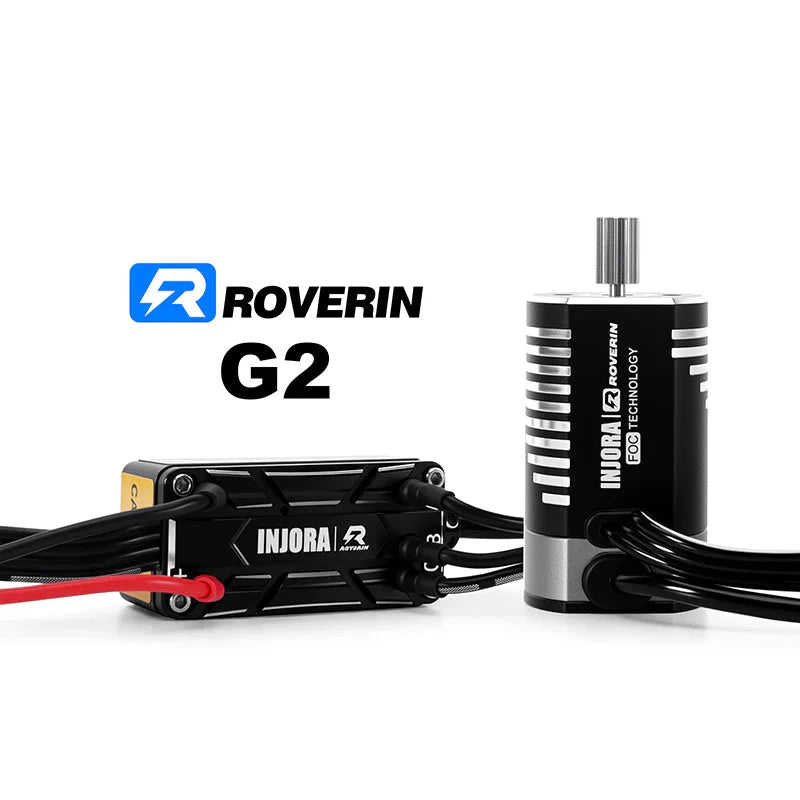

What's New in G2?
The Roverin M30 G2 features essential hardware upgrades to improve reliability and thermal performance:

• 1. Enhanced Heat Management: Optimized ESC circuitry to effectively reduce operating temperatures.

• 2. Refined ESC Outlets: Redesigned wire exits to prevent accidental short circuits.

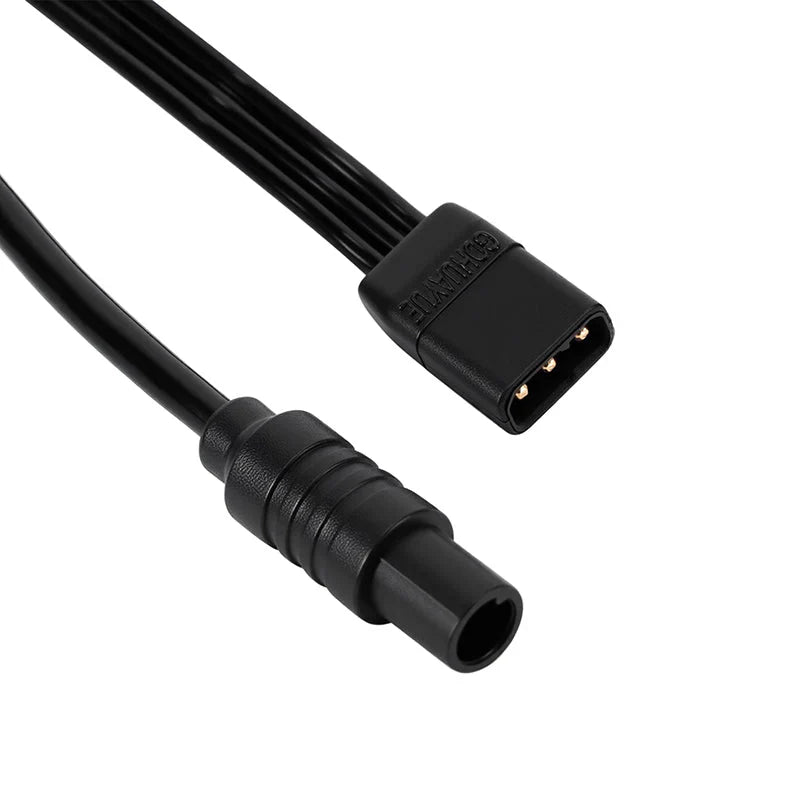

• 3. Upgraded Motor Leads: Reinforced motor wiring with superior high-temperature resistance.

Note:

• Compatible with: Traxxas TRX4M, Ascent-18 Brushed
• Transmission: compatible with stock TRX4M transmission and INJORA TRX4M metal transmission (It desn't fit 370 transmission), stock Redcat Ascent18 transmission, INJORA Ascent18 metal transmission.
• Battery: compatible with 2S and 3S batteries
• The BEC supports up to 10V output for low-current applications only (e.g., powering receivers or sensors). For high-current servos, we recommend using 6V–7.4V for reliable and safe operation.

Features:

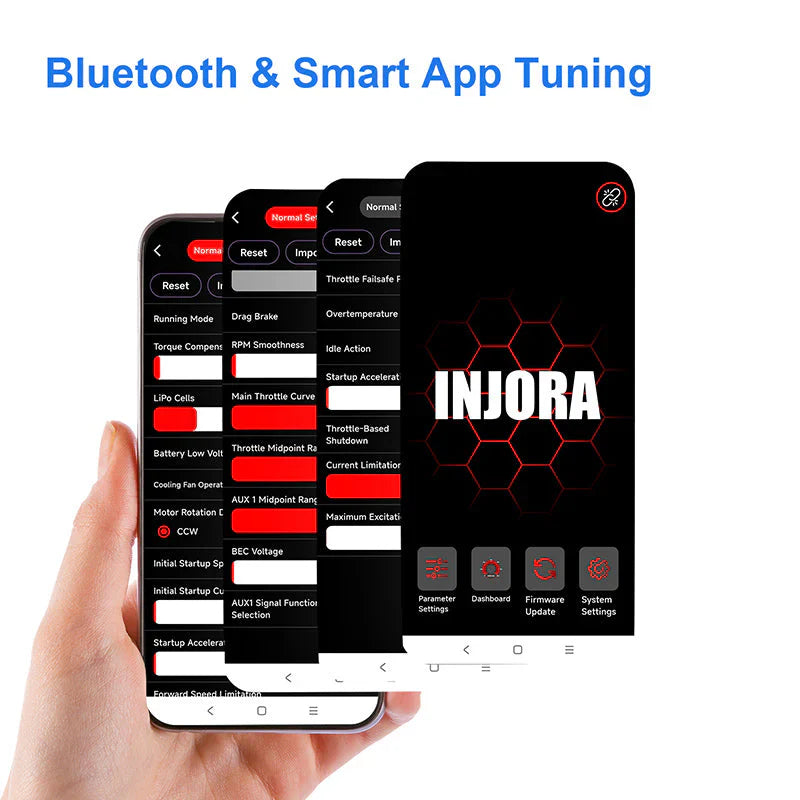

• Wireless Bluetooth & Smart App Tuning: Built-in Bluetooth for easy adjustments—no extra devices needed! Enjoy real-time tuning, data logging, and firmware updates via the INJORA Link app. (iOS: Download from the App Store; Android: Get it on Google Play.)

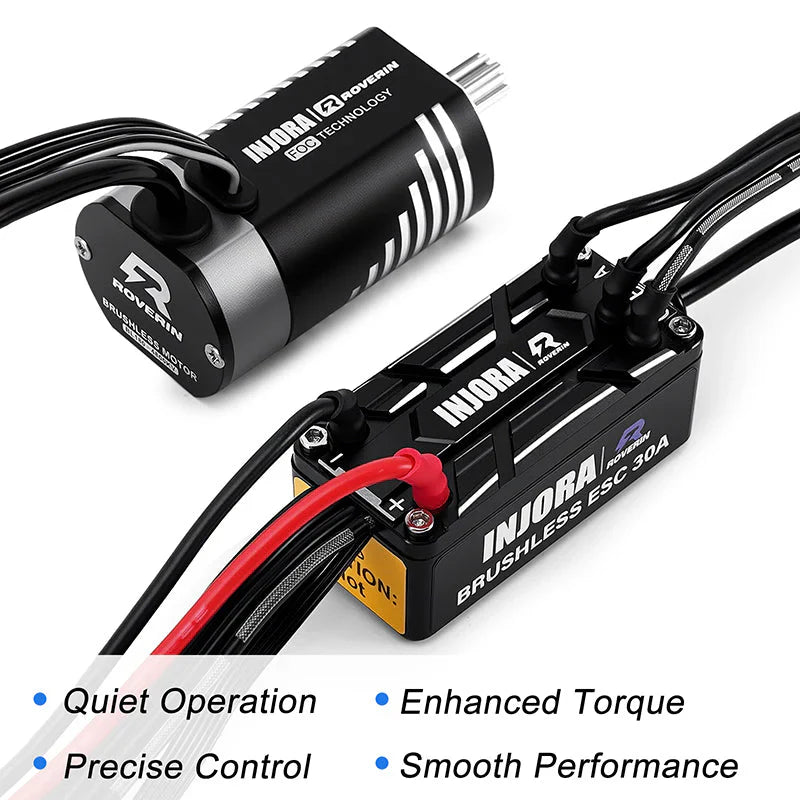

• Powerful Low-Speed Torque & Smooth Operation: The FOC algorithm ensures precise power control, delivering strong torque even at extremely low speeds for smooth and responsive driving.

• Adjustable Drag Brake (Up to 200%): Enhanced climbing and speed control. Improved efficiency and reduced noise. Twice the braking power of standard brushless systems, ensuring superior downhill control.

• Smart Magnetic Encoder Motor: Stable three-phase signal output for precise control. Accurate sensor feedback eliminates jitter and enhances smooth acceleration.

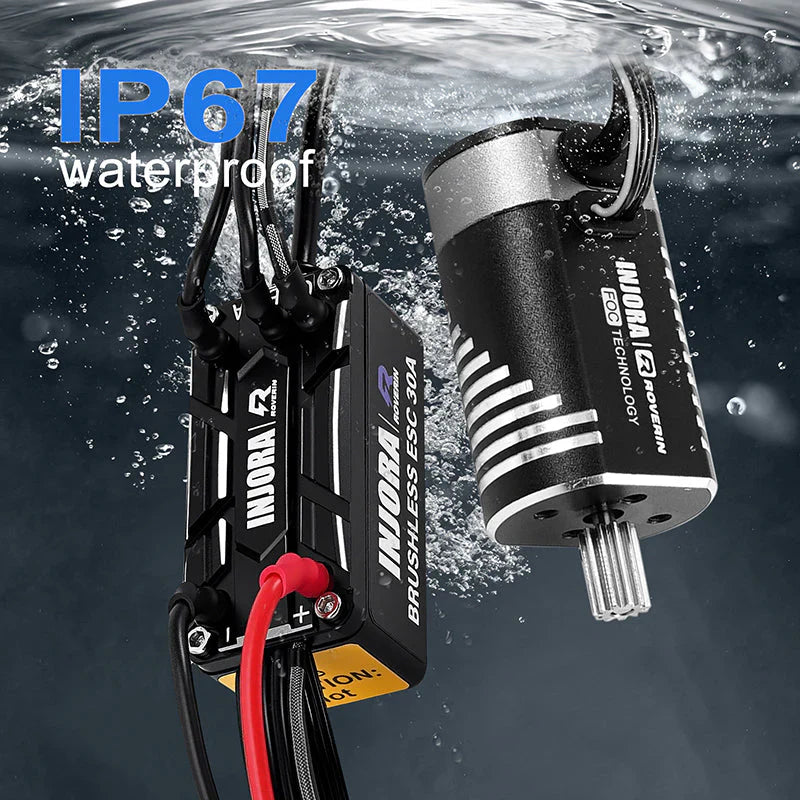

• IP67 Waterproof & Dustproof: Fully protected against water, mud, dust, and snow, ensuring durability in extreme environments.

• Comprehensive Protection System: Low Voltage Protection, Overheat Protection, Overvoltage Protection, Overcurrent Protection, Phase Loss Protection, Throttle Signal Loss Protection, Motor Disconnection Protection

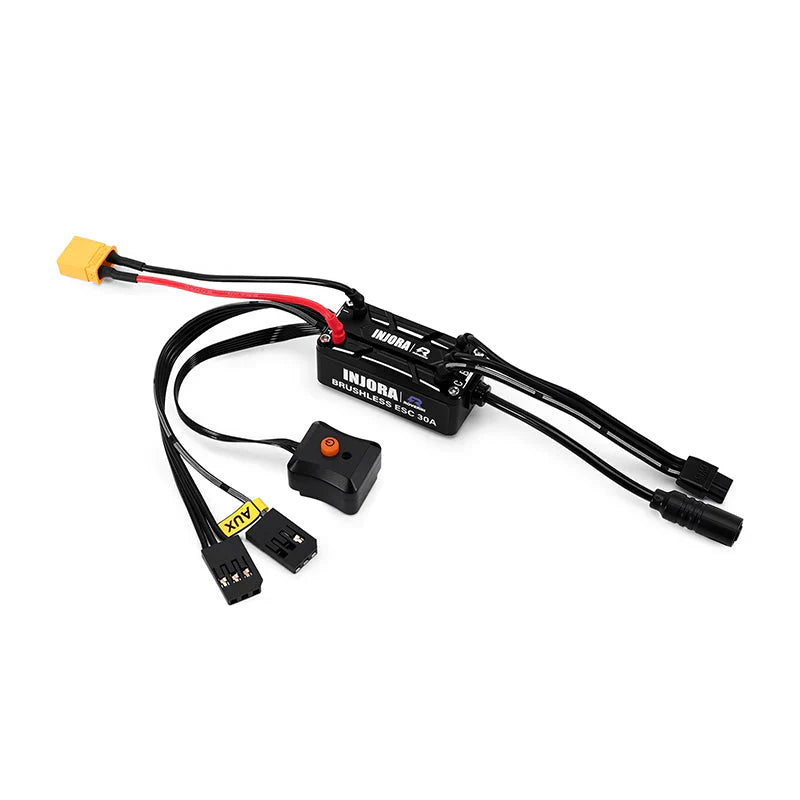

ESC Specification:

• ESC Type: FOC Brushless ESC (FOC-M30)

• Continuous Current: 30A

• Peak Current: 100A

• Battery Support: 2-3S LiPo

• BEC Output: 0-10V adjustable, 5A continuous, 10A peak

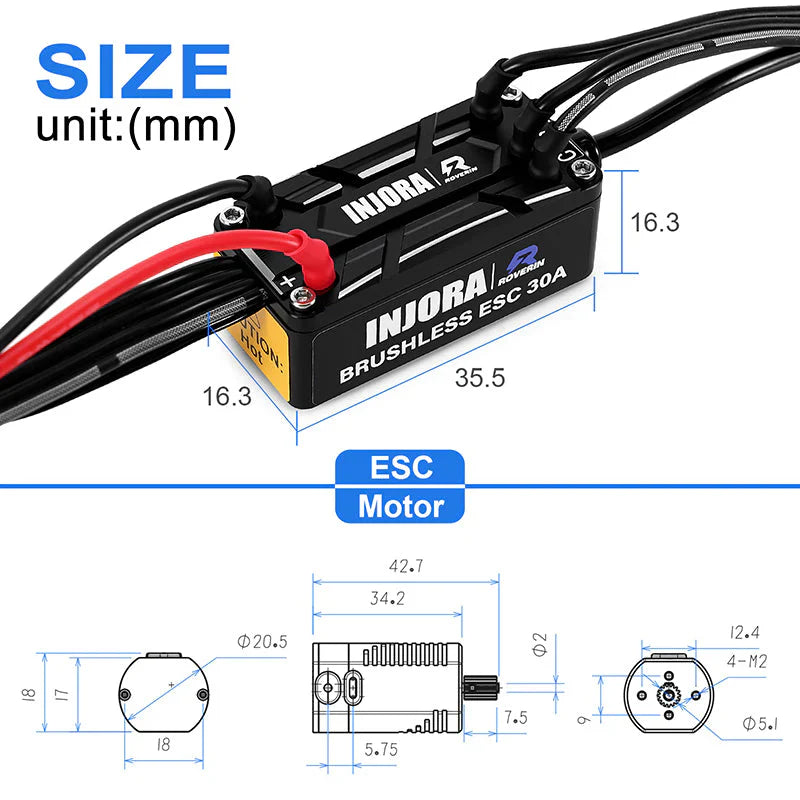

• Size: 35.5×16.3×16.3mm

• Weight: 25g

• Waterproof: Yes

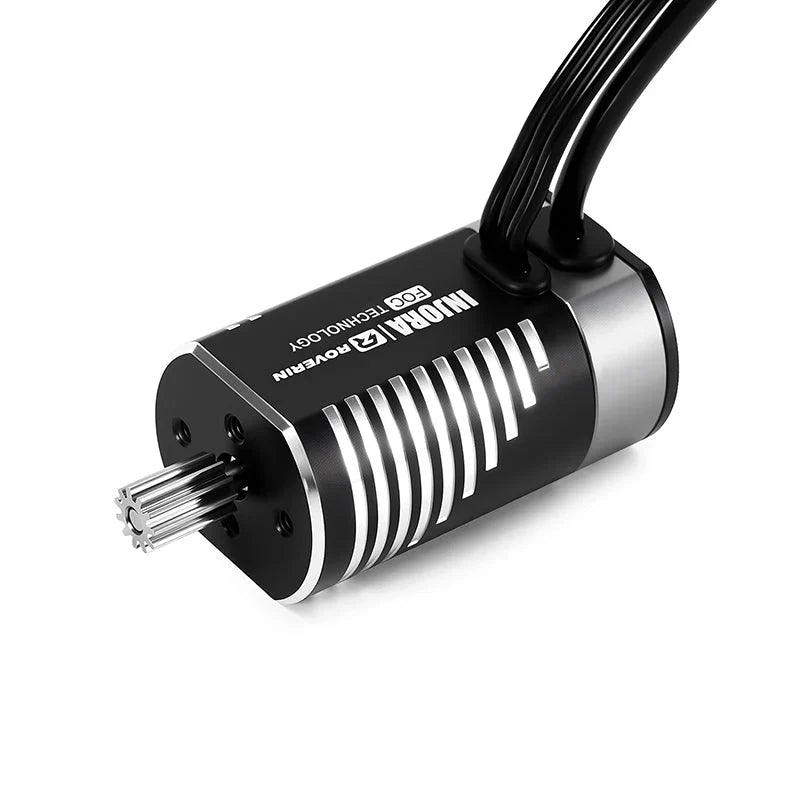

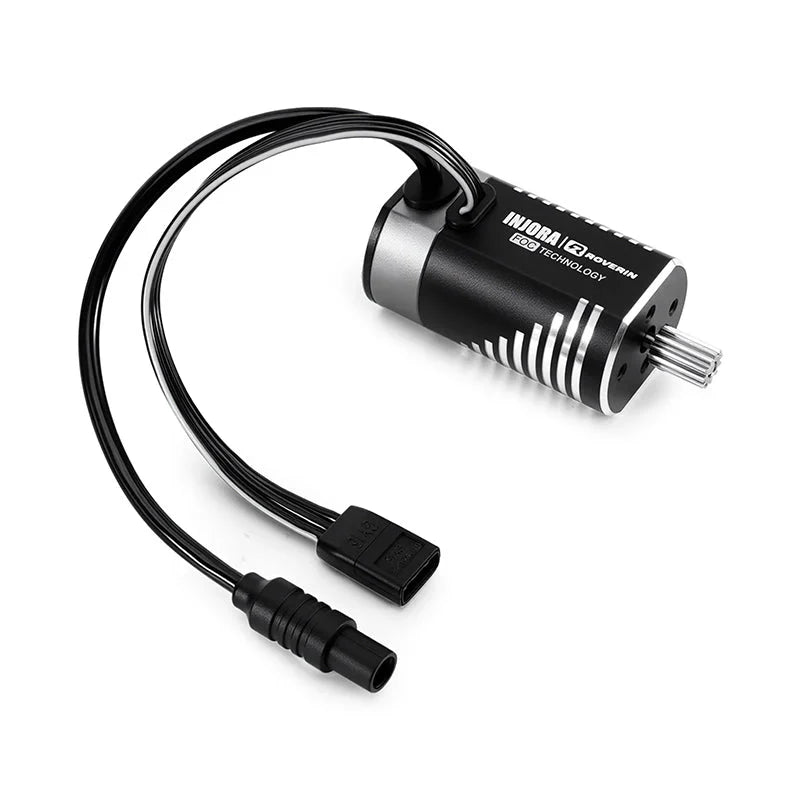

Motor Specification:

• Motor Type: Brushless Sensored 180 Motor

• Motor KV: 4800KV

• At no-load(7.4V): RPM: 35000 ±10%  Current: <0.9A

• At load(7.4V): RPM: 31000 ±10%  Current: 3.0A

• Battery Support: 2-3S LiPo

• Size: 42.7×18×20.5mm

• Weight: 36.5g

• Motor Pinion: 0.4mod 11T

• Waterproof: Yes

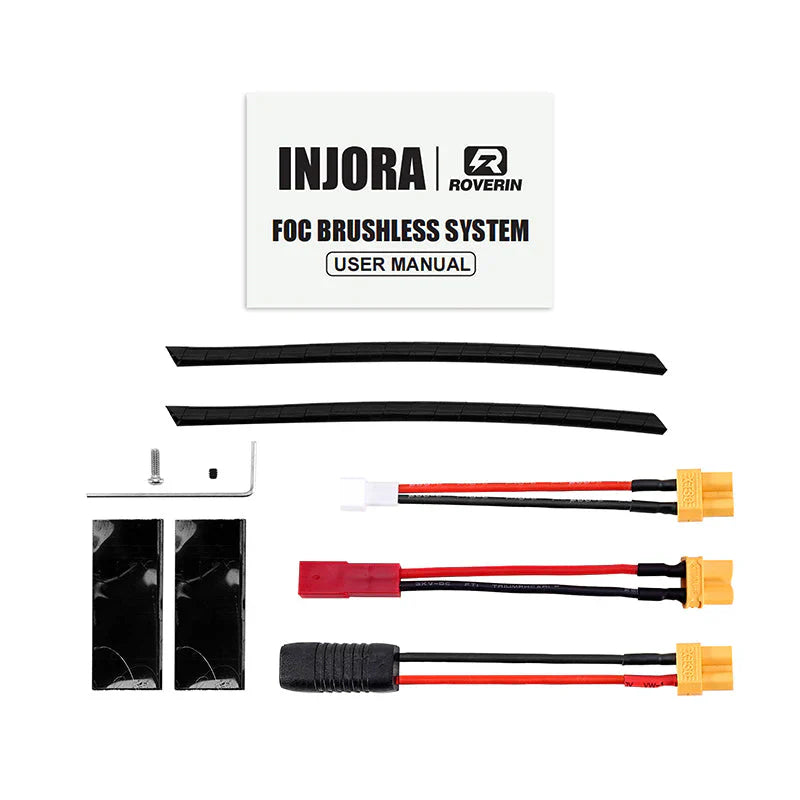

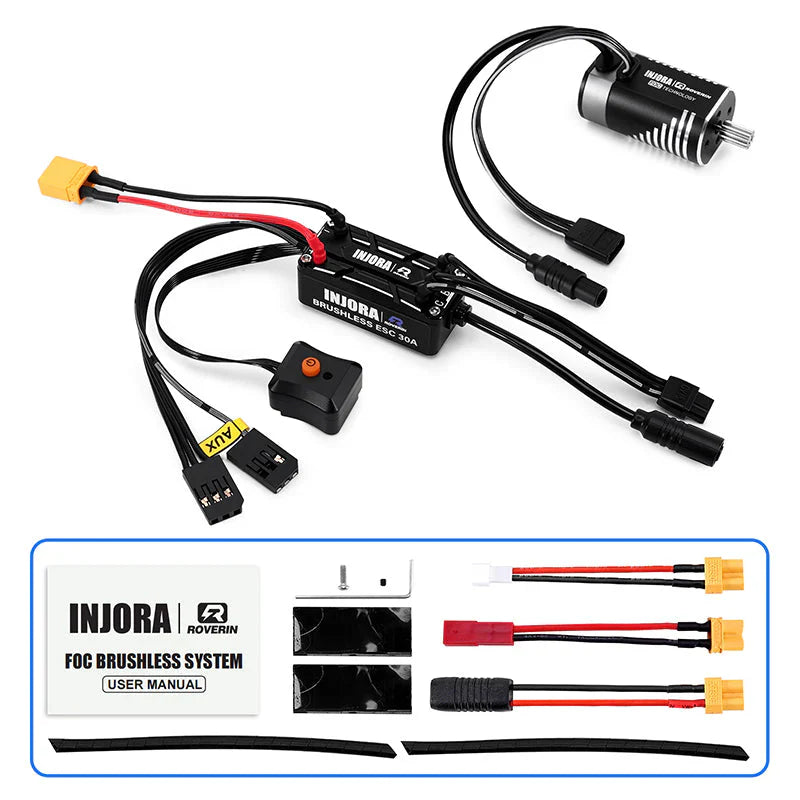

Package List:

• 1 × ESC
• 1 × Motor
• 1 × Battery Adapter Cable (Female XT30 to Male TRX-4M)
• 1 × Battery Adapter Cable (Female XT30 to Male JST-RCY)
• 1 × Battery Adapter Cable (Female XT30 to Male JST-PH2.0)
• 1 × User Manual
