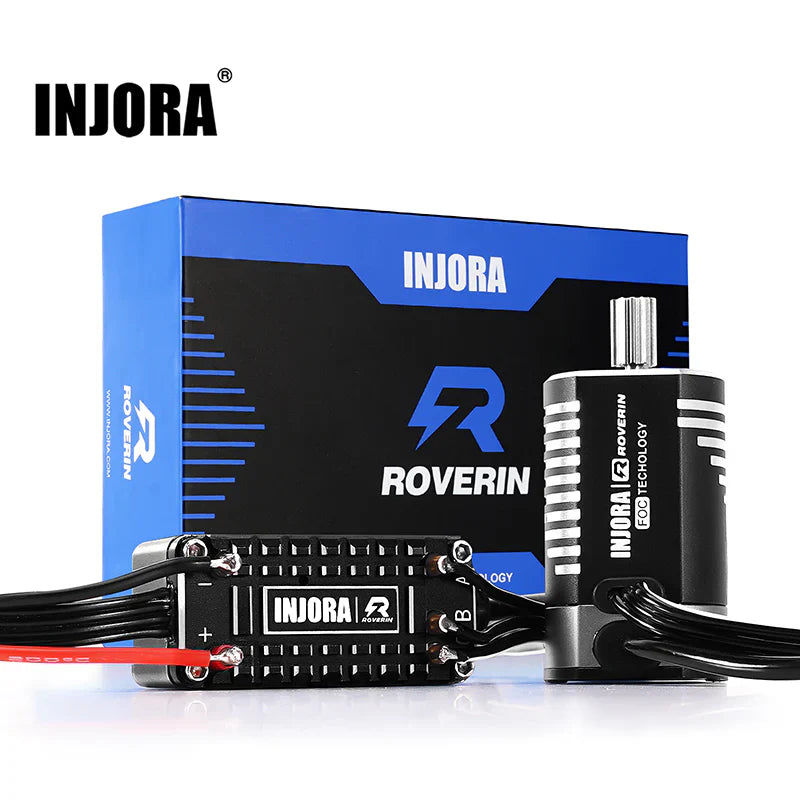

INJORA Roverin FOC Sensored Brushless ESC & Motor Combo for 1/18 TRX4M Ascent18 (4800Kv)

INJORA Roverin FOC Power System Sensored Brushless ESC & 180 Motor Combo for 1/18 TRX4M Ascent18 (4800Kv)

Note:

• Only compatible with 1/18 Traxxas TRX4M, Redcat Ascent18
• WARNING: High Temperature Surface! This ESC features a high-performance computing core and may become very hot after extended use. This is normal and does not affect its functionality or reliability. Please monitor its temperature in the app and avoid direct contact to prevent burns!

Features:

• Wireless Bluetooth & Smart App Tuning: Built-in Bluetooth for easy adjustments—no extra devices needed! Enjoy real-time tuning, data logging, and firmware updates via the INJORA Link app. (iOS: Download from the APP Store; Android: Get it on Google Play.)
• Powerful Low-Speed Torque & Smooth Operation: The FOC algorithm ensures precise power control, delivering strong torque even at extremely low speeds for smooth and responsive driving.
• Adjustable Drag Brake (Up to 200%): Enhanced climbing and speed control. Improved efficiency and reduced noise. Twice the braking power of standard brushless systems, ensuring superior downhill control.
• Smart Magnetic Encoder Motor: Stable three-phase signal output for precise control. Accurate sensor feedback eliminates jitter and enhances smooth acceleration.
• IP67 Waterproof & Dustproof: Fully protected against water, mud, dust, and snow, ensuring durability in extreme environments.
• Comprehensive Protection System: Low Voltage Protection, Overheat Protection, Overvoltage Protection, Overcurrent Protection, Phase Loss Protection, Throttle Signal Loss Protection, Motor Disconnection Protection

ESC Specification:

• Only compatible with INJORA Brushless Sensored 180 Motor
• ESC Type: FOC Brushless ESC (FOC-M30)
• Continuous/Peak Current: 30A / 100A

• Battery Support: 2-3S LiPo
• BEC Output: 0-10V adjustable, 5A continuous, 10A peak

• Size: 35.5mm×16.3mm×16.3mm
• Weight: 25.5g
• Waterproof: Yes

Motor Specification:

• Only compatible with INJORA FOC Brushless ESC FOC-M30

• Motor Type: Brushless Sensored 180 Motor
• Motor KV: 4800KV
• At no load(7.4V) : RPM: 35000±10%  Current: ＜0.9
• At load(7.4V) : RPM: 31000±10% Current: 3.0A
• Battery Support: 2-3S LiPo

• Size: 42.7mm×18mm×20.5mm
• Weight: 36.5g
• Motor Pinion: 0.4mod 11T
• Waterproof: Yes

Package List:

• 1 * ESC
• 1 * Motor
• 1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)
• 1 * Battery Adapter Cable (Female XT30 to Male JST-RCY)
• 1 * Battery Adapter Cable (Female XT30 to Male JST-PH2.0)
• 1 * User Manual
