INJORA 030 050 Brushed Motor 66T 88T for 1:24 RC Crawler Axial SCX24 AXI90081 AXI00002 AXI00001 AXI00004 Upgrade Parts Notes:
050 motors require a different mounting plate with 2 extra holes.
050 motors are longer than stock motor, so one of the battery tray posts needs to be cut off to fit.
Suit for: Upgrade motor parts for Axial SCX24 Features:
High Torque Magnet and Rotor
Tuned for Rock Climbing
030 88T Motor Specifications:
Size: the same as the stock motor
Turn: 88T
Weight: 12g
Rated Voltage: 7.4V
Total length: 20mm / 0.79in
Output Shaft Length: 5.1mm / 0.02in
Output Shaft OD: 1.5mm / 0.06in

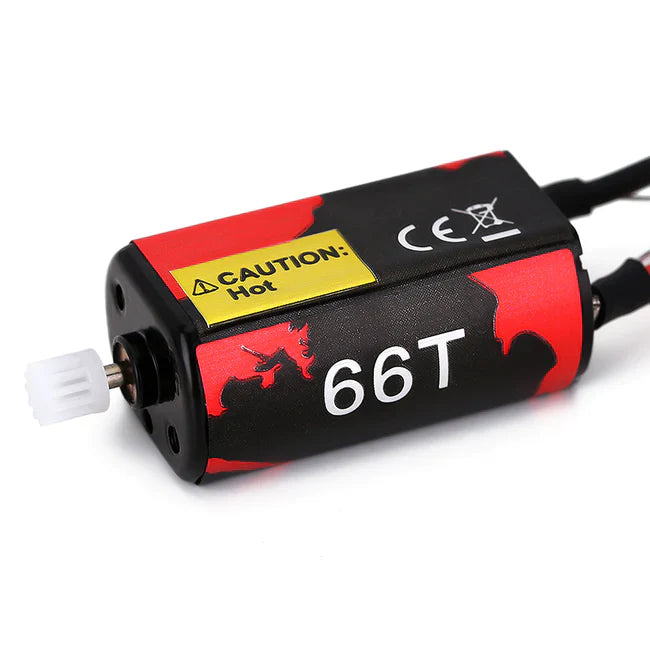

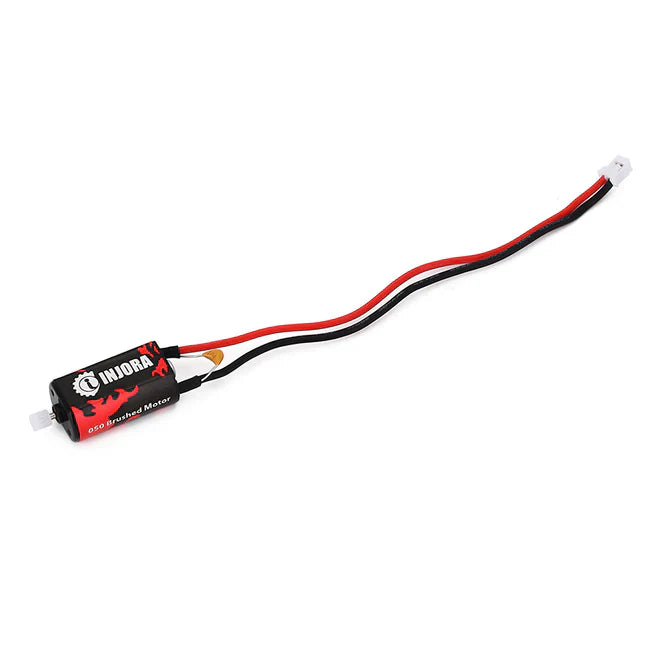

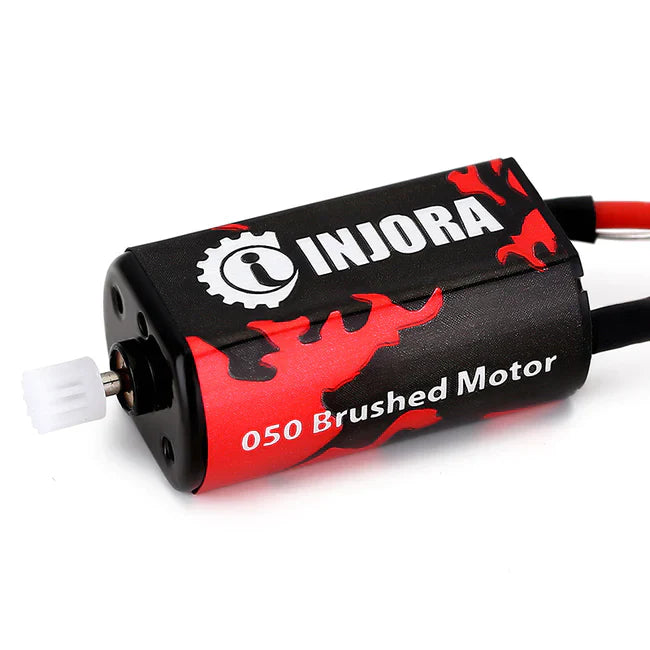

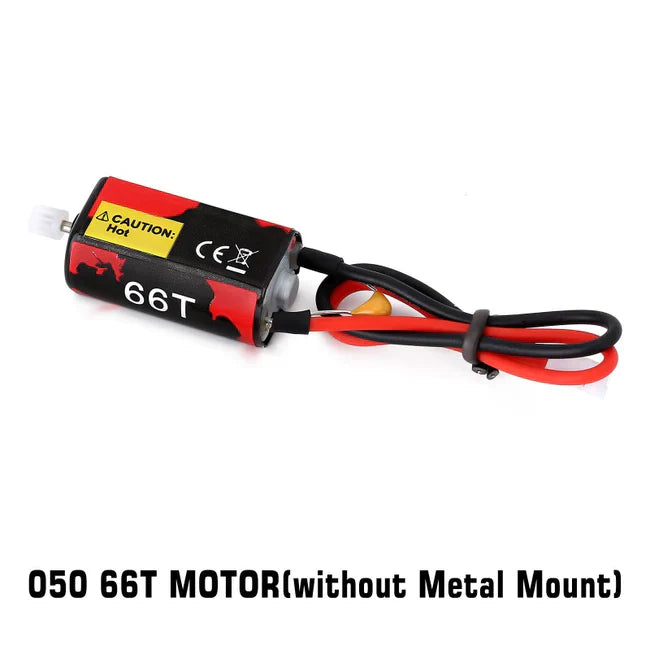

050 66T Motor II (Red) Specifications:
Size: longer than stock motor
Turn: 66T
Weight: 19g
Rated Voltage: 7.4V
Total length: 28.5mm / 1.12in
Output Shaft Length: 4.9mm / 0.19in
Output Shaft OD: 1.5mm / 0.06in
050 50T Pro Motor (Purple) Specifications:
Size: longer than stock motor
Turn: 50T
Weight: 22g
Rated Voltage: 7.4V
Total Length: 28.5mm / 1.12in
Output Shaft Length: 4.9mm / 0.19in
Output Shaft OD: 1.5mm / 0.06in
At No Load:Speed: 25500 rpm, Current: 0.36 A
Lastest upgrade version, high torque strong magnet, provide increased power and torque.
What are the 050 motor upgrades: 1. The motor shaft is shorter than before to ensure it doesn't touch the transmission cover. 2. After testing, we have adjusted the motor speed to make the motor more compatible with the SCX24 3. The upgraded material makes the motor perform better 4. Heat dissipation has been improved, extending the life of the motor.
