Overview

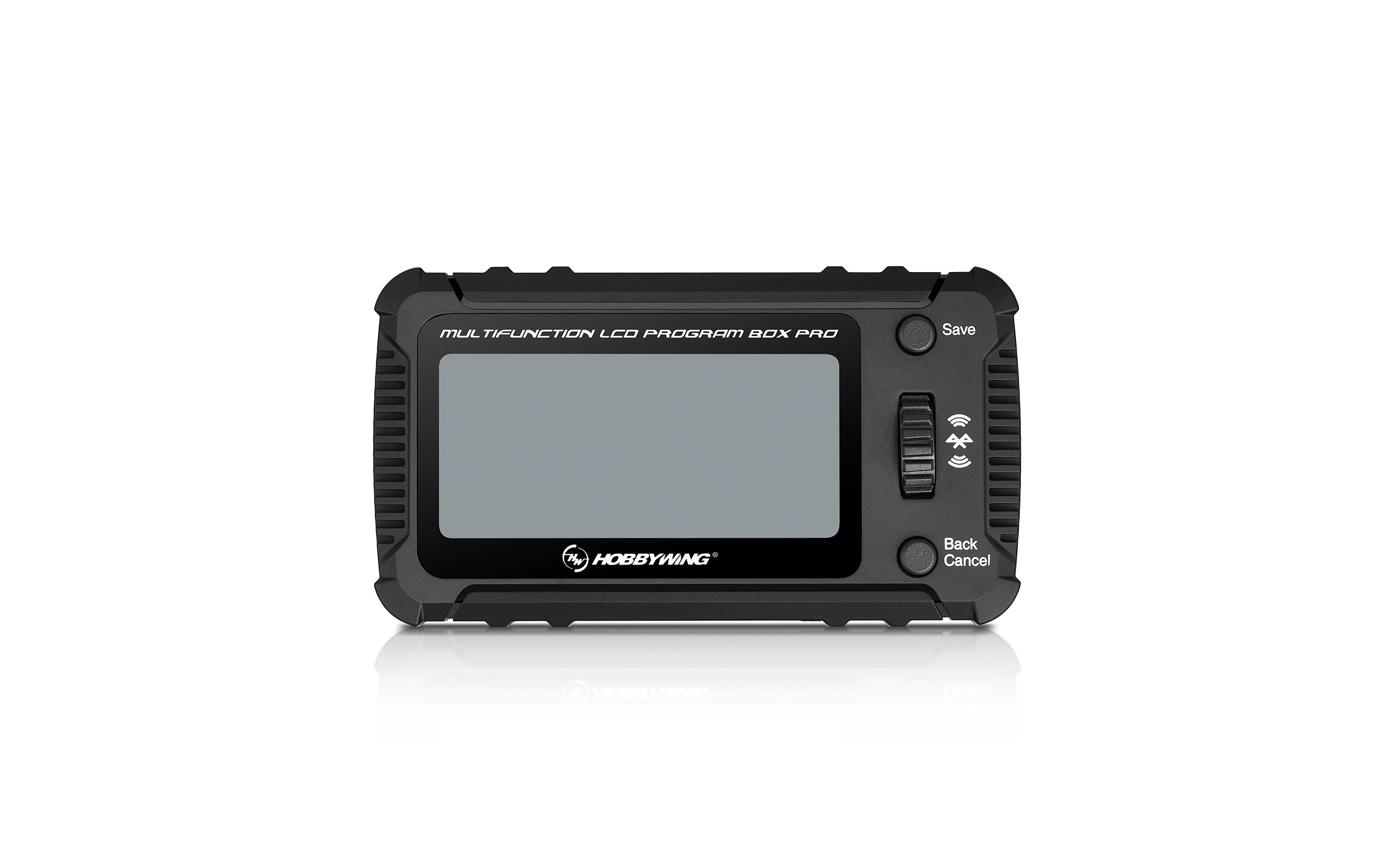

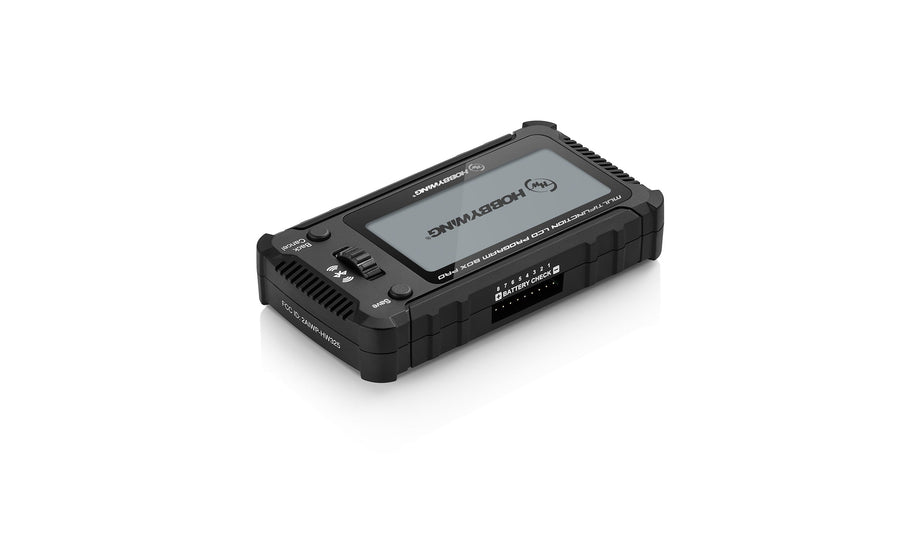

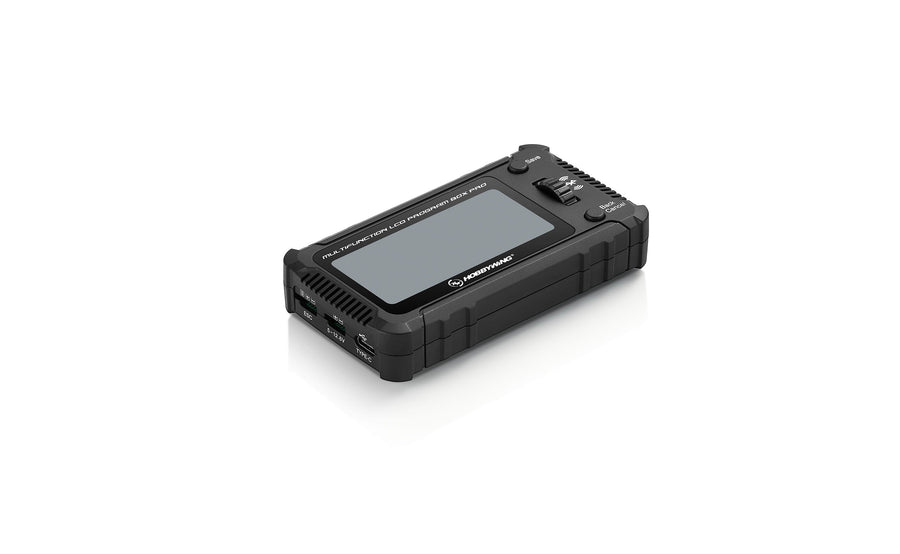

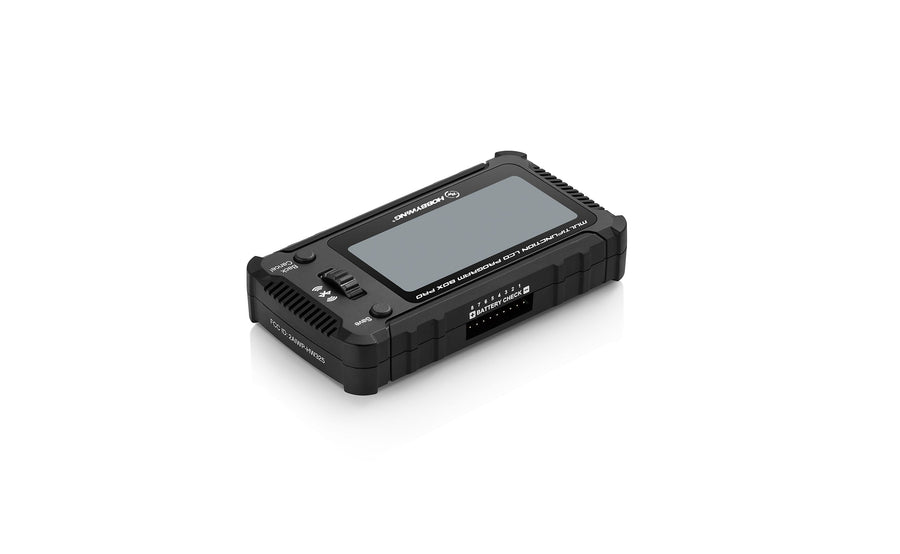

This multifunction program box is for programming HOBBYWING brushless ESCs. Its friendly LCD interface makes ESC programming easy and quick. With a PC, you can upgrade ESC firmware and further adjust ESC parameters online. Besides, it’s compact, portable and very applicable for field use. Thanks to built-in OTA programming feature through BT, you can now use this device with IOS devices.
This multifunciton LCD program box is applicable for the following HOBBYWING products:
Platinum series of brushless aircraft ESCs, XeRun & EzRun MAX series (V2.0 and later), Platinum and SEAKING PRO series. This device also work with some ESC of QUICRUN series.
- The scope of application encompasses all ESCs that are compatible with the previous version of LCD program box and OTA BT module.
- Whether the programmable box is supported depends on the specific ESC model. Please check your ESC's requirement or contact us.
- USB C Software works for PC users ONLY.
- Built-in OTA Programmer works for both Apple (IOS) and Android users
Specifications
- Size: 105.6x59x24.4mm（LxWxH）
- Weight: 85g
- Input Voltage: 5-12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)
- Interface: TYPE-C USB， ESC interface (Futaba plug), Power supply interface (Futaba plug)
- Display Screen: LCD
- As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).
- Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.
- The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.
- Detect the overall voltage of the lithium battery and the individual voltage of each cell.
- The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.
