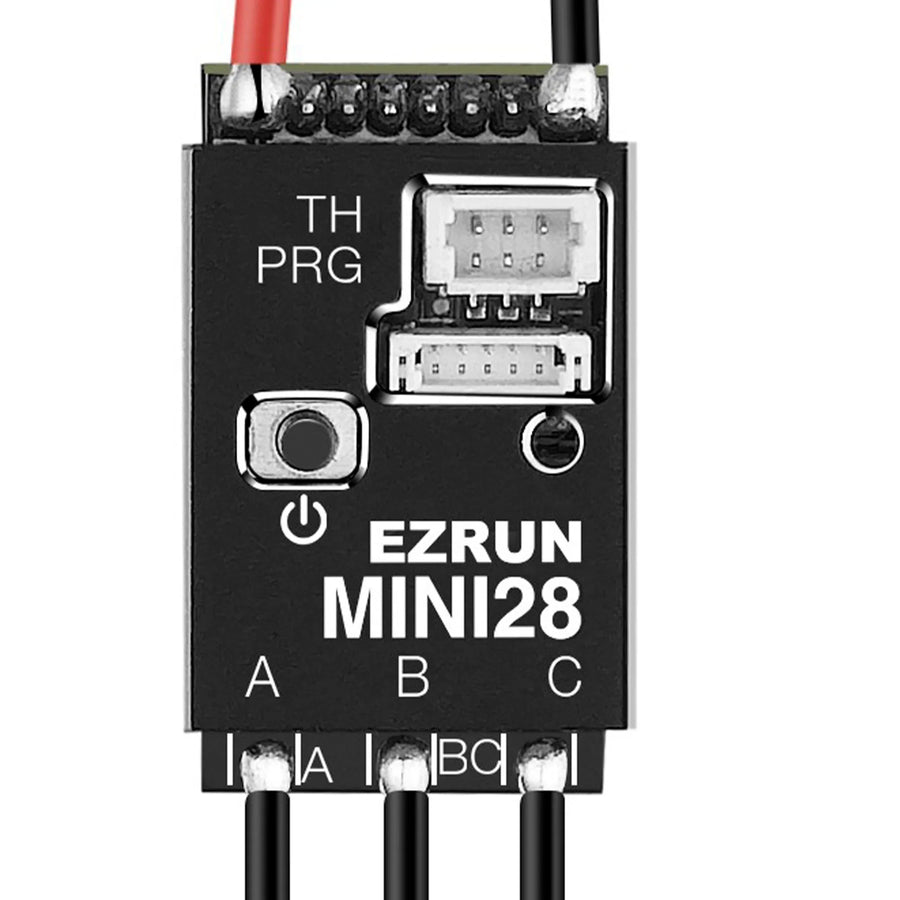

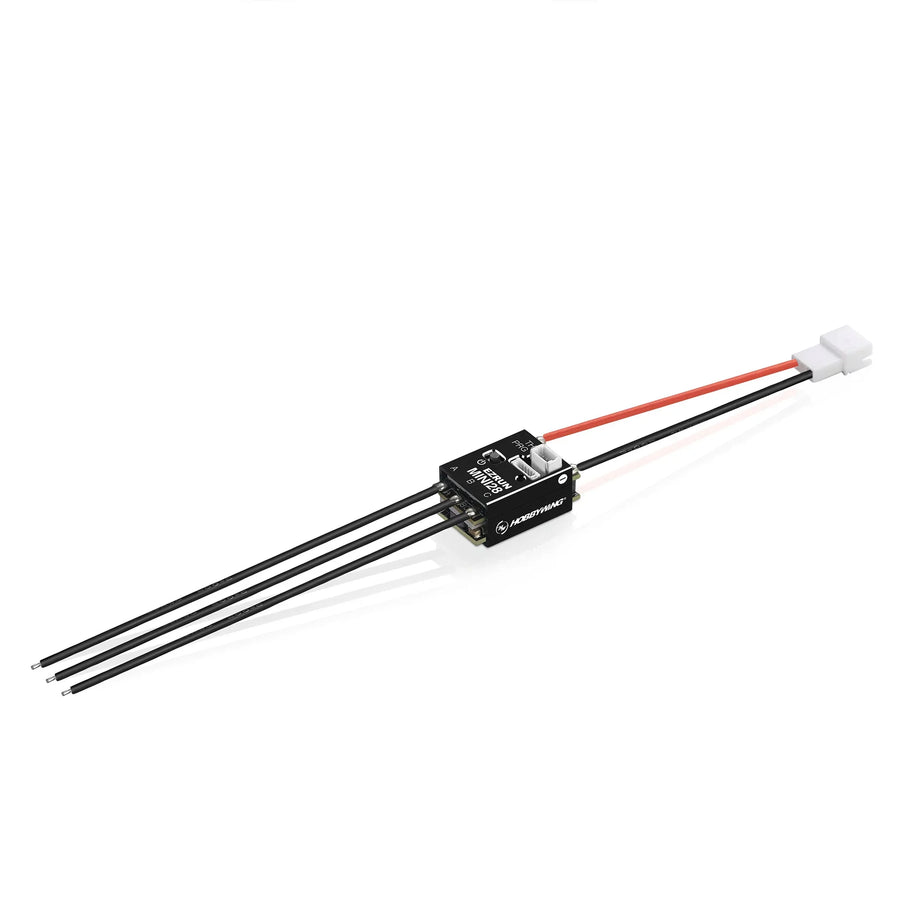

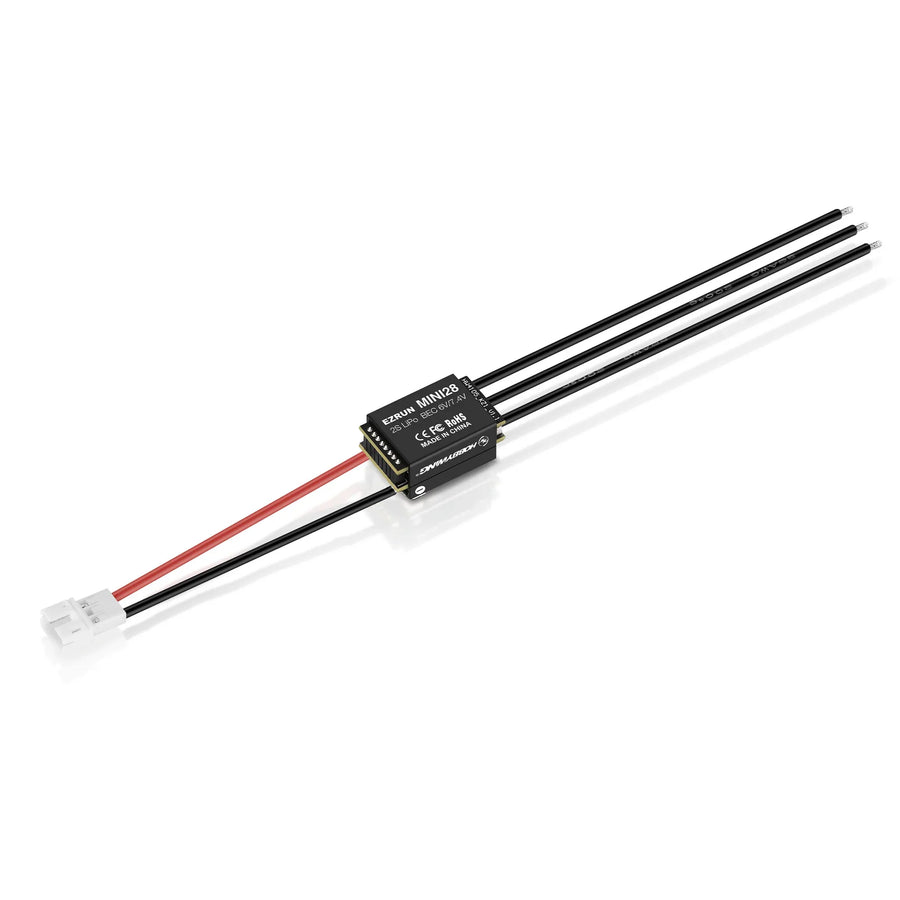

HobbyWing EZRUN Mini28 ESC

Specifications: Product Title EZRUN Mini28 ESC Part number 30101300 Technology Brushless Sensored Waterproof No Cont./Peak Current 30A/80A...
SKU: 30101300
Availability: In Stock
$79.99
$79.99
HobbyWing EZRUN Mini28 ESC - HeliDirect

HobbyWing EZRUN Mini28 ESC

$79.99

HobbyWing EZRUN Mini28 ESC

$79.99

Specifications:

Product Title EZRUN Mini28 ESC
Part number 30101300
Technology Brushless Sensored
Waterproof No
Cont./Peak Current 30A/80A
Input Voltage 2S Lipo
BEC Output 6V/7.4V @Max 3.5A
Wires & Connectors Input Wires: 20AWG-55mm *
Output Wires: 22AWG-80mm *
Size & Weight 22.7x14.2x11.8mm | 5g (without wires)
Applications
Motor: 1626 Size Motors
Vehicle: 1/28th&1/27th
ESC Programming LCD G2 Program Box
OTA Programmer
Throttle Wire
Firmware Upgrade Supported
Manual download

User Manaual Ezrun Mini28th (PDF)

Product Brochure

> Ezrun Mini28 Leaflet-en

* All the wire length above is the original length not the length you see from the outside.
