FURITEK TORPEDO RXGT5 BRUSHLESS POWER SYSTEM FOR AXIAL SCX24 INTEGRATION FLYSKY FS-GT5 VERSION

  FURITEK TORPEDO RXGT5 BRUSHLESS POWER SYSTEM for AXIAL SCX24 Integration FLYSKY FS-GT5 version FURITEK team in...
SKU: FUR-2565
Availability: In Stock
$169.99
$169.99
Cyber Week | 15% OFF
Use code: CBM24DRC
FURITEK TORPEDO RXGT5 BRUSHLESS POWER SYSTEM FOR AXIAL SCX24 INTEGRATION FLYSKY FS-GT5 VERSION

FURITEK TORPEDO RXGT5 BRUSHLESS POWER SYSTEM FOR AXIAL SCX24 INTEGRATION FLYSKY FS-GT5 VERSION

$169.99

FURITEK TORPEDO RXGT5 BRUSHLESS POWER SYSTEM FOR AXIAL SCX24 INTEGRATION FLYSKY FS-GT5 VERSION

$169.99

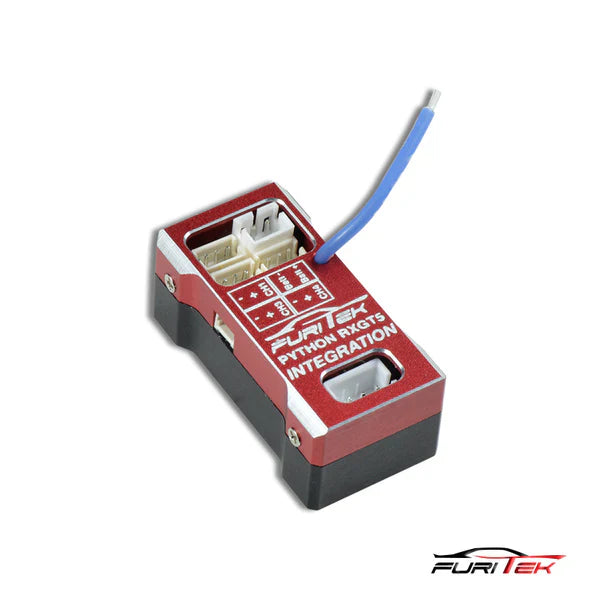

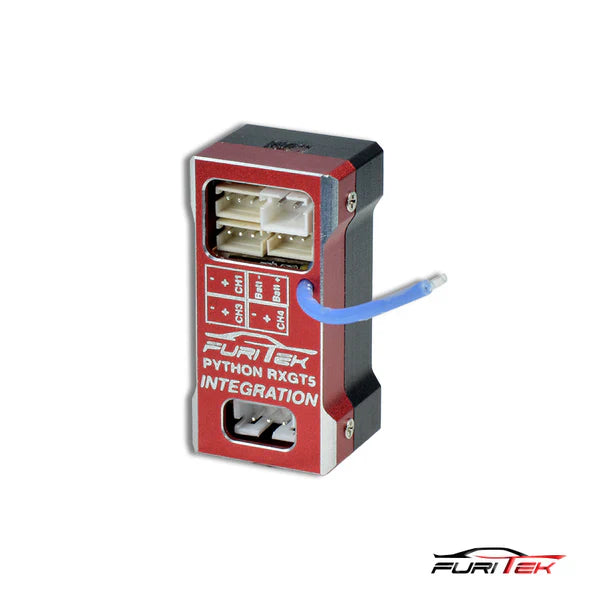

FURITEK TORPEDO RXGT5 BRUSHLESS POWER SYSTEM for AXIAL SCX24 Integration FLYSKY FS-GT5 version


FURITEK team in the past 2 years have been designed and produced several brushless ESCs for mini crawlers with the famous LIZARD line of ESCs.  Being the first FOC-technology ESCs ever being designed and produced for the mini crawlers, the LIZARD ESCs have changed the games for the mini crawlers.  They are super small in size, butterly smooth and amazingly powerful.  Together with the famous brushless outrunner KOMODO motors, they offer incredible performance for the mini crawlers.

However the team is not stopping; after over 6 months of testing and designing, FURITEK team releases another next evolution of the FURITEK ESCs, the high-end, upper performance line of brushless ESC for mini crawlers.  Introducing the new FURITEK PYTHON brushless ESCs that inherited the awesome features above of the LIZARD ESCs but now with new enclosing case for dust proof and waterproof.  We no longer have to worry about the brownout of the big servos or heavy weight of some modified trucks with huge 5A built-in BEC that can be run at multiple voltage from 5.5V to 7.4V for Python and up to 8.4V for the Python PRO.  We also no longer need to wire a separate bigger BEC for the ESC. The FURITEK team also releases a completely new patent-pending brushless inrunner motor, the CEDAR.  The CEDAR brushless inrunner motor is super smooth, waterproof and dustproof and easy to be installed in any mini chassis.

FURITEK TORPEDO RXGT5 brushless system for SCX24 is the powerful and top of the line combo of the CEDAR motor and PYTHON PRO esc Integration with Flysky FS-GT5 RX.  It offers nothing but the best on the market for SCX24.  The CEDAR comes with a steel pinion and CNC aluminum and carbon fiber motor mount to fit perfectly on AXIAL SCX24.

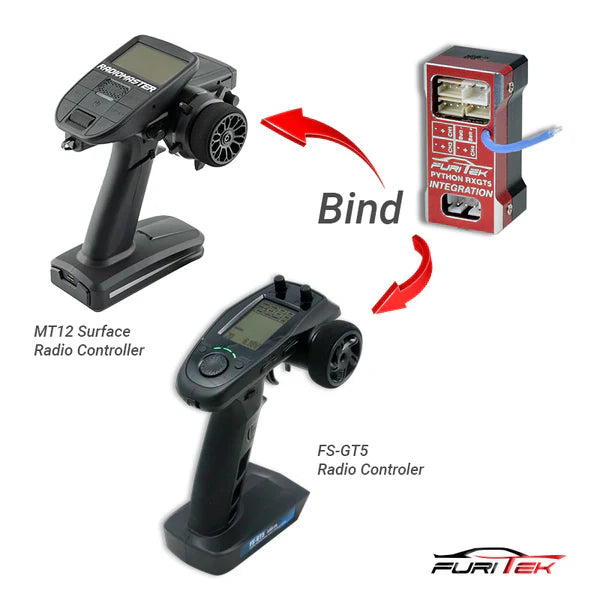

This receiver is compatible to TX:

(2.4GHz Protocol:       AFHDS 2A)

1/ Flysky FS-GT5

2/ RadioMaster MT12 4IN1

Features:

- FOC (Field-Orientated control technology)

- BIG BEC for power-hungry servos

- Waterproof and dustproof with an enclosing CNC aluminum case

- Integration 4-channels Receiver work with FLYSKY FS-GT5, RadioMaster MT12 4in1

- Live tunning on Furicar app

- Super slow and ridiculously smooth throttle control

- New firmware algorithm to consistently smooth up the start up to FOC stage

- Work with Brushed/Brushless motors (config via app, default is brushless)

- Mini size and light weight

- Super easy programming via App on both Android and iOS

- Real-time telemetry up to 10Hz

- Current protection

- FREE lifetime firmware updates

Specifications:

2.4GHz Protocol:       AFHDS 2A

- Supports 2-4S lipo batteries plug and play with Axial SCX24, Axial AX24, Traxxas TRX4M, Redcat Ascent-18 1/18

- BEC: 5.5V/7.4V/8.4V 5A

- Constant current: 40A

- Burst current: 70A

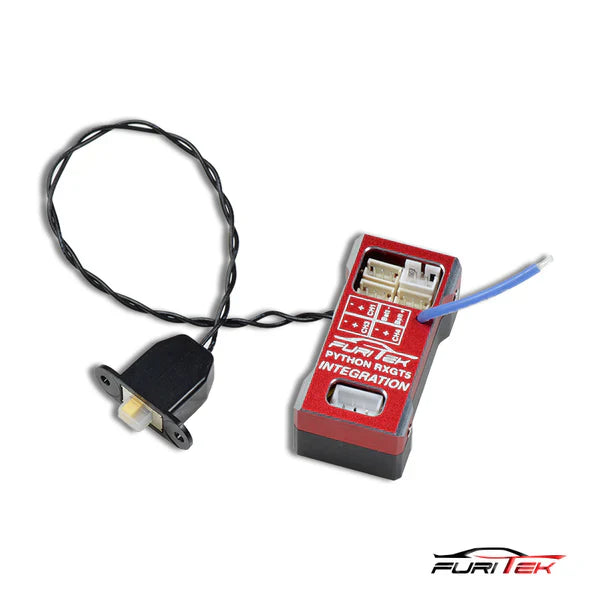

- Removable ON/OF switch (Always ON when removed)

- Support: Axial SCX24, Axial AX24, Traxxas TRX4M, Furitek FX118, Redcat 1/18, FMS FCX24, FMS FCX18...

- Dimensions:  0.75x 1.45x 0.6 (inch), 19x37x15 (mm)

- Weight: 19g (0.67oz)

CEDAR motor Features:

- Special designed 12-Pole Inrunner brushless motor for most efficiency

- Waterproof design

- Dustproof design

- Small, compact, easy to be installed in tight spaces

- Stylish with aluminum case, anodized with red and black

- Super quiet, high torque, powerful and super slow speed yet tons of wheel speeds when needed

- Steel pinion included for TRX-4M crawlers

- High purity and higher temperature copper windings -lower copper losses, very good heat dissipating-maximizes efficiency.

- Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency. High RPM ABEC5 bearings.

- Precision balanced rotor, smoothness for best reliability, and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.

- Precision engineered for maximum energy conversion

- All hardware included

CEDAR motor Specifications:

- Motor type: Inrunner

- KV: 3456KV­­

- No-load current @10V: 07A

- Power: 120W

- Battery: 2-3S Lipo

- Resistance: 0.17Ohm

- Slot/Pole: 12-Pole

- Motor size: 18x25mm diameter (0.7 x 1inch)

- Weight: 20g (0.7oz)

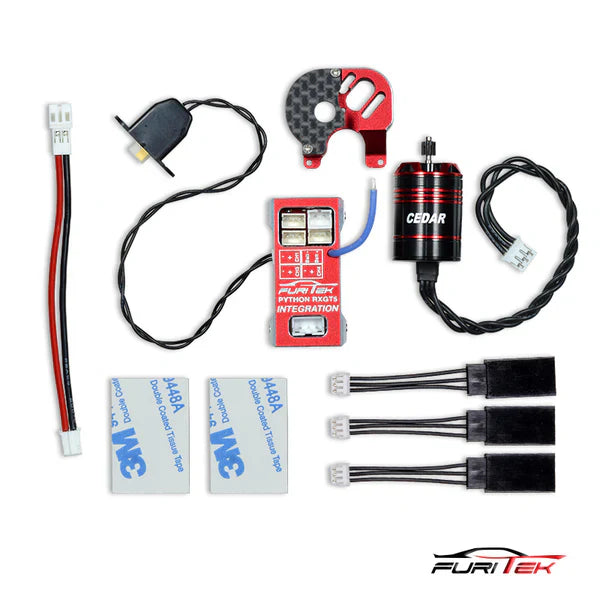

Package includes:

  • 1 x FURITEK PYTHON RXGT5 ESC + RX
  • 1 x Furitek Cedar for SCX24
  • 1 x CNC Motor mount
  • 1 x HIGH QUALITY MALE SCX24 TO 2-PIN JST-PH CABLE
  • 3 x HIGH QUALITY Servo Extension cable
  • 1 x HIGH QUALITY Water-proof power switch
