FURITEK STINGER 132 BRUSHLESS POWER SYSTEM FOR ORLANDOO HUNTER 1/32 1/34

FURITEK STINGER 132 BRUSHLESS POWER SYSTEM FOR ORLANDOO HUNTER 1/32 1/34 AND FX132 Features: A smaller and...
SKU: FUR-2515
Availability: In Stock
$119.99
$119.99
FURITEK STINGER 132 BRUSHLESS POWER SYSTEM FOR ORLANDOO HUNTER 1/32 1/34 - HeliDirect

FURITEK STINGER 132 BRUSHLESS POWER SYSTEM FOR ORLANDOO HUNTER 1/32 1/34

$119.99

FURITEK STINGER 132 BRUSHLESS POWER SYSTEM FOR ORLANDOO HUNTER 1/32 1/34

$119.99

FURITEK STINGER 132 BRUSHLESS POWER SYSTEM FOR ORLANDOO HUNTER 1/32 1/34 AND FX132

Features:

  • A smaller and lighter brushless motor FURITEK ANT TRANSMISSION POWER
  • High performance and powerful 30A/50A brushless ESC 132 with FOC technology support low voltage servo
  • Wifi module for wireless connection
  • Powerful at low speed but also more powerful and fast at high speed
  • High torque at low speed crawling
  • Super smooth without any cogging at both low and high speed operation­
  • Lifetime FREE firmware upgrade!

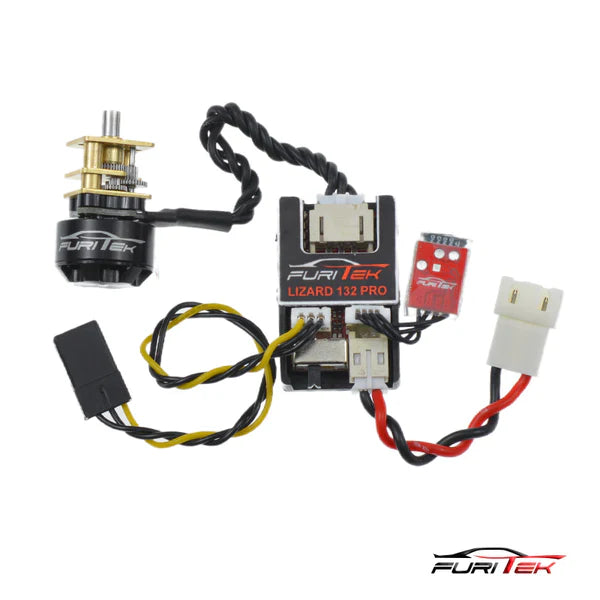

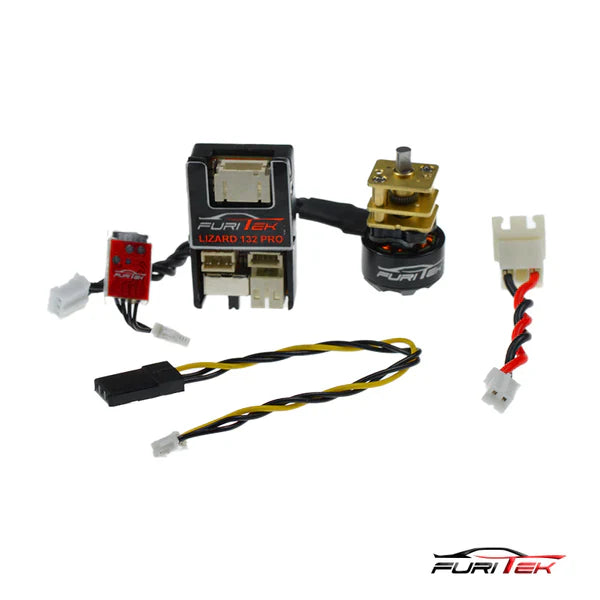

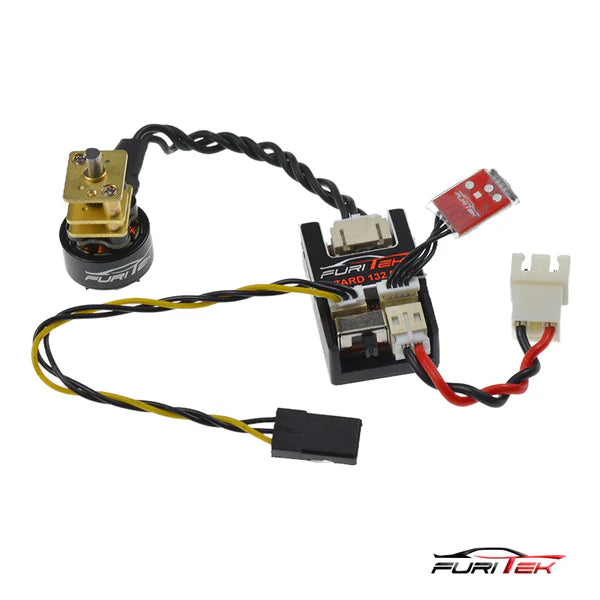

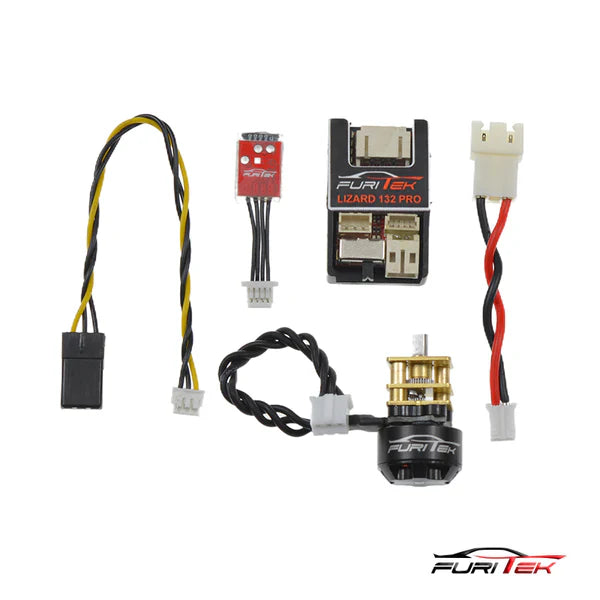

Package includes:

  • 1 x LIZARD PRO 132 30A/50A BRUSHED/BRUSHLESS ESC WITH FOC TECHNOLOGY
  • Power 2s lipo balance cable
  • 1 x Wifi module
  • 1 x FURITEK ANT TRANSMISSION POWER

Motor Features and Specs

Features:
12 Pole hi-torque motor design.
Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
Japansese NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.
High purity and higher temperature single copper windings ---lower copper losses,
very good heat dissipating--maximizes efficiency.

Specifications of FURITEK ANT TRANSMISSION POWER
+ N20 1:20 radio gear with Furitek ANT motor.
+ Furitek ANT specs :

      • KV (RPM/Motor) – 3456
      • No-load current @10V – 0.7A
      • Watt – 60W
      • Battery – 2-3S
      • Resistance – 0.16 Ohms
      • Max Current – 5A
      • Slot/Pole – 12

ESC Features and Specs

Features:

- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)

- Support low voltage servo
- FOC (Field-oriented control) technology
- Plug & Play designed for AXIAL SCX24 crawlers
- 4V/ 5.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Wireless app required)
- Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX

Specifications:
- Support 2S-3S lipo battery. (3S need another power cable)
- BIG BEC: 5V or 6.5V 2.5A (Don’t need external BEC if use big Servo)
- Constant current: 30A
- Burst current: 50A
- Build-in Switch power
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 5 gram

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Cmosfet
Very nice

This is the 3rd furitek product that I own. Two of the starter kits for scx24 and this orlandoo kit. All have worked great. Amazing control with this orlandoo jeep. Very good slow speed and I was surprised at the high speed. The poor brushed pajero kit does notnact like that. It's just slow :). Still working on the lights... Yes it's a little expensive but worth it. The pajero alas must remain brushed though :(
