FURITEK STARTER 2S BRUSHLESS POWER SYSTEM WITH RECEIVER FOR REDCAT ASCENT-18

FURITEK STARTER 118 2S BRUSHLESS POWER SYSTEM WITH RECEIVER FOR REDCAT ASCENT-18 SUPPORT 2S LIPO only. Plug&play...
SKU: FUR-2525
Availability: In Stock
$99.99
$99.99
FURITEK STARTER 2S BRUSHLESS POWER SYSTEM WITH RECEIVER FOR REDCAT ASCENT-18 - HeliDirect

FURITEK STARTER 2S BRUSHLESS POWER SYSTEM WITH RECEIVER FOR REDCAT ASCENT-18

$99.99

FURITEK STARTER 2S BRUSHLESS POWER SYSTEM WITH RECEIVER FOR REDCAT ASCENT-18

$99.99

FURITEK STARTER 118 2S BRUSHLESS POWER SYSTEM WITH RECEIVER FOR REDCAT ASCENT-18

SUPPORT 2S LIPO only. Plug&play with STOCK TX

NOTE: Slight modification of the motor mount holes on the stock transmission may be required to get a proper mesh

Features:

- Plug & play with STOCK TX
- A smaller and lighter brushless motor VENOM for low C.G. setup same like stock
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Wifi module for wireless connection
- Precision CNC steel pinion for long-lasting operation
- Powerful at low speed but also more powerful and fast at high speed
- High torque at low speed crawling
- Super smooth without any cogging at both low and high speed operation¬
- Compatible with stock battery
- Lifetime FREE firmware upgrade!

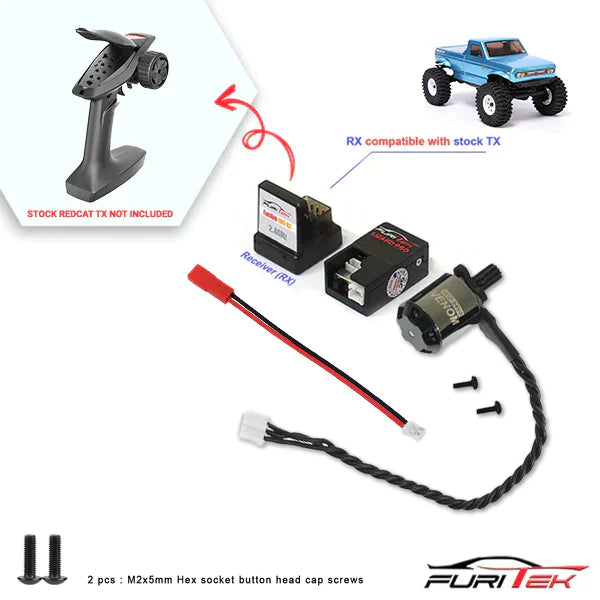

Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR REDCAT ASCENT-18 WITH FOC  TECHNOLOGY with enclosing plastic case
- 1 x built-in wireless communication module
- 1 x
VENOM 1212 3450KV brushless motor
- 1 x 11T CNC Steel Pinion
- 1 x Receiver compatible with stock TX

Motor Features and Specs
Features:
- 12 Pole hi-torque motor design.
- Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
- Japansese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses,
very good heat dissipating, maximizes efficiency.

Specifications:
- KV (RPM/Motor) – 3450
- No-load current @10V – 0.7A
- Watt – 120W
- Battery – 2S
- Resistance – 0.16 Ohms
- Max Current – 10A
- Slot/Pole – 12
- Motor size (mm) – 15.5x20.6
- Shaft (mm) – 1.5x6
- Weight (g) – 17.5

ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for REDCAT ASCENT-18 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz

Specifications:
- Support 2S-3S lipo battery (ESC support 3S only, motor only support 2S)
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in wifi module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram
