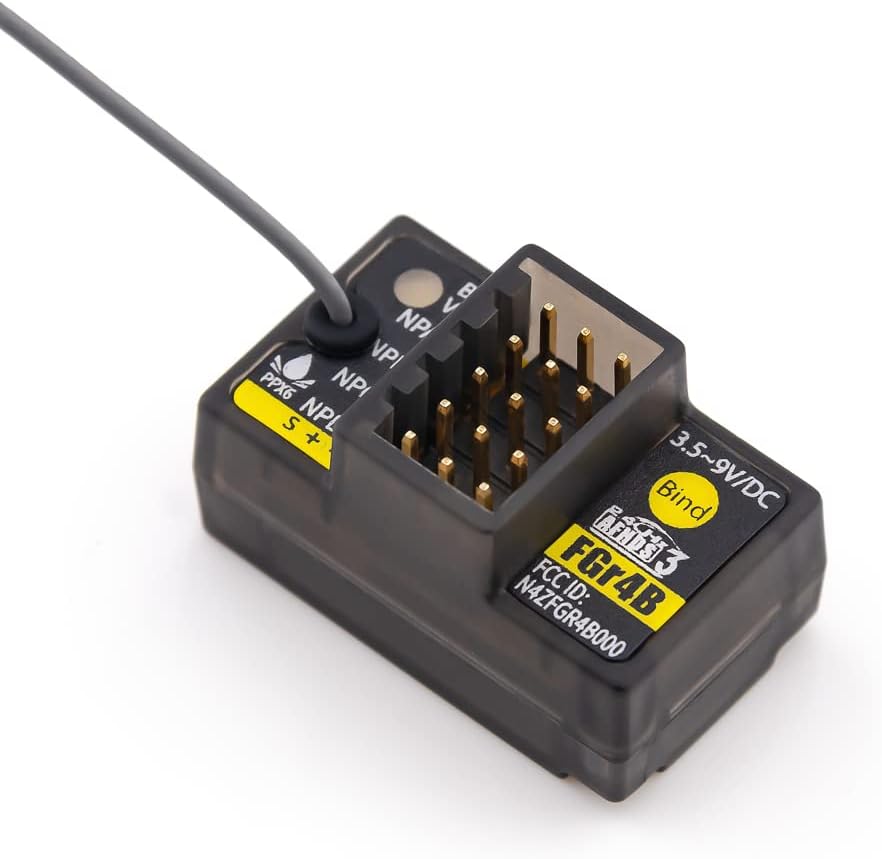

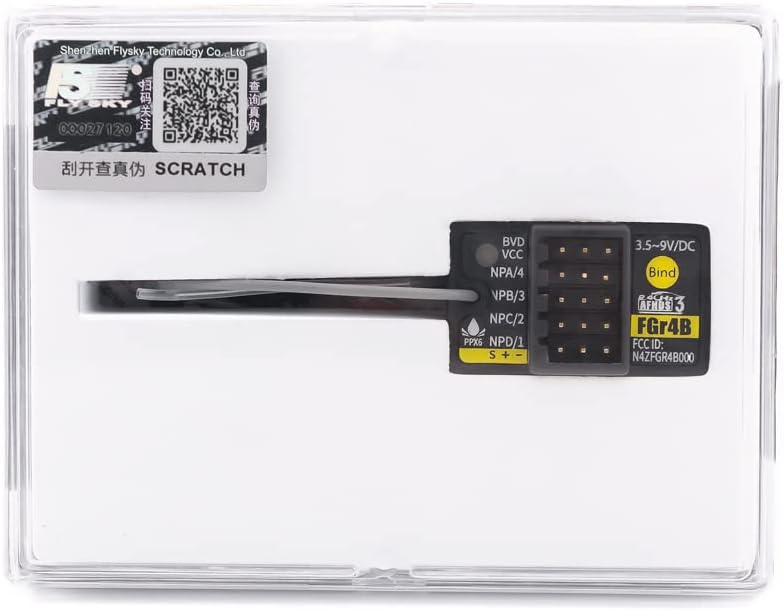

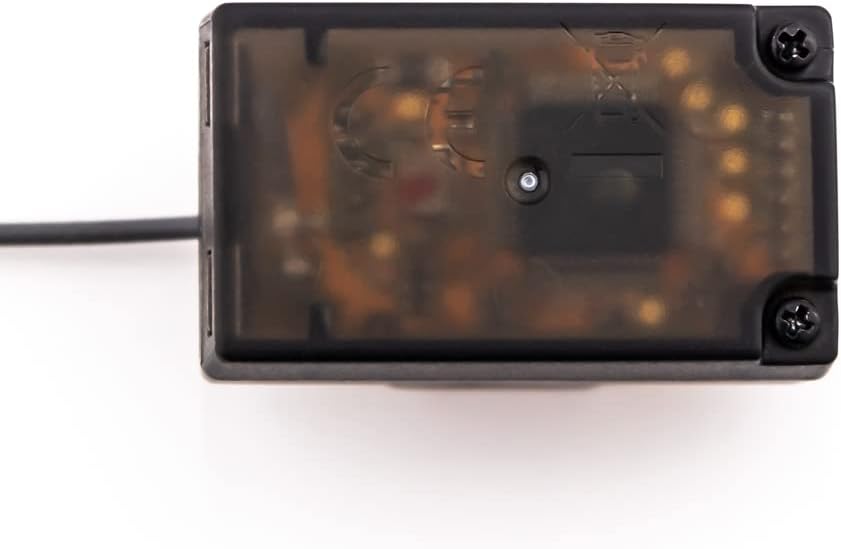

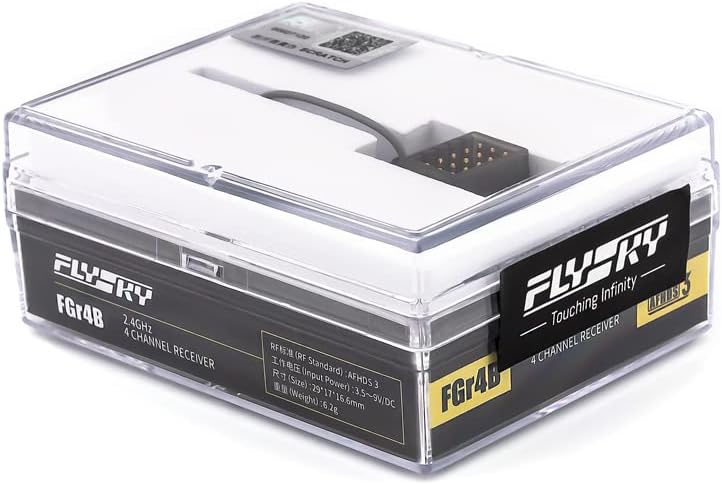

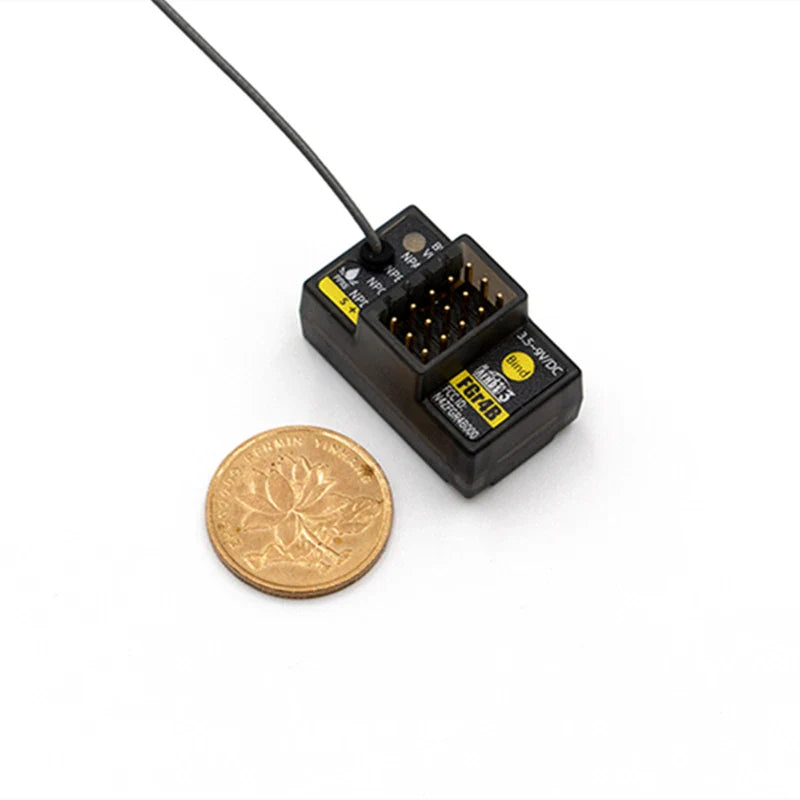

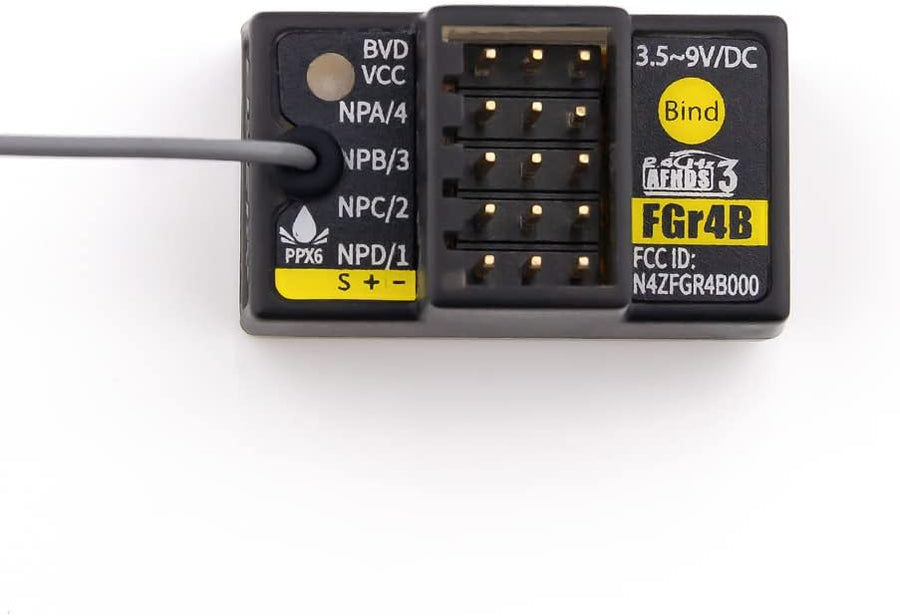

Product Designation: FGr4B
Compatible transmitters: all AFHDS 3 transmitters and RF Modules (PL18, Paladin EV, NB4, NB4 Lite, etc.)
Model Type: Car/boat etc
PWM Channels: 4
RF: 2.4GHz
Protocol: AFHDS 3
Antenna: Dual Antennas
Input Power: 3.5-9V
Data Output: PWM/PPM/i.BUS out/S.BUS
Temperature Range: -10℃ to +60℃
Humidity Limit: 20%-95%
Online Update: Yes
Dimensions: 17*29*16mm
Weight: 6.4g
Certification: CE,FCC ID:N4ZFGR4B000
Binding:
1. Press and hold thereceiver BIND button [5] while powering on the receiver ,release the BIND button after receiver is powered on or powering on the receiver first, press and hold the BIND button 3 seconds , the LED [7] on the receiver will flash rapidly;
2. Put the transmitter into bind mode;
3. The binding process is complete when the LED on the receiver stops flashing and is on continuously.
If a transmitter that has had its radio frequency (RF Standard) set to “AFHDS3 1 way” (please refer to your transmitter user manual)
enters bind mode, the receiver LED will instead flash slowly. Exit bind mode on the transmitter and if the receiver LED stops flashing and is on continuously, the binding process is complete.
4. Check to make sure the transmitter and receiver functions are working correctly, repeat steps 1 to 3 (binding process) if any problems arise.

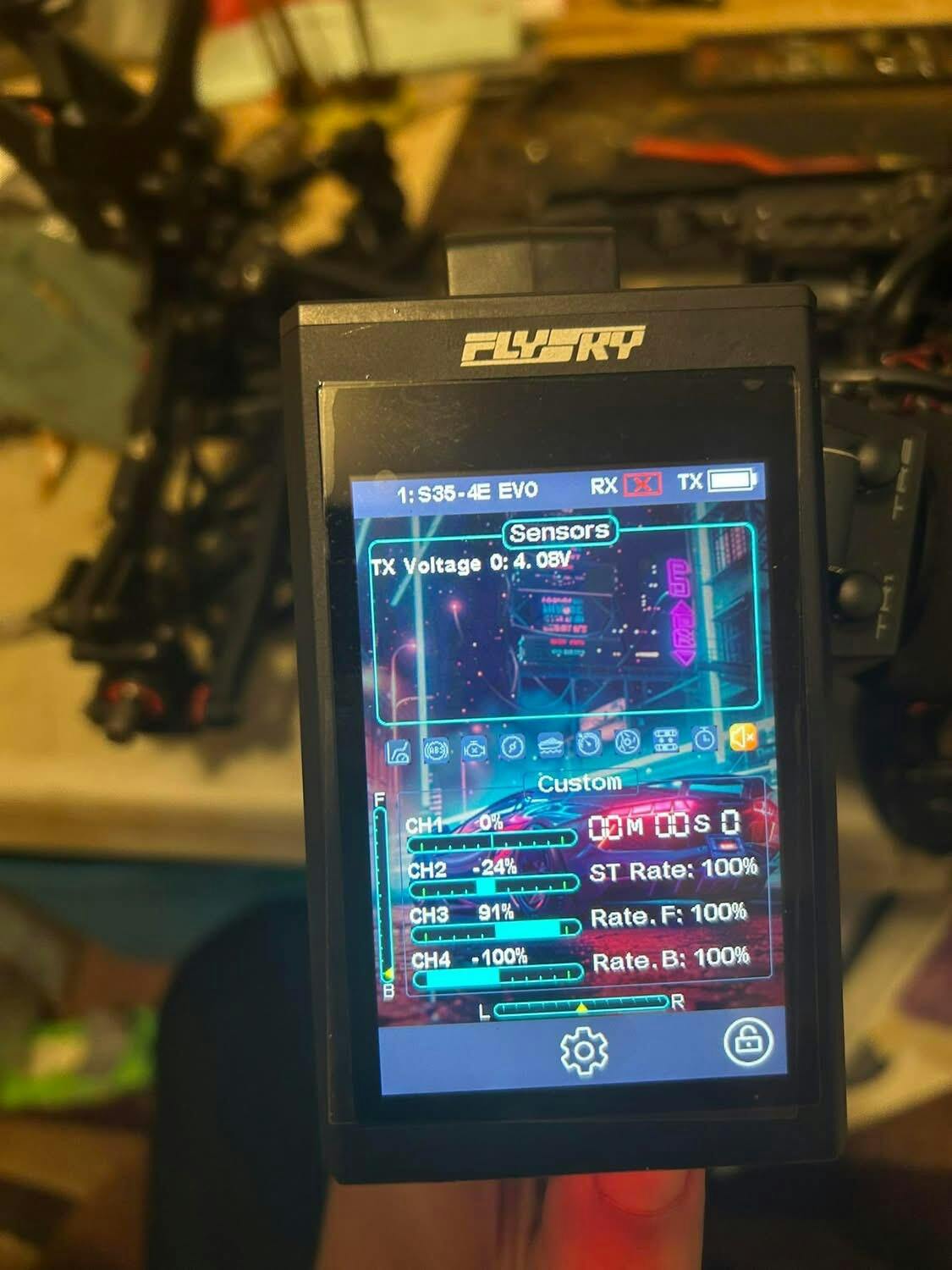

I bought a new Flysky Noble plus transmitter, it came with the mini receiver. I ordered two more for install into 3 cars. so far two have been installed. Install was basically simple almost like the Spectrum radio system. The manual did not explain how to link the receivers. I also need the link loop plug, Flysky did not include that with either my transmitter nor any of the three receivers. I am very disappointed with Flysky's manual for no information on how to perform the link between the transmitter and the receiver and really disappointed for not including the link up plug in. It's a good thing I already know lhow to link Spectrum receivers.
