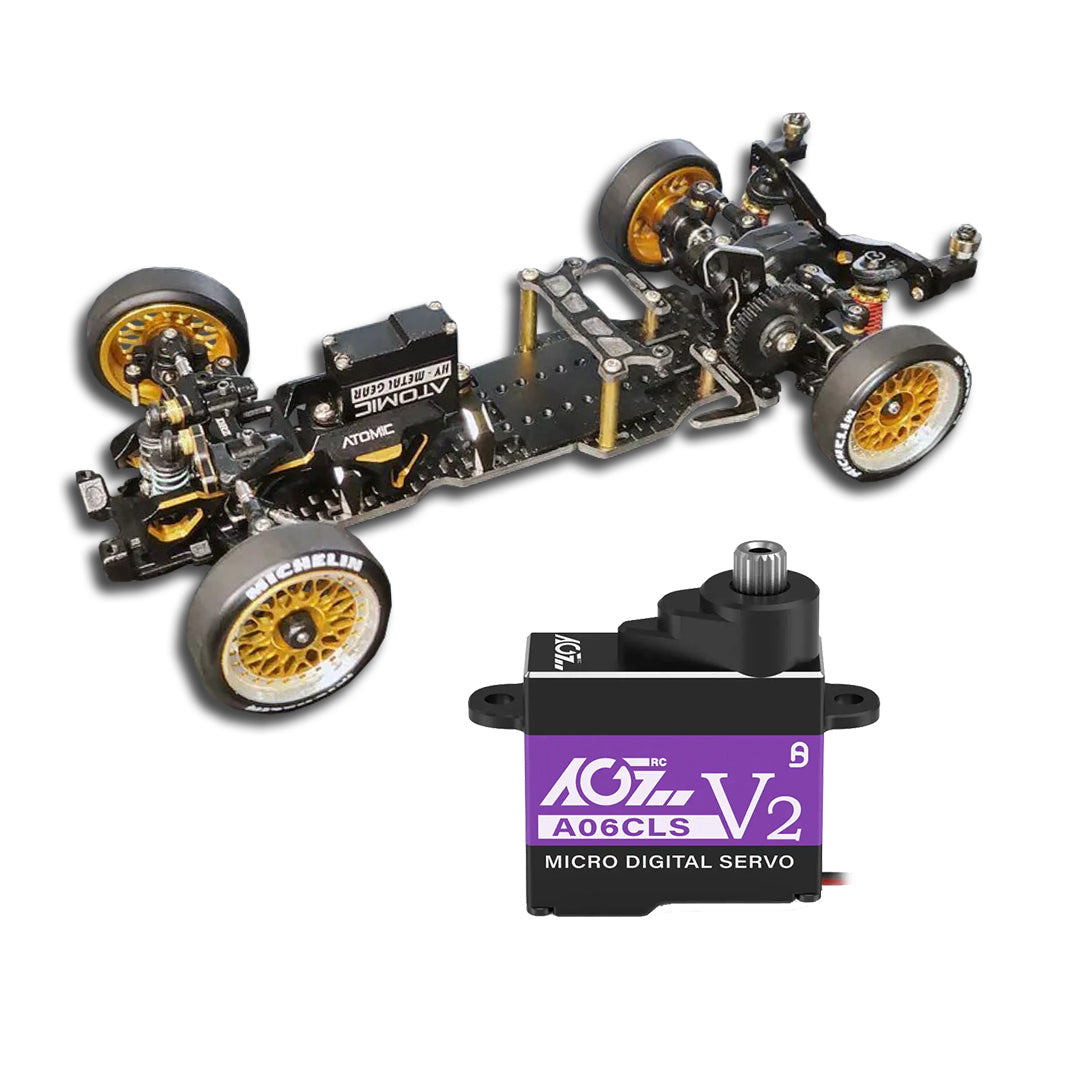

Atomic DRZ3 MS RWD Drift Chassis Kit (No Electronic) With AGFRC Aluminum Case 20T High Precision 3KG 0.052Sec MG 7g Micro Digital Servo

Atomic DRZ3 MS RWD Drift Chassis Kit (No Electronic)

Here we present you the new Atomic DRZ3 MS.
This professional drift chassis consists of various new features and design:
- Front Shock Damper put to the middle of the front chassis, allow more space for the wheel. Thus, the maximum steering angle is significantly increased.
- 1:24 and 1:28 wheels compatible
- 90 to 120mm wheelbase adjustment.
- Magnetic body mount
- Motor position is adjustable.
- Rear bulkhead can be installed in reverse, to allow motor at rear position. (RR Rear Motor – Rear Drive configuration)
- No-Top-Deck design, easier to install electronics and looks more tidy.
- Battery mount position, width, length and height is adjustable
- New design extreme low friction damper shocks
- Quick adjustment of Caster Angle (from 0 to 16 degree)
- Steering Ackerman can be easily adjusted by changing the position of the servo and steering crank.
- Aluminium Ball differential is included.
- Aluminium Rear Bulkhead
- Aluminium Front Bulkhead
- Aluminium Motor Mount.
- Aluminium Direct Drive Steering Crank
Please note that the steering crank only compatible with servo spline which is 3.5 to 3.9mm diameter.
such as:
-Atomic 1885
-Atomic 1820 series
-AGFRC A06CLS series
-OMG-MR-20CF

AGFRC Aluminum Case 20T High Precision 3KG 0.052Sec MG 7g Micro Digital Servo

AGFRC A06CLS V2 is the upgrade version of A06CLS servo, with high voltage feature, this servo compatible to be used for small size airplanes and gliders. 7g super light weight with full CNC machining case, 8mm compact size allow to suit for more models with space and weight requirements. 2S wide voltage which produce 3KG high torque and 0.052Sec super spec at 8.4V. Bring different driving feel for the mini car with this tiny size servo. Durable titanium gear and 20T spline provide higher precision in operation. JST and JR plug option allow to be used for different models. Of course, the highlight "programmable" feature is still continuing for this lovely micro servo. Black edition and purple edition are available.

Feature

High Quality Coreless Motor

High Accuracy Titanium Gear

Ultra Light Weight Mini Z Servo

Fast Cooling Cnc Aluminum Case

2S 8.4V High Voltage Compatibility

Design for mini z cars MRZ, MRT, RX28, 1/18, 1/24, 1/27, 1/28 Scale Cars such as GL Racing GLD, GLA V2.1, GLR, GLF-1, GLR GT.

Specification

A06CLS V2 (20T Version)

Operating Voltage: 4.8-8.4V

Operating speed: 0.075sec/60°@4.8V

Operating speed: 0.066sec/60°@6.0V

Operating speed: 0.058sec /60° @ 7.4V

Operating speed: 0.052sec /60° @ 8.4V

Stall Torque: 1.8 kg-cm (25 oz-in) @4.8V

Stall Torque: 2.2 kg-cm (30 oz-in) @6.0V

Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V

Stall Torque: 3.0 kg-cm (41 oz-in) @ 8.4V

Gear: Titanium

Motor: Coreless

Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)

Weight: 7g

Connector Wire: JST1.5 60mm / 28AWG
