Features

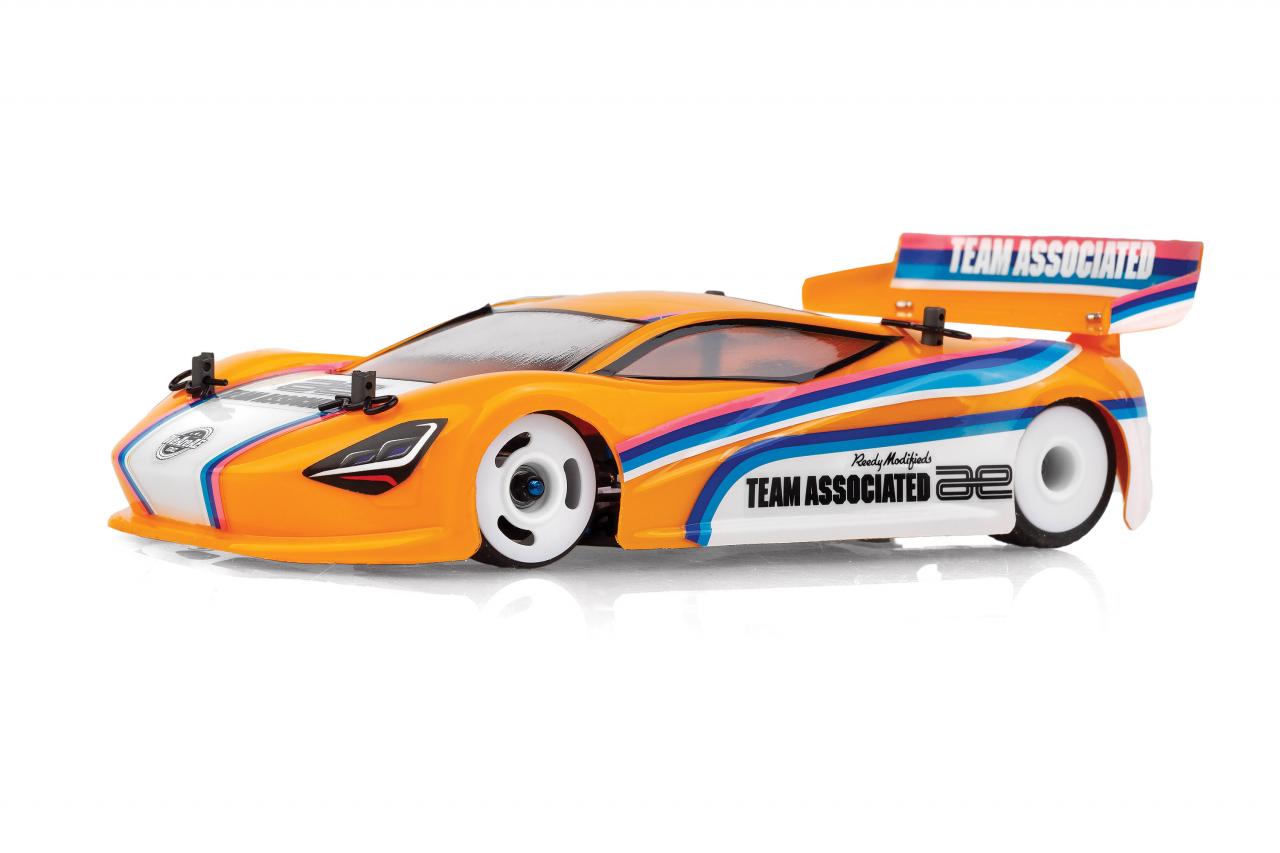

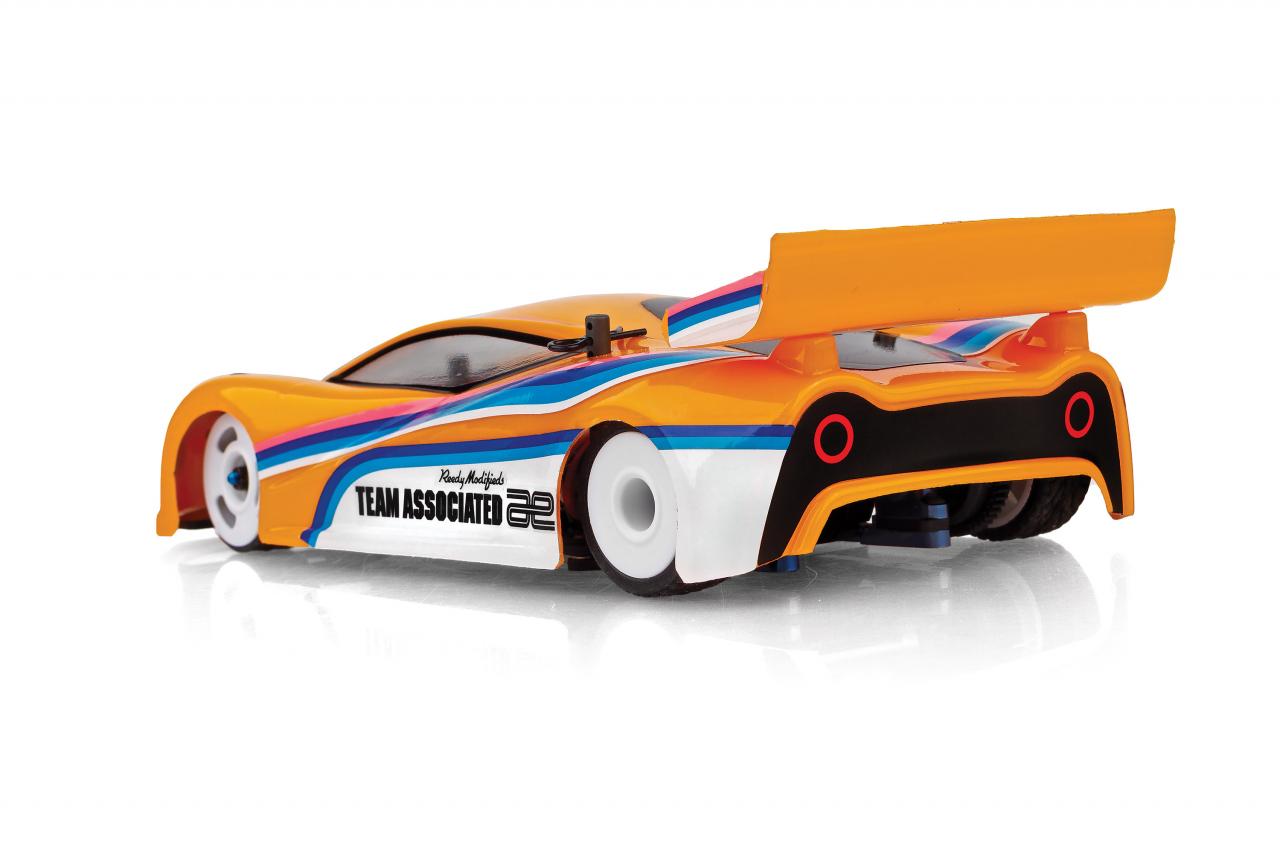

• RADBODY Mako X clear body and tires included

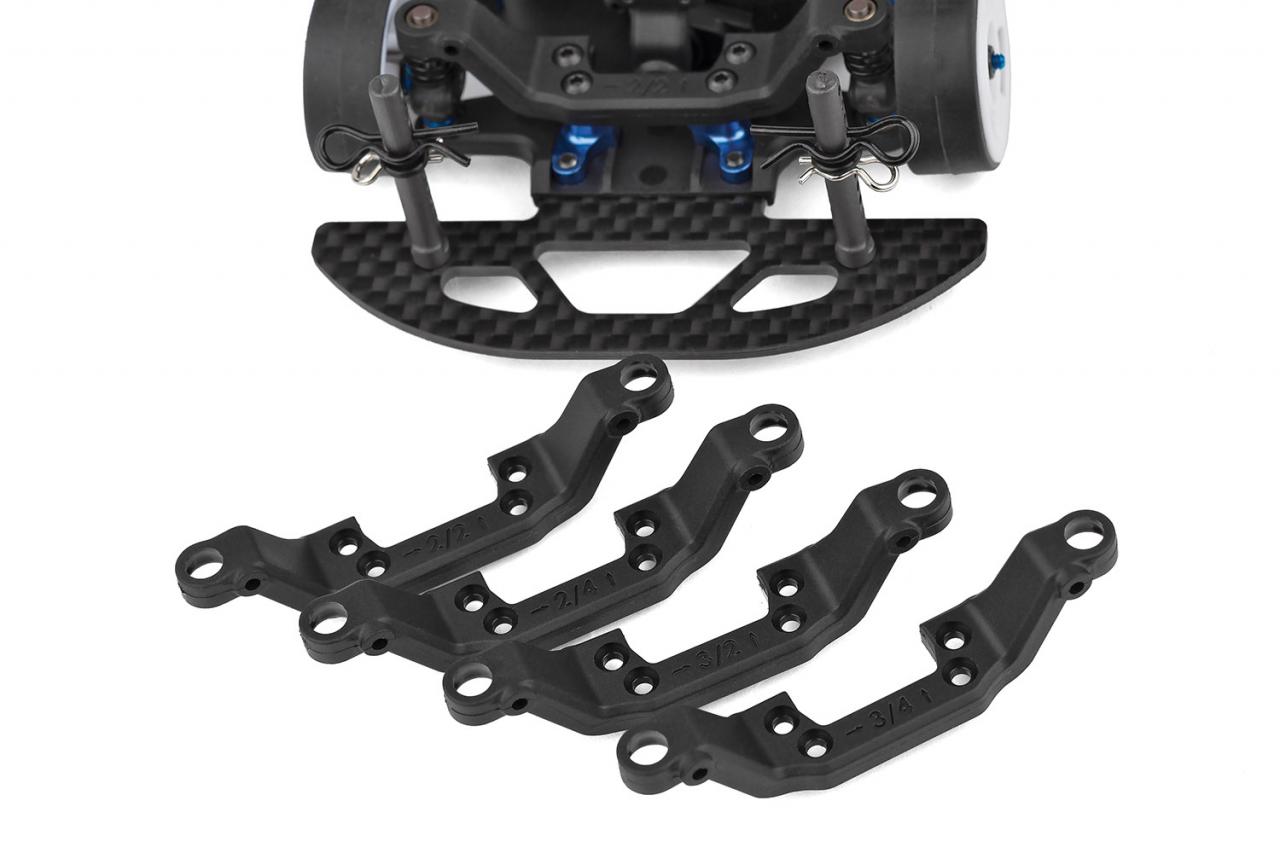

• Fixed arm style front end with optional molded upper arms to adjust caster and camber

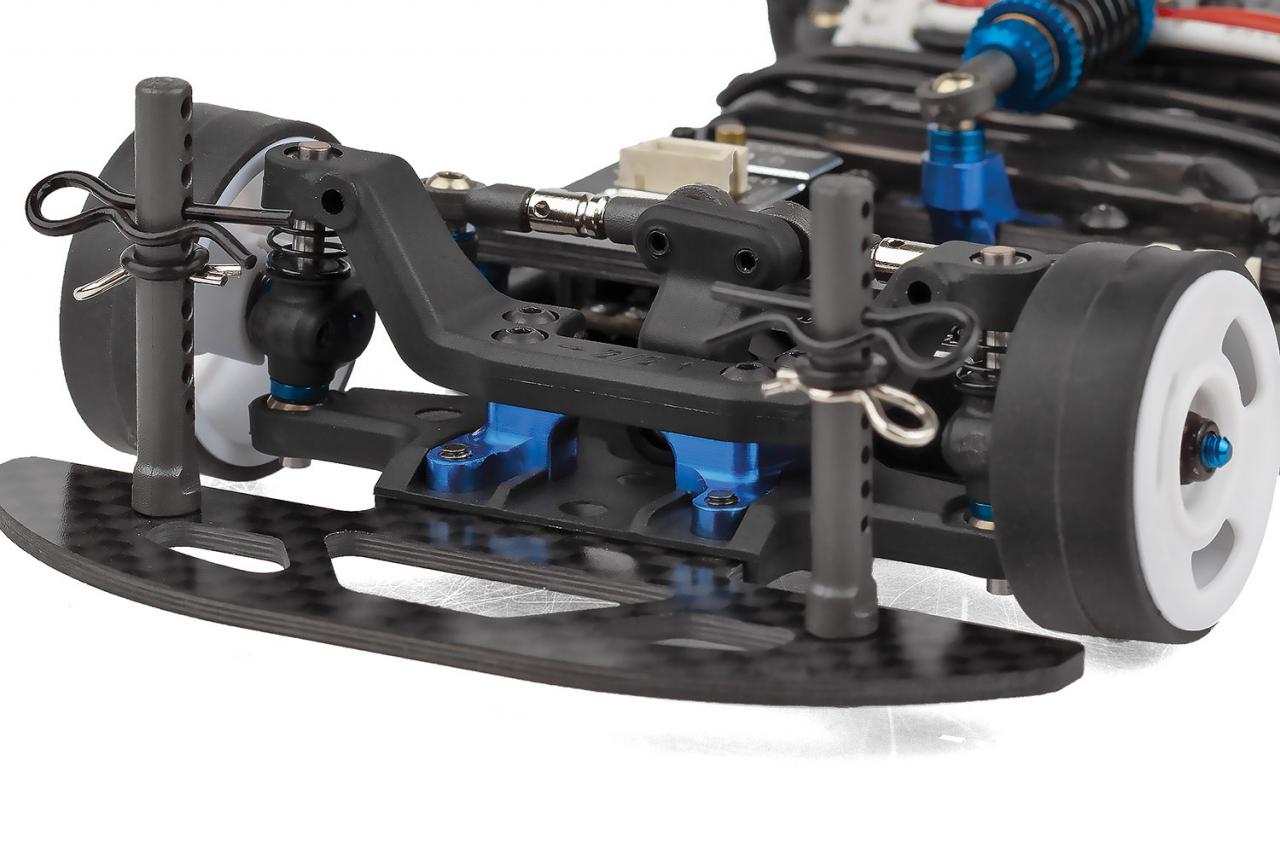

• Front bulkhead design allows for quick upper arm changes with consistent fitment and position

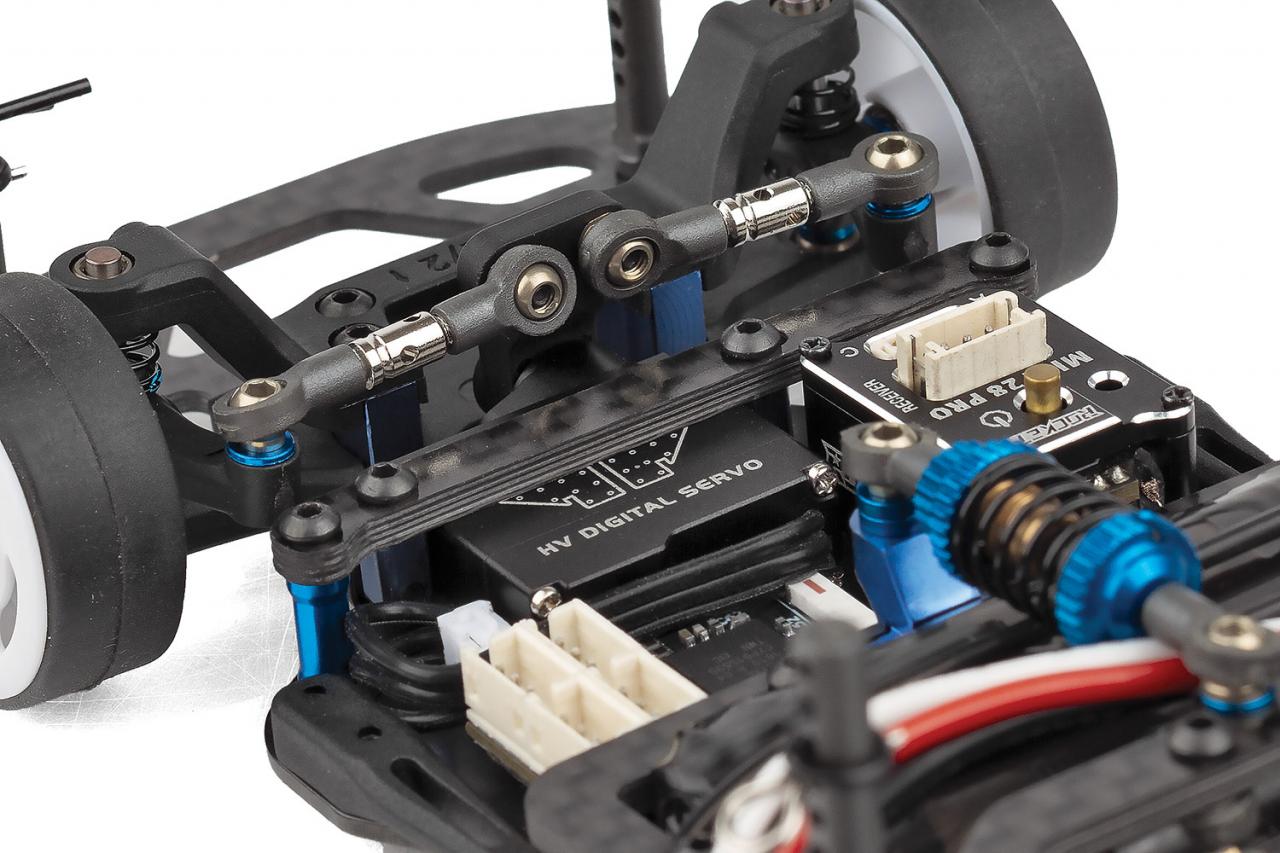

• Optimized steering geometry with adjustable servo mount to tune ackerman on the fly

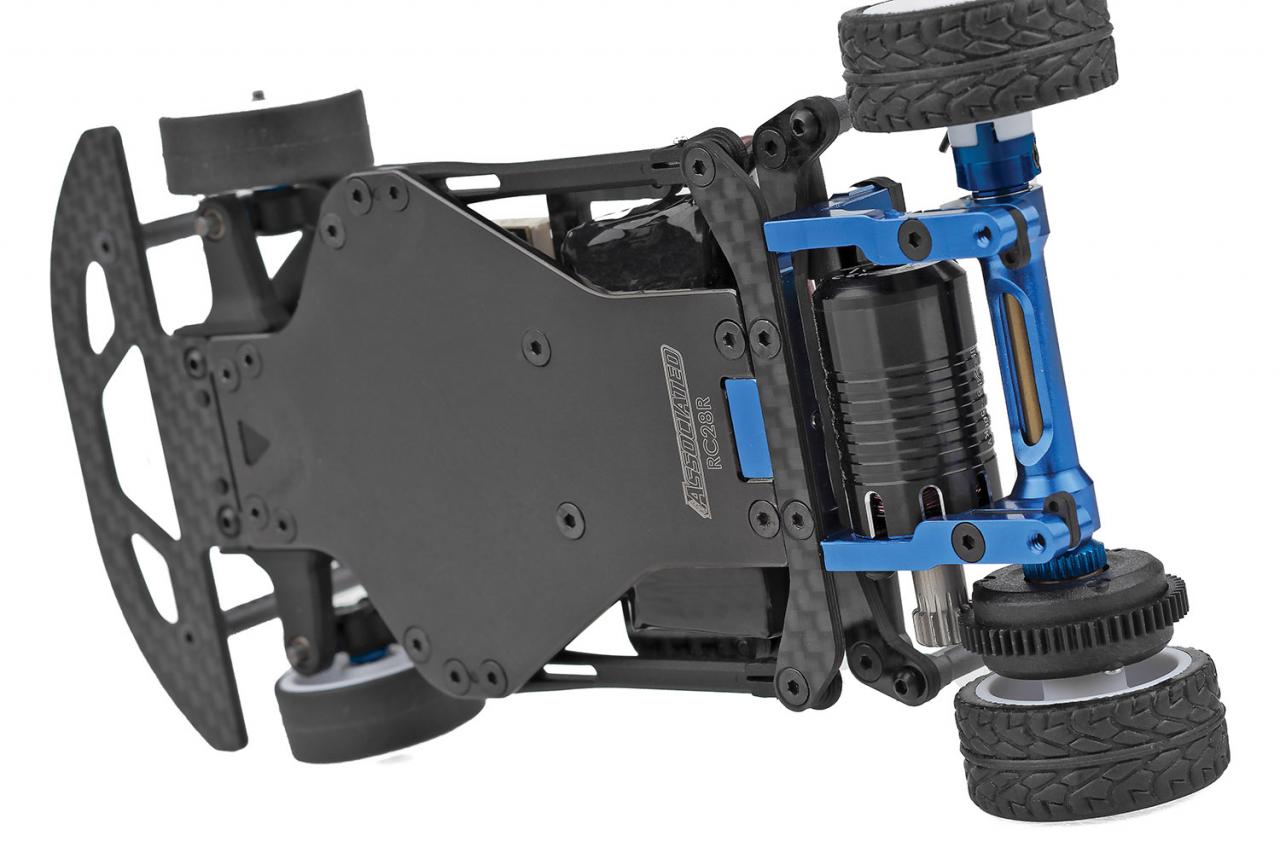

• Steel chassis plate for low center of gravity

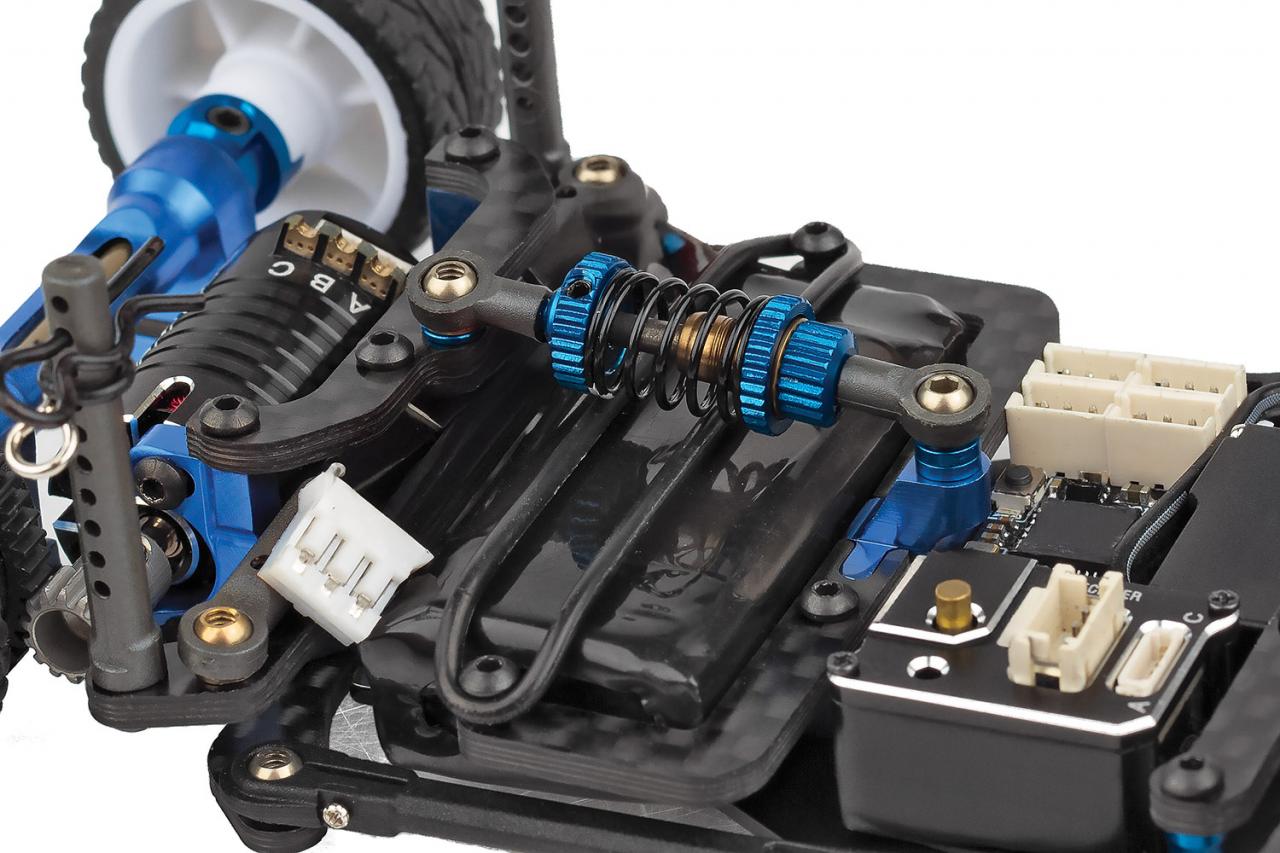

• Easily removable battery holder to access the battery without removing center shock

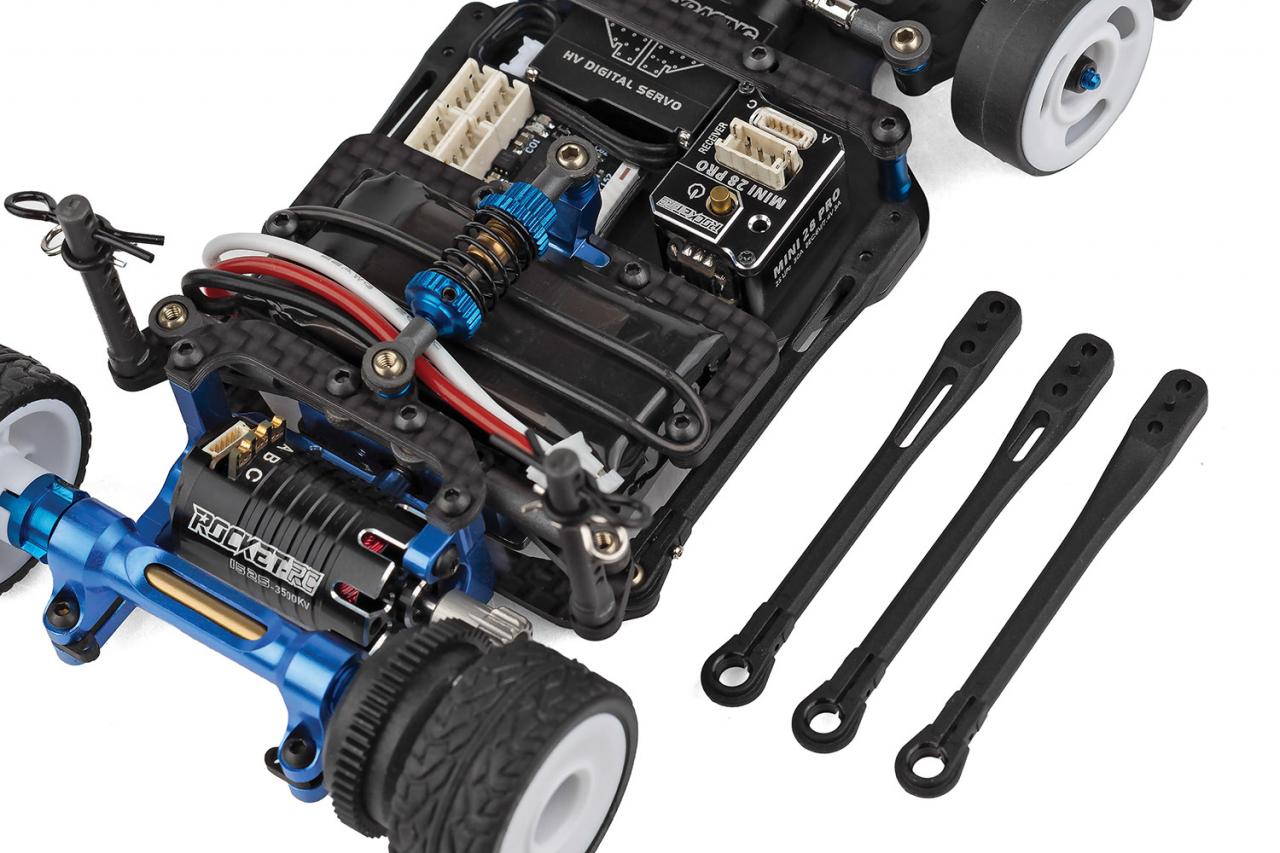

• Torsion style side links act as side spring with soft, medium, and hard options included
• Adjustable rear pod roll center inserts to tune roll characteristics to grip level
• Optimized roll geometry with side damper tubes

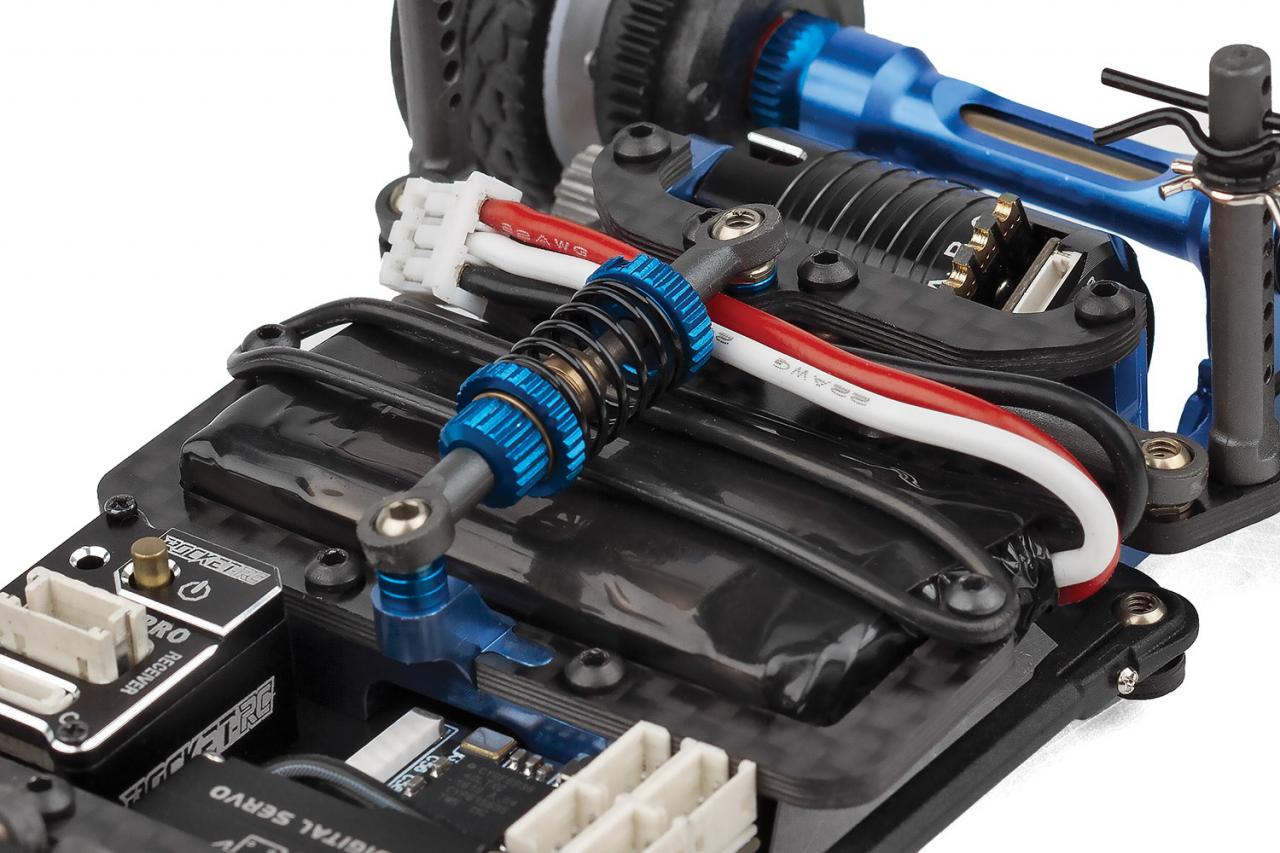

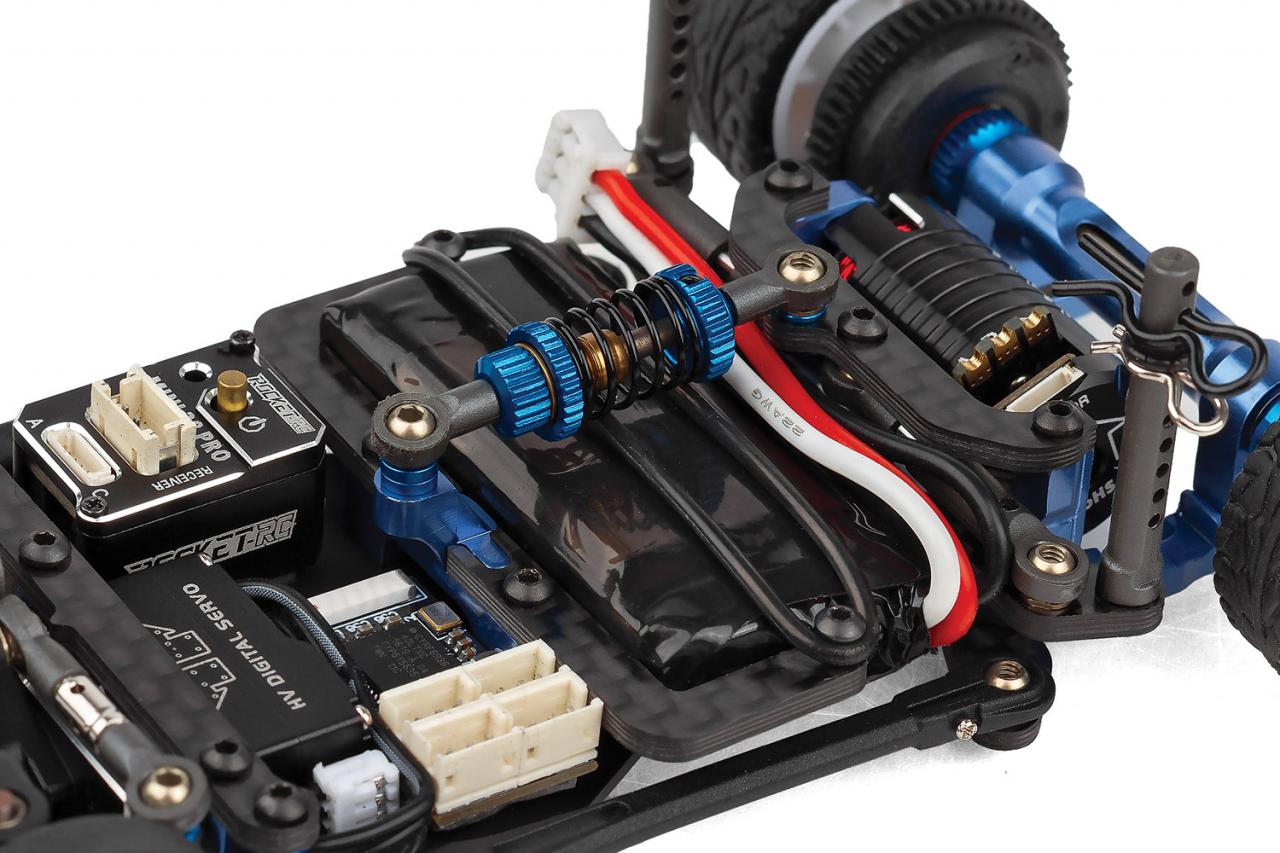

• Threaded aluminum center shock with adjustable droop and spring collar

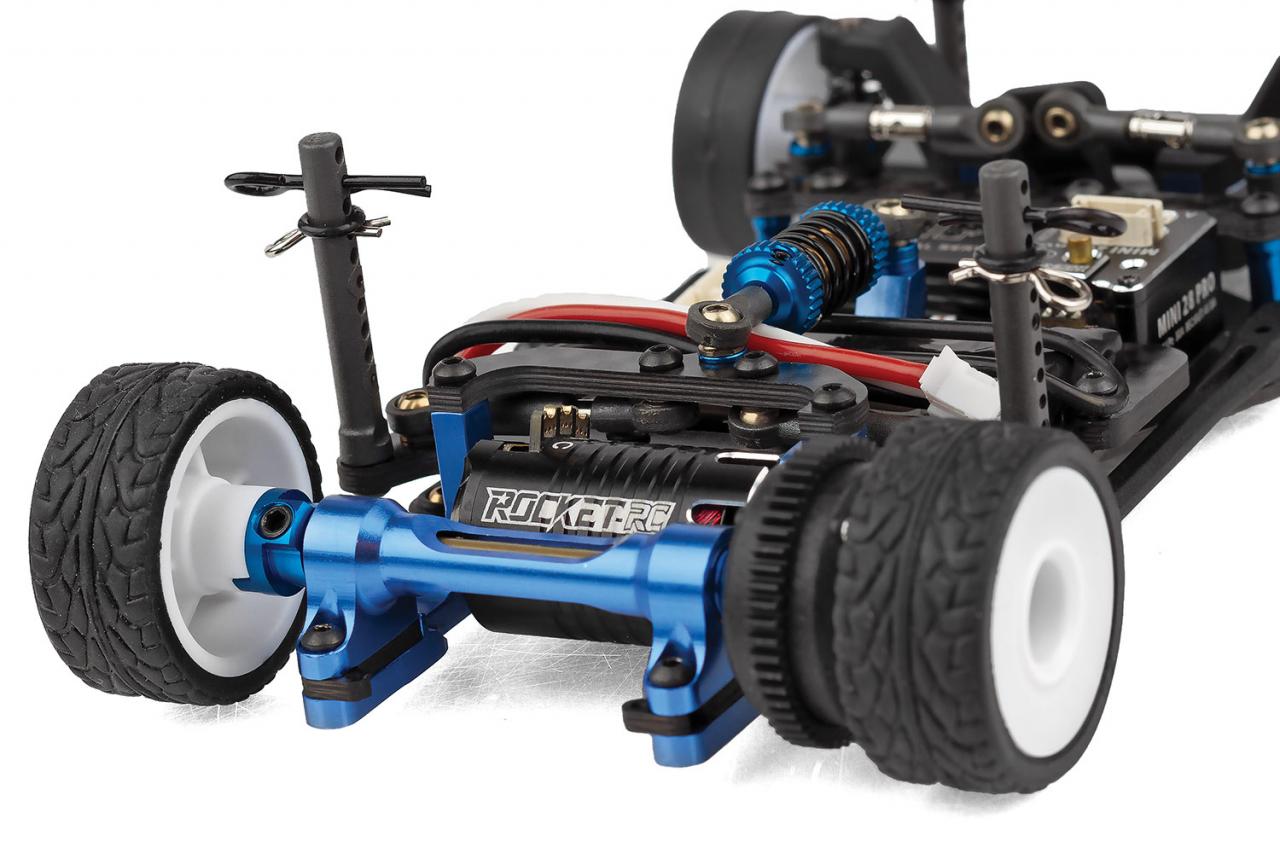

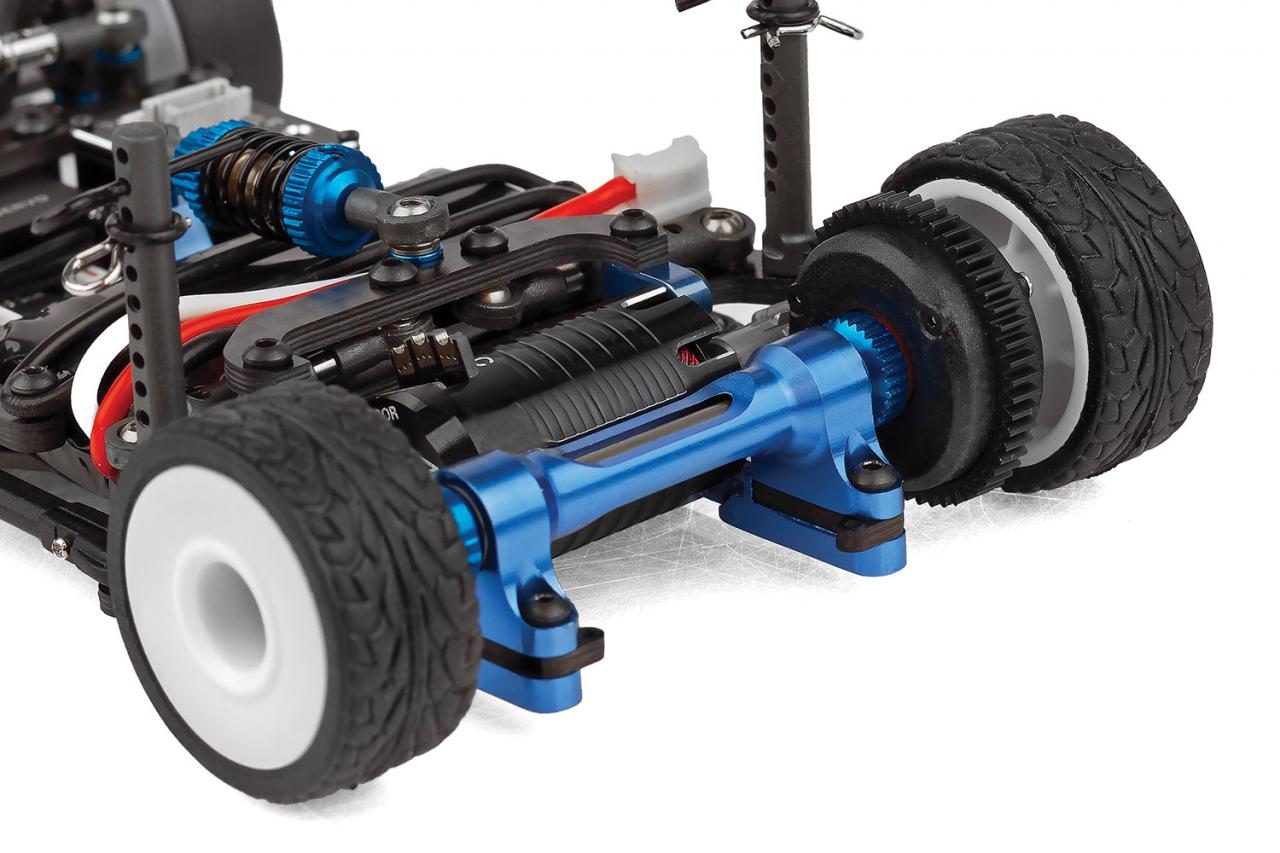

• Two-piece rear pod with adjustable axle heights for different tire diameters and ride heights utilizing Factory Team carbon fiber shims
• Gear differential included and can fit other aftermarket options currently available
• Hard plastic and polycarbonate body mounting options included
• White wheels included that fit optional front wheel flanges to tune steering feel

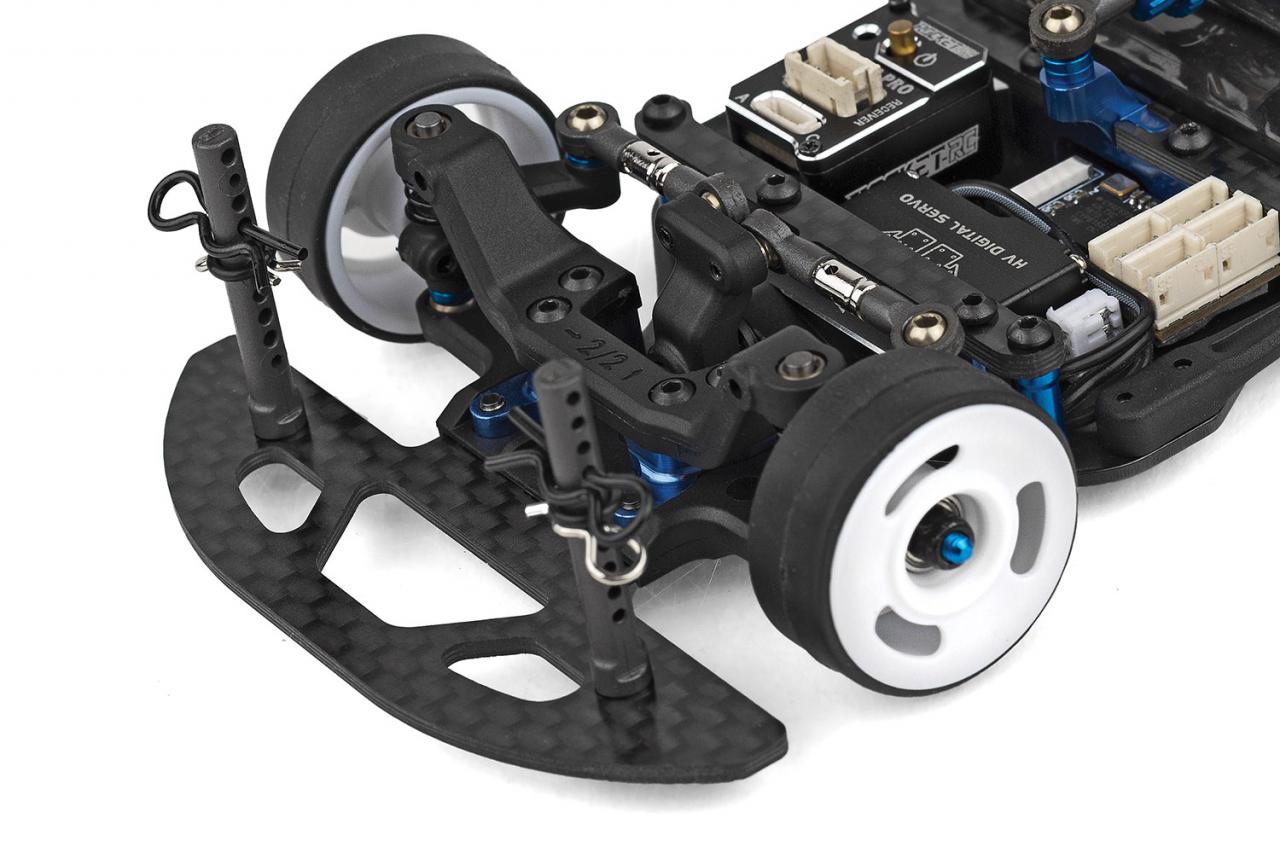

• Universal front bumper included
• Team Associated’s quality, distribution, support, and customer service

Other Helpful Items

• Silicone Shock Fluid (Refer to catalog for complete listings)
• Silicone Diff Fluid (Refer to catalog for complete listings)
• Body Scissors (AE Part # 1737)
• Reamer / Hole Punch
• FT Wrench Set (AE Part #1519)
• Hobby Knife
• Needle Nose Pliers
• Wire Cutters
• Soldering Iron
• Calipers or a Precision Ruler
• 1.5mm hex, .050” hex, 1.3mm hex, 0.9mm hex, 4.5mm nut, and PH00 drivers

Instruction Manual

Power Source: Electric

Terrain: On-Road

Body Style: Touring Car

Scale Size: 1:28 Scale

Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)

Length: 140mm (5.51in)

Width: varies

Wheelbase: 98mm (3.86in)

Weight: varies

Internal Gear Ratio: varies

Drive: 2WD

Product Status: Active

Type: Kits/RTRs
