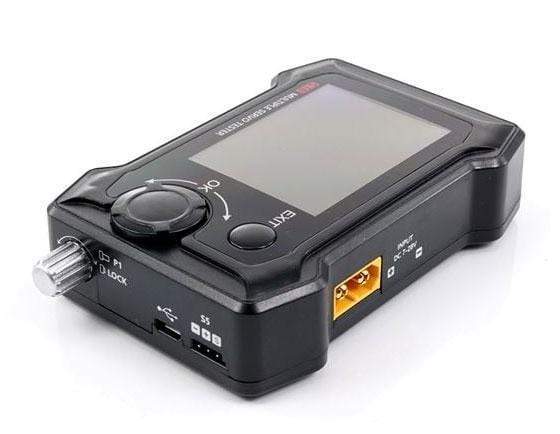

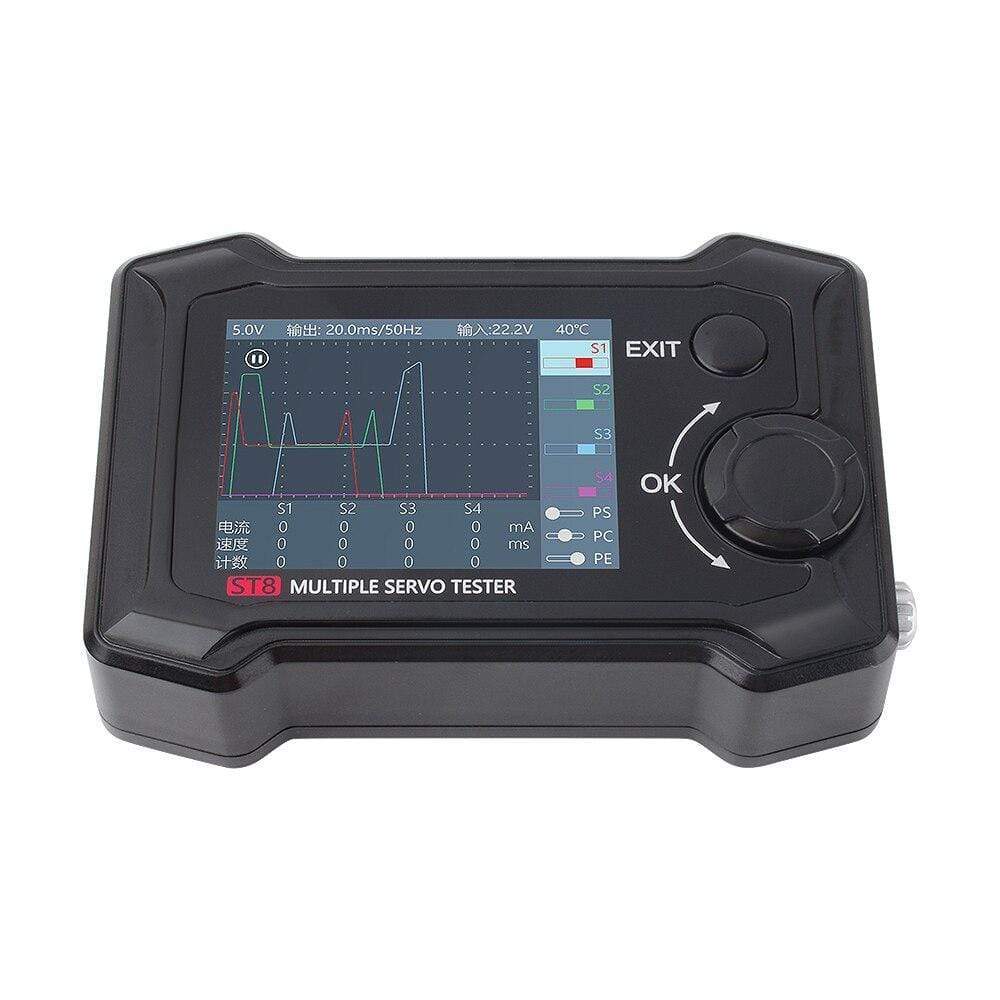

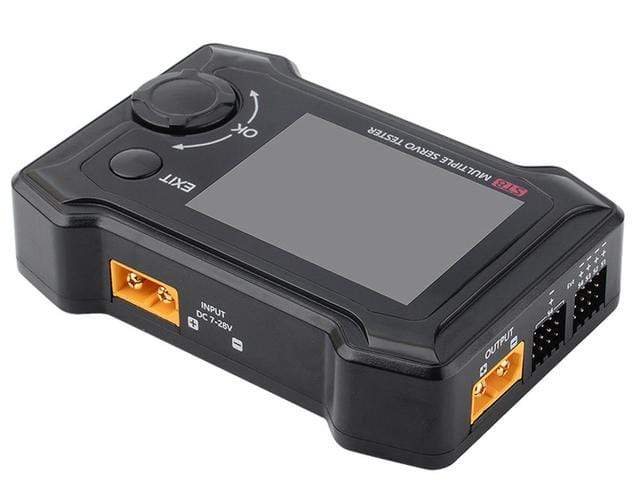

ToolkitRC ST8 Advanced Servo Tester, Driver, Analyzer (PWM/PPM/S.Bus)

Specs:Input voltage: 7-28V@MAX 10AMain output port: 5.0V-28.0V@MAX 10ASignal port: 5.0V-8.4V@MAX 4A/S1-S4Output voltage: 5.0V-8.4V@MAX 4A/S4 Ext.Output signal:100us-2900us@33-1000Hz @S1-S4PWM...
SKU: HP110-0005
Availability: In Stock
$54.99
$54.99
ToolkitRC ST8 Advanced Servo Tester, Driver, Analyzer (PWM/PPM/S.Bus) - HeliDirect

ToolkitRC ST8 Advanced Servo Tester, Driver, Analyzer (PWM/PPM/S.Bus)

$54.99
ToolkitRC ST8 Advanced Servo Tester, Driver, Analyzer (PWM/PPM/S.Bus) - HeliDirect
ToolkitRC ST8 Advanced Servo Tester, Driver, Analyzer (PWM/PPM/S.Bus) - HeliDirect
ToolkitRC ST8 Advanced Servo Tester, Driver, Analyzer (PWM/PPM/S.Bus) - HeliDirect

ToolkitRC ST8 Advanced Servo Tester, Driver, Analyzer (PWM/PPM/S.Bus)

$54.99
Description



Specs:
Input voltage: 7-28V@MAX 10A
Main output port: 5.0V-28.0V@MAX 10A
Signal port: 5.0V-8.4V@MAX 4A/S1-S4
Output voltage: 5.0V-8.4V@MAX 4A/S4 Ext.
Output signal:
100us-2900us@33-1000Hz @S1-S4
PWM 500us-2500us@S5
PPM 8CH@S5  SBUS 16CH@S5
P1 rotation range: 1000us-2000us@P1
MicroUSB: Upgrade @ USB3.0
LCD display: 2.4 inch TFT RGB 320*240 resolution
Product Size: 99mm*68mm*26mm
Weight: 140g
Packing Size: 105mm*80mm*45mm
Weight: 160g
Read More

Customer Reviews

Based on 4 reviews
50%
(2)
25%
(1)
25%
(1)
0%
(0)
0%
(0)
W
Walter S.
The tool

This tool tester really works great

E
Edwin

Great tool to have in testing servos before install.

D
Dennis P.
Cheaply made

Mine had bent connection pins, was able to bend back myself, no quality control

R
Ronald T.
A nice bit of kit!

I've been quite impressed with the ST8, so far :) It's relatively easy to configure and use (once you know how... see below) and appears to be well built. The instructions included with the device are not great, however, so I'd recommend the 3rd party instructions provided by Peter Scott, at:

https://intellog.com/assets/pdf/rcsd-2021-03-toolkitrc-st8-servo-tester.pdf

There certainly are cheaper servo testers on the market but none of them, to my knowledge, provide the flexibility and feedback provided by the ST8.
