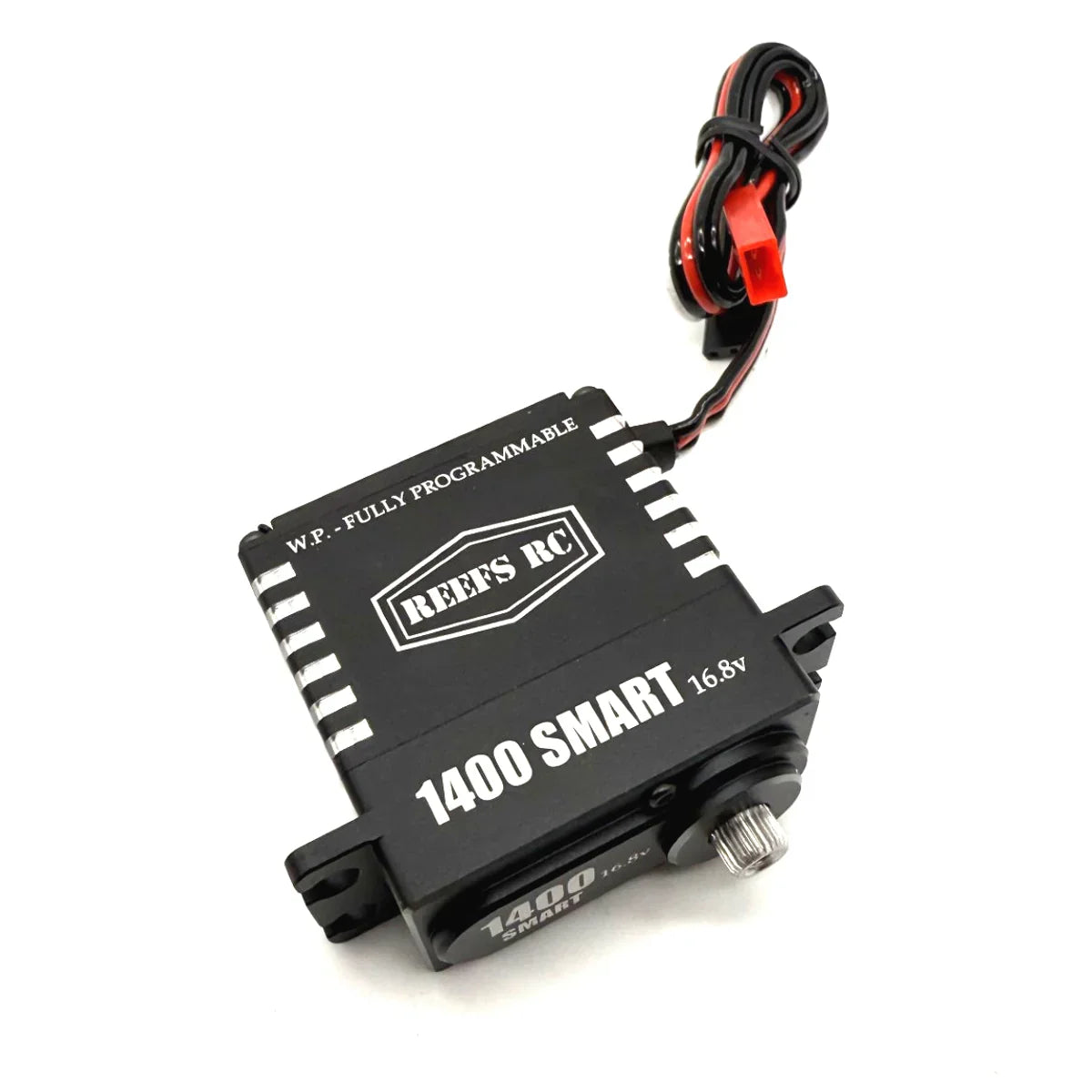

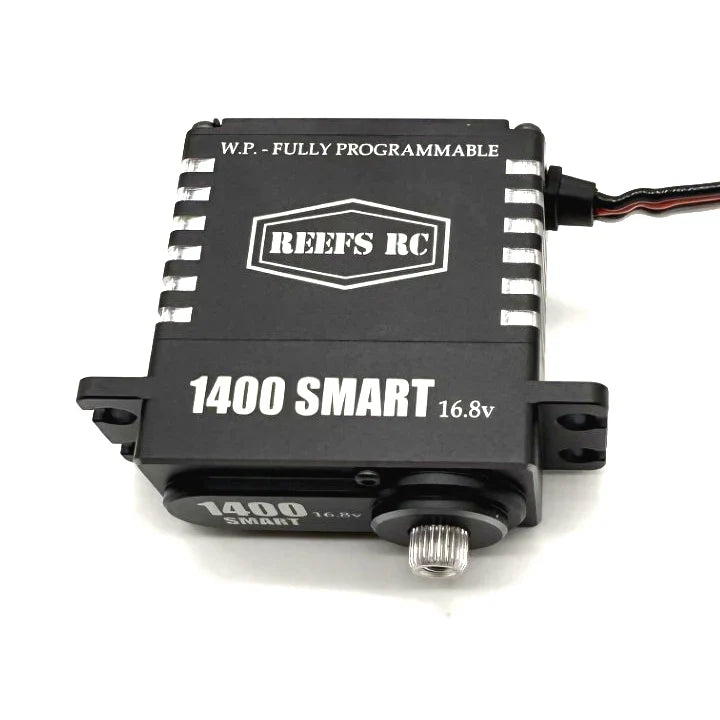

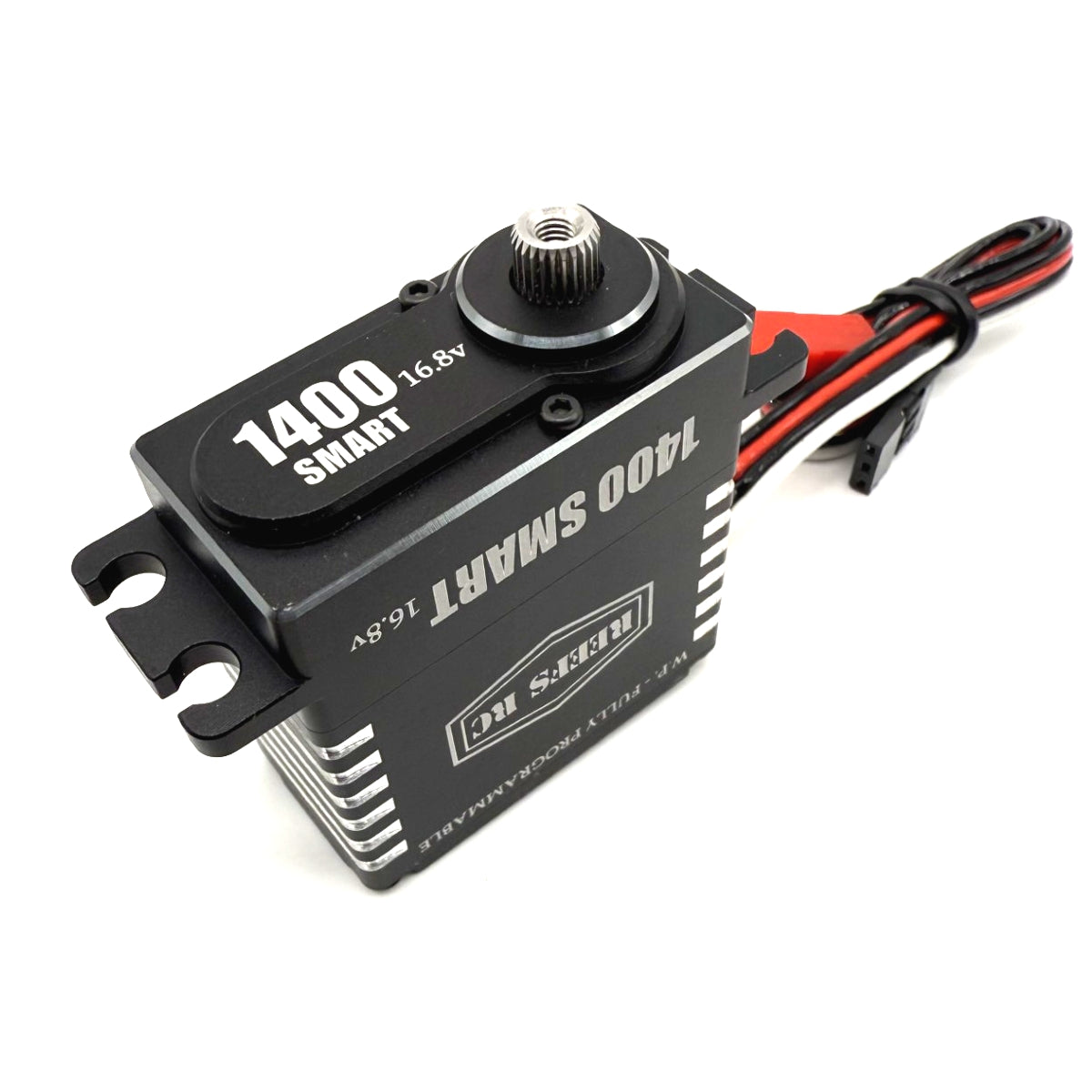

REEFS RC 1400 Smart 16.8V Brushless Servo
The strongest direct power yet! 1400oz of Torque at 16.8v! SPECIFICATIONS: High Torque High Speed Brushless SERVO...
SKU:
REEFS246
Availability:
In Stock
- $189.99
- $189.99
- Unit price
- per
The strongest direct power yet! 1400oz of Torque at 16.8v!
SPECIFICATIONS:
- High Torque High Speed Brushless SERVO or WINCH
- Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK V2 (Sold separately) and Software.
- BUILT IN PREPROGRAMMED WINCH CONTROLLER
- SUBMARINE WATERPROOF: 7 Point Seals w/ HEAT SINK
- Military Grade Construction
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- 4 Pole Brushless Motor
- Voltage: 10V - 16.8V
- Internal: Steel Gears / All CNC Aluminum Casing
- Bearing Type: 4 Ball Bearings / Weight: 3.19oz / 90gm

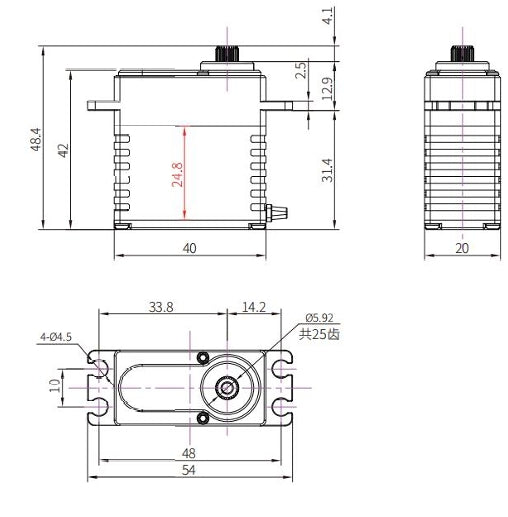

- Dimension: 1.57 x .79 x 1.5 (LWH) / 40x20x42mm
- Torque: 1140oz @ 12.6v/ 1223oz @14.4v / 1400oz @16.8v
- 82KG@12.6v / 88KG@14.4v / 101KG@16.8v
- Speed: .15sec @ 12.6v / .13sec @ 14.4v / .11sec @ 16.8v
- Spline: 25T
- Dead Band Width: 2¦Ìs
- Unload Current:
- 320mA@10.0V
380mA@11.1V
480mA@12.6V
530mA@14.4V
630mA@16.8V - Load Current:
- 3200mA@10.0V
3600mA@11.1V
4200mA@12.6V
4400mA@14.4V
4800mA@16.8V
| Vendor: | REEFS RC |
| SKU: | REEFS246 |
| Availability: | In Stock |
| Product Type: | Car Electronics |
| Weight: | 0.5 lb |
