MEUS Racing SCX24 Metal Isokinetic Front and Rear Axles with 3-Section CVDs for 1/24 SCX24 Deadbolt C10 JLU Gladiator

MEUS Racing SCX24 Metal Isokinetic Front and Rear Axles with 3-Section CVDs and 52° Maximum Steering Angle +5mm wider for 1/24 SCX24 Deadbolt C10 JLU Gladiator Bronco.

Key Features:

• 1. The silver and gold axle housing surfaces are chrome-plated, the blue and purple are anodized to improve corrosion resistance, enhance wear resistance, extend service life, and improve appearance.

• 2. MEUS Racing's patented 3-Section-CVD structure effectively reduces the shaking of the front wheel when turning and improves steering performance.

• 3. Both sides of the front and rear axles are widened by +5mm to obtain more space while steering, thus providing more tire options.

• 4. Front and rear are equipped with customized 2-14T gears. By replacing the gears of the rear axle with 2-16T gears, you can get 14% underdrive.

• 5. Support high torque adjustable servo mount, adjustable height rear axle structure with upper link mount, and diamond-cut diff cover.

• 6. Brass steering knuckles added weight; other parts, such as differential covers, servo mount, and rear link mount, are made of high-quality aluminum alloy for greater durability, strength, and stability to handle aggressive driving.

• 7. If you want the front wheels to overdrive, please change the differential gear of the front axle to 2-12T.

• 8. The SCX24 Isokinetic axles work with SCX24 Deadbolt, C10, JLU, Gladiator, Bronco, B-17 Betty, SCX24 Base Camp, Power Wagon etc.


Specifications

• Axle housing Material: aluminum alloy
• Steering knuckles Material: Brass

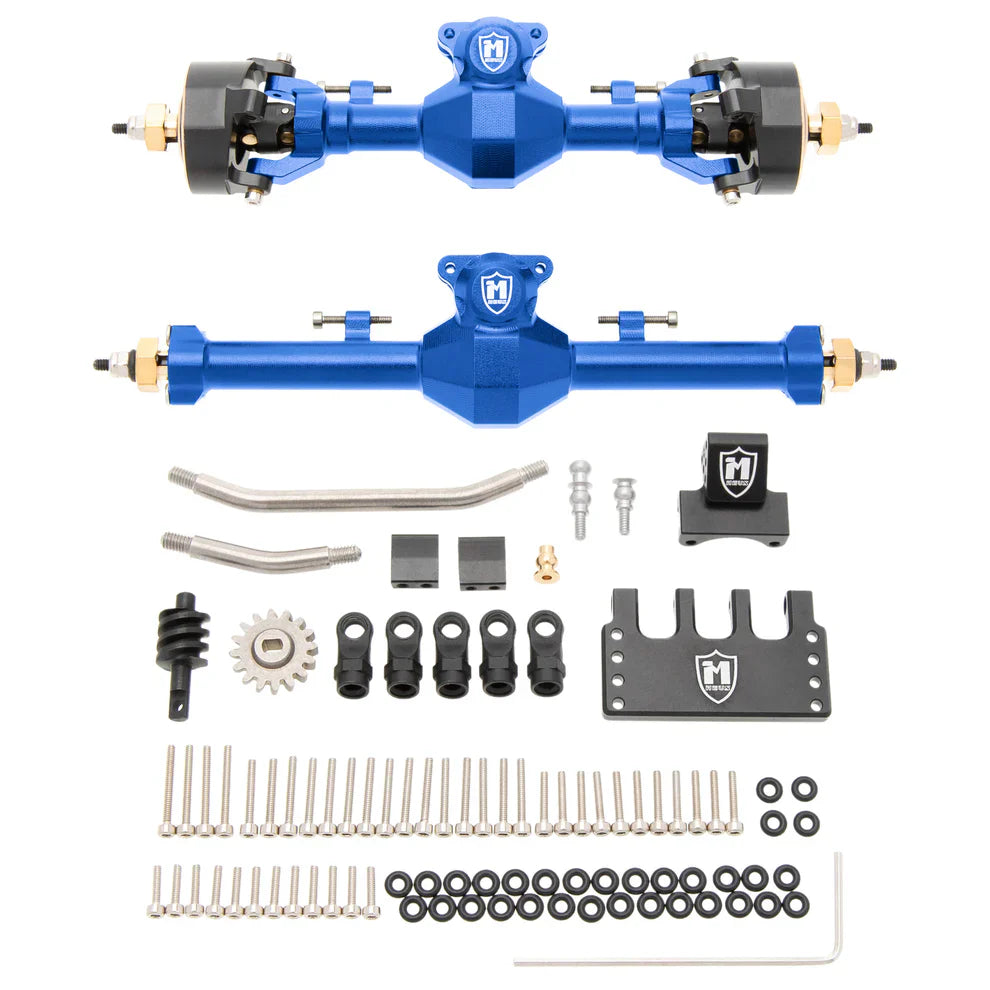

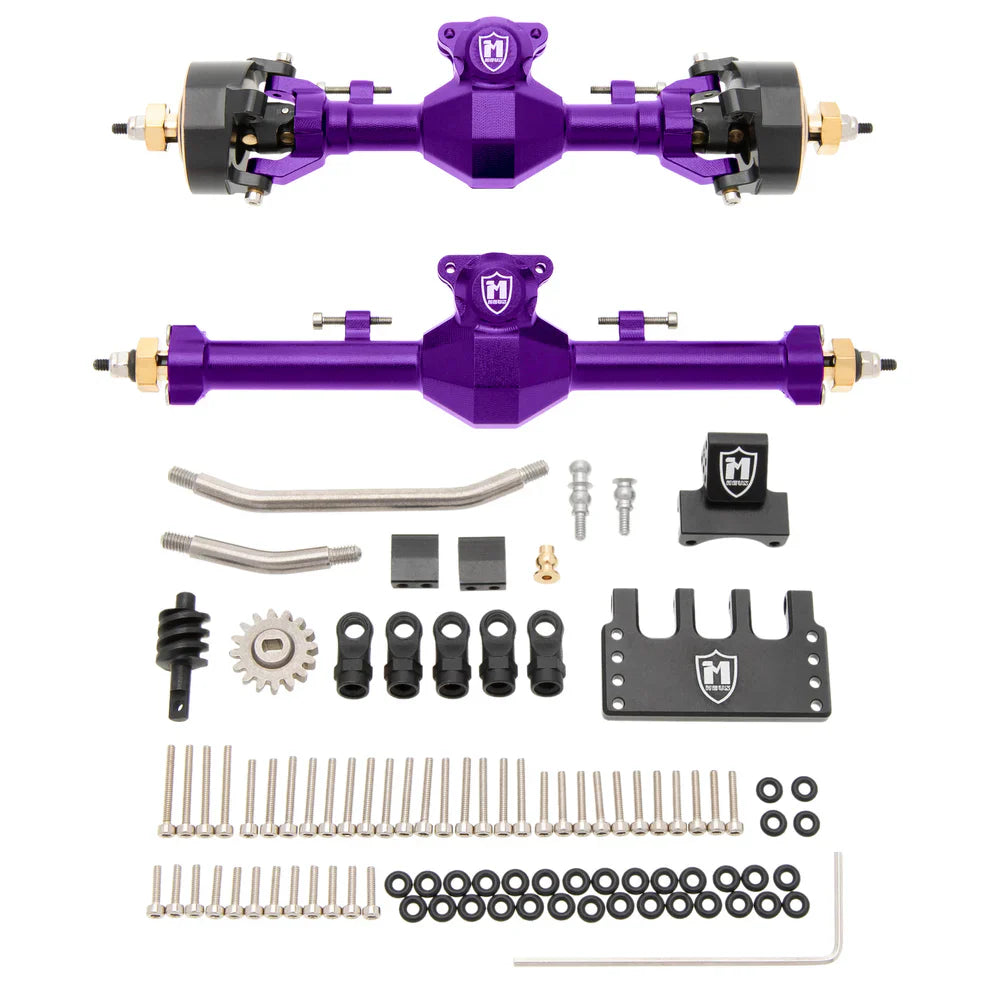

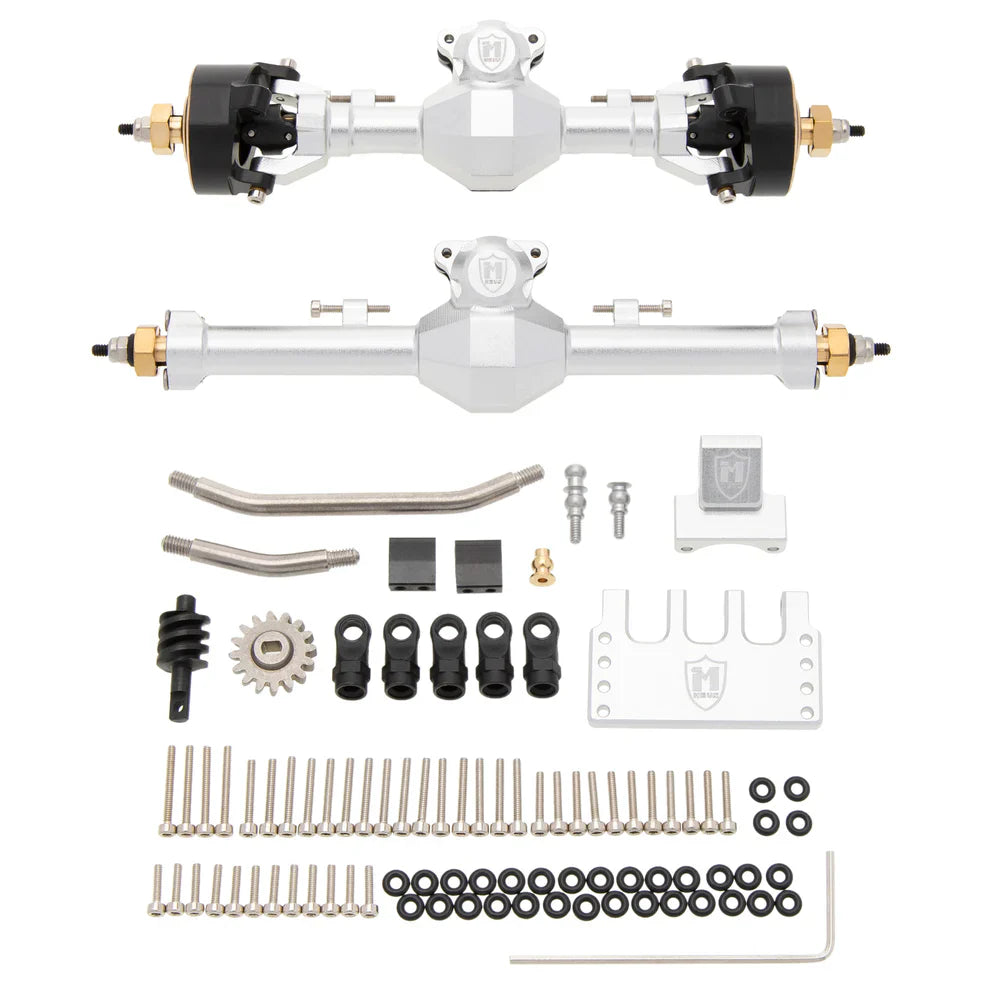

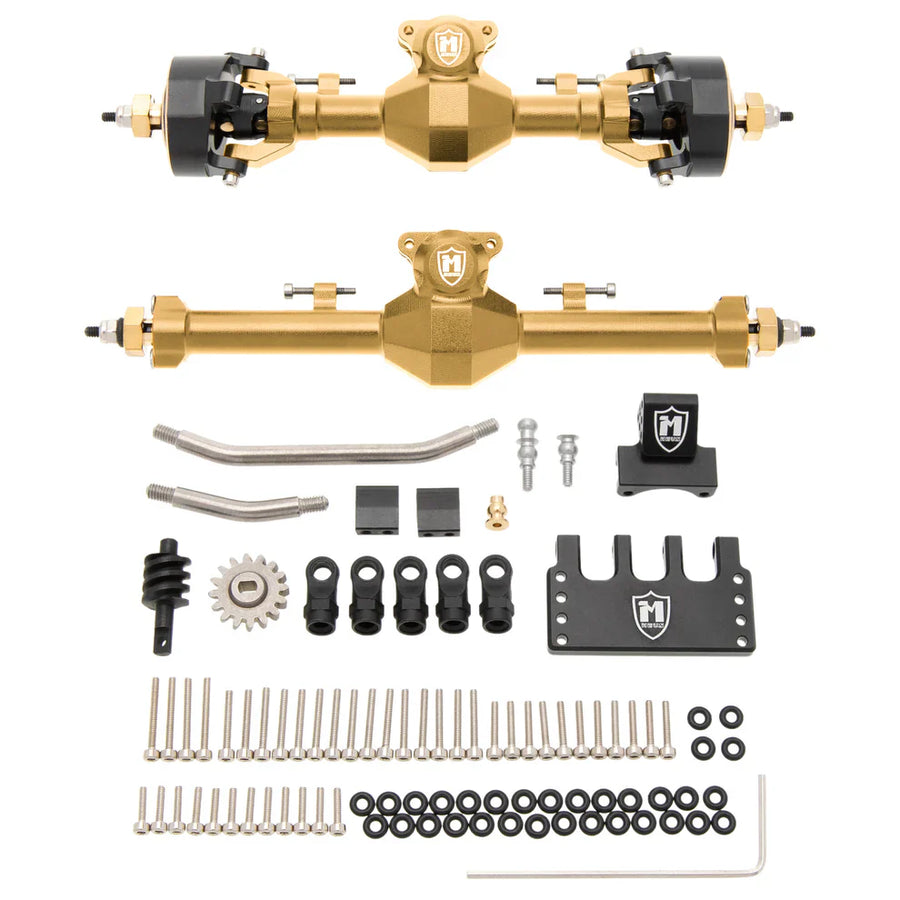

Package List:

• 1 × SCX24 Isokinetic front axle

• 1 × SCX24 rear axle
• 3 × Steering Links
• 1 × 2-16T rear axle underdrive diff gear
• 1 × Servo Mount
• 1 × Rear links mount
• 1 × Screws set and screw tool
• 1 × Rubber O-rings
