HobbyPlus CR-18P V3 Brushless T-Hunter (Matte Green) With TORQ MLS-1024 Premium DIRECT-MOUNT Servo

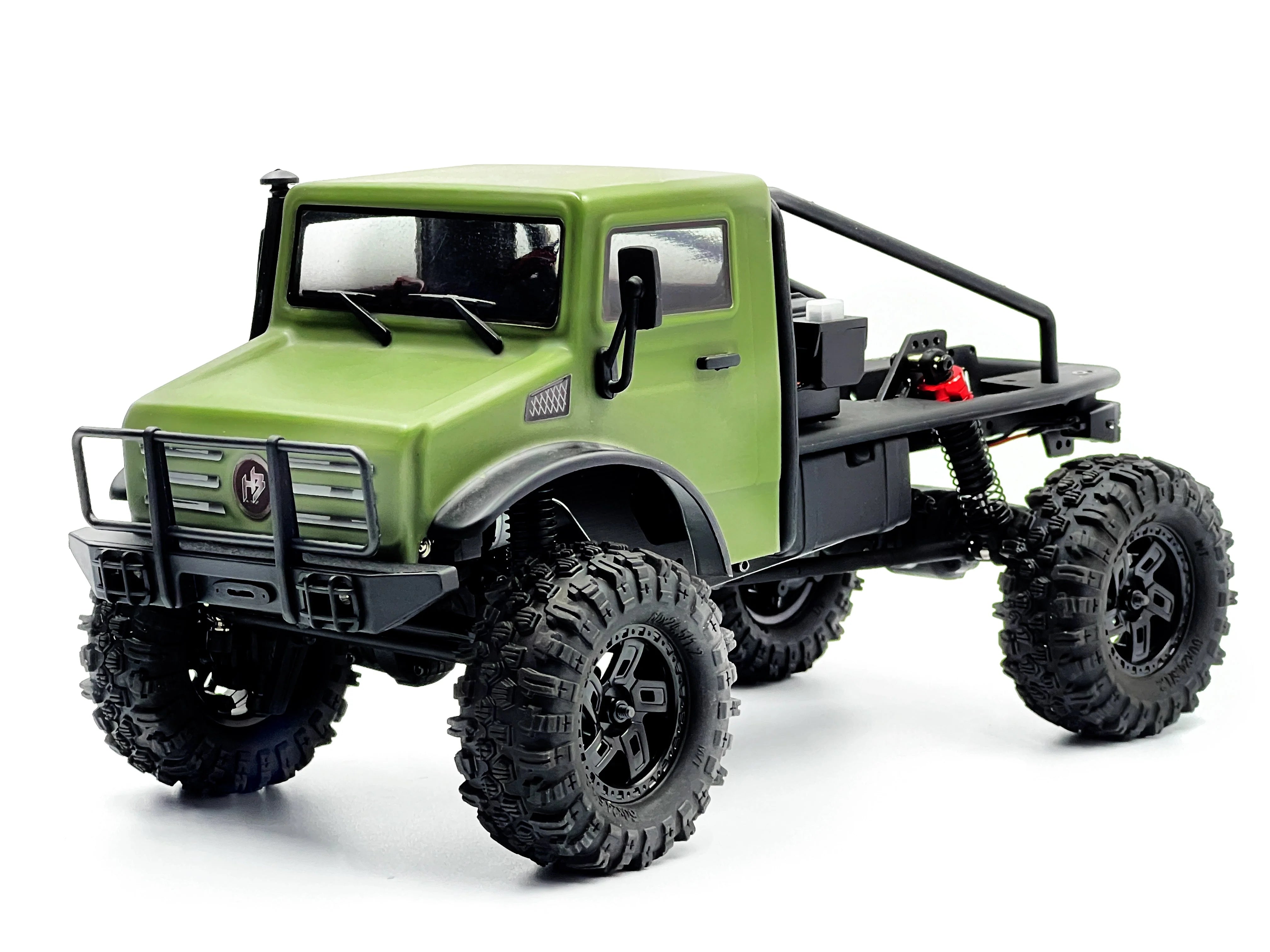

Introducing The New Refresh CR-18P V3

The CR18P is a staple of the HobbyPlus brand. Just two years into the platform, we
are on our 3rd iteration due to the constant evolution of the 1/18 crawler market. Our
customers’ feedback along with a lofty desire to stay at the forefront of the market, these refinements create an exciting new package that propels the CR18P, yet again, to a top contender in the 1/18 market and all at a lower price!

The heart of any crawler has to be the power system. Let’s face it, without a strong/
dependable/flexible power system the experience of the chassis would not be as
enjoyable. This is why we’ve partnered with Hobbywing to push the voltage range from 2S and 3S. This is a huge update as the 3S capable system offers an array of power options for different driving styles and terrains.

Another key upgrade to the V3 is 27% under drive in the rear axle through the ring
and pinion gear. Some may consider the front axle as overdrive in this case, naturally, as
that’s the common language used. Technically they’re right, but we call it underdrive as
the front axle is the same gearing as the 2024 version. All this to say that the faster
rotation of the front drive and slower rotation of the rear drive creates more “suction” to the surface below creating a more planted, predictable and capable ascents.

Lastly, and probably the most attractive new feature of the CR18P V3, is the price. At
just $159.99 MAP for a complete RTR portal axle with full metal gears, this might be the
most compelling ready-to-run scale crawler on the market.

While the new features define the difference of the CR18P V3, the core of the platform retains all of the features it is known for:

Portal Axles
- Supreme clearance over traditional straight axles
- Multiple gear ratios available as aftermarket support
Full metal gear drivetrain including the single speed EVO transmission
- Super strong sintered gears throughout the transmission, axles and portal hubs
HD Driveshafts
- increase durability
Oil-Filled, threaded big bore shocks
- Linear tuning ability threaded shock collars
- Rebuildable
Counter-rotating rear driveshaft
- To minimize torque twist
SOA (Servo on Axle)
- Precise steering performance
Full metal geared transmission (gear box, front & rear axle)
- Maximum durability to handle brushless power
Super clearance 5-degree skid plate
- Creates added clearance in the rear portion of the wheelbase to aid in clearance of
large obstacles and overhangs.
Aggressive shock and link geometry
- Great crawling performance promised out of the box
Low center of gravity minded design
- LCG chassis design with rear 5degree kick up to make sure it is planted
1.2” Beadlock Wheels
- Easy access & maintainance
60mm Super-Soft Mudder Tires
- Performance proven in multi terrain
Tilt body (Trail Hunter)
- Easy access to electronics
LED lights front and rear
- Crawl & fun from day to night
Scale detail throughout
- Plastic molded body plastic parts for maximum scale appearance

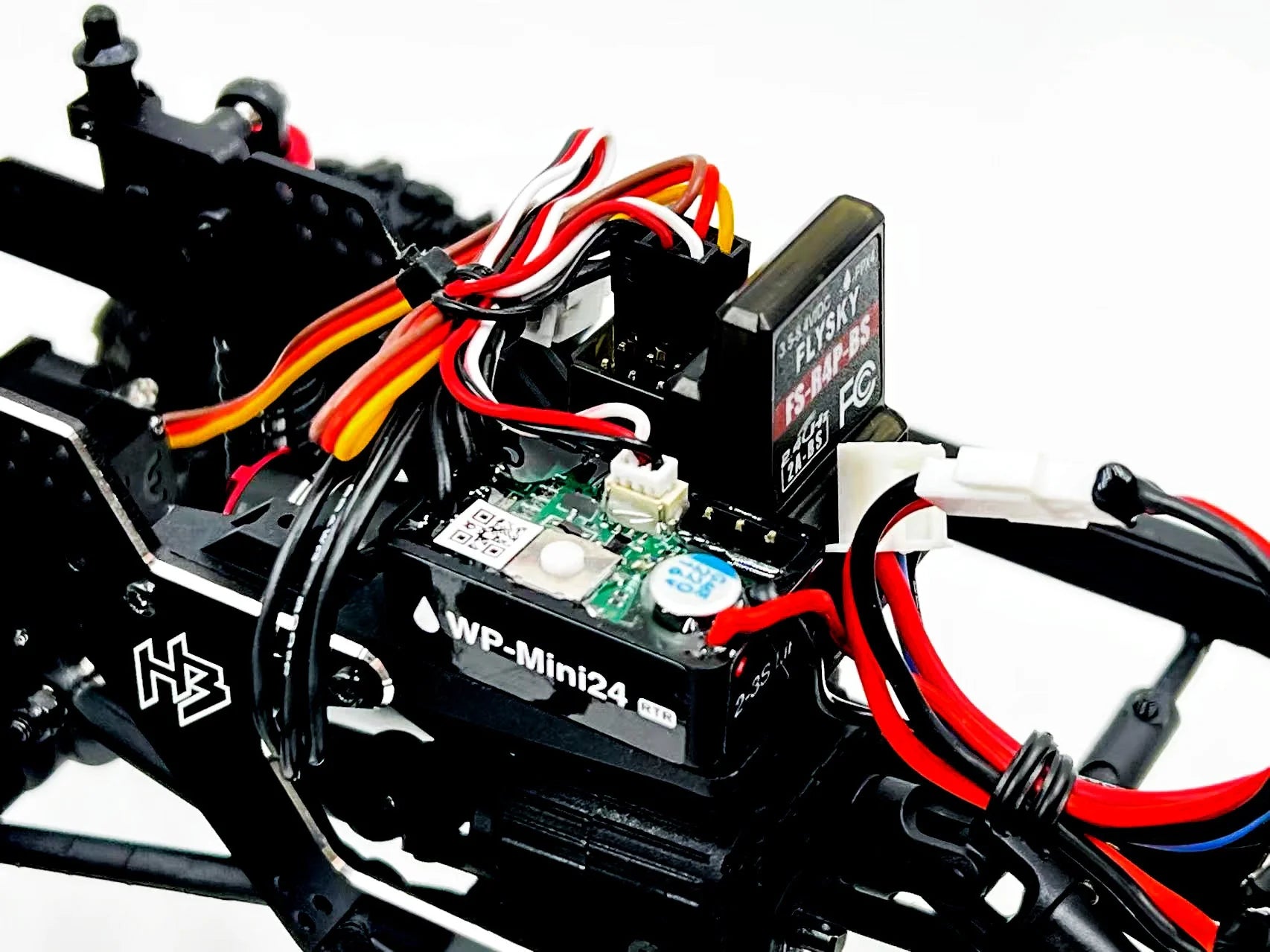

Fly Sky Radio System
- Stable & great performance out of the box
Waterproof Electronics
- Non stop having fun in & outdoor

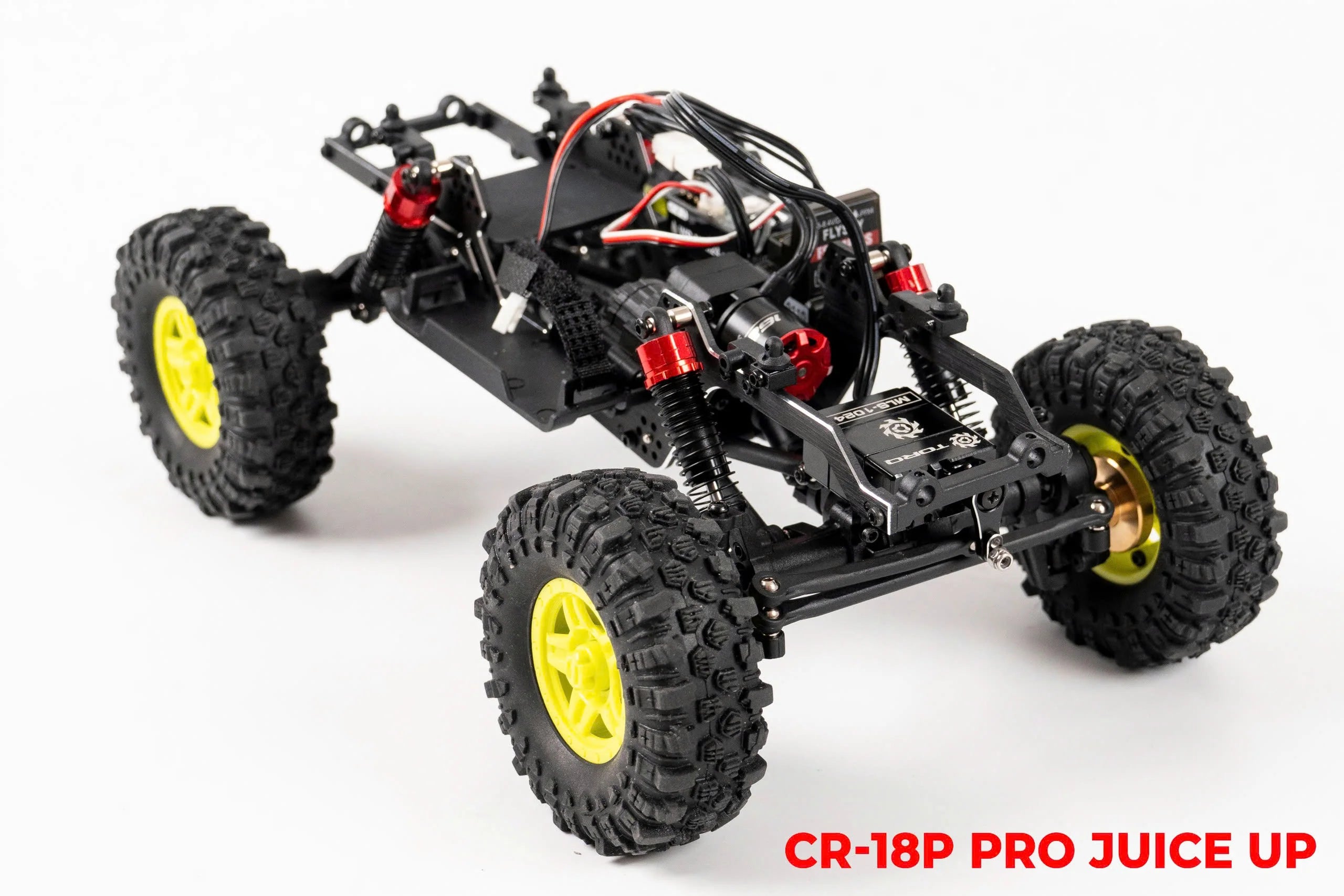

TORQ MLS-1024 Premium DIRECT-MOUNT Servo for FURITEK FX118, CR-18P 2024, HobbyPlus ARKTOS, CR-18P Pro Juice Up, CR-18P V3 Brushless and HPI Venture 18

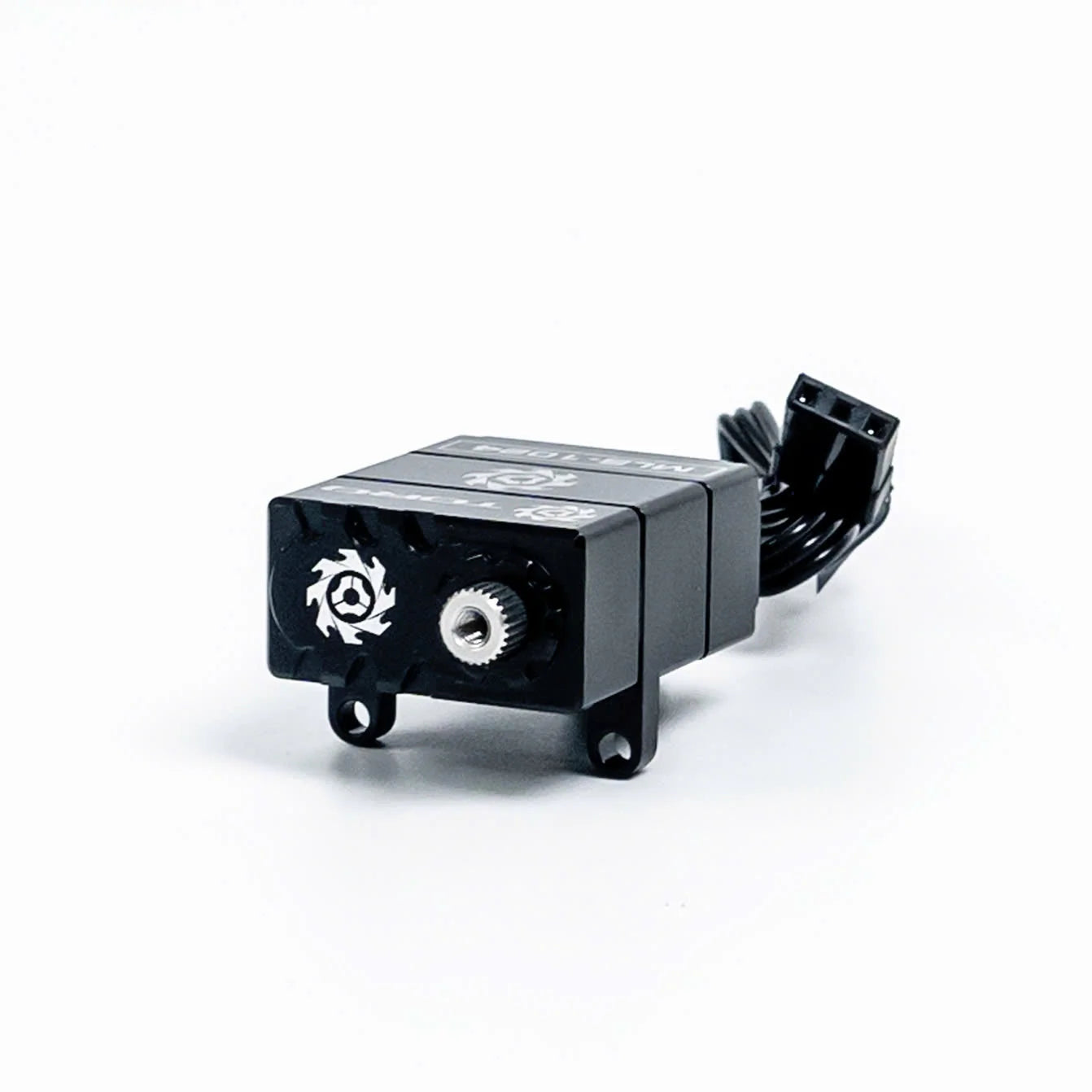

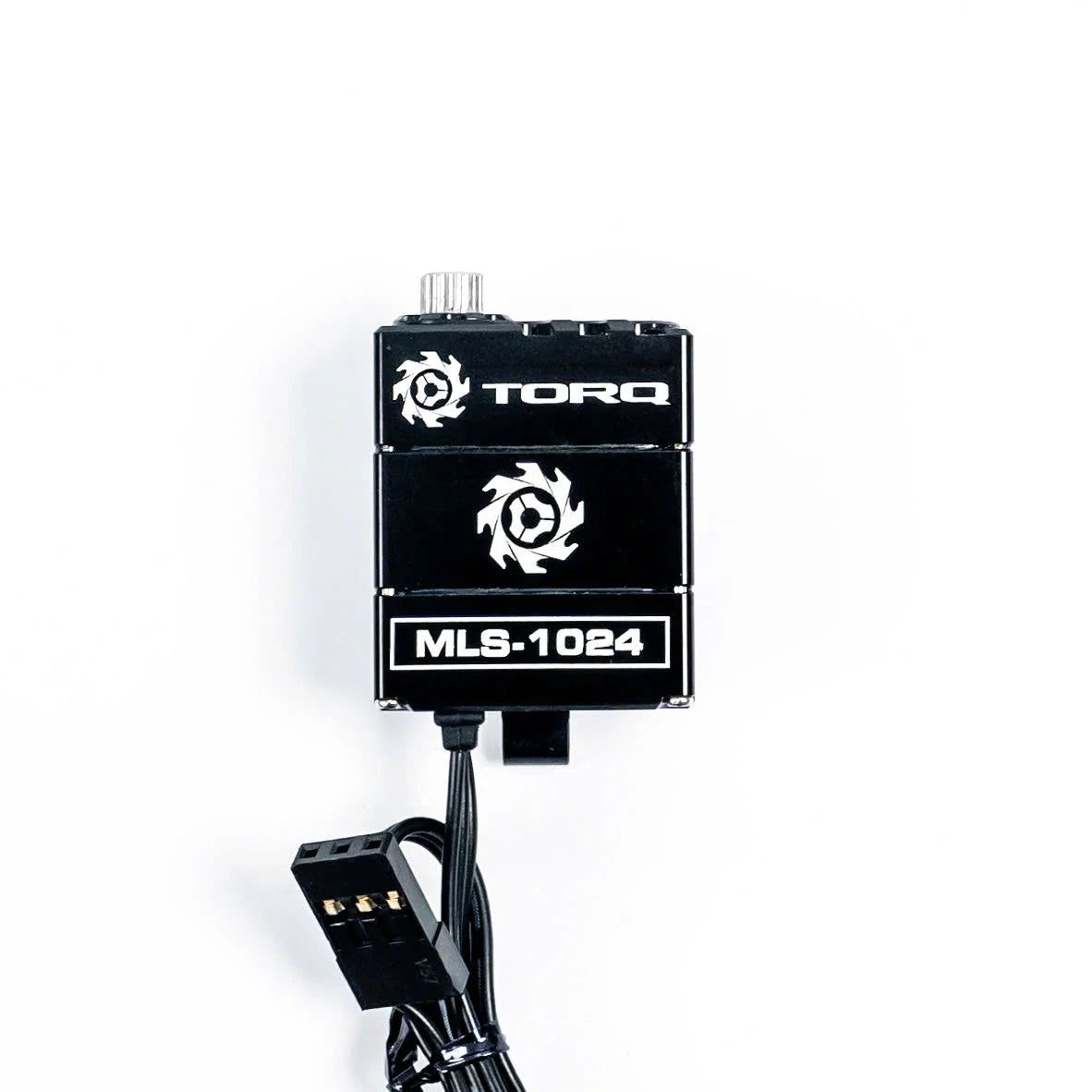

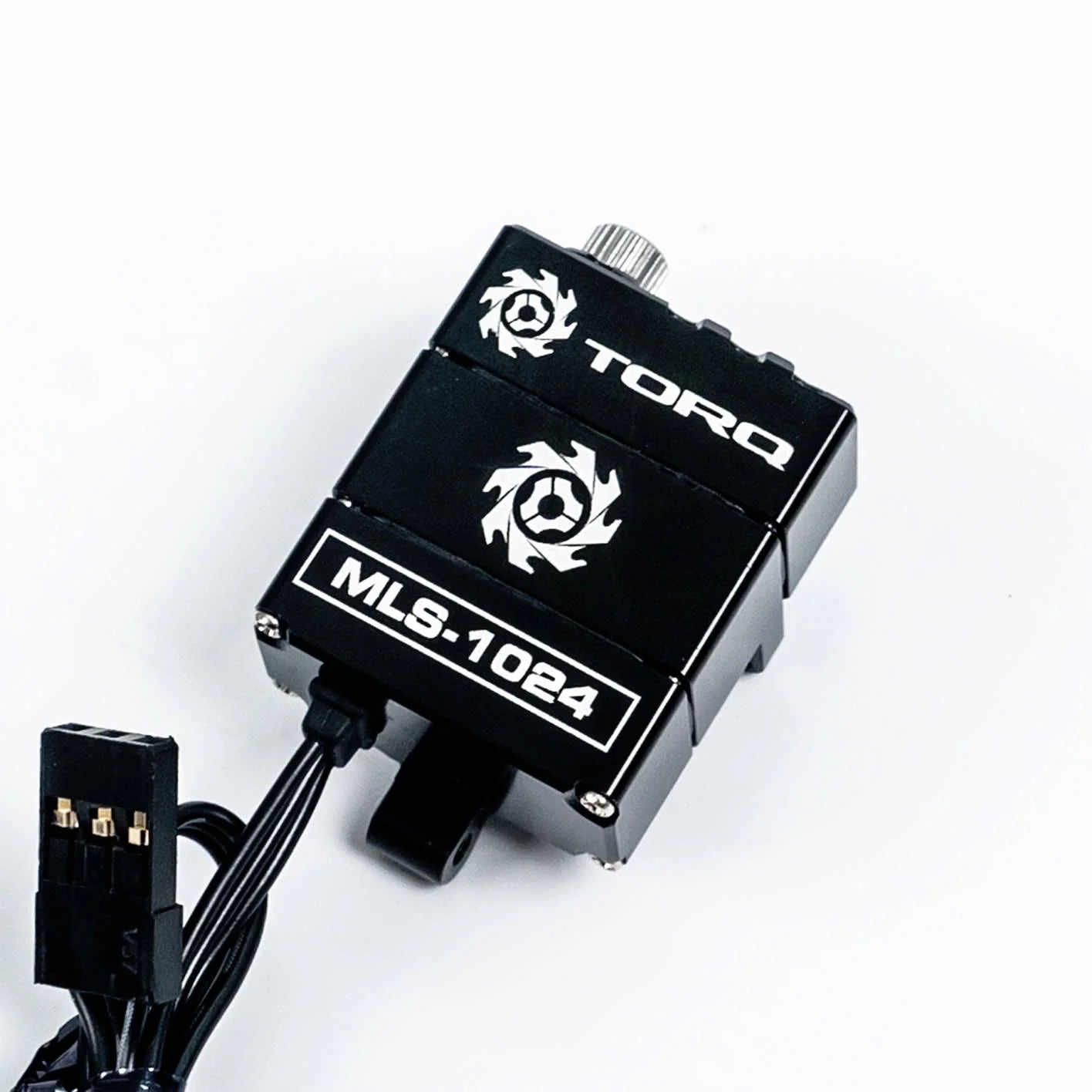

The TORQ MLS-1024 Premium DIRECT-MOUNT Servo is expertly engineered to cater to the needs of small-scale crawlers. This innovative servo design eliminates traditional servo ears, providing ample clearance between the servo and the frame rails, ensuring smooth and unobstructed suspension movement. The MLS-1024’s unique configuration also eliminates the necessity for a separate servo mount, simplifying the installation process.

Key features include rear exit wires, further ensuring that suspension travel remains unhindered. This servo is designed for ultimate clearance all around, making it a standout choice for crawler enthusiasts. The design is patent-pending, showcasing its unique and innovative nature.

FULL Precision CNC Aluminum Case with black anodizing colors.

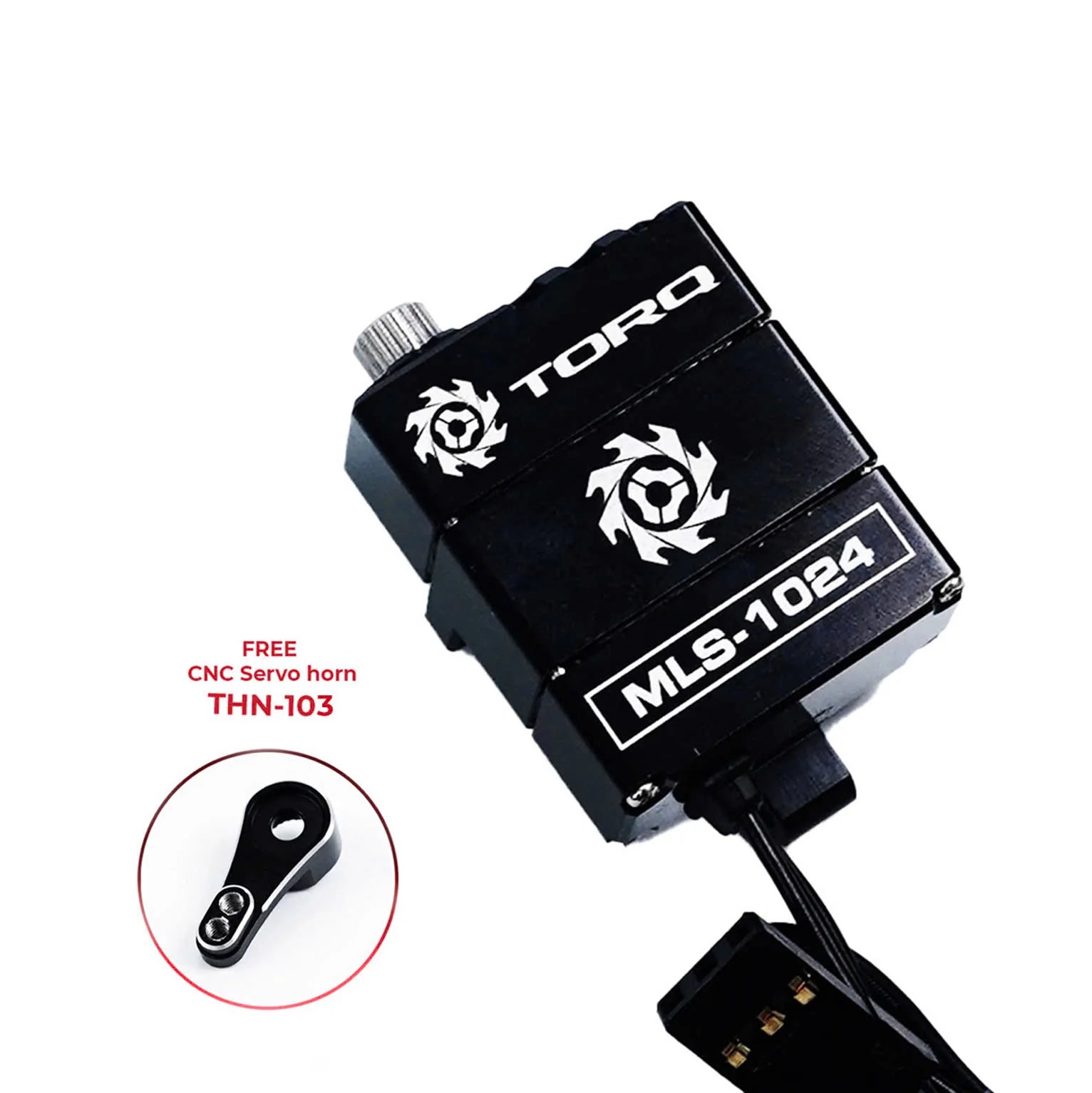

FREE CNC Servo Horn THN-103 – $14.99 Value

Features

• High Torque Output: Delivers powerful performance for small-scale crawlers.
• Mountless Design: Eliminates the need for a separate servo mount, reducing the overall cost.
• No Servo Ears: Provides ample clearance between the servo and frame rails, ensuring smooth suspension movement.
• Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.
• Simplified Installation: Easy to mount due to its unique design.
• Enhanced Clearance: Designed for ultimate clearance around the servo.
• CNC Servo Horn Included: Limited time offer includes a free CNC servo horn.
• Full precision CNC Metal Gears
• Full precision CNC Aluminum Case with black anodizing color.
• Waterproof
• Patent Pending: The innovative design is currently under patent protection.

Specifications

-          Dead Bandwidth: 3μs

-          Working Frequency: 1520μs / 330Hz

-          Operating Voltage: 5.0V - 8.4V

-          Motor Type: Coreless Motor

-          Operating Speed:

        ·       At 5.0V: 0.10 sec/60°

        ·       At 6.0V: 0.09 sec/60°

        ·       At 7.4V: 0.07 sec/60°

        ·       At 8.4V: 0.055 sec/60°

-          Stall Torque:

        ·       At 5.0V: 9 kg-cm (125 oz-in)

        ·       At 6.0V: 11.5 kg-cm (160 oz-in)

        ·       At 7.4V: 12.8 kg-cm (177 oz-in)

        ·       At 8.4V: 14.5 kg-cm (200 oz-in)

-          Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)

-          Weight: 22.0 g (0.78 oz)

-          Connector Wire Length: JR 170 mm (6.7 inches)

-          Output Gear Spline: 25T

Benefits

-          Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.

-          Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms.

-          Performance Enhancement: Unhindered suspension movement leads to better crawler performance.

-          Ease of Installation: Simplifies the mounting process, saving time and effort.

-          The TORQ MLS-1024 Premium Torque Micro Servo is an excellent choice for crawler enthusiasts looking for a high-performance, easy-to-install, and cost-effective servo solution.
